SELF SUPPORTING CHIMNEYS

CIR
Double walled monoduct chimney isolated with interior self supporting duct
CE qualification according to EN 13084-7
CE qualification according toEN 1090-1
Welding ertificate according to EN ISO 3834-2

CER
Double walled monoduct chimney isolated with exterior self supporting barrel
CE qualification according to EN 13084-7
CE qualification according toEN 1090-1
Welding ertificate according to EN ISO 3834-2

CERm
Polyduct chimney with exterior self supporting barrel
CE qualification according to EN 13084-7
CE qualification according toEN 1090-1
Welding ertificate according to EN ISO 3834-2

MAST. DINAMAST. STRUCTURES. VENTILATION TOWERS. CONNECTING FLUE PIPES

GE30+

GE50+

GE100+

Modular flue system for GENERATORS and TURBINES

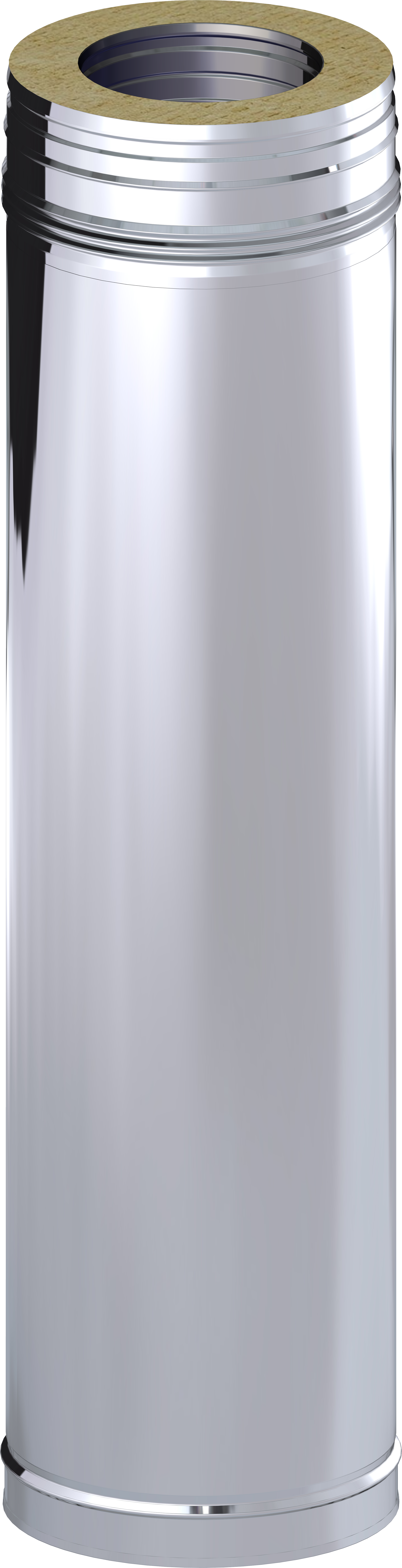

Modular twin wall insulated chimney specifically designed for
power generators working in conditions of high temperature
(up to 600ºC) and high pressure (up to 5,000 Pa.)

MAIN FEATURES

Individual expansion absorptions at joints
Gas tightness class H1
Temperature class T600 (up to 600ºC )
It is not required to apply lubricant nor apply high
pressure to the elements to carry out the installation.
The installation of the outer seal is simple and thanks to
its position in the chimney it is possible to verify visually
that it has been correctly installed.
It can be totally dismantled.

Designed for condensing (with seal) and dry (without seal) applications:

Domestic heating and hot water systems
Industrial / commercial heating
Bakery ovens
Open fire places
Hot air generators
Ventilation and smoke extraction
Wood burning stoves

Concentric modular chimneys for standard or low output boilers.

Concentric flues available in stainless steel that allow the
simultaneous air intake and gas exhaust of a room sealed
generator. The perfect solution for both dry or condensing appliances
fueled with gas or oil.

ADVANTAGES
A safety edge on all our pipes: prevents the risk of cuts
and reinforces the rigidity.
Improved finish, simple and discreet locking bands.
Easy and simple to assemble.

Ø80/125
Ø100/150
Ø130/200
Ø150/200

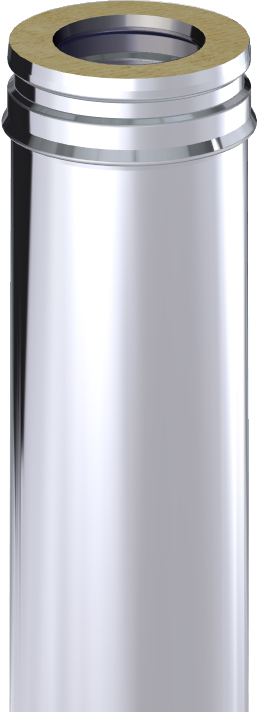

Twin Wall modular stainless steel flue systems that
passes through different fire sectors. 100 mm thick
mineral wool filler insulation. Applications:
ventilation and evacuation of combustion products

Aplications:

Boilers for heating and hot water production
Bakery and patisserie ovens
Living room and household chimneys
Boilers and ovens for industrial use
Cooker extractor hoods
Generator sets and Pumps for fire fighting
Control and evacuation of fire smoke
