The control valve plays an important role in the loop adjustments, in the automatic control of industrial processes. Performs the function of varying the flow of control fluid, which modifies the value of the measured variable, behaving like a continuously variable area orifice. Within the control loop is as important as the primary element, the transmitter and controller. The shutter control performs the function of fluid flow, acting in the direction of its axis. Shutter equal percentage: In a shutter with equal percentage characteristic, every increment of stroke in the shutter produce a change in the flow that is proportional to the one that flowed before the change.

Gaskets are used isopercentual valves for:

• Fast processes.
• When the system dynamics are not well understood.
• When you need high range flow control (rangeability)

* * The "Rangeability" or field of flow control that valve is capable to regulate maintaining the inherent characteristic curve.

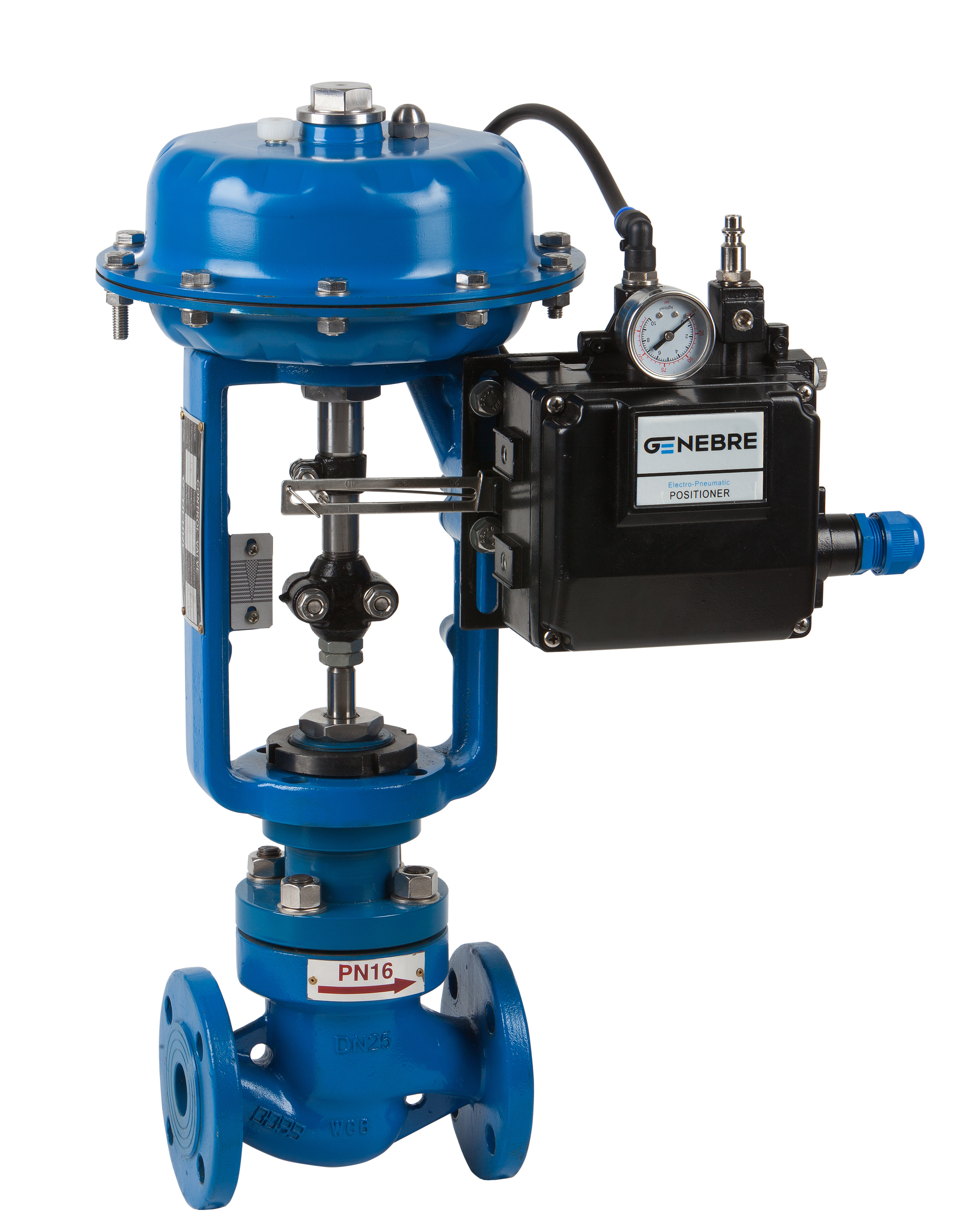

Globe Valve: Valve whose construction is distinguished by controlling the flow through a linear movement. Valve with single seat and 2 ways. Single seat valves require a larger actuator for closing the shutter against the differential pressure of the process. The tight closure is achieved with stainless steel shutter and PPL seat. Normally Closed Control Valves (Spring Return) Drive: pneumatic (air to open)

Features: Body material: ASTM A216 WCB Connection: Flanged ends DIN 2543 (PN16) Limit of pressure: Water 16 bar at 120ºC Steam 13 bar at 200ºC Working Temperature: -20ºC / + 230ºC Features of Actuator: Diaphragm type, spring return, normal close. Maximum input pressure: 6 bar. Sealing: DIN EN 1349 Class VI (zero leakage)

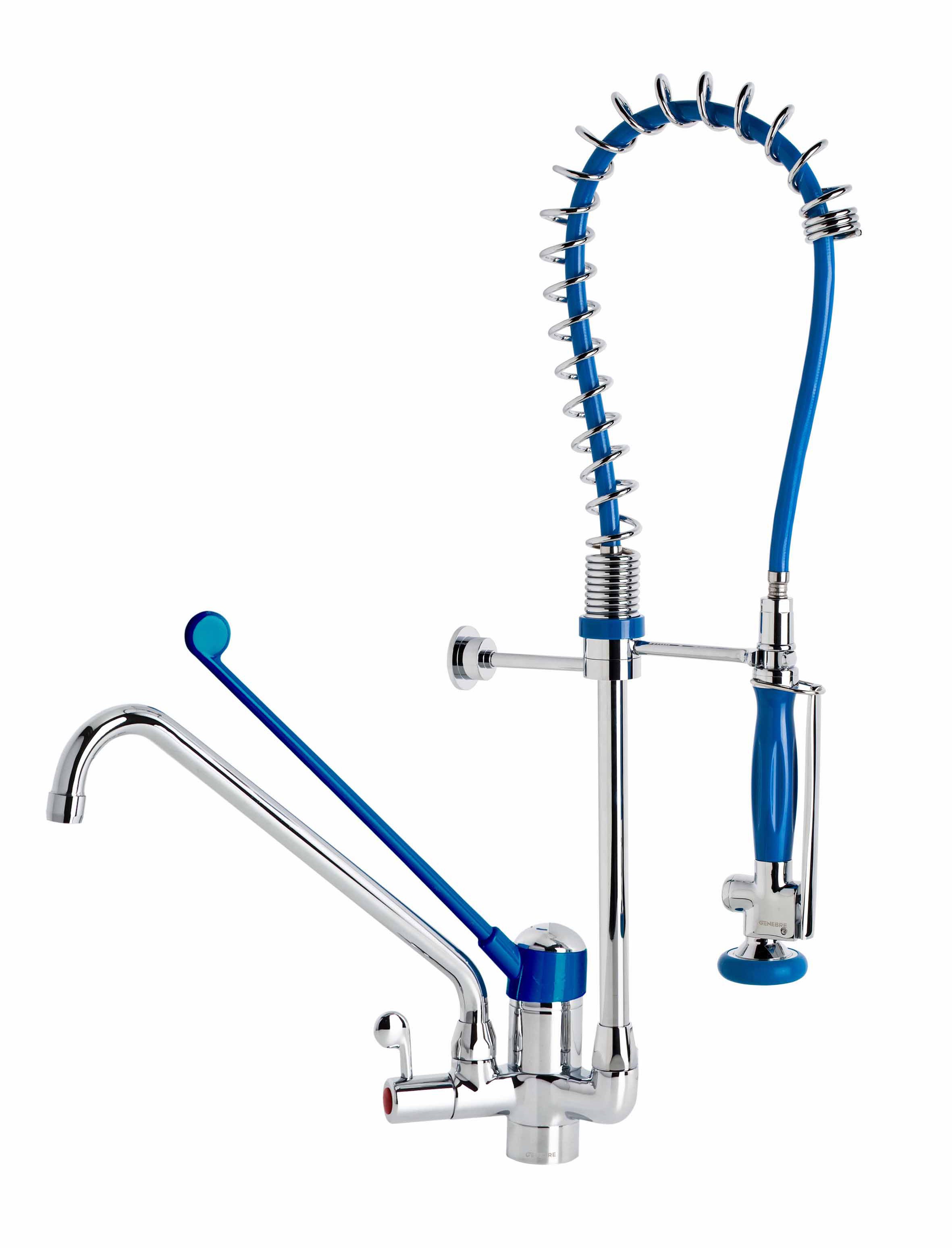

Professional kitchen column with monoblock mixer tap and tap with swiveling spout to be installed on small sized countertop. Fitted with AISI 304 chrome plated stainless steel spring. Tap in CC754S brass, holders and bar in CW617N brass, chrome plated according to EN 248. Fitted with stainless steel flexible hose with plastic cover to easy cleaning. Hand shower with ergonomic design, automatic closing system and double position spray (concentrated and shower). Spout tap fitted with ¼ turn ceramic headwork. Mixer tap fitted with ¼ turn ceramic headworks, flexible connections and check valves. Includes all the fixation elements.

1. AISI 304 chrome plated stainless steel spring.
2. Flexible hose with PEX inner tube, stainless steel mesh and plastic sheath, double stapling and ½ "rotating nuts.
3. Shower with automatic closing and ring continuous use, technopolymer handle and anti-scalding system.
4. Supports in chromed brass adjustable in height.
5. Chrome plated according to EN 248.
6. ¼ turn ceramic headwork.
7. Anti-lime M22x1 plastic aerator with chrome plated cover.
8. Fitted with 35 cm long flexible connectors (M10x1; G ⅜”).
9. Metal made horseshoe fixing set and check-valves.
10. Maximum temperature: 85 °C.
11. Max. recommended temp.: 65 °C.
12. Maximum pressure: 10 bar.
13. Minimum pressure: 0,5 bar.
14. Recommended pressure: 1 - 3 bar.

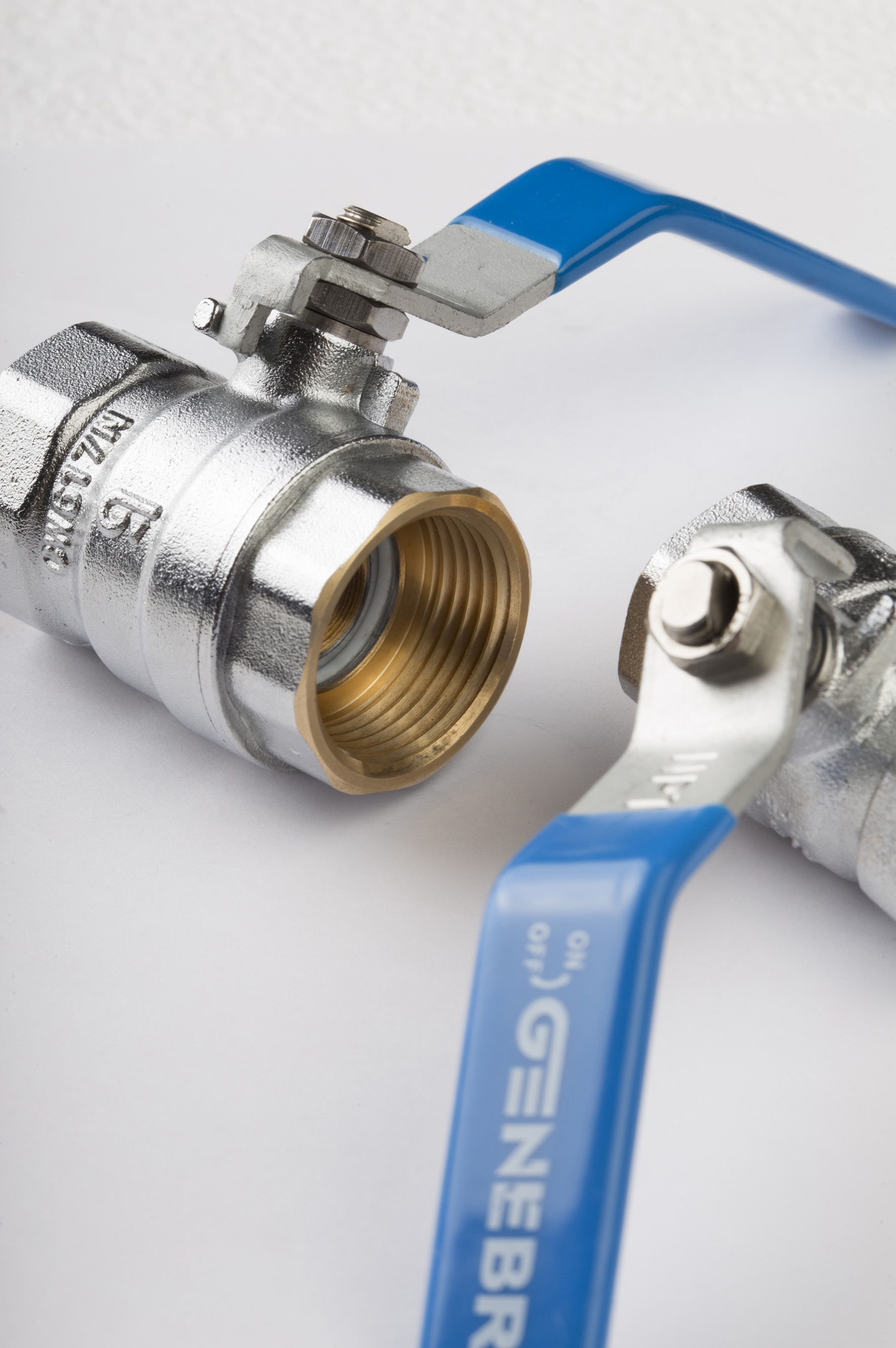

Ball valve

Reference number: 3030I PN 25. Full bore. Body nickel plated brass UNE-EN 12165. PTFE seats. Stem with double o-ring. Threaded ends ISO 228/1 - F-F. Max. temp. 110ºC. Stainless Steel lever manual control.

1. Ball valve with full bore.
2. Brass construction acc./ UNE-EN12165 nickel plated.
3. Gas (BSP) threaded female-female (F-F) ends according ISO 228/1.
4. Stem with double NBR o-ring.
5. Working by means of AISI 304 stainless steel lever handle.
6. Working temperature from -20ºC to 110ºC.
7. Maximum working pressure 25 bar (PN-25).
8. PTFE Seats.

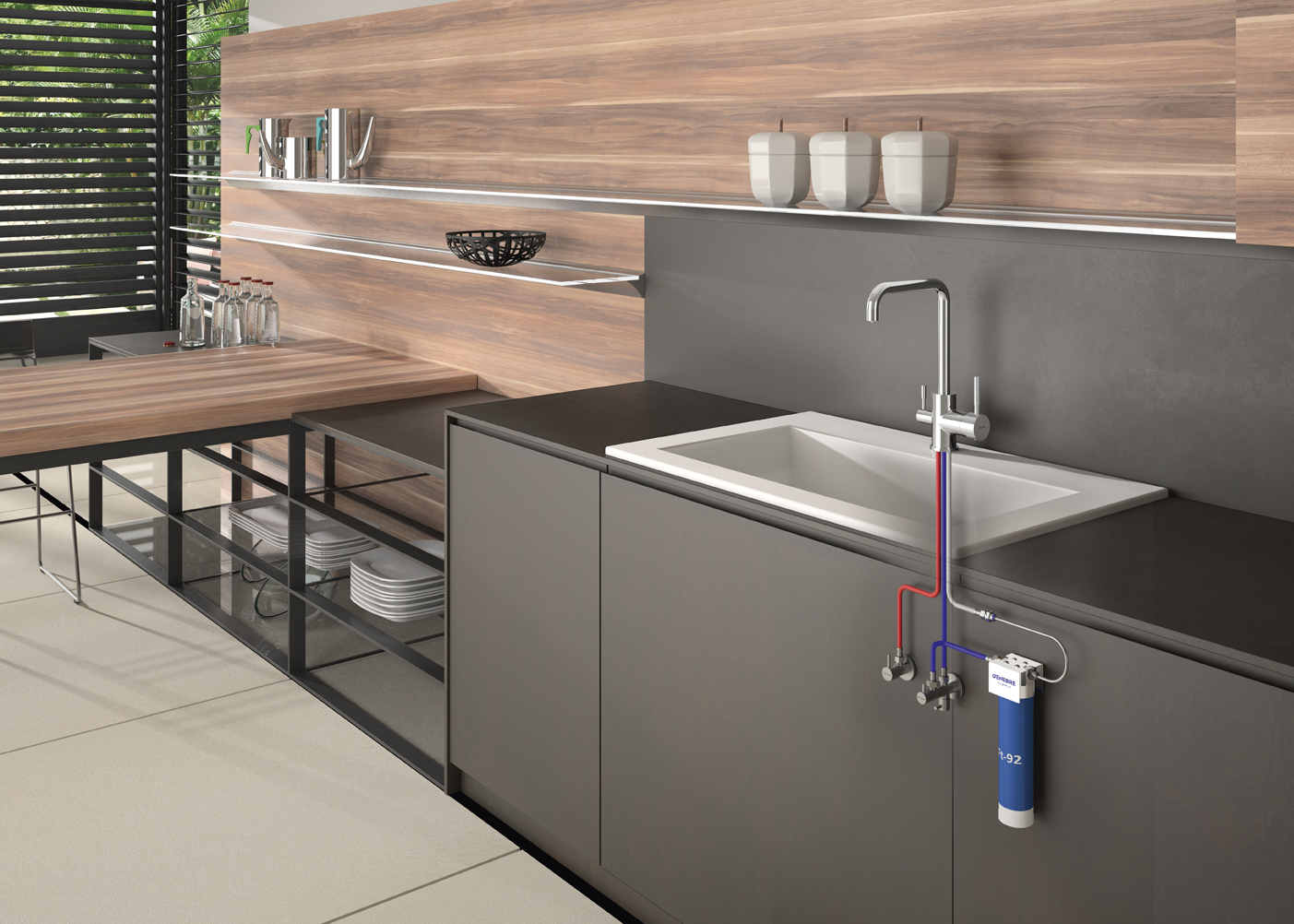

Single lever sink osmosis mixer for deck installation, high-quality chrome plated finish, supplied with flexible connection easy to install. 2 water system in the same application, through a bifunctional pipe it is possible to supply filtered and network water without mixing. Its design will transform your kitchen into a space with its very own personality.

1. Body made in brass according to UNE-EN 1982.
2. Handle made in Zamak.
3. Chrome plated according to EN 248.
4. Cold Tap opening.
5. Guided outlet noiseless Ø40 ceramic cartridge.
6. Ceramic headwork G1/2".
7. Double flow anti-lime aerator.
8. Maximum temperature: 85 °C.
9. Max. recommended temp.: 65 °C.
10. Maximum pressure: 10 bar.
11. Minimum pressure: 0,5 bar. 1
12. Recommended pressure: 1 - 3 bar.

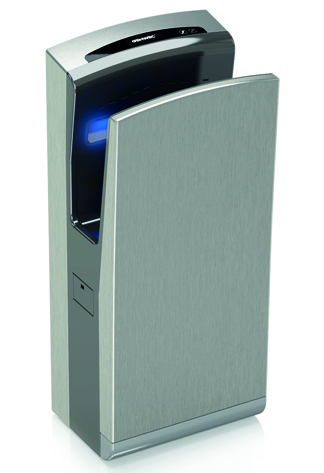

Hand dryer consist of a compact body of 1 mm thick AISI 304 stainless steel that is mounted against the wall on a carbon steel frame. The frame is fixed to the wall using 5 holes with the dimensions for an 8 mm drill bit.

The dryer is operated by an electronic infra-red sensor and it automatically stops after the hands have been withdrawn from the sensor field or after 60 seconds (vandal-proof disconnection).

The air is blown out through a linear matrix of holes for ideal distribution of the air and drying by dragging the water off the hands.

The air temperature is controlled electronically. It works with a universal brushless type motor, 220-240V, 20,000 r.p.m.

The air speed is 342 km/h, which allows drying hands in approximately 10 s.

The dryer has a total power rating of 1650W with a maximum consumption of 10A.

The noise level at a distance of 2 metres is 75dB.

The total measurements of the hot air hand dryer are 730 x 330 x 222 mm, and its total net weight is 11 kg.

Hands-in hand dryer Automatic sensor operated Universal motor with brushes AISI 304 stainless-steel body with a thickness of 1 mm Finish: Brushed Efficient dryer: minimum consumption/drying < 15 s. Outstanding robustness, Heavy duty 3-year warranty
