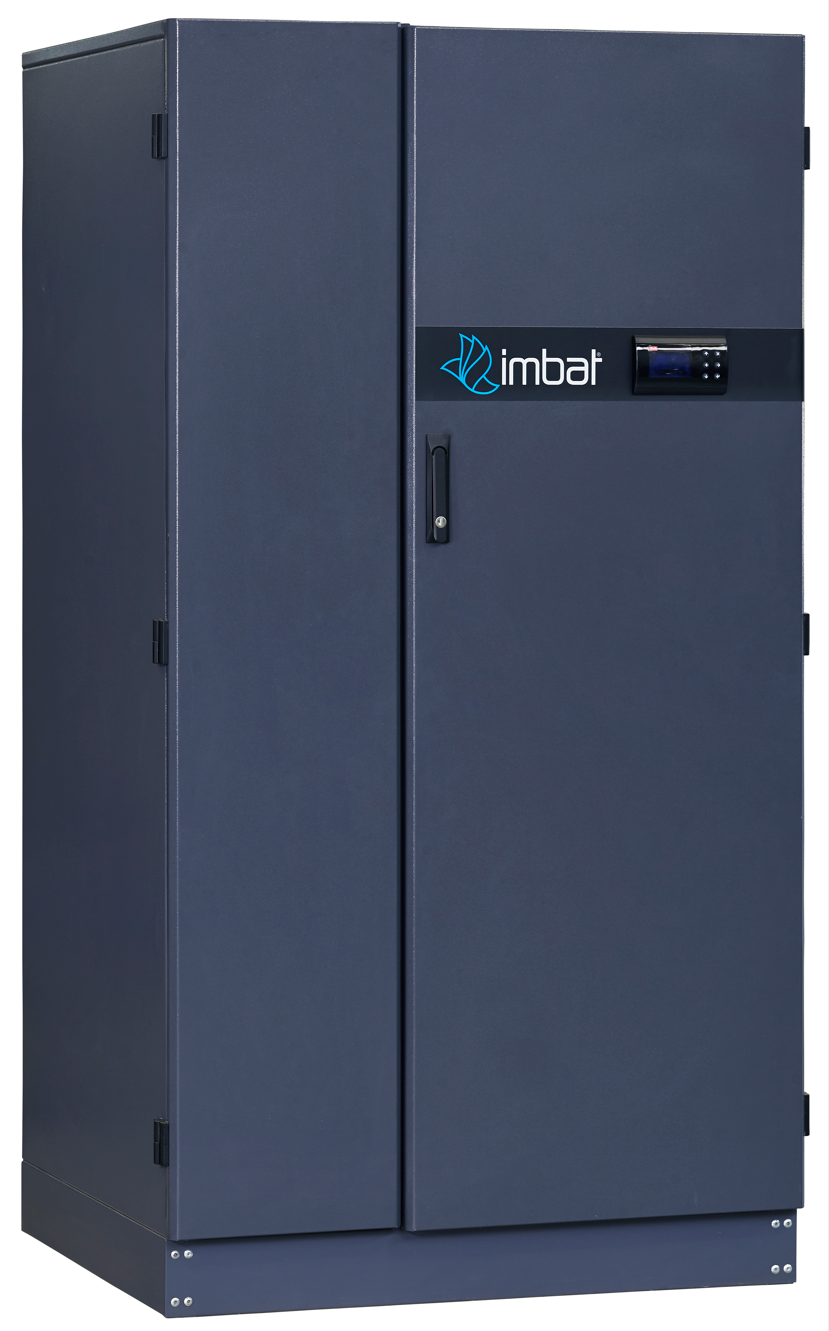

The İmbat In-Room Air Conditioners series offers energy-efficient climate control with a capacity range of 6 kW to 150 kW. Utilizing eco-friendly R410-A and R454-B refrigerants, along with advanced scroll compressor technology, these units ensure high performance and energy savings. Standard features include EC fans, electronic expansion valves, and a fully automatic control system. The units provide cooling, heating, humidification, and dehumidification with precise temperature control ( ±2 °C) and humidity regulation ( ±5 %), making them ideal for sensitive environments like test rooms and telecommunication systems.
Designed to prevent overheating, data loss, oxidation, and early wear, the series features a high sensible heat ratio of 0.85-1, delivering optimal performance for high sensible heat applications while minimizing operational costs. With flexible options for wired remote control, these units offer customizable solutions for various project needs.

Optional Features

• Temperature, humidity and indoor air quality control
• Variable air flow with EC or plug type fans provide energy efficiency
• Electronic expansion valve
• Improved electronic control panel that enables the unit to be programmed weekly and creates fully automated working possibility.
• Ability to connect to the building management system with a remote control
• Two steps filtration (G4+F7)
• Water cooled models
• Temperature and humidity tolerances; +/- 1°C DB, +/-%2 RH
• Chilled water models
• Units suitable for extreme temperatures such as 45°C
• Custom design for special project and flexible production
• High Sensible Heat Ratio
• Automatic Humidification And Dehumidification
• Free Cooling
• High Efficiency
• Asymmetrical Cooling

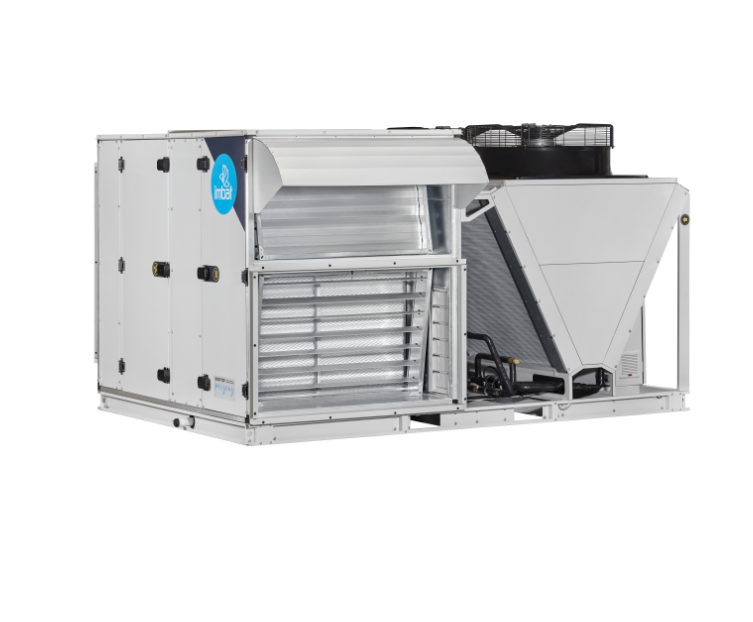

Perseus Rooftop Series is designed to exceed the latest EcoDesign+ requirements, ensuring superior energy efficiency and long-term sustainability. This rooftop unit is equipped with a robust double-skin 50 mm A1 class stone wool panel, 70 kg/m³ rockwool insulation enhancing insulation and fire resistance. The unit’s use of R454B refrigerant, one of the most environmentally friendly and efficient options in its class, further reduces its carbon footprint.

Engineered for optimal performance, the rooftop unit offers an extensive airflow range of 3850 m³/h to 55,200 m³/h and cooling capacities from 60 to 360 kW. The universal design eliminates the need for roof curb installations, saving costs and reducing installation time. Additionally, the rooftop series provides options such as a HEPA filter module to maximize indoor air quality and a thermodynamic heat recovery system that can achieve up to 30% energy savings, ensuring a healthier and more comfortable environment.

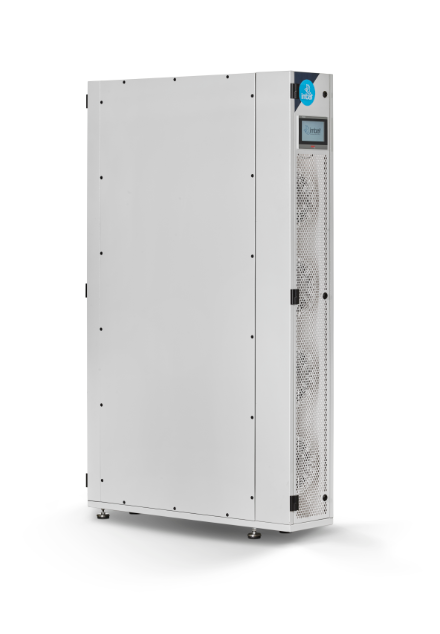

The İmbat In-Row Air Conditioners offer highly energy-efficient and eco-friendly solutions, designed in accordance with international standards to meet the cooling needs of modular and micro data centers. Specially developed for hot and cold aisle applications, these units feature a modular structure that can be placed between IT equipment racks, providing adaptability and flexibility for various installation areas. With In-Row technology, quick capacity expansion is possible without the need for raised flooring, ensuring seamless integration into any data center layout.

These units are available with both air- and water-cooled condensers in direct expansion (DX) or chilled water configurations. They utilize R-410A refrigerant as standard, with the option to use R-454-B refrigerant, which complies with European F-gas regulations, ensuring sustainability while maintaining high performance. Standard features include EC fans, electronic expansion valves (EEV), and fully automatic control systems for ease of use and precise temperature control. The filter alarm notifies users when maintenance is required, and inverter technology ensures energy savings with flexible system operation. With customizable piping options for the outdoor and indoor units,

İmbat In-Row Air Conditioners offer a reliable, high-performance solution for critical environments like telecommunication systems and data centers, maximizing efficiency while minimizing operational costs.

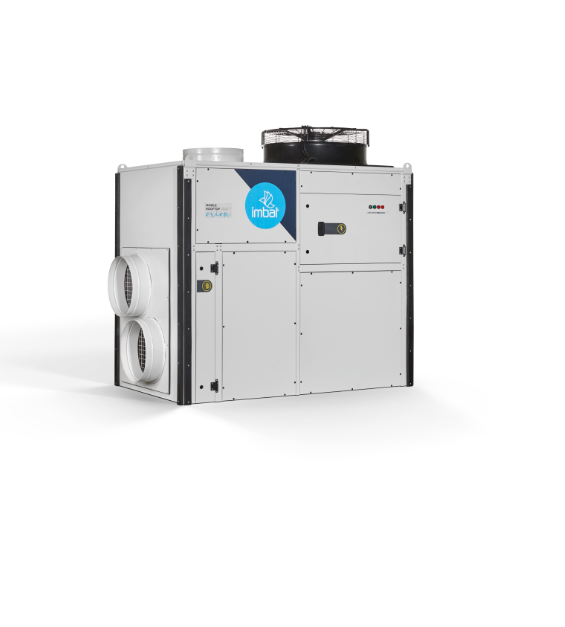

Inspired by the dynamic Orion constellation, the Orion Mobile Rooftop Series offers versatile, reliable air conditioning for temporary and mobile needs. Compatible with R454-B and R410-A refrigerants, it features scroll compressors, an intuitive LCD display, filter alarms, and automatic defrost for easy use. With cooling, heating, heat pump modes, and BMS integration, Orion ensures exceptional performance and adaptability for any climate control challenge.

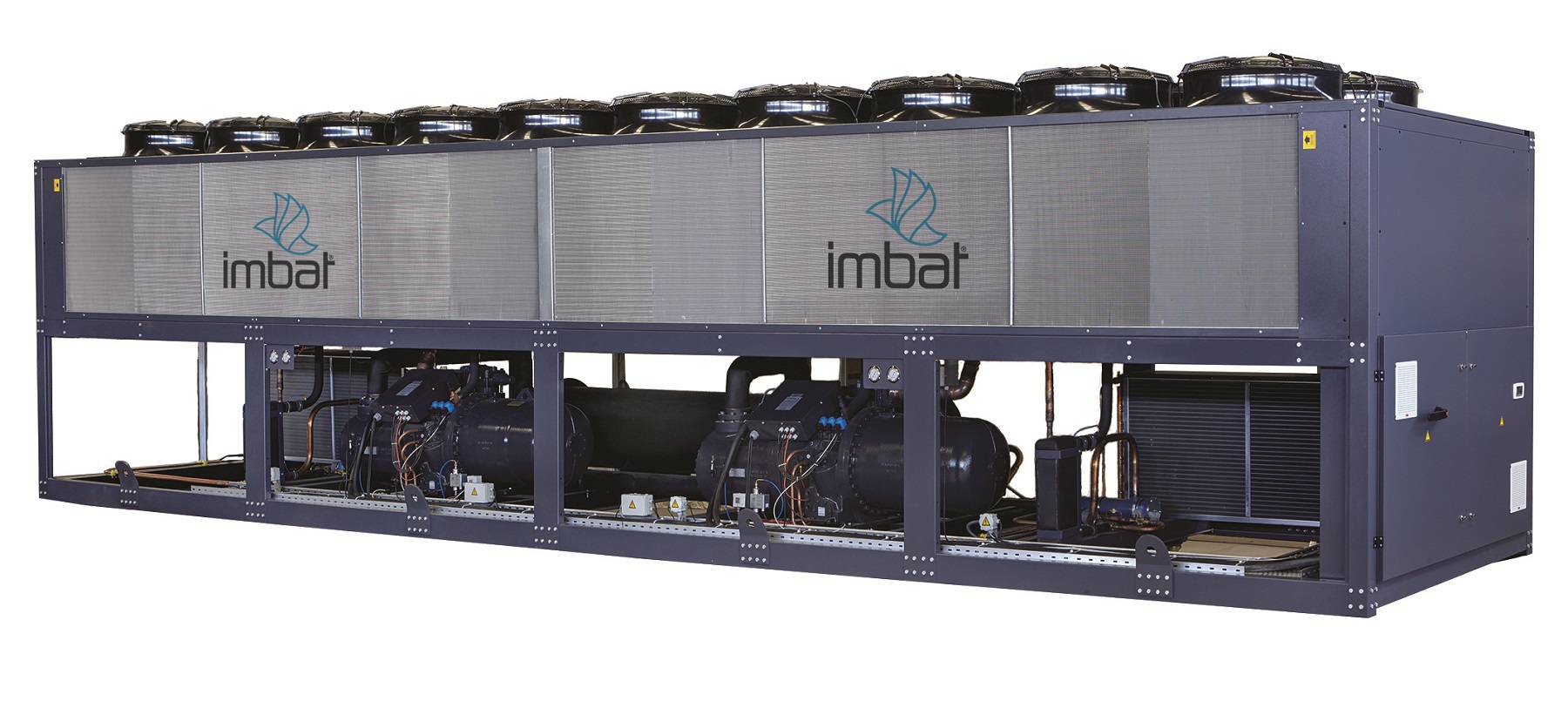

The İmbat Water and Air Cooled Chiller Series delivers advanced, efficient, and environmentally conscious cooling solutions designed for a wide range of industrial and commercial applications. Offering capacities from 100 kW to 2100 kW, this series is tailored to meet the diverse needs of various projects with options for air-cooled and water-cooled configurations.

Environmentally Friendly Technology
İmbat chillers utilize eco-friendly refrigerants, including R410-A, the sustainable R454-B, and the high-performance R134-A, minimizing environmental impact while delivering robust cooling performance. Advanced compressor technologies, such as scroll compressors for smaller capacities and screw compressors for larger demands, ensure maximum energy efficiency and reliability across all models.

Advanced Features for Precision and Performance
Equipped with microprocessor-controlled systems, electronic expansion valves, and intelligent defrost mechanisms, the series provides precise temperature control and stable operation even under challenging conditions. The use of shell-and-tube heat exchangers in water-cooled units and intelligent design in air-cooled models supports efficient heat transfer and enhanced system durability.

Versatility and Reliability
The Air Cooled Chiller Series offers capacities from 100 kW to 1700 kW, supporting applications requiring low water temperatures down to -15°C, while the Water Cooled Chiller Series handles temperatures as low as -5°C with capacities ranging from 200 kW to 2100 kW. Both configurations include features like automatic defrost, asymmetric cooling, and dual functionality for cooling and heat pump modes, catering to diverse operational needs.

Easy Serviceability and Cost-Effectiveness
İmbat prioritizes user convenience with designs focused on ease of maintenance and serviceability, reducing downtime and operational costs. These units are built to deliver long-term performance in demanding environments, making them a cost-effective solution for facilities that value operational continuity and efficiency.

The İmbat Water and Air Cooled Chiller Series embodies İmbat’s commitment to providing innovative and sustainable climate control solutions, combining cutting-edge technology with adaptable features to ensure optimal performance in every projec

Optional Features

• Lowwater flow protection on the evaporator and the condenser
• Remote control capability with PC or building automation system
• Copper tube and copper fin type condenser
• Copper tube and epoxy coated aluminium fin type condenser
• Air cooled condenser and cage protection
• Condenser pump circulation control with microprocessor evaporator

• Models with low noise and vibration levels
• Air cooled models with radial fans that are suitable for indoor
• Heat pump models
• Heat recovery and free cooling exchanger models
• Models with remote condenser
• Digital or DC inverter scroll compressor models
• Custom design for special project and flexible production

Screw Compressor Water Chiller Units
(R-134a)

Piston Compressor Water Chiller Units
(R-407c, R-404a)

Scroll Compressor Water Chiller Units
(R-410a)

Reliability, Long Life and Easy Operating

High Efficiency

Asymmetrical Cooling
