RLT-Anlagen von MAICO ermöglichen einen zuverlässigen Luftaustausch in großen Gebäuden mit vielen Menschen

Raumlufttechnische Anlagen eignen sich besonders in Bereichen, in denen viele Menschen zusammenkommen und ein stetiger Luftaustausch notwendig ist. Die Anlagen sorgen nicht nur für frische Luft, sondern auch für eine thermische Luftbehandlung in Räumen und Gebäuden. MAICO RLT-Geräte verfügen über eine intelligente Regelung mit Netzwerkanbindung und einem Fördervolumen von bis zu 150.000 m3 /h.

MAICO bietet Anlagen für kontrollierte Lüftung mit Wärmerückgewinnung in energetisch optimierten Gebäuden. Dezentrale und zentrale Wärmerückgewinnungssysteme für den Wohn- und Nichtwohnbau bilden zusammen mit ausgewählten Zubehörprodukten und Dienstleistungen die Basis für unsere Kompetenz.

Gute Luft steigert das Konzentrationsvermögen

MAICO Lüftungssysteme sind die perfekte Wahl, wenn es um gesunde und frische Luft geht. Ob in Klassenzimmern, Sportstätten, Arztpraxen, Büros oder auch Gewerbehallen und Produktionsstätten – eine kontrollierte Lüftung sorgt nicht nur für frische Luft, sondern begrenzt den CO2 -Gehalt auf ein Minimum. Ein entscheidender Umstand, der das Wohlbefinden und ebenso das Konzentrationsvermögen positiv beeinflusst.

Zentrale RLT-Kompaktgeräte mit Fördervolumen bis 5.500 m³/h nominal

RLT-Kompaktgeräte von MAICO mit Wärmerückgewinnung sind optimal für die Außenaufstellung geeignet und bieten gleichzeitig eine einfache Wartung. Beide Ausführungen – horizontal (H) und vertikal (V) – sind anschlussfertig mit integriertem Controller und automatischem Bypass. Die horizontale Variante kann mit Regendach und Außenhaube als flaches Gerät für die Außenaufstellung genutzt werden, während die vertikale Ausführung ebenfalls für die Innen- oder Außenaufstellung konzipiert ist. Die Geräte sind leicht revisionierbar dank seitlich öffenbarer und abnehmbarer Revisionstüren. Zudem erfüllen sie höchste Hygieneanforderungen gemäß VDI 6022.

Zentrale RLT-Flat-Kompaktgeräte mit Fördervolumen bis 2.700 m³/h nominal

Flache RLT-Kompaktgeräte mit Wärmerückgewinnung sind anschlussfertig mit integriertem Controller und automatischem Bypass. Sie überzeugen durch eine zeitsparende Revision. Die RLT-FLAT-Kompaktlüftungsgeräte von MAICO wurden speziell für die unterschiedlichsten Montagemöglichkeiten bei geringsten Platzverhältnissen entwickelt. Sie sind in fünf Baugrößen erhältlich, welche bei verschiedenen Raumsituationen an Decke oder mit der Option Enthalpiewärmetauscher auch an der Wand installiert werden können. Umfangreiches Zubehör zur Luftkonditionierung vervollständigt das System.

geniovent.x: Dezentrale RLT-Kompaktgeräte bis maximal 1.000 m³/h – ideal für den Einsatz in Schule, Kita und Büroräumen – bei Neubau und Sanierung

Die dezentralen Lüftungssysteme geniovent.x sind die perfekte Wahl, wenn es um gesunde und frische Luft geht. Ob in Klassenzimmern, Konferenzräumen oder Büros, eine kontrollierte Lüftung sorgt nicht nur für frische Luft, sondern begrenzt den CO2 -Gehalt auf ein Minimum. Ein entscheidender Umstand, der das Wohlbefinden und ebenso das Konzentrationsvermögen positiv beeinflusst.

geniovent.x – deckenhängende Lüftungssysteme und Stand-Lüftungssysteme

MAICO stellt für die unterschiedlichsten Einbausituationen sowohl deckenhängende als auch Stand-Lüftungssysteme bereit. Ob im Sanierungsfall oder im Neubau – MAICO-Lüftungssysteme haben sich seit Jahrzehnten bewährt und vollbringen beste Lüftungsarbeit. Die geniovent.X-Deckengeräte sind in mehreren Ausführungen verfügbar. Dies reicht von der Variante zur Montage unterhalb der Decke bis hin zur komplett integrierten Variante in einer Zwischendecke. Mit dem „Anschlusskasten Universal“ kann der Einbau in eine Fensterfront realisiert werden. Bei den „Stand-Lüftungssystemen“ sind ebenso passende Einbauvarianten verfügbar. Mit der Erweiterungskomponente „Topbox“ sind sogar noch zusätzliche Optionen der direkten Be- und Entlüftung von Räumen möglich. Die geniovent.x-H-Geräte gibt es als Wand- bzw. Deckenmodell in verschiedenen Ausführungen. geniovent.x-S-Geräte sind als Standmodell mit der Möglichkeit zum Wand- bzw. Deckenanschluss verfügbar

Viele intelligente Ansteuerungsmöglichkeiten

Alle geniovent.x-Lüftungsgeräte verfügen über einen USB-Anschluss für die Inbetriebnahme sowie eine integrierte Ethernet-Schnittstelle. Sie lassen sich über eine Internetverbindung komfortabel über die MAICO@HOME-App bedienen, welche kostenlos in den iOS- und Android-Stores zur Verfügung steht. Over-the-air-Updates machen das System zukunftsfähig und stellen erweiterte Funktionen zur Verfügung. Zudem lassen sich die geniovent.x-Lüftungsgeräte selbstverständlich auch über die integrierten Modbus- und BACnet Schnittstellen oder die optionale KNX-Schnittstelle in ein bestehendes Gebäudemanagement-System integrieren. Mit einem zentral vernetzten Computer ist stets eine Kontrolle über Betrieb und Temperatur der Anlagen gesichert. Darüber hinaus lassen sich von hier aus die einzelnen Lüftungsgeräte entsprechend ihrer Nutzung individuell programmieren. Die Vorteile der dezentralen Lüftung bleiben also bestehen, gleichzeitig stehen aber auch die Vorteile einer zentralen Steuerung zur Verfügung.

Dezentrale Push-Pull-Geräte PP+ – dezentrales Lüftungssystem mit Wärmerückgewinnung für hohen Luftaustausch bis 1.250 m³/h je Paar

PP+ ist ein einzigartiges, leistungsstarkes und nachhaltiges Push-Pull-System mit innovativem Wärmetauscher für Klassenräume, Konferenzräume, offene Bürolandschaften, Verkaufsräume und vieles mehr. Gerätevielfalt in vier Volumenstrombereichen in unterschiedlichen Baulängen gewährleisten den Einsatz in vielen Anwendungsfällen. Farblich abgesetzte Blenden zur Optimierung der Raumgestaltung. Das PP+ kann aufgrund seiner niedrigen Bauhöhe von lediglich 35 cm architektonisch ansprechend in abgehängte Decken integriert werden und wirkt somit quasi unsichtbar. Das Rastermaß von 60 cm ist prädestiniert für die Installation in abgehängten Decken.

Beliebig erweiterbar für große Volumenströme

Der MAICO-Controller ermöglicht die Gruppierung von mehreren PP+-Paaren ebenso wie die Gruppierung unterschiedlicher PP+-Gruppen zur individuellen Bedienung über die MAICO@HOME-App. Vier verschiedene Baulängen von 4.800 mm bis 9.600 mm mit unterschiedlichen Volumenstrombereichen gewährleisten maximale Flexibilität für die unterschiedlichsten Anwendungen und Einbausituationen

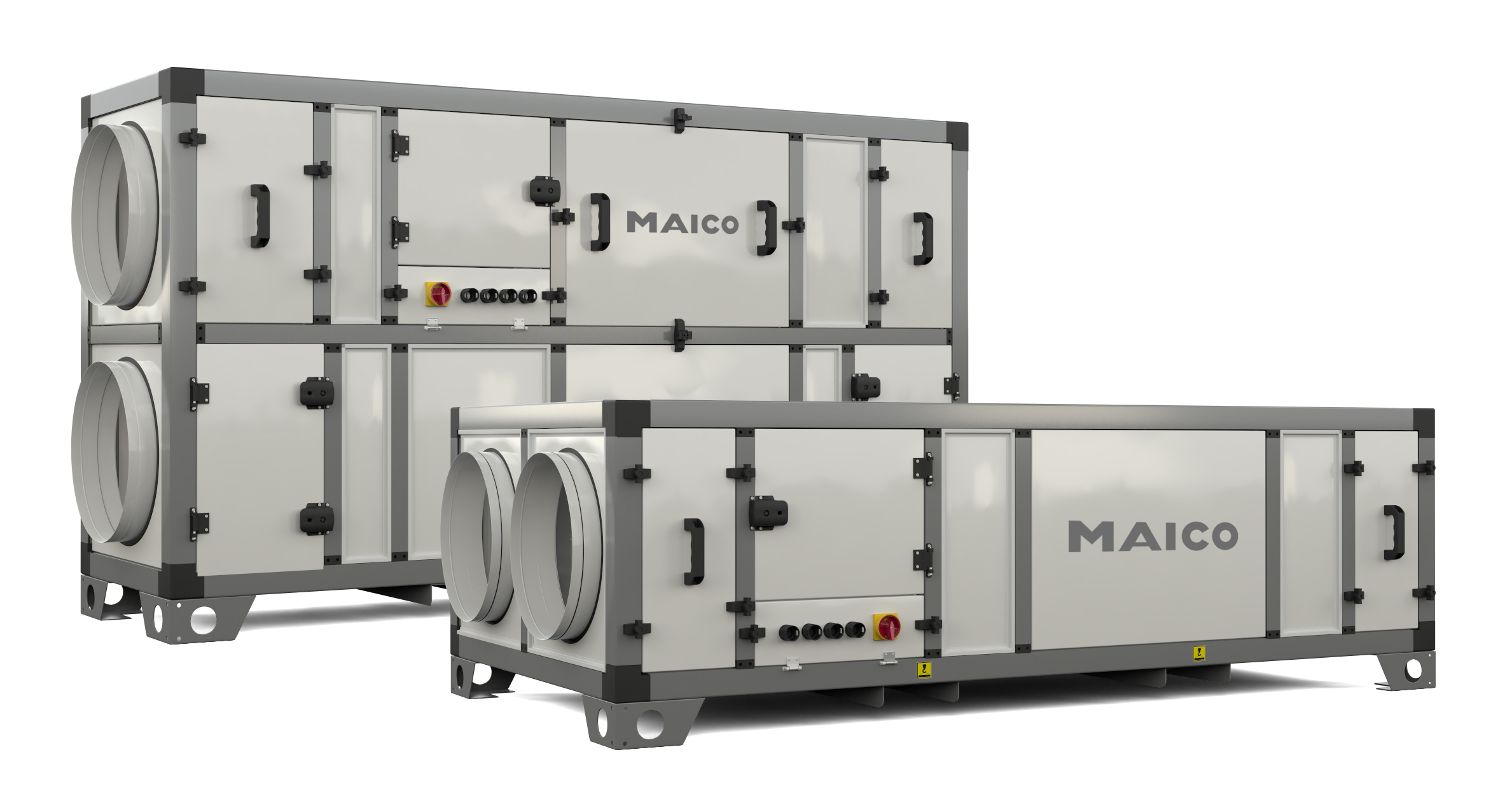

Air Handling Units (AHU) mit Fördervolumen bis 150.000 m³/h

Air Handling Units von ATC by MAICO werden individuell nach Projektanforderungen konzipiert. Sie bieten flexible Gestaltungsmöglichkeiten, hohe Energieeffizienz und einen niedrigen Geräuschpegel. Die AHU‘s zeichnen sich durch die niedrigste Luftleckage (L1) und höchste mechanische Festigkeit (D1) aus, gemäß den Anforderungen von Eurovent. Die robuste Gehäusestruktur besteht aus speziellen Aluminiumprofilen mit speziellen Snap-Fit-Dichtungen, die Service- und Wartungsarbeiten erleichtern und eine beschädigungsfreie Demontage ermöglichen.

The next generation of ventilation control is here – MAICO presents new covers with NFC for the ER EC along with a new app!

(Almost) everything is new with our popular fan for interior bathrooms and toilets, the ER EC: Three new covers in different designs bring the latest technology to your home with NFC control. Optimize your indoor climate and enjoy the highest comfort and efficiency!

However, the ER EC fan itself remains the same. The ER product line, available in surface-mounted or flush-mounted versions, is the perfect choice for the reliable removal of used and humid air in interior bathrooms and toilets. And there are also news regarding fire protection with the ER EC!

What is NFC? NFC stands for “Near Field Communication,” which means communication between two devices over a short distance. With NFC, two compatible devices can quickly and securely exchange data and information wirelessly and contactlessly. The most well-known example is probably contactless payment with a smartphone. MAICO is now adapting this technology for controlling ventilation systems.

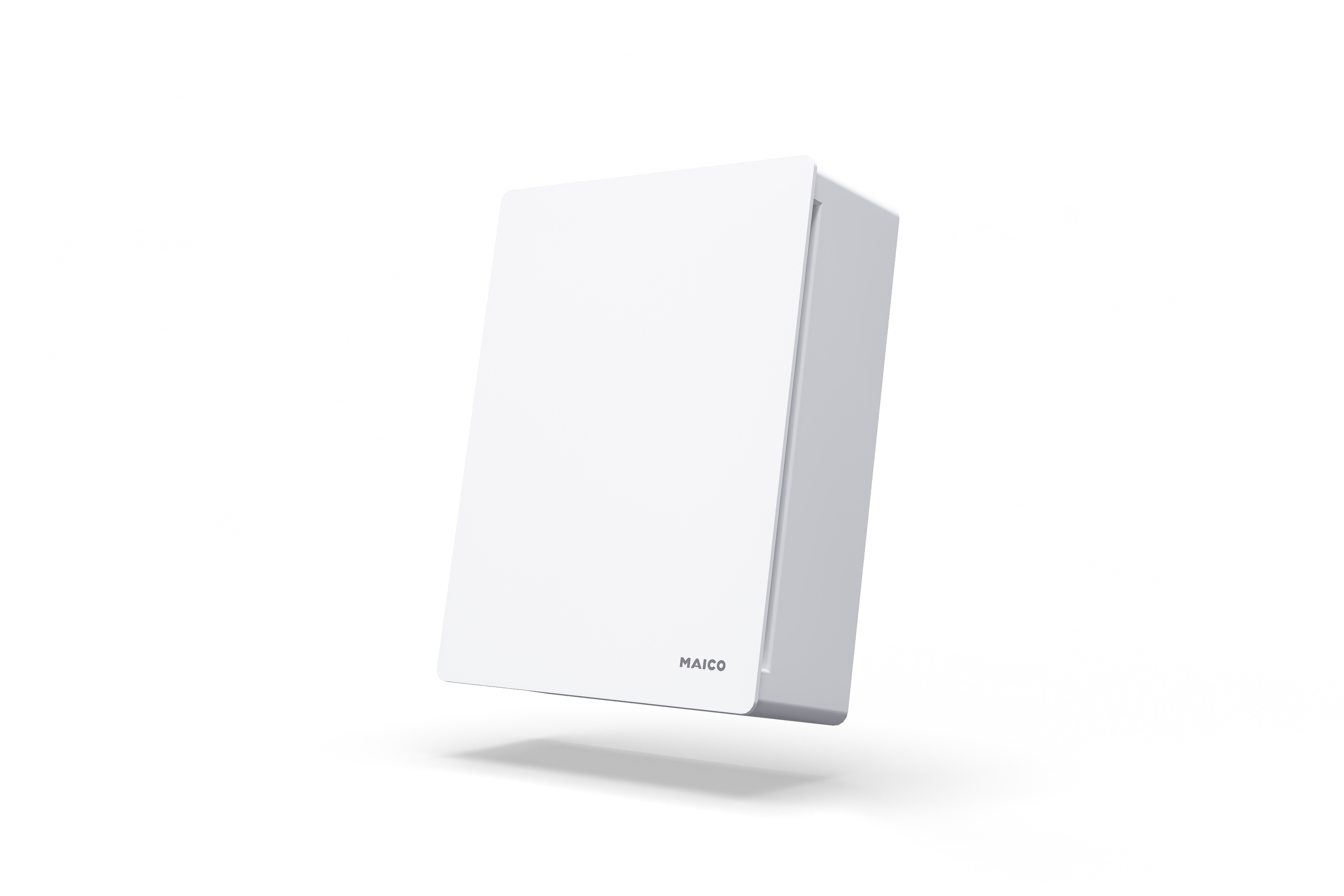

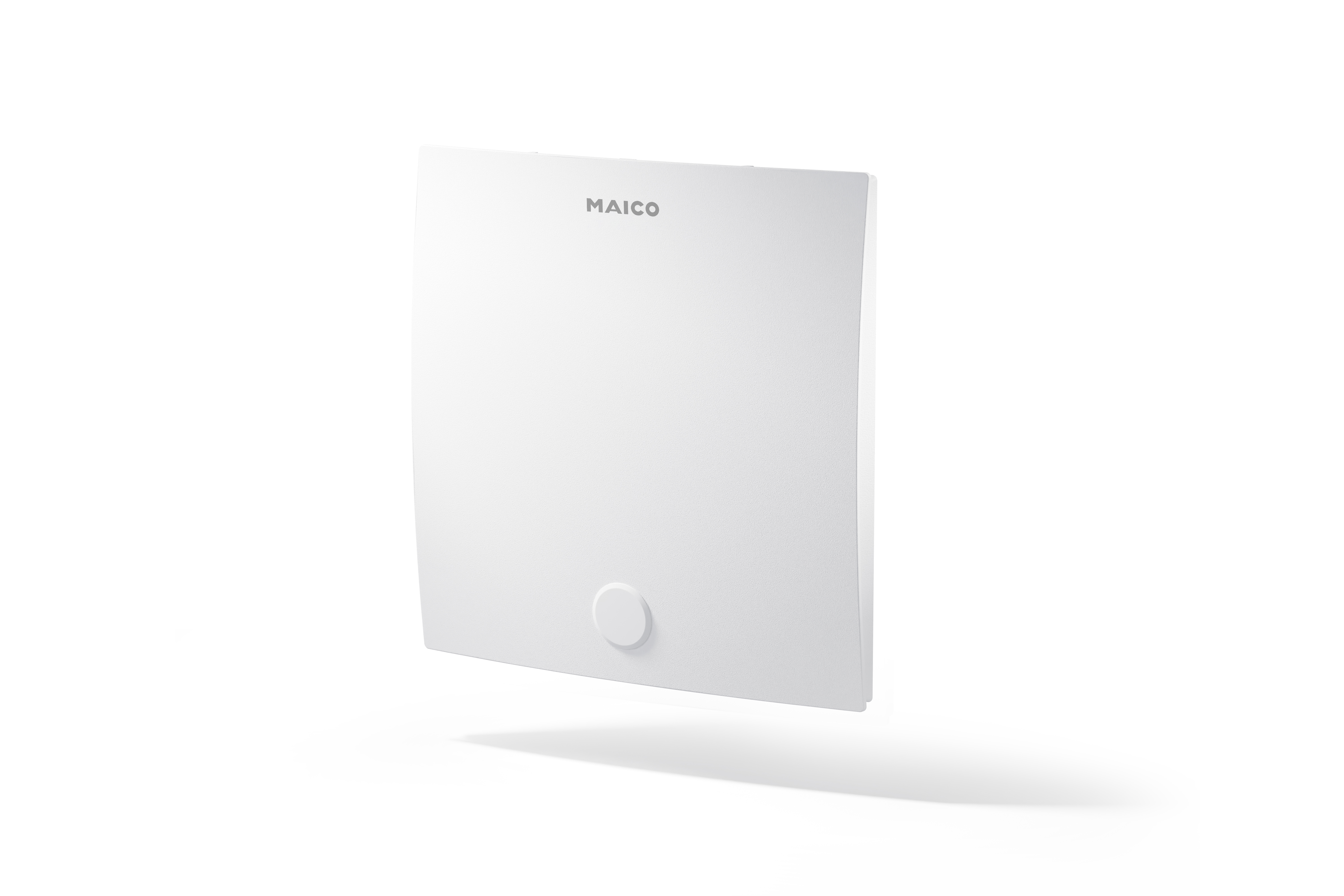

Three new cover variants for the ER EC The three new covers offer a variety of adjustable parameters to perfectly adapt the fan to individual needs. The three new cover variants with NFC module differ as follows:

• ER-AK NFC: Comfort version with time module

  • Control with time module
  • Full load operation with adjustable switch-on delay 0-120 sec and run-on time 0-30 min
  • Adjustable interval operation 0-24 h, ventilation duration adjustable 10-60 min
  • Adjustable volume flow at base load 0; 15-100 m³/h
  • Adjustable volume flow at full load 0; 15-100 m³/h

• ER-AH NFC: Version with humidity control and intelligent time module

  • Control via humidity sensor with time module
  • Full load operation with adjustable switch-on delay 0-120 sec and run-on time 0-30 min
  • Adjustable interval operation 0-24 h, ventilation duration adjustable 10-60 min
  • Adjustable interval volume flow 15-100 m³/h
  • Intelligent humidity control: Fan monitors and ventilates automatically (manual mode possible)
  • Adjustable volume flow at base load 0; 15-40 m³/h
  • Adjustable volume flow at full load 0; 40-100 m³/h

• ER-AB NFC: Version with motion sensor and intelligent time module

  • Control via motion sensor and time module
  • Full load operation with adjustable switch-on delay 0-120 sec and run-on time 0-30 min
  • Adjustable interval operation 0-24 h, ventilation duration adjustable 10-60 min
  • Adjustable interval volume flow 15-100 m³/h
  • Adjustable volume flow at base load 0; 15-100 m³/h
  • Adjustable volume flow at full load 0; 15-100 m³/h

All three covers are connected to the actual ER EC fan via a plug & play connection cable and are immediately ready for operation.

Additional options by replacing the cover The control and operating unit is located in the respective cover. Due to the easy interchangeability of the cover, a different control can also be installed later without any problems. Simple and practical if, for example, the ventilation variant with motion sensor is desired later.

Further advantages at a glance:

• Perfectly shaped: The flat cover in an elegant design fits any ambiance, can be rotated by 5°, and can thus be optimally aligned.
• Absolutely user-friendly: The LED filter change indicator with reset function enables proper hygienic operation. The filter can be replaced without tools.
• Integrated control/operating unit: Further individual settings such as switch-on delay, run-on time, interval, or volume flows can be made via the MAICO@NFC app.

Configuration and Control via MAICO@NFC App

With the new and intuitive Maico@NFC app, you can conveniently configure your ER EC wirelessly and contactlessly. All you need is one of the new ER EC covers with NFC module and a mobile device with the MAICO@NFC app. Thanks to NFC technology, the fan’s data can be transferred and read in the app. Configurations of the parameters can be made at any time using the app.

Advantages of NFC control:

• Easy operation: NFC technology makes the configuration of the fan particularly user-friendly.
• Time savings & comfort: Wireless communication eliminates the need to manually set the parameters directly on the cover. This saves effort and simplifies the process significantly.
• Flexibility: With the Maico@NFC app, settings can be adjusted at any time. This offers maximum flexibility in controlling the indoor climate.
• Precision: The app allows precise adjustment of various parameters, such as volume flow, switch-on delay, and run-on time. This ensures optimal performance and efficiency of the fan.
• Future-proof: NFC technology is a modern and future-proof solution, at the cutting edge of technology.

New housings with fire protection

Furthermore, two new housings now ensure the fire protection of the ER EC. Both housings can be directly combined with the ER EC and ER EC 2.1 fan insert, so no replacement kit is needed for the use of the fan.

• Installation inside and outside the shaft in wall and ceiling is possible.
• With maintenance-free fire protection shut-off device against fire transmission K90-18017.
• Metal exhaust nozzle DN 75/80 with metal shut-off flap and automatic release device.
• Metal shut-off flap also serves as a cold smoke flap.

Fire protection housings:

• ER-UPD EC

  • Flush-mounted housing for accommodating an ER EC & ER EC 2.1 fan
  • Installation in apartment kitchens, bathrooms, and toilets.
  • With maintenance-free fire protection shut-off device against fire transmission K90-18017.
  • Metal exhaust nozzle DN 75/80 with metal shut-off flap and automatic release device.
  • Metal shut-off flap also serves as a cold smoke flap.
  • Easily removable non-return flap, allowing easy and quick cleaning.
  • Installation inside and outside the shaft in wall and ceiling is possible.
  • Approved for exhaust direction upwards, right, or left.
  • Low installation depth of the flush-mounted housing and cover.
  • With plaster protection cover.
  • Practical snap fastening and electrical plug connection for quick installation of the fan in the housing.
  • Break points in the housing for using the ER-AS suction nozzle for WC seat ventilation.
  • Plastic parts normally flammable according to class B 2.

• ER-UPB EC

  • Fire protection housing for accommodating an ER EC & ER EC 2.1 fan
  • Installation in apartment kitchens, bathrooms, and toilets.
  • With maintenance-free fire protection shut-off device against fire transmission K90-18017.
  • Metal exhaust nozzle DN 75/80 with metal shut-off flap and automatic release device.
  • Metal shut-off flap also serves as a cold smoke flap.
  • Easily removable non-return flap, allowing easy and quick cleaning.
  • Installation inside the shaft in wall and ceiling is possible.
  • Approved for wall installation with exhaust direction upwards, right, or left, as well as ceiling installation.
  • Low installation depth of the flush-mounted housing and cover.
  • With plaster protection cover.
  • Practical snap fastening and electrical plug connection for quick installation of the fan in the housing.
  • Plastic parts normally flammable according to class B 2.

MAICO presents revolutionary ventilation system with 180° rotation of the entire fan unit

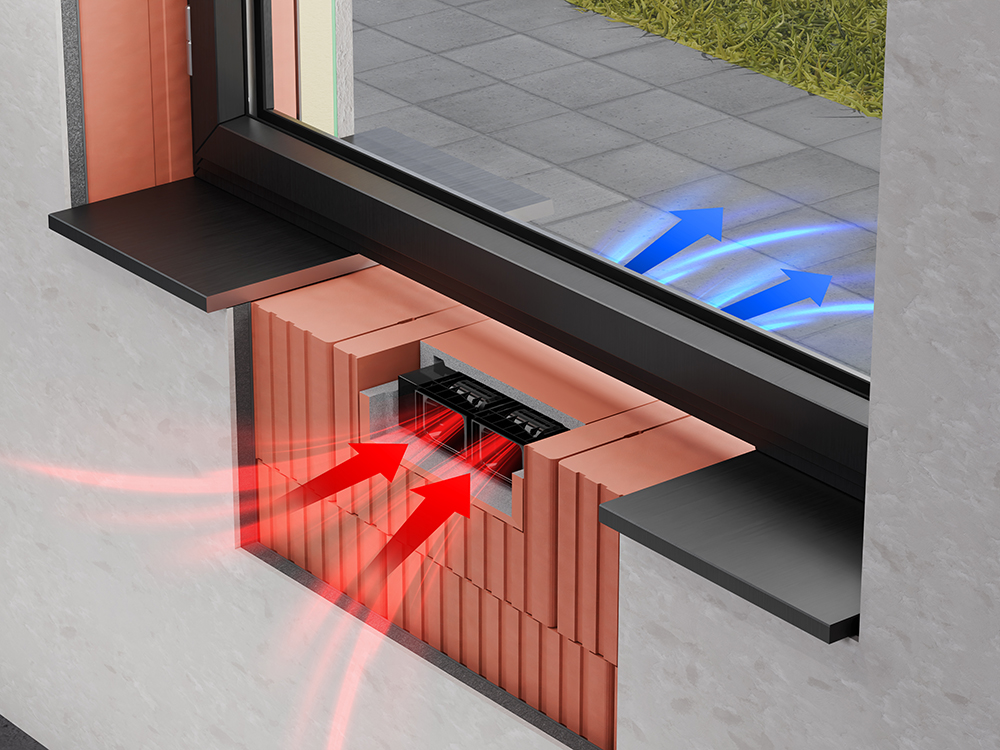

With the RotationVent RV 2, MAICO presents a decentralized ventilation system with flexible installation options in the external wall. A pioneering innovation in ventilation technology that offers numerous advantages to end customers, architects, planners and installers alike.

Particularly quiet thanks to the elimination of switching noise

The RotationVent RV 2 impresses with its innovative technology. First and foremost, it has a fan unit that rotates on its own axis, eliminating the switching noise that is otherwise typical of push-pull devices. The elimination of multiple deflection of the air flow increases the volume flow at a lower fan speed. The device is therefore extremely quiet, even during ventilation, and offers a high normal sound level difference when the duct is closed. In addition, the built-in filters - G3 inside and optionally G2 outside - ensure optimum air quality. The tool-free filter change and the optional sensors - from humidity and CO₂ to volatile organic compounds - round off the user-friendliness.

Energy-efficient and energy-saving

With a heat recovery rate of over 80%, the RotationVent RV 2 sets new standards in terms of energy efficiency. In addition, the flow-optimized air flow means that the device requires less power than conventional systems. The appliance therefore achieves energy efficiency class A or A+ with optional sensor technology. This leads to reduced heating costs compared to manual ventilation with the same air turnover. When switched off, the ventilation system closes the passage automatically. This effectively counteracts external influences such as smog or smoke.

Convenient installation thanks to plug & play for new builds and renovations

The RotationVent RV 2 also impresses with its plug & play functionality, which ensures quick installation. Its flexible and simple installation in different wall thicknesses makes installation effortless and efficient. This makes the RV2 equally suitable for new builds and renovations. Holistic ventilation concepts can be easily implemented by networking several devices. The device can be completely removed for maintenance and cleaning work. Installation at an easily accessible height means that maintenance work or filter changes can be carried out effortlessly.

Flexibility & aesthetics

The option of a reveal-integrated, invisible outer panel makes the RotationVent RV 2 aesthetically pleasing and perfect for discreet placement under the window sill, next to the window or in the window reveal. A drip edge is integrated into the outer cover to prevent soiling of the façade. Alternatively, the ventilation system can also be positioned in the reveal. In this case, the outlet is deflected by 90° on the outside inside the reveal. The result is an even more discreet appearance. Thanks to the slimline design, the installation of roller shutters and blinds remains unaffected. The modern design of the inner cover rounds off the overall picture.

With the RotationVent RV 2, MAICO is setting a new standard in decentralized ventilation technology, which combines comfort, energy efficiency and aesthetic design and is suitable for both new buildings and renovations.

Centrifugal PushPull 60 – The Revolution in Decentralized Ventilation Technology

MAICO presents the CPP 60, the first push-pull device with an integrated radial fan. The radial fan delivers an impressive airflow of up to 60 m³/h per device. Thanks to the constant airflow, the fan’s performance remains stable regardless of weather conditions or installation location. The CPP 60 also operates whisper-quietly, as the switching noise of a conventional push-pull device is almost entirely eliminated. The CPP 60 is suitable for both new constructions and renovations due to its easy installation. Especially for renovations, the CPP 60 offers a particularly simple solution with a surface-mounted variant. The ceramic heat exchanger of the CPP 60 enables heat recovery of over 80%, ensuring the energy efficiency of the building project and leading to reduced heating costs.

Innovative Functionality

The CPP 60 is the first push-pull device with a built-in radial fan. By using a radial fan, the device is not sensitive to pressure fluctuations. The innovative ventilation flap, combined with a well-thought-out chamber system, ensures a supply and exhaust function with continuous operation of the radial fan. In push-pull operation, the switch from exhaust to supply phase occurs quietly and unobtrusively in a cyclical rhythm. The disturbing ramp-up and ramp-down of other push-pull devices is almost completely eliminated with the CPP 60. An EPP housing and the airflow guidance within the housing itself ensure a naturally high standard sound level difference. In addition to the extremely quiet operation, the CPP 60 can also deliver a constant airflow of up to 60 m³/h in heat recovery mode. Thus, even larger rooms can be ventilated with a ventilation pair according to DIN 1946-6.

Advantages Over Other Ventilation Systems

The CPP 60 offers enormous advantages over other push-pull devices due to its large volume, pressure stability, and constant airflow, as the effective performance in practice is significantly better and not dependent on external influences such as weather. Depending on the design, four CPP 60 devices can replace six comparable push-pull devices. Compared to central ventilation solutions, the CPP 60 offers a comparable, optimal indoor climate at significantly lower investment costs.

Flexible and Practical

The CPP 60 represents a groundbreaking innovation in ventilation technology and offers numerous advantages to end customers, architects, planners, and installers. Craftsmen benefit from the easy surface-mounted installation and the relatively small drill holes of only 140 mm when using the MAICO wall sleeve WW90 and only 95 mm when using a simple HT pipe. The wall thickness is irrelevant. For architects, the flush-mounted set, which will soon be available as an accessory, offers a discreet and unobtrusive design option with the same benefits. End customers benefit from constant air quality, quiet operation, and a convincing price-performance ratio. Additionally, a tool-free filter change ensures the usual MAICO comfort.

Weather Conditions and Installation Location

Due to its pressure stability and constant airflow performance, the performance and heat recovery of the CPP 60 remain unchanged regardless of weather conditions or installation location. This makes the device particularly attractive for high-rise buildings, hotels, or similar buildings where conventional push-pull devices would otherwise struggle with weather- and height-related pressure fluctuations.

What distinguishes our CPP 60 ventilation device:

• Easy installation (core drilling < 140mm)
• Suitable for new construction and renovation
• Surface-mounted and flush-mounted versions
• Heat recovery > 80% through ceramic heat exchanger
• No switching noise, thus pleasantly quiet
• High standard sound level difference
• High airflow consistency
• High pressure stability
• Tool-free filter change
• Optional sensors
• Energy efficiency class A

MAICO becomes a full-range supplier for industrial ventilation

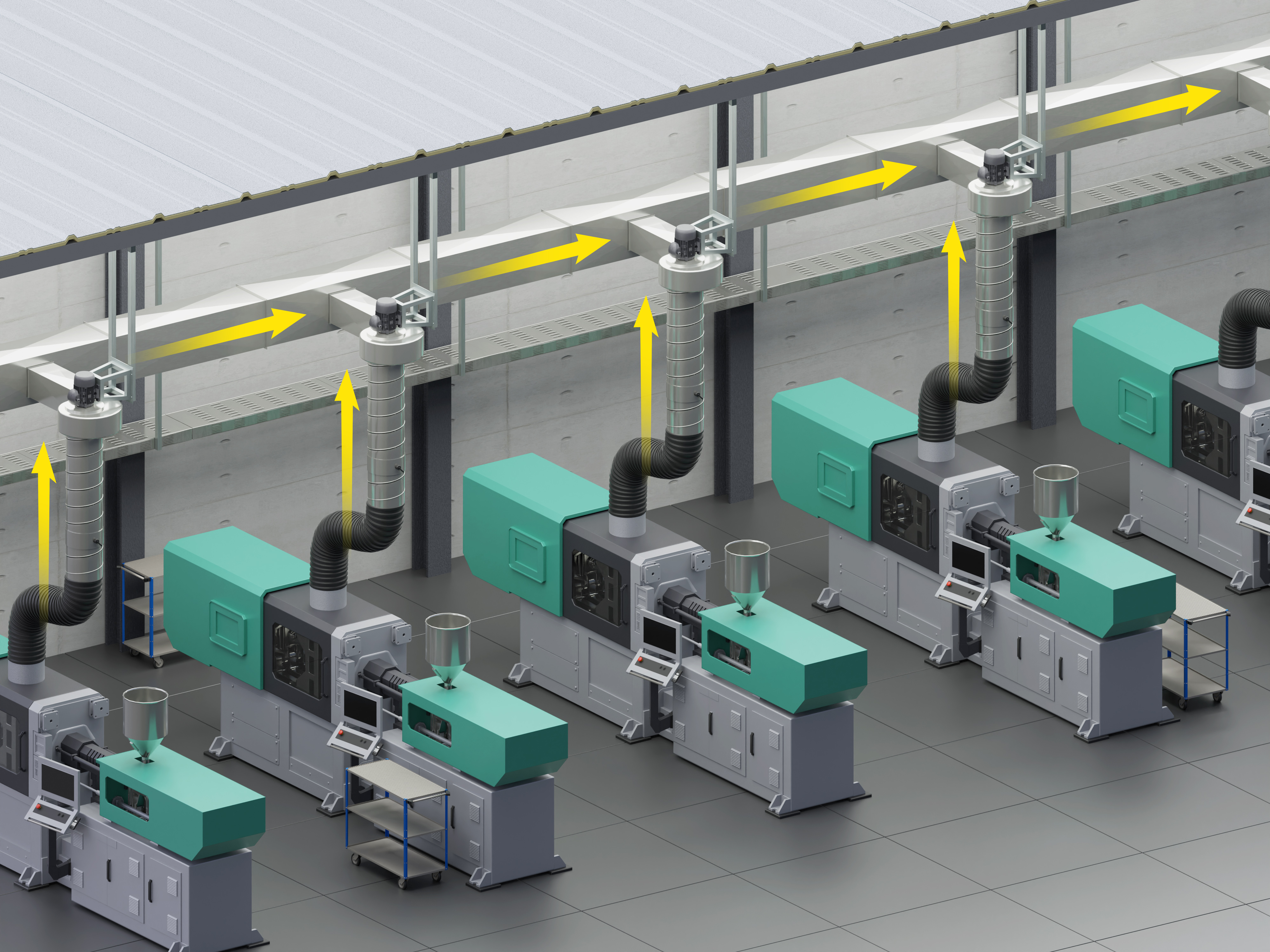

To ensure good air quality in assembly halls, warehouses, or production facilities, particularly powerful ventilation systems are needed that can move large volumes from specific application areas. From axial high-performance wall fans to axial, radial, semi-radial, and diagonal duct fans, as well as radial blowers and duct and roof fans, customers will find ventilation solutions for industrial applications of all kinds at MAICO.

With over 1,000 products, MAICO is thus a full-range supplier in the field of industrial ventilation. The company from Villingen-Schwenningen is particularly proud of its comprehensive range for explosion-hazard areas.

Numerous application areas from gastronomy to production halls to Ex

The MAICO portfolio includes fans for the most diverse applications. Whether recirculation fans, window fans, or gastronomy ventilation – the company has established itself very broadly over the years and can meet all conceivable requirements. From large kitchens to retail stores to production halls, MAICO offers the appropriate ventilation systems and solutions. And also for the explosion-hazard area, such as in hazardous material storage or laboratories.

Large volume flow and high pressure strength with low energy consumption

The performance data of MAICO fans are impressive. The axial high-performance duct fans can, for example, move up to 143,000 m³/h. The radial fans, in turn, impress with very high pressure strength. Additionally, all fans are convincing due to their longevity. Moreover, the fans are very energy-efficient in operation thanks to the built-in EC motors, which benefits both energy costs and the environment.

Expertise from five decades in the Ex area

In many industries and applications, explosive atmospheres can form in the form of gases, vapors, or dusts. For explosion protection, a ventilation system is therefore necessary to transport this explosive atmosphere out of the room. Typical areas where explosive atmospheres can occur include the chemical and petrochemical industries, hydrogen applications, the food industry, hazardous material storage, or biogas plants.

MAICO has been known in the industry for over five decades as a specialist for fans in explosion-hazard areas. The company offers Ex fans for the most diverse requirements for the application areas of gas, dust, and hydrogen. Explosion protection is certified according to ATEX and IECEx.

Fans for special applications

Even in non-explosion-hazard areas, ventilation can face particular challenges. For example, in environments where acidic or corrosive media are moved. Particularly high transport medium temperatures can also occur. MAICO also offers solutions for these environments and has fans in its portfolio that are suitable for transport medium temperatures up to 200 °C. Additionally, MAICO’s program includes acid and corrosion-resistant fans.

Special designs are also part of the repertoire

Certain production processes often require special requirements for ventilation. MAICO has adapted and specialized in these specific needs with its years of experience. Meeting extraordinary and especially individual needs is part of the daily bread of the company’s experts.

Everything from one source

The company has also positioned itself as a system supplier and offers extensive accessories such as sensors for humidity or temperature, silencers, air heaters, and filters for numerous fans and applications.
