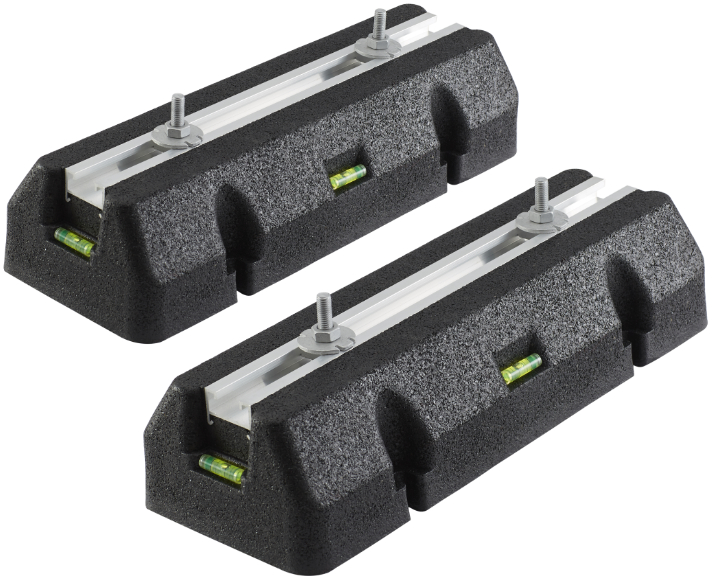

Made with vulcanization of rubber compounds and natural rubber. High stability floor stand. High load capacity.

It adapts to all types of air conditioning and aerothermal groups. Very useful for supporting pipes on flat roofs.

Kit composition:

2 anti-vibration floor supports

2 aluminum profiles 41 x 21

4 M-10×40 profile screws

4 level bubbles

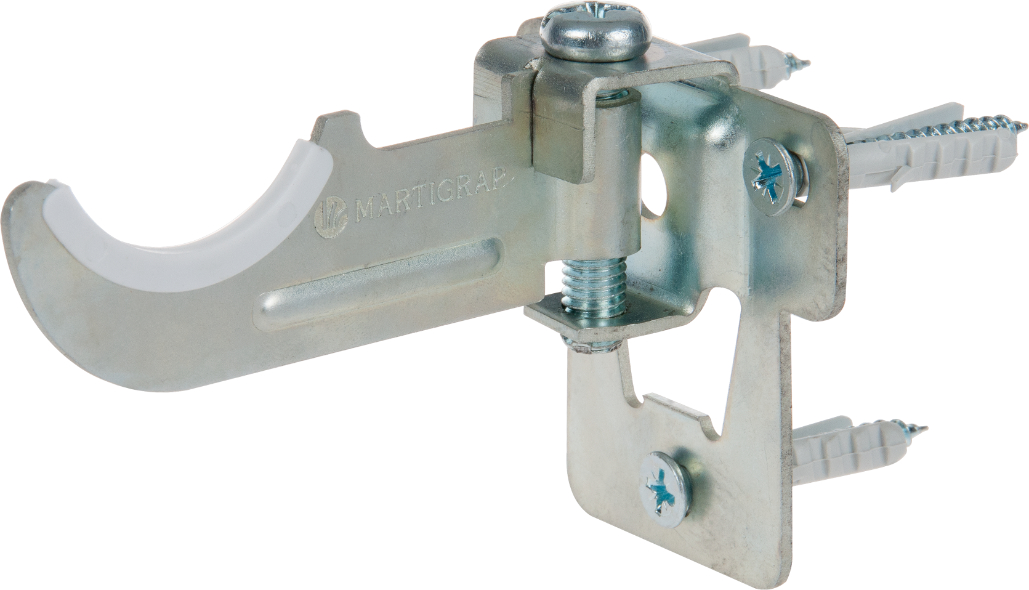

Manufactured in galvanized steel. Reliable fastening through three screws. 1″ curve at the end, with high-quality plastic gaskets to dampen noises and avoid strokes in the assembly (paint) Supplied into a bag two-unit of screws and plugs. Suitable for aluminum radiators.

Presentation: Bag of 2 units with plugs and screws.

Kit composition:

• Profile for fixing the air conditioning supports, 790 mm length x 1,5mm thickness, which facilitates the positioning and levelling of the equipment. • Set of air conditioning supports of 1,5mm thickness. • 1 set of fixing screws for supports and profile. • 1 set of silentblocks and screw with rubber stop for subsequent adjustment. • 1 level bubble • MARTIGRAP printed on the support

Covering: The entire kit is coated with Ral 9002 grey polyester epoxy paint.

Maximum load The maximum recommended load is 150 kg.

Applications: Especially suitable for the installation of air conditioning condensing units.

Advantages: It allows levelling and regulation of the outdoor unit.

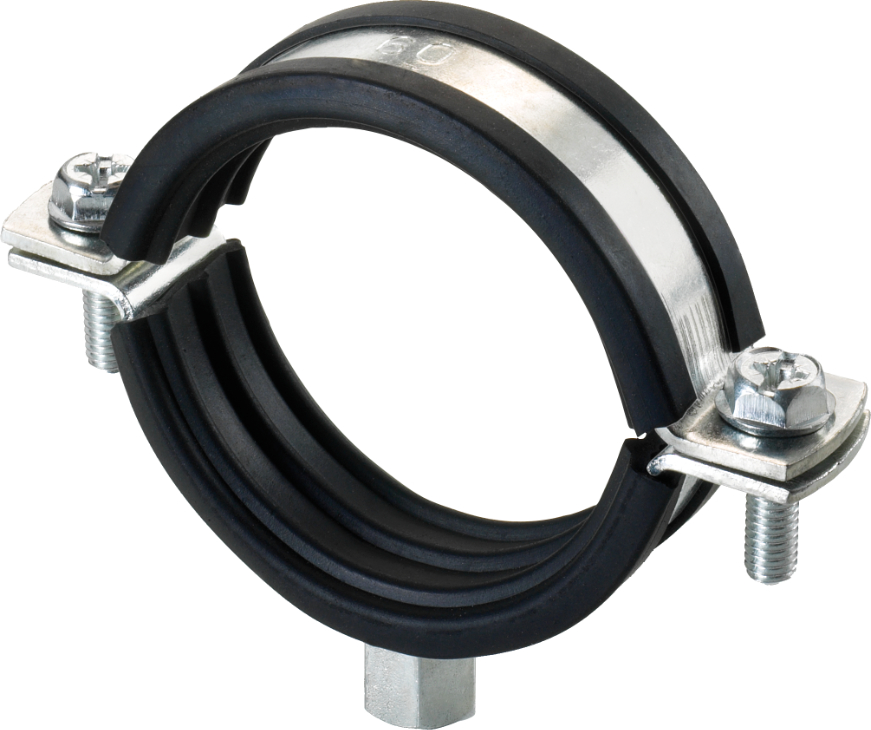

Manufactured in galvanized steel. EPDM rubber to insulate and soundproof DIN 4109. Captive M-6 lateral screws through PVC joints and triple flat, philips and hexagonal actuation. Double thread M-8 + M-10 nut welded. Maximum working temperatures -30º / 110º. For fixing heavy pipes of copper, PVC and steel.

Made with vulcanization of rubber compounds and natural rubber. High stability floor stand. High load capacity.

It adapts to all types of air conditioning and aerothermal groups. Very useful for supporting pipes on flat roofs.

Kit composition:

2 anti-vibration floor supports

2 aluminum profiles 41 x 21

4 M-10×40 profile screws

4 level bubbles

Manufactured in galvanized steel. Reliable fastening through three screws. 1″ curve at the end, with high-quality plastic gaskets to dampen noises and avoid strokes in the assembly (paint) Supplied into a bag two-unit of screws and plugs. Suitable for aluminum radiators.

Presentation: Bag of 2 units with plugs and screws.

Kit composition:

• Profile for fixing the air conditioning supports, 790 mm length x 1,5mm thickness, which facilitates the positioning and levelling of the equipment. • Set of air conditioning supports of 1,5mm thickness. • 1 set of fixing screws for supports and profile. • 1 set of silentblocks and screw with rubber stop for subsequent adjustment. • 1 level bubble • MARTIGRAP printed on the support

Covering: The entire kit is coated with Ral 9002 grey polyester epoxy paint.

Maximum load The maximum recommended load is 150 kg.

Applications: Especially suitable for the installation of air conditioning condensing units.

Advantages: It allows levelling and regulation of the outdoor unit.
