About us
ODE Insulation was founded in 1985 as a contractor in construction industry.In 1988, the company made a strategic decision to specialize in insulation industry.ODE started importing insulation products in 1990 and in1996 the company became a manufacturer in insulation industry.Today, ODE manufactures insulation materials under 2 main categories;Building Insulation and HVAC Insulation. Its building insulation materials are Isıpan(Extruded Polystyrene Foam),Membran (Polymer Bitumen Based Waterproofing Membrane) and Starflex(Glass Wool).Its HVAC insulation materials are Starflex (Glass Wool) and R-flex (Flexible Elastomeric Foam).As of today,ODE is one of the biggest insulation manufacturers in the region with its 5 manufacturing facilites at Çorlu and Eskisehir.It manufactures and exports 4,000 varieties of insulation products to 75 countries
ODE produces it products according to high quality standards such as CE,BREEAM ve DGNB.In 2015, ODE became the first and the only company in insulation industry in the region that has Environmental Product Declaration (EPD)certificate for all of its product range in Turkey, which means that ODE products are internationally approved and they are in accordance with the European standards.
Over the years, ODE became a regional leader and has identified 12 target countries for its export under Turquality brand building program.Currently ODE is focusing on these countries in order to develop its distribution channels.ODE products are used all around the world from theRonaldo Museum located in the Madeira Island of Portugal and the Qatar Place Vendôme Shopping Center,to the General Headquarters of FNB,Lebanon's 1st national bank and Caspian Waterfront Mall, potentially the most prestigious SC inAzerbaijan.ODE is an export-oriented company, and it increases the number of export markets every year.
Having implemented pioneering efforts toward raising public awareness of insulation and energy efficiency,and taking care to be involved in projects that will hand down permanent value to the future, ODE changed its company motto to "Insulates the Future" in 2014.In knowledge of the universal responsibility of being in the global market,ODE continues to operate as a company which encourages its social stakeholders through visionary and innovative work.
ODE insulates the future and it will keep investing in the future by transferring its 33 years of experience in insulation to create a sustainable environment for the next generations.
ODE manufactures insulation materials under 2 main categories;Building Insulation and HVAC Insulation. Its building insulation materials are Isıpan(Extruded Polystyrene Foam),Membran (Polymer Bitumen Based Waterproofing Membrane) and Starflex(Glass Wool).Its HVAC insulation materials are Starflex (Glass Wool) and R-flex (Flexible Elastomeric Foam).
Keywords
- technical insulation
- cooling and heating
- glass wool
- hvac
- elastomeric rubber foam
Our Products

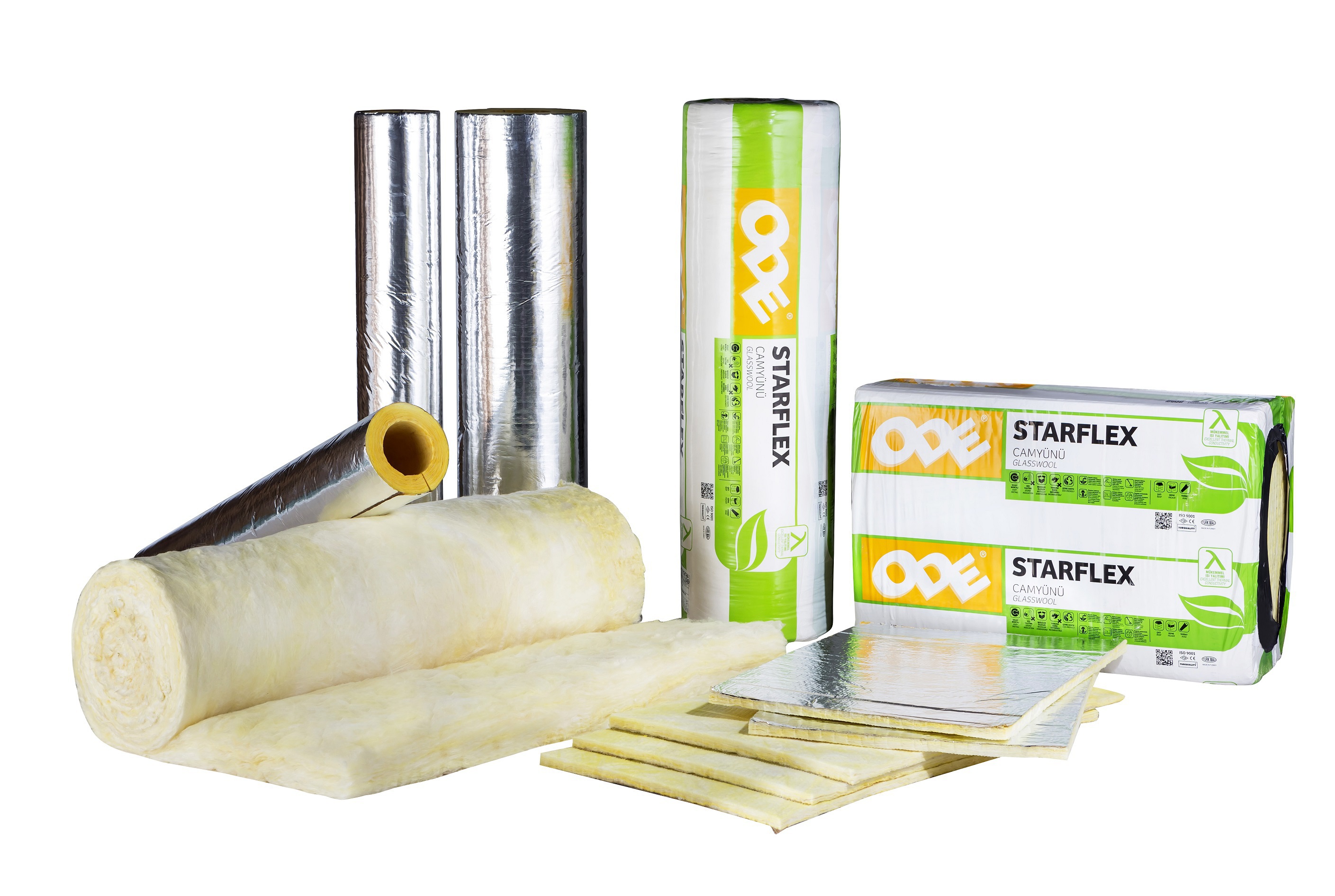

ODE STARFLEX
High performance, long-lasting, environmentally friendly glasswool product manufactured in blanket, prefabricated pipe and board form and used for heat and sound insulation and for fire safety.
It is used for thermal insulation, sound insulation, acoustic design, and for the purposes of fire safety.
Its classification as a "Class A1 Non-Combustible" (TS EN 13501-1) material is a very significant advantage for fire safety.
It does not degrade, decompose, become mouldy in time.
Thanks to its natural content, it does not degrade and is user friendly.
It is EUCEB certified as not harmful to human health;
With its EPD Document, it furnishes additional scores for buildings wishing to obtain LEED, BREEAM, DGNB, etc. certification.
The ODE STARFLEX Blanket Group is manufactured in the thermal conductivity range of λ = 0.032-0.044 W/(m.K).
AREAS OF USE
All types of wooden free standing roofs and metal roofs,
Attic floors,
Sandwich roof systems,
Solar energy systems,
Animal shelters,
Prefabricated structures,
HVAC systems.
The ODE STARFLEX Board Group is manufactured in the thermal conductivity range of λ = 0.031-0.037 W/(m.K).
AREAS OF USE
As thermal and sound insulation between two wall elements,
In double walled sandwich wall panels,
For acoustic applications,
For thermal and sound insulation of all types of screens and partitions, and of elevators, stair enclosures, and skylights,
For internal insulation of wooden buildings,
For attics, below roof rafters, and under sloping concrete sections,
For thermal insulation of external walls,
Between floors, under floating screed, on slab girders, and under travelling elements for thermal and sound insulation,
In flat and sloping terraced roofs, under floating screeds and plating, and in HVAC systems for impact sound insulation and sound insulation.
ODE Starflex Pipe Group manufactured of glasswool with high unit weight, without jacketing or with aluminum foil jacketing for the purpose of thermal-sound insulation and fire safety of pipes used for heating and cooling.
AREAS OF USE
Industrial pipes
Central heating installations
Solar energy installations
All types of mechanical and industrial installations for thermal as well as vibration and noise installation of pressurized water pipes
High performance, long-lasting, environmentally friendly glasswool product manufactured in blanket, prefabricated pipe and board form and used for heat and sound insulation and for fire safety.
It is used for thermal insulation, sound insulation, acoustic design, and for the purposes of fire safety.
Its classification as a "Class A1 Non-Combustible" (TS EN 13501-1) material is a very significant advantage for fire safety.
It does not degrade, decompose, become mouldy in time.
Thanks to its natural content, it does not degrade and is user friendly.
It is EUCEB certified as not harmful to human health;
Ø With its EPD Document, it furnishes additional scores for buildings wishing to obtain LEED, BREEAM, DGNB, etc. certification.
The ODE STARFLEX Blanket Group is manufactured in the thermal conductivity range of λ = 0.032-0.044 W/(m.K).
AREAS OF USE
All types of wooden free standing roofs and metal roofs,
Attic floors
Sandwich roof systems
Solar energy systems
Animal shelters
Prefabricated structures
HVAC systems
The ODE STARFLEX Board Group is manufactured in the thermal conductivity range of λ = 0.031-0.037 W/(m.K).
AREAS OF USE
As thermal and sound insulation between two wall elements,
In double walled sandwich wall panels,
For acoustic applications,
For thermal and sound insulation of all types of screens and partitions, and of elevators, stair enclosures, and skylights,
For internal insulation of wooden buildings,
For attics, below roof rafters, and under sloping concrete sections,
For thermal insulation of external walls,
Between floors, under floating screed, on slab girders, and under travelling elements for thermal and sound insulation,
In flat and sloping terraced roofs, under floating screeds and plating, and in HVAC systems for impact sound insulation and sound insulation.
ODE Starflex Pipe Group manufactured of glasswool with high unit weight, without jacketing or with aluminum foil jacketing for the purpose of thermal-sound insulation and fire safety of pipes used for heating and cooling.
AREAS OF USE
Industrial pipes
Central heating installations
Solar energy installations
All types of mechanical and industrial installations for thermal as well as vibration and noise installation of pressurized water pipes
ODE STARFLEX
High performance, long-lasting, environmentally friendly glasswool product manufactured in blanket, prefabricated pipe and board form and used for heat and sound insulation and for fire safety.
It is used for thermal insulation, sound insulation, acoustic design, and for the purposes of fire safety.
Its classification as a "Class A1 Non-Combustible" (TS EN 13501-1) material is a very significant advantage for fire safety.
It does not degrade, decompose, become mouldy in time.
Thanks to its natural content, it does not degrade and is user friendly.
It is EUCEB certified as not harmful to human health;
Ø With its EPD Document, it furnishes additional scores for buildings wishing to obtain LEED, BREEAM, DGNB, etc. certification.
The ODE STARFLEX Blanket Group is manufactured in the thermal conductivity range of λ = 0.032-0.044 W/(m.K).
AREAS OF USE
All types of wooden free standing roofs and metal roofs,
Attic floors
Sandwich roof systems
Solar energy systems
Animal shelters
Prefabricated structures
HVAC systems
The ODE STARFLEX Board Group is manufactured in the thermal conductivity range of λ = 0.031-0.037 W/(m.K).
AREAS OF USE
As thermal and sound insulation between two wall elements,
In double walled sandwich wall panels,
For acoustic applications,
For thermal and sound insulation of all types of screens and partitions, and of elevators, stair enclosures, and skylights,
For internal insulation of wooden buildings,
For attics, below roof rafters, and under sloping concrete sections,
For thermal insulation of external walls,
Between floors, under floating screed, on slab girders, and under travelling elements for thermal and sound insulation,
In flat and sloping terraced roofs, under floating screeds and plating, and in HVAC systems for impact sound insulation and sound insulation.
ODE Starflex Pipe Group manufactured of glasswool with high unit weight, without jacketing or with aluminum foil jacketing for the purpose of thermal-sound insulation and fire safety of pipes used for heating and cooling.
AREAS OF USE
Industrial pipes
Central heating installations
Solar energy installations
All types of mechanical and industrial installations for thermal as well as vibration and noise installation of pressurized water pipes
TECHNICAL SPECIFICATIONS
NAME OF PRODUCT
ODE STARFLEX
Property
Unit
ODE STARFLEX BLANKET GROUP
Type
_
STARFLEX 044
STARFLEX 042
STARFLEX 040
STARFLEX 037
STARFLEX 035
STARFLEX 032
Thickness
mm
100
40-105
25-140
25-180
25-180
25-180
Fire Response
Euro Class
A1
Thermal Conductivity (λ) (10°C)
W/(m.K)
0.044
0.042
0.040
0.037
0.035
0.032
Thermal Resistance (R)
(m2K)/W
2.25
0.95-2.5
0.60-3.5
0.65-4.85
0.70-5.10
0.75-5.60
Water Vapor Permeability (μ)
_
1.1
Maximum Service Temperature
°C
250
NAME OF PRODUCT
ODE STARFLEX
Property
Unit
ODE STARFLEX BOARD GROUP
Type
_
STARFLEX 037
STARFLEX 035
STARFLEX 032
STARFLEX 031
Thickness
mm
25-180
25-180
25-180
20-100
Fire Response
Euro Class
A1
Thermal Conductivity (λ) (10°C)
W/ (m.K)
0.037
0.035
0.032
0.031
Thermal Resistance (R)
(m.2K)/W
0.65-4.85
0.7-5.10
0.75-5.60
0.65-3.20
Water Vapor Permeability (μ)
_
1.1
Maximum Service Temperature
°C
250
NAME OF PRODUCT
ODE STARFLEX
STARFLEX Prefabricated Pipe
Thickness (mm)
Diameter (mm)
Density (kg/m³)
Thermal Conductivity (λ) (W/mK)
Thermal Resistance R (m²K/W)
Jacketing
Fire Class TS EN 13501-1
25-100
21-324
60-100
0.035
0.70-2.85
Non-Jacketed
A1
AFH
AFK
C˪-s1, do

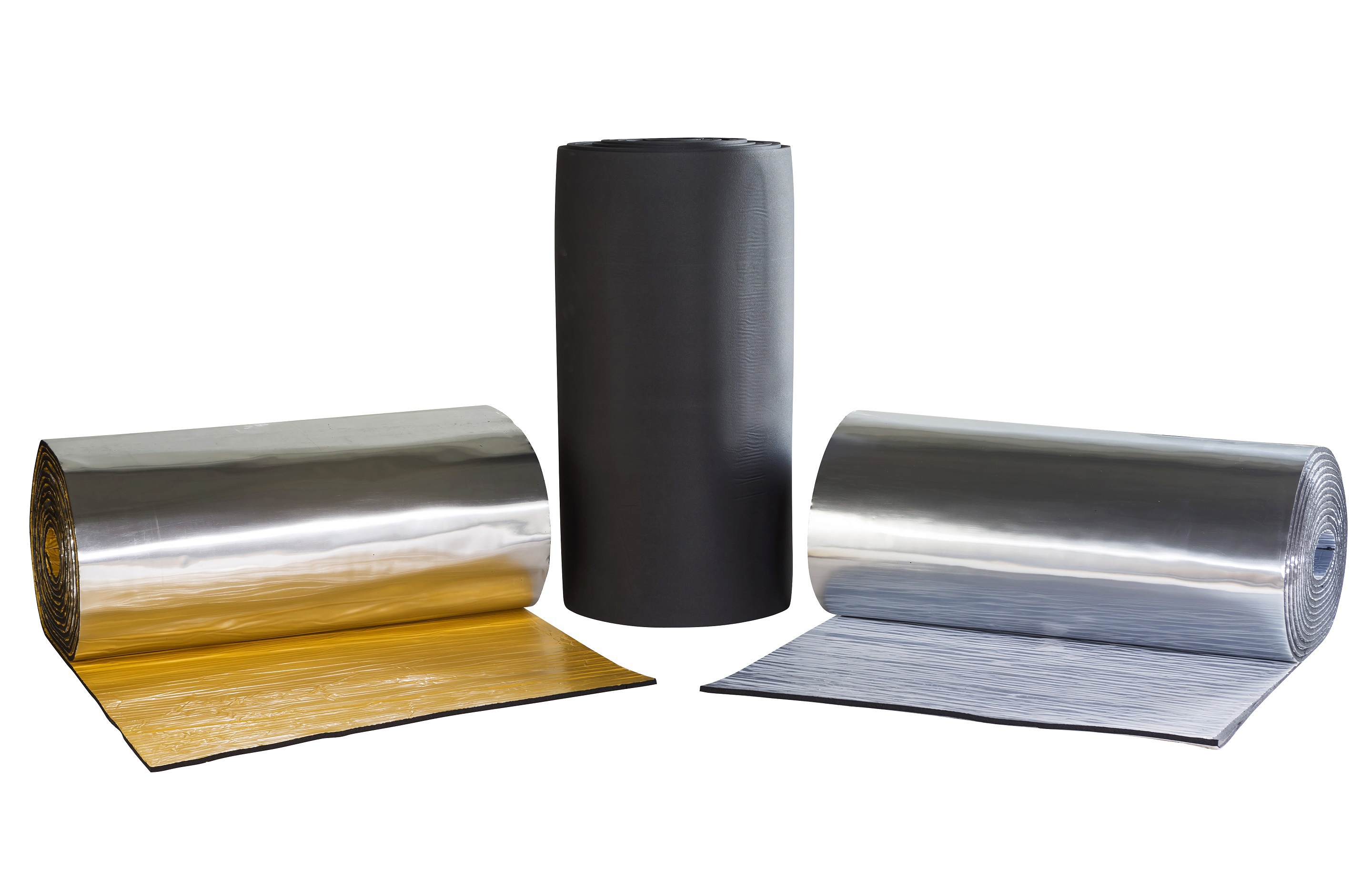

ODE R-FLEX
It is a thermal insulation material manufactured from elastomeric rubber foam material in the form of board and pipe.
It is the insulation material of choice for air conditioning and cooling systems for its thermal insulation performance and high water vapor resistance. It is manufactured in various thicknesses and widths.
ODE R-FLEX is manufactured in two groups, PRM (Premium) and STD (Standart), and with various types of jacketing.
PROPERTIES:
- Elastomeric rubber foam used for insulating chilled water and cooling system installations.
- It offers ideal solutions for heating, cooling installations and for ventilation systems.
- It offers maximum savings with its low thermal conductivity.
- It does not transmit water vapor thanks to its high µ (water vapor diffusion resistance factor) value.
It is not affected by mold and microorganisms
ODE R-FLEX PRM BOARD
Name of Product
Thermal Conductivity λ
W/m.K
μ
Water Vapor Diffusion Resistance Factor
Fire Response Class
(TS EN 13501-1)
R-FLEX PRM Board
0,032 (-200 C)
7000
B-s3-d0
0,034 (00 C)
0,036 (+200 C)
ODE R-FLEX STD BOARD
Name of Product
Thermal Conductivity λ
W/m.K
μ
Water Vapor Diffusion Resistance Factor
Fire Response Class
(TS EN 13501-1)
R-FLEX STD Board
0,032 (-200 C)
5000
B-s3-d0
0,034 (00 C)
0,036 (+200 C)
ODE R-FLEX PRM PIPE
Name of Product
λ
µ
Fire Response Classification
(Thermal Conductivity)
(Water Vapor Diffusion Resistance Factor)
(EN 13501-1)
W/ (m.K)
R-FLEX PRM Pipe
0.030 (0 °C)
7000
BL-s2,d0
0.032 (50 °C)
0.034 (75 °C)
ODE R-FLEX STD PIPE
Name of Product
λ
µ
Fire Response Classification
(Thermal Conductivity)
(Water Vapor Diffusion Resistance Factor)
(EN 13501-1)
W/ (m.K)
R-FLEX STD Pipe
0.030 (0 °C)
5000
BL-s2,d0
0.032 (50 °C)
0.034 (75 °C)

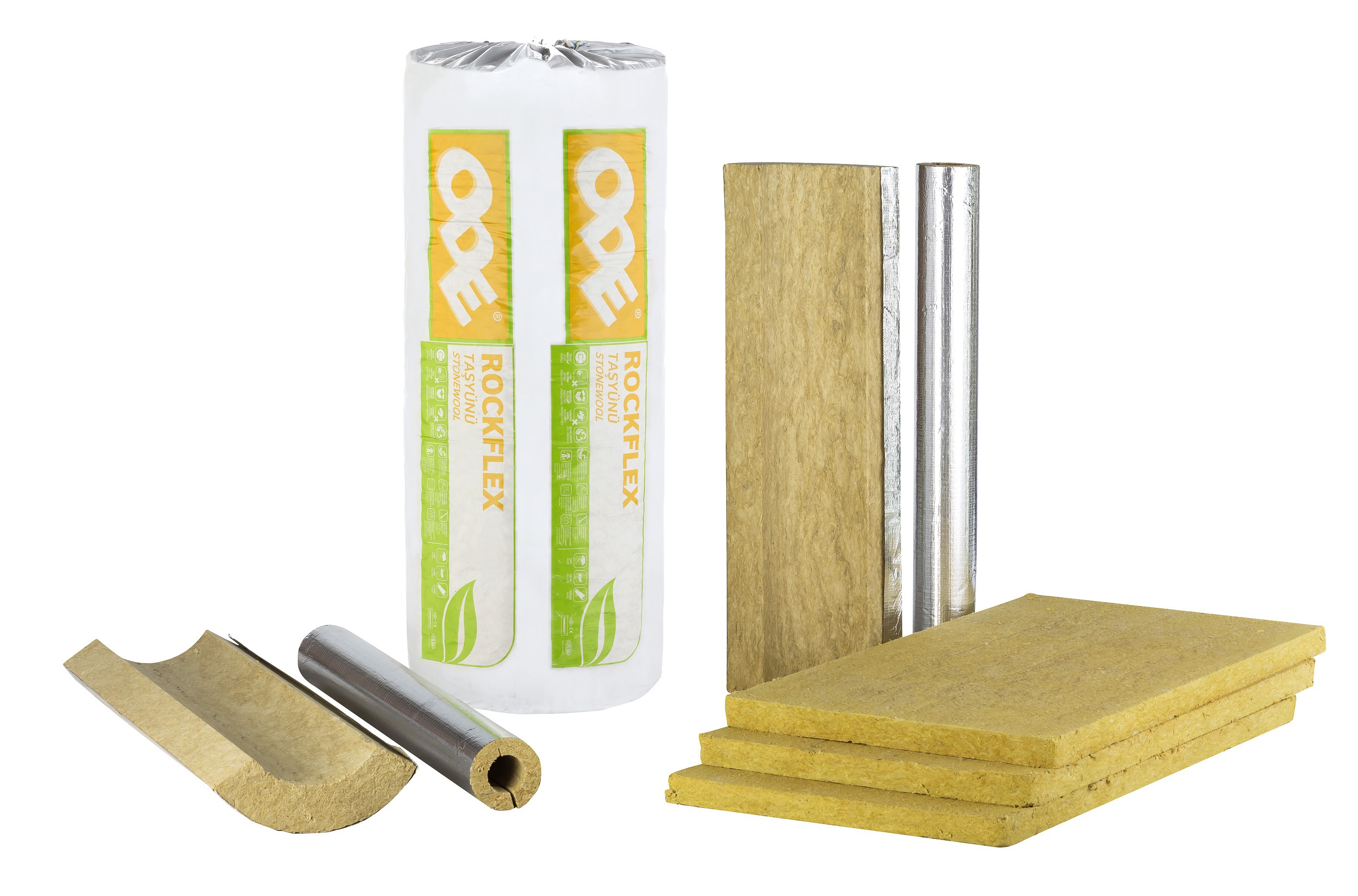

ODE ROCKFLEX
ODE Rockflex is a rock wool insulation material containing 97% natural fibers, obtained from basalt mineral molten into fibrous form at high temperatures. ODE ROCKFLEX is the ideal insulation material for buildings for its capacity of sound as well as thermal insulation, and for its non-flammable properties; and for installations and industrial applications for its high temperature resistance, fire resistant varieties, and its wide product range including various densities.
AREAS OF USE
BLANKET:
Used for thermal and sound insulation and fireproofing of tanks, boilers, exchangers, and ovens at industrial applications such as
thermal power plants
cement, sugar and iron-steel factories,
and shipyards.
BOARD:
PARTITION BOARD
Non-flammable, long-lasting panels made of rock wool, containing water repellent admixtures, used for thermal and sound insulation of building interiors.
Used as internal insulation between and below rafters, on suspended ceilings, attic floors, wooden floors, elevator shafts,
partition walls and inside insulation of exterior walls.
AIR CONDITIONER BOARD
Rockwool panel covered on one side with aluminum foil.
Used in air conditioning and ventilation ducts.
INDUSTRIAL BOARD
Boards used for thermal, sound, and fire insulation in temperatures up to 760°C in industrial areas.
Used in steel constructions,
process equipment,
industrial facilities, and
ready panel applications.
FLOATING FLOOR BOARD
Non-flammable, uncoated and long-lasting rockwool panels used in thermal, sound and fire insulation of
buildings.
Used between floors,
for flooring of open passages,
and building floors.
TERRACE ROOF BOARD
Non-flammable, long-lasting, stable panels made of rock wool containing water repellent admixtures, used for thermal and sound insulation of conventional roofs.
Used for water insulation of metal and wooden roofs, and under waterproofing membranes.
CLADDING BOARD
High density, non-flammable rockwool panels containing water repellent admixture and used in the cladding of exterior building façades.
Used under plastering on exterior façades for thermal, sound, and fire insulation, and
For thermal, sound, and fire insulation of curtain walls.
PREFABRICATED PIPE
Used for thermal and fire insulation for high temperature industrial and installation pipes, and for sound and vibration insulation for process equipment.
