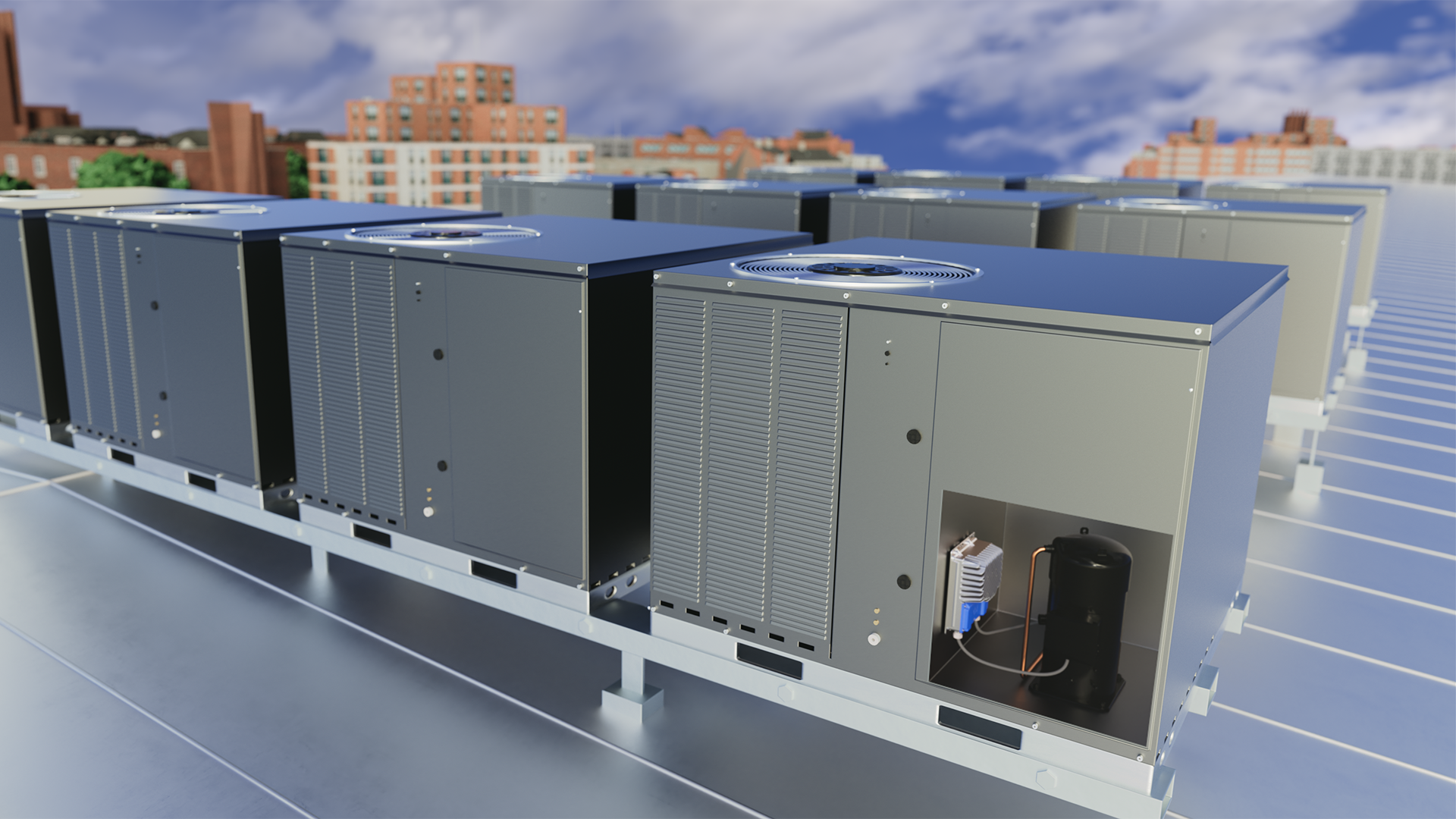

Scroll Compressor Drives - Ideal Solution for Chillers and AHUs

With a dedicated drive for scroll compressors in your chiller or AHU, you can rest assured that you will have optimal lubrication control and flawless performance regardless of variable loads or capacity. The DC series has a compact housing to fit your exact installation and match your compressor specifications.

As with all solutions from OJ Electronics, simplicity and efficiency are absolute keywords. The focus revolves around developing and delivering the functions and features you need and offering the best possible system to your customers.

The OJ DC series is developed according to the DV series standards, combining EC (electronic commutation) and FC (frequency converter) technologies.

OJ DC is built on proven OJ technology in the existing DV series. The drives come in two compact housing sizes and have a power range span from 4kW to 15kW, depending on your needs and system requirements.

Durability has been an essential keyword throughout the R&D phases, rendering DC ideal for central and decentralised locations where environments get rough. The new drives have high ingress protection and NEMA rating of IP54/IP65 and NEMA 4X, respectively.

The OJ DC series continuously operates in almost any environment from -40°C to +50°C / -40°F to +122°F.

Energy savings are the first step toward increasing sustainability in your business. The OJ DC series saves energy while providing reliable, highly efficient power for the compressor. With OJ DC, there will be an efficiency of up to 97%.

Like the OJ DV series, the DC series comes with a fully integrated EMC filter and therefore meets the criteria for emissions and immunity in industrial and residential areas and complies with EN 61800-3 (C1 and C2).

Frequency Converters

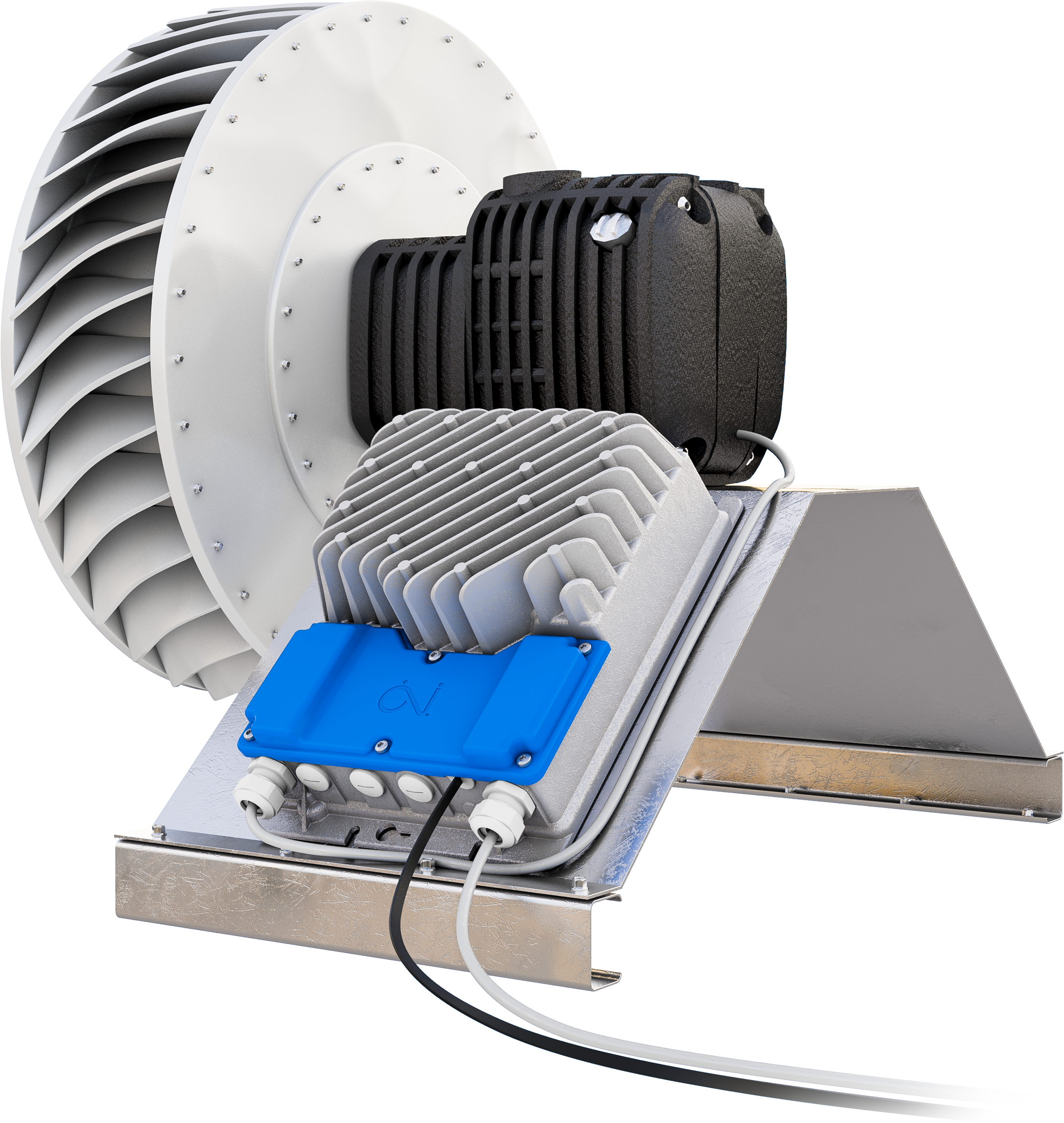

The OJ DV GEN II series takes performance to the next level

A series of drives dedicated to ventilation systems comprising 13 output variants (from 0.5 to 15 kW) fitted in four different frame sizes to match any rooftop fan, plug fan, or AHU application. The OJ DV GEN II offers 230/400/480 & 600V supply.

Improved Design
The OJ DV Gen II series offers a flexible installation design – they can be mounted inside or outside the airflow.

OJ DV GEN II series is suitable for any system, as it can be configured specifically for your application. Adding option modules and mounting a cooling fan on the OJ DV GEN II series enlarge the application use. Moreover, the OJ DV GEN II series has been extended and can now be provided with a local user interface.

Easier Access and Secure Mounting
The OJ DV GEN II series removable front cover design allows easy access to the connection compartment and provides sufficient space for connecting the option module cables. The front cover facilitates safe mounting on the aluminum frame, securing the desired sealing grade.

Controlling
The OJ DV GEN II series can be controlled using a 0-10V or a 4-20mA signal and through Modbus RTU or BACnet MS/TP. In addition, the digital input and output interfaces can be used to determine and configure the control method.

Grid immunity
The OJ DV GEN II series offers Over Voltage Detection, allowing the drives to survive in most types of grids worldwide. Our drives are robust and handle grid disturbance, such as notches, spikes, and transients.

Built-in EMC filter
The OJ DV GEN II series comes with a fully integrated EMC filter and therefore meets the emissions and immunity norms for industrial and residential areas according to EN 61800-3 (C1 and C2) and FCC §47 part 15 B. and ICES-003.

Product features:

• 13 power variants (rom 0.5 to 15 kW)
• 230/400/480 & 600V supply
• IM, PMSM, and PMsynRM motor
• Ignition-protected

We offer two different flexible and precise AHU controls:

• Modular (central)
• Compact (decentral)

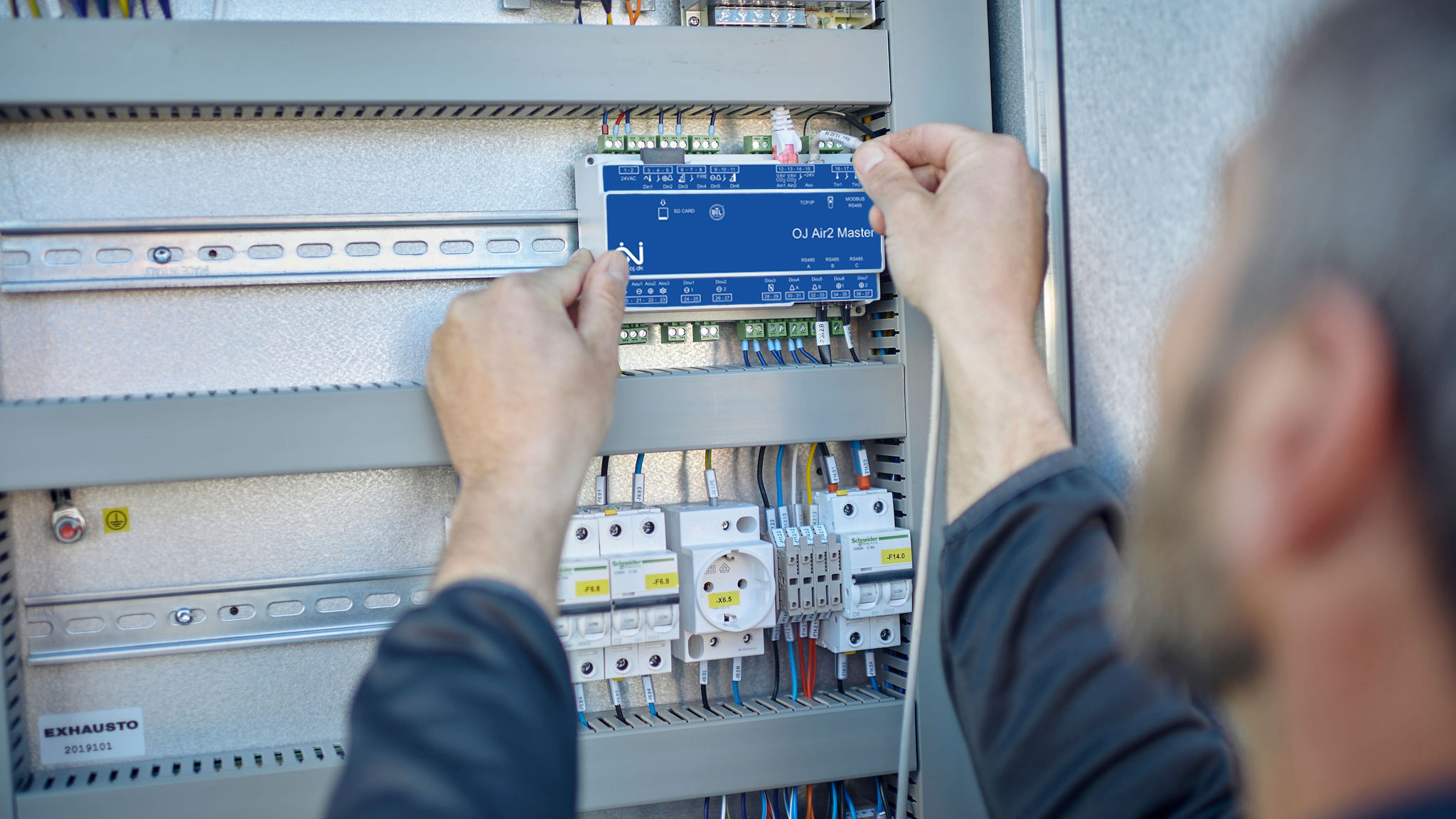

OJ Air2 – control system for AHUs

Controlling air handling units (AHU) with precision is crucial for proper performance. At OJ Electronics, we have spent four decades providing and perfecting control systems for AHUs. So we are very aware that different settings require different things. With OJ Air2, you can get it all.

Pick the level of control you want

Our AHU control range is about quality and choice. Here you can choose between a range of master modules, motor controllers, pressure transmitters, sensors and more. You can install our complete range in your system if you want the full benefit of sophisticated AHU control and simple handling. But you can also scale your system to match project specifications, picking out specific products and control features to give your clients exactly the level of AHU functionality and control they need.

Plug & play solutions

All elements in the OJ Air2 AHU control range fit together perfectly – and many of the products have Modbus technology, which makes cabling and installation a breeze. But our Plug & Play philosophy goes further than that: With OJ Air2 controls inside, your entire AHU is transformed into a single preinstalled unit for effortless installation on-site. We call that QuickPlug™.

Energy savings

The OJ Air controls minimise energy consumption in AHUs in many ways, e.g. through efficient interaction with heat pumps.

Reliable solution

With an OJ Air2 solution, all components of superior, lasting quality fit perfectly. That’s why they will reliably handle every situation with ease.

Individual Zone Control

As OJ Air2 Master can handle four different temperature zones directly, the AHU system is more cost-efficient than ever – and system integration is straightforward.

Easy Integration

Ensuring simpler and faster system integration, the OJ Air2 Master has a BACnet profile Advanced Application Controller (B-AAC) with BTL listing and certificate. This makes BACnet integration simpler and cheaper for system integrators.

• Specifically designed for ventilation systems
• Built-in web server with a simple and intelligent interface
• Simple and reliable

Controls for compact AHUs – AHC-3000 product range

AHU controller for smaller-scale ventilation applications. Here you get genuine OJ quality at cost-efficient prices: the AHC-3000 offers all the standard functions required by most of your customers – and pre-programmed add-on options make the system entirely scalable while avoiding the costs of customised programming.

A simpler controller

Simple, straightforward controller designed for smaller system types such as decentralised ventilation and compact air handling units—and it also lets you benefit from the equally new OJ Air Cloud® system. Here, OJ quality meets cost-efficiency. We believe this will help you create even more competitive solutions—and reach new markets for smaller-scale systems.

The standard version of the AHC-3000 will handle all the essential functions usually required by your customers. Where more complex functionalities are required, these can easily be purchased as add-ons—examples of add-on functions:

• Filter pressure
• Pressure control
• Flow control
• Power read-out
• OJ Air Cloud®

You can add these advanced functions at cost-efficient prices: no customised programming is required, which helps to make the AHC-3000 very competitive.

Accurate pressure transmitters for any application

OJ Air Pressure

The OJ Air Pressure range packs four decades of application know-how into intelligent, simple ventilation controllers and pressure transmitters to fit your specific application needs. This range has exactly what you need to monitor and control airflow and pressure. And with astounding accuracy. Anywhere at all.

Expanded range of pressure transmitters

OJ Electronics was the first to introduce the advanced, easy-to-use, highly accurate pressure transmitters in our PTH series. By popular demand, we have expanded that range, creating variants that are ideally suited for a vast selection of applications. You can get pressure transmitters, ventilation controllers, relays and dual-input pressure transmitters from us.

Choose from pressure transmitters with:

• Analogue output
• Modbus output
• With or without displays
• With relays
• Dual input + Dual temperature input
• Controllers – adjusting motor speed to maintain constant air pressure/flow

The entire range perfectly matches the OJ Drives®, OJ Air2 and OJ GreenZone™ product ranges. And for many other systems, ask us for details on integrating these pressure transmitters in your HVAC applications.

Modbus technology

Many products in the OJ Air Pressure programme are based on Modbus technology, making them very easy to install.

Energy savings

With these pressure transmitters and ventilation controllers, you improve system performance; getting the correct pressure translates into system savings.

Reliable solution

OJ Electronics’ original PTH pressure transmitters set new standards for tried-and-tested accuracy and are used by quality-conscious clients worldwide.

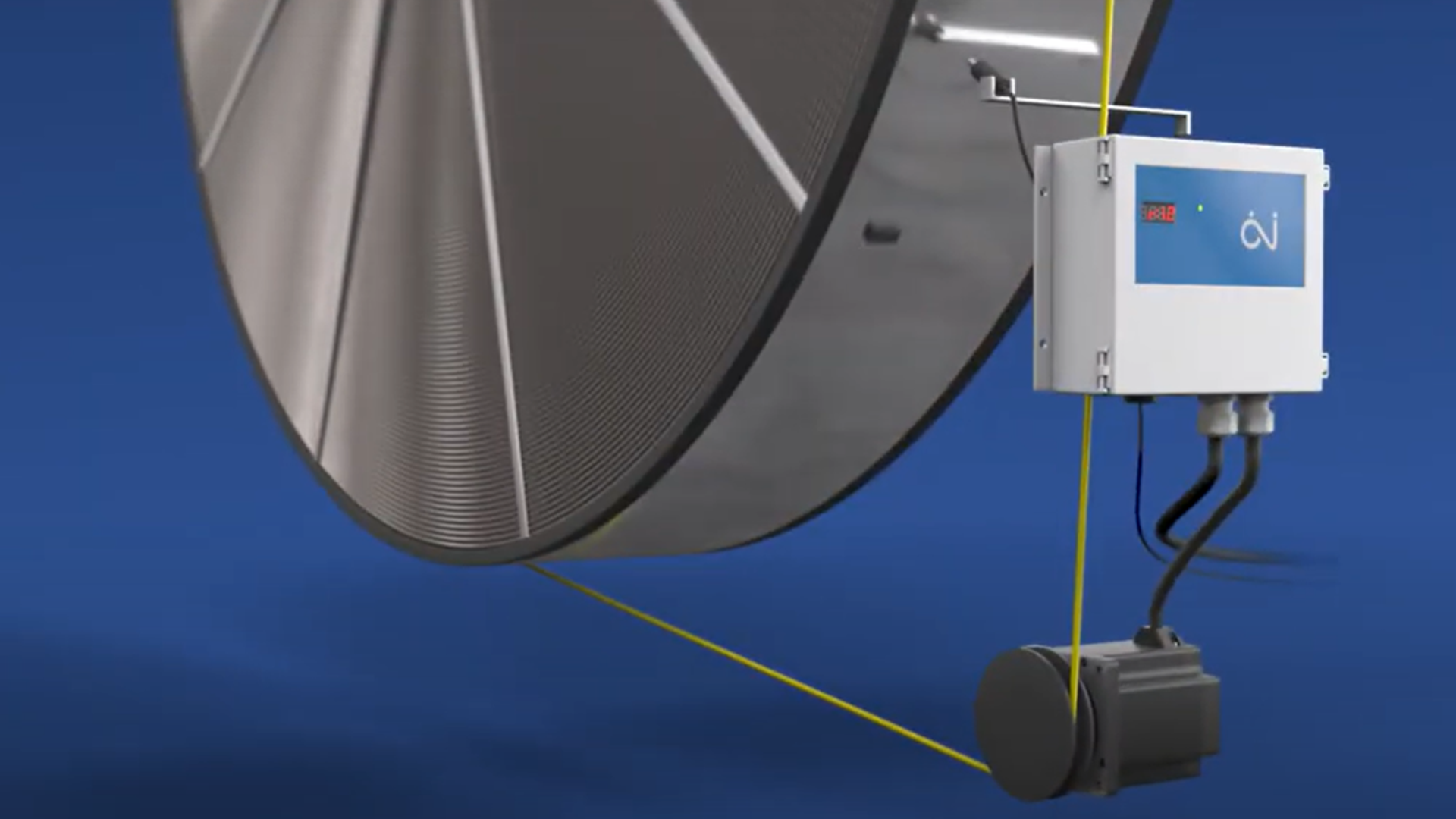

Drives for Rotary Heat Exchangers

The DRHX drives have a self-cooling design, eliminating the need for additional cooling, such as fans. The gear-free technology ensures accurate control throughout a broader range of speeds. Our patented sensorless software monitors the rotation of the rotor, which means that no physical/optical rotor guard is required. This gives you a simple, efficient solution, and with fewer components, you also get an easier installation.

Combining a high-torque stepper motor with a closed-loop sensorless control gives you more accurate, energy-efficient control. The drive regulates the current to the exact level required to achieve the right speed and torque. Patent granted.

OJ DRHX Constant Speed lets you master the new technology of a stepper motor in the most basic way. The setting is either on or off. You’ll typically use these drives in simple cooling/ventilation systems. When on, the motor will run at one of four predefined speeds. It is a cost-efficient solution when you do not need a demand-driven application.

The drives cover from 1 Nm to 8 Nm.

With RS-485 control, the drive can both send and receive information. This provides advanced control, allowing energy recovery from the air to be adjusted as required.

This solution is often used in an AHU system. The user interface provides visual information via a triple-colour LED.

Covers from 1 Nm to 8 Nm.

Modbus and 0-10V control leave you with all options of advanced control and optimization of energy consumption and air quality. A 3×7 segment display provides user information on actual performance and error messages.

This solution is perfect for advanced AHU systems and refurbishment.

Covers from 1 Nm to 14 Nm
