Used to remove unpleasant smells and gases:

• food and dairy products processing,
• medical facilities,
• medicine manufactory,
• foundries
• gas turbines

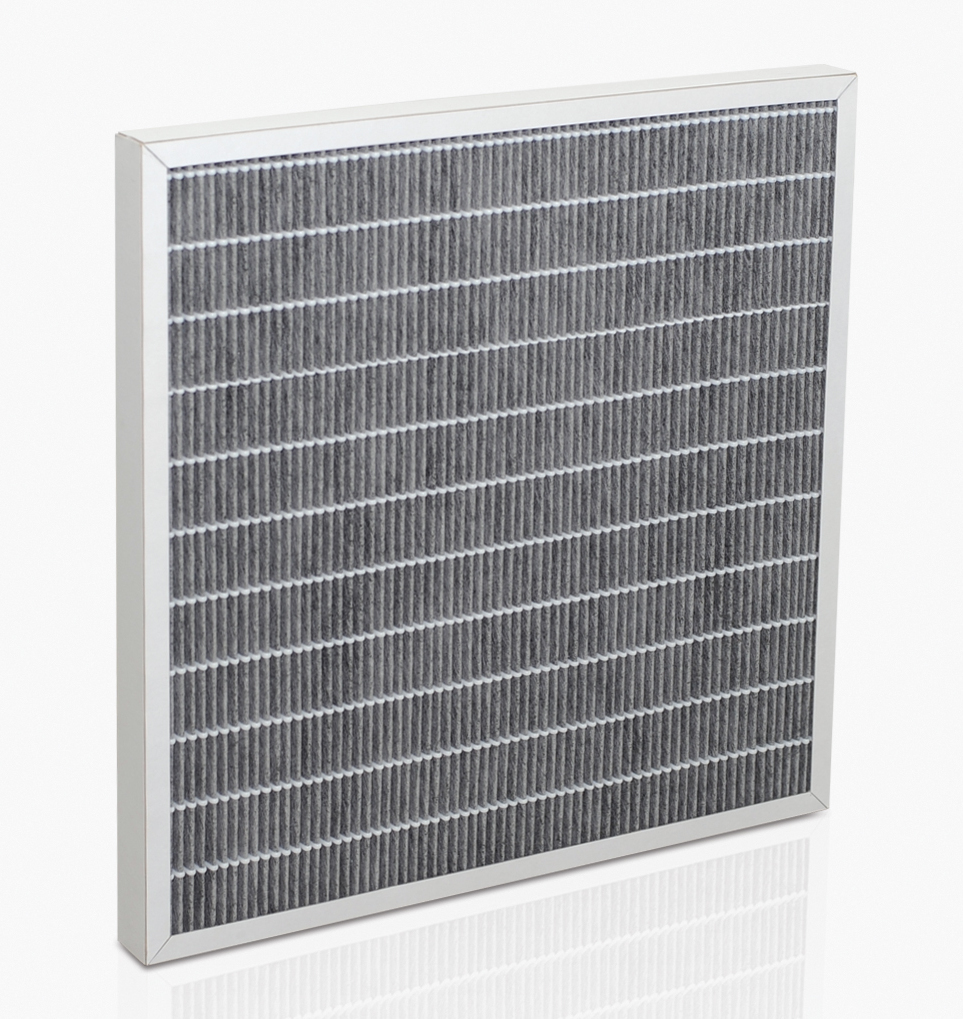

Description:

Activated carbon filter media is very porous carbon product. In activation process applied oxygen open millions of pores in carbon granule structure. This greatly increases activated carbon’s ability to absorb other chemical materials, which bond with open pores in carbon. Media consist from 3-layered structure with pore size gradient.

Active carbon filters can remove food and other odors, smog, smoke, gasoline, phenol vapors, various fumes, solvents from paint, which can be unpleasant and harmful for humans.

Advantages:

• Maximized adsorbtion of harmful gases and odours
• Sustained mechanical filtration efficiency over the liftetime of the filter — no drop of efficiency after instalation
• High quality filter with low air flow resistance

Technical information

Media: activated carbon with high-quality synthetic or glass fiber.

Frame: water resistant carboard or sturdy plastic

Maximum operating temperature: <75°C

Relative humidity: <70%

Available for compact and panel filters aswell.

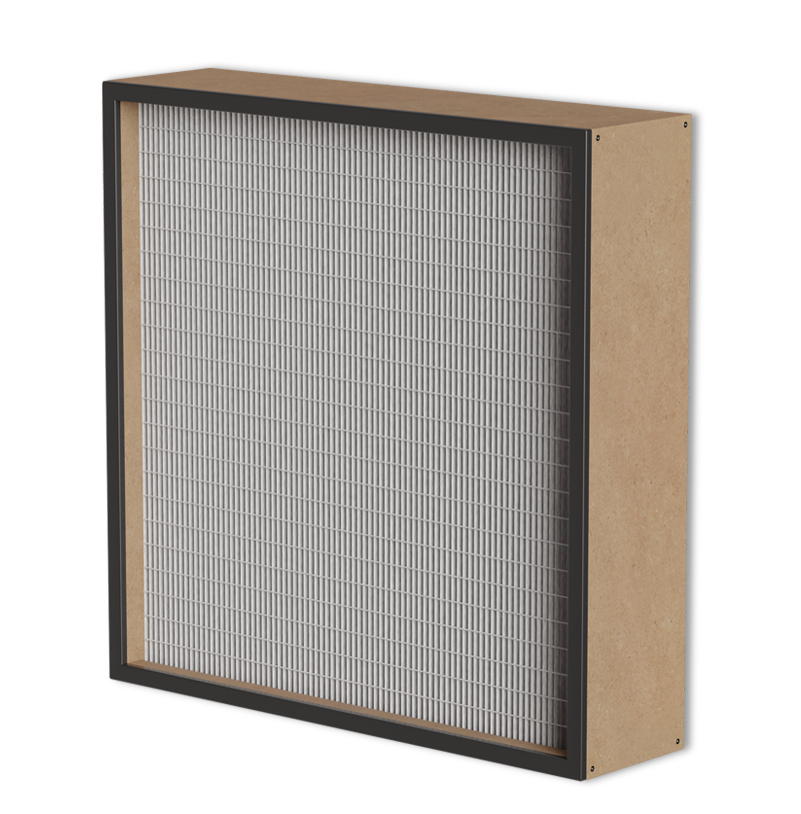

Type:  Hepa  Filters

Hepa filters are absolute filters, which can hold the smallest airborne particles - bacteria, viruses, poison dusts. These filters are used in rooms with the high cleanliness requirements.

APPLICATIONS: used in clean rooms:

• Hospitals

• Laboratories

• Food industry
• Pharmaceutical industry

• Micro electronics industry

Wireframe filters protect air conditioning equipment from dust and dirt.

Frame: plastic, MDF, aluminum
Filter media: high quality glass fiber and progressive synthetic media.

Advantages:

• Higher efficiency filter.
•  Each filter is individually tested to EN 1822, by request acc. ISO 29463.
• Different frame types can be selected.
• The higher amount of media, the lower pressure drop, and  the higher airflow and lower operating costs.
• The Hepa filter is selected individually according to the air
  flow and other parameters

Available custom-sized filters.

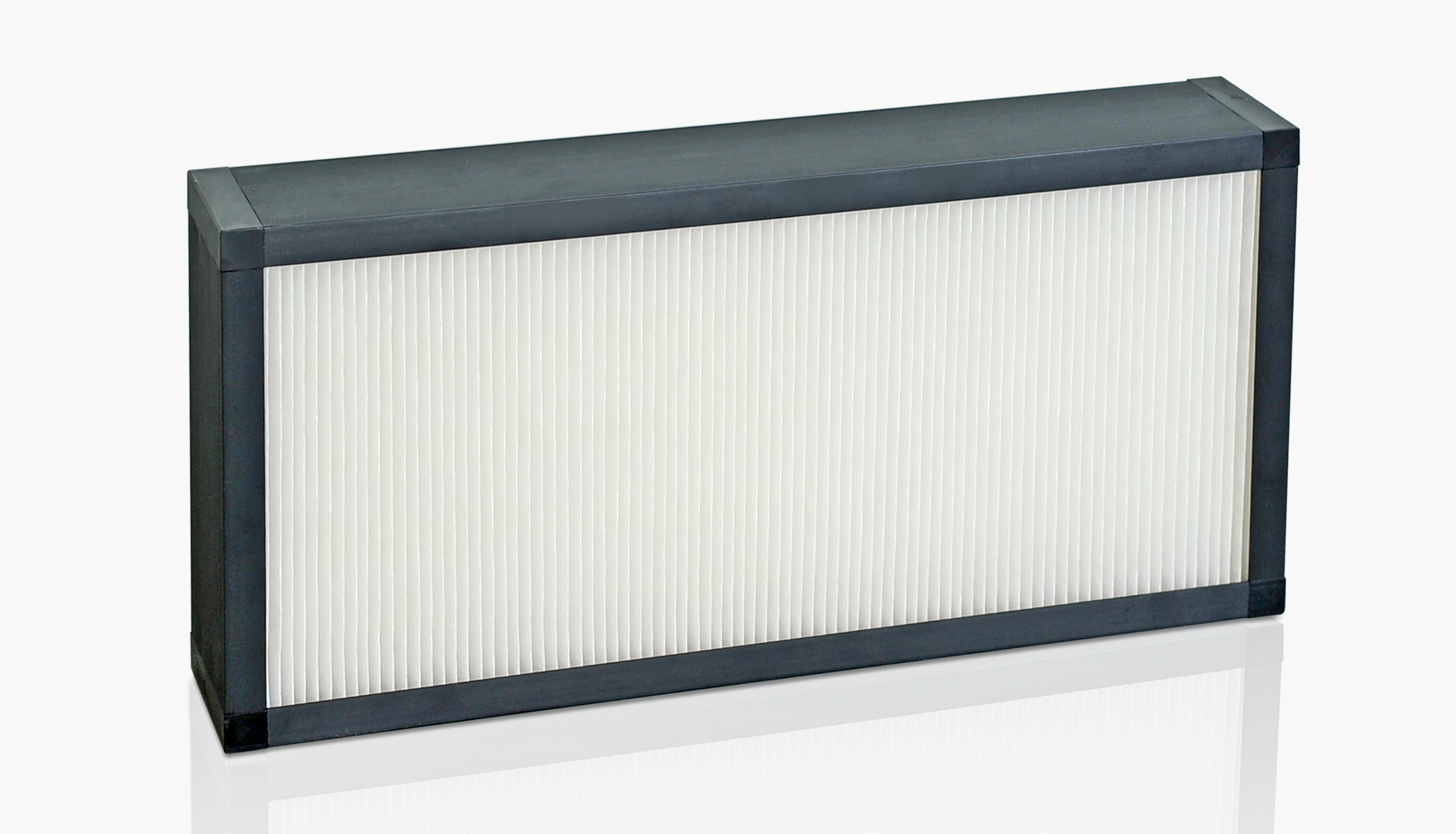

Type:panel filter.

Application:

• ventilation, air conditioning and high-performance industrial systems:
• office buildings,
• hotels,
• shopping centers,other public building
• sports arenas,
• hospitals and laboratories,
• industrial facilities.

Panel filters hold the smallest particles from the air such as fine dust and pollen. These type filters are commonly used in the systems with limited space for filters.

Frame:water resistant cardboard or sturdy plastic.

Filter media:high-quality polypropylene and polyester, glass fiber

Hermetic material: polyester.

Filter class: from coarse 80% till ePM1 80%

Maximum permitted temperature/relative humidity:70°C/100%.

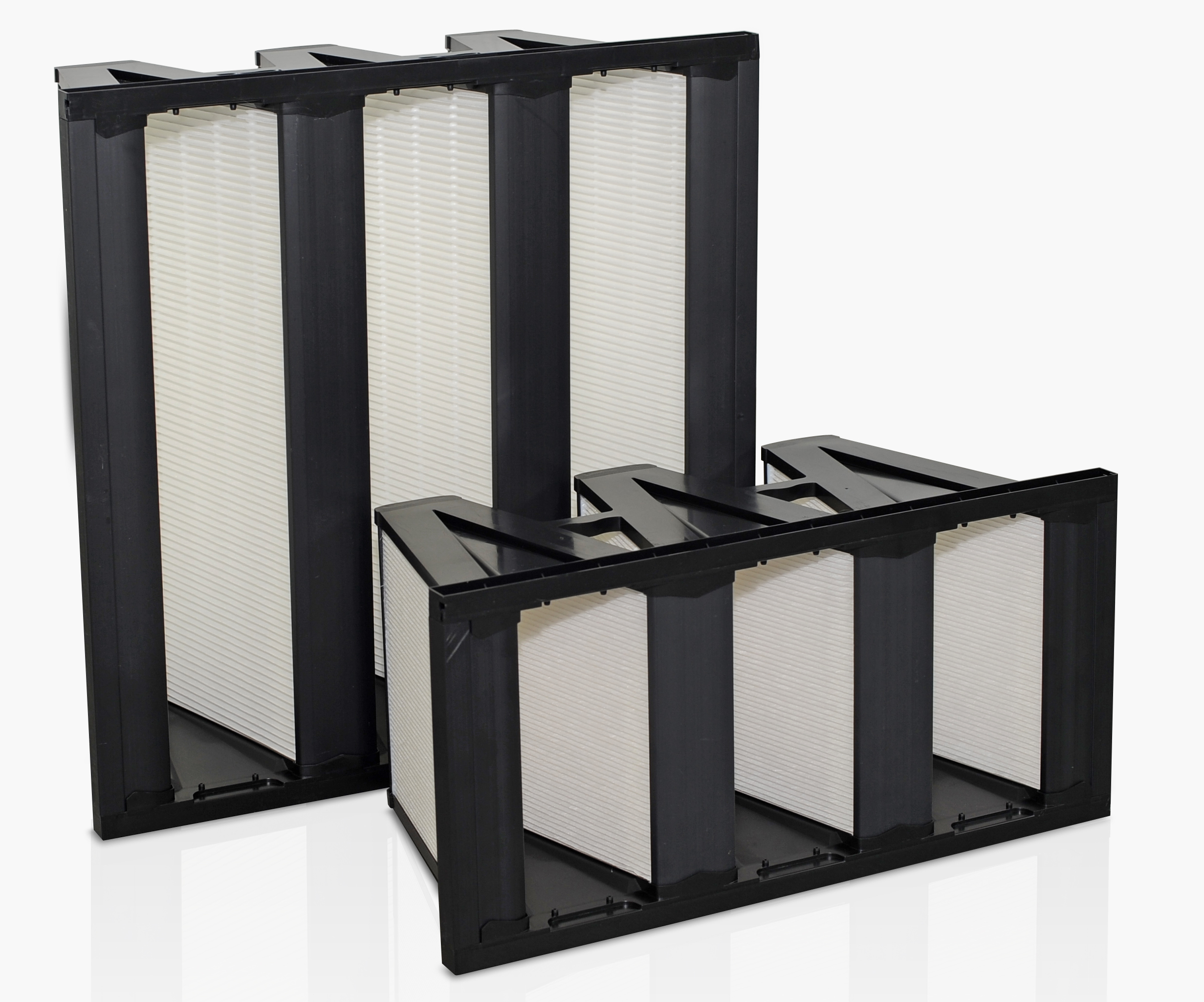

Type:higher efficiency compact filter.

Applications:ventilation and air conditioning systems:

• hospitals and laboratories,
• officebuildings,
• hotels,
• shoppingcenters,
• airports,
• libraries and museums,
• sports arenas.

Compact (V-type) filters are higher efficiently filters, which hold the smallest particles–bacteria, finedust and pollen. Due to the large surface area, these filters have a long service life and lower air pressure drop compared with bag filters and compact filters. This leads to extremely low energy consumption.

Housing: high-quality plastic.

Filter media: high-quality polypropylene and polyester

Hermetic material: polyester.

Filter class: from ePM10 50% till ePM1 80%

Maximum pressure drop:450 Pa.

Maximum permitted temperature/relative humidity: 70°C/100%.

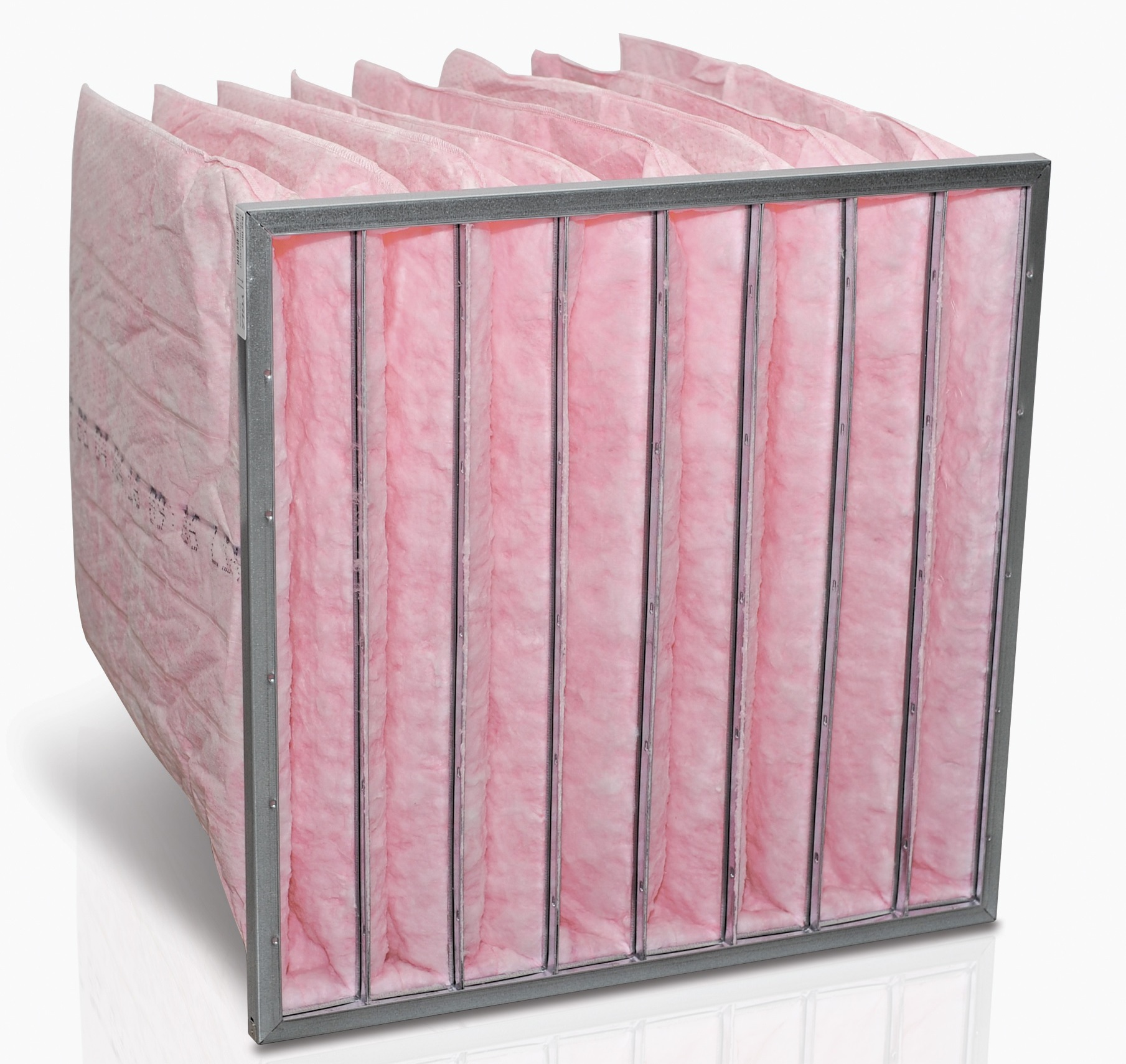

Type: pre-filter or higher performance bag filters

Application: ventilation, air conditioning and high-performance

industrial systems:

• office buildings,
• hotels,
• shopping centers, other public buildings,
• sports arenas,
• hospitals and laboratories,
• industrial facilities.

Higherclass bag filters hold the smallest particles from the air such as fine dust and pollen. Bag pre-filters hold the coarse dust from the air such as sand, blossoms, leaves and insects.Pre-filter can be used as a main filter for the indoor environments with low air quality requirements such as warehouses.

Frame:galvanized steel (25 mm) or sturdy plastic (20,25 mm).

Filter media:high-quality polypropylene andpolyester or glass fiber

Filter class: from coarse 65% till ePM1 85%

Maximum permitted temperature/relative humidity: 70°C/100%.
