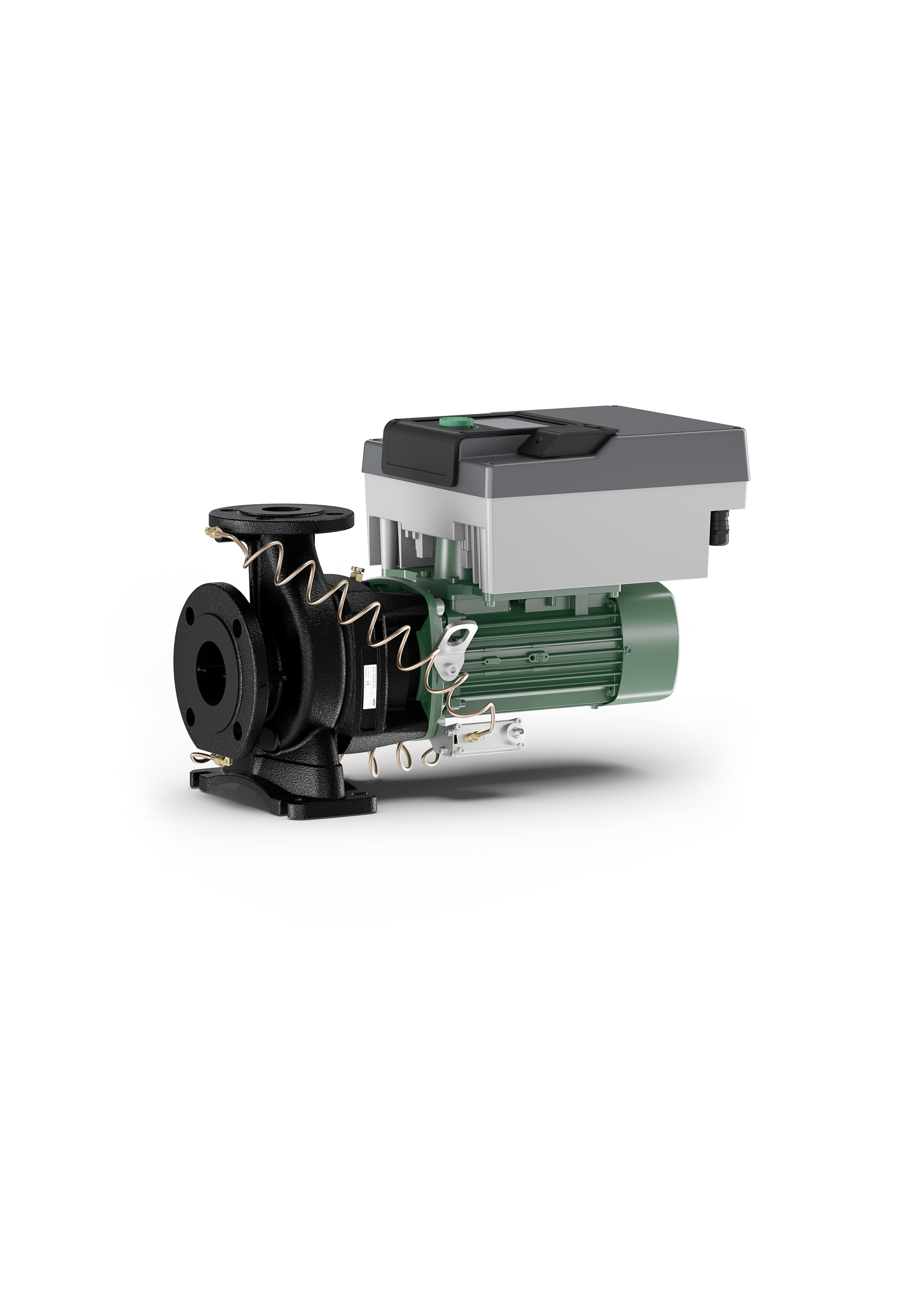

The smart glanded monobloc pump for heating, air-conditioning and cooling applications in large buildings.

The use of the highly efficient Wilo-Stratos GIGA2.0-B is recommended whenever great volumes of water have to be pumped using large delivery heads. The smart glanded pump in a monobloc design with main dimensions in accordance with EN 733 offers many interfaces for multi-pump control, integration into building automation and operating data acquisition as well as modern options for mobile access via Wilo-Smart connect. The Green Button Technology and the large display enable simple, intuitive operation. Using the setting assistant ensures optimal control. The optimum energy efficiency of the overall system results from the intelligent interaction of IE5 EC motor technology with proven pump hydraulics (MEI ≥0.7) as well as innovative control functions. The innovative drive technology in combination with proven pump hydraulics offers high reliability.

Your advantages

• Local adjustment and operation through mobile devices via Bluetooth and multi-pump control by means of Wilo Net connectivity
• Analogue and digital interfaces provide a wide range of options, e.g. for integration into building automation systems
• Optimal control using an application-guided setting assistant
• Clear display and Green Button Technology for easy intuitive operation
• Highest transparency of operating data for analysis and optimisation of pump and overall system
• Optimum energy efficiency of the overall system through intelligent interaction of IE5 EC motor technology with proven pump hydraulics (MEI ≥0.7) as well as innovative control functions such as Dynamic Adapt plus, Multi-Flow Adaptation and T-const
• Main dimensions according to EN 733 ensures easy replacement

The digital assistant for quick hydronic balancing with the smartphone.

Wilo-SmartBalance is a feature within the Wilo-Assistant app that can be used on-site with a mobile device or as a web application for hydronic balancing of a heating system consisting of radiators, underfloor heating, or a modern mixed system.

The menu is designed to be very simple and intuitive, making it highly time-saving during application. The heating load calculation method used is certified by VdZ and corresponds to method B of DIN EN 12831. After data collection, the calculated values can be saved as a proof in PDF format on the smartphone and digitally transmitted to the customer on-site.

Your advantages:

• Carried out on-site with a mobile device or as a web application
• Wide field of application for radiators, underfloor heating andmixed systems with separated heating loops and system temperatures
• Manufacturer-independent calculation tool for all common thermostatic valves
• Intuitive menu for data entry with selection menus, automatic transfer of specifications from previously captured rooms (e.g. room height)

Information about the pump status available at any time and from anywhere.

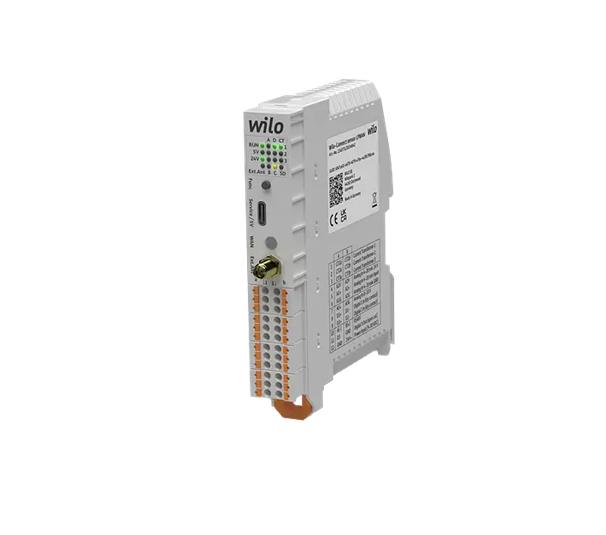

The Wilo-Connect sensor LPWAN is the easiest solution for equipping up to three unnetworked pumps for remote monitoring without additional Internet connection and hardware. It combines sensor technology, analysis, cloud communication and monitoring in a single solution. The signals from pumps and pump systems are transmitted with high building penetration and over long distances via a mobile phone network.

Automatic warning messages allow faults to be located quickly, keeping the number of time-consuming and costly on-site routine checks to a minimum. This plug-and-play solution is quick and easy to install, ready for operation, and can be integrated into existing systems without disrupting operations.

The field of applications is not limited to Wilo pumps. Pumps and electronic devices from third-party suppliers can also be integrated. Data is only transmitted in one direction to prevent third parties from interfering with pump systems.

Your advantages:

• Universal and future-proof solutionfor Wilo pumps as well as pumps and electronic devices from third-party suppliers
• Immediate digital warning messages enable rapid fault detection and correction, reducing operational interruptions
• Maximum protection of the pump system as a result ofone-way data transmission without return channel
• Installation possible without interrupting ongoing pump operation
• Integrated communication without interfering with the existing IT structure
• Low-cost solution that requires no additional hardware for internet connection
• Low operating costs compared to time-consuming on-site inspections

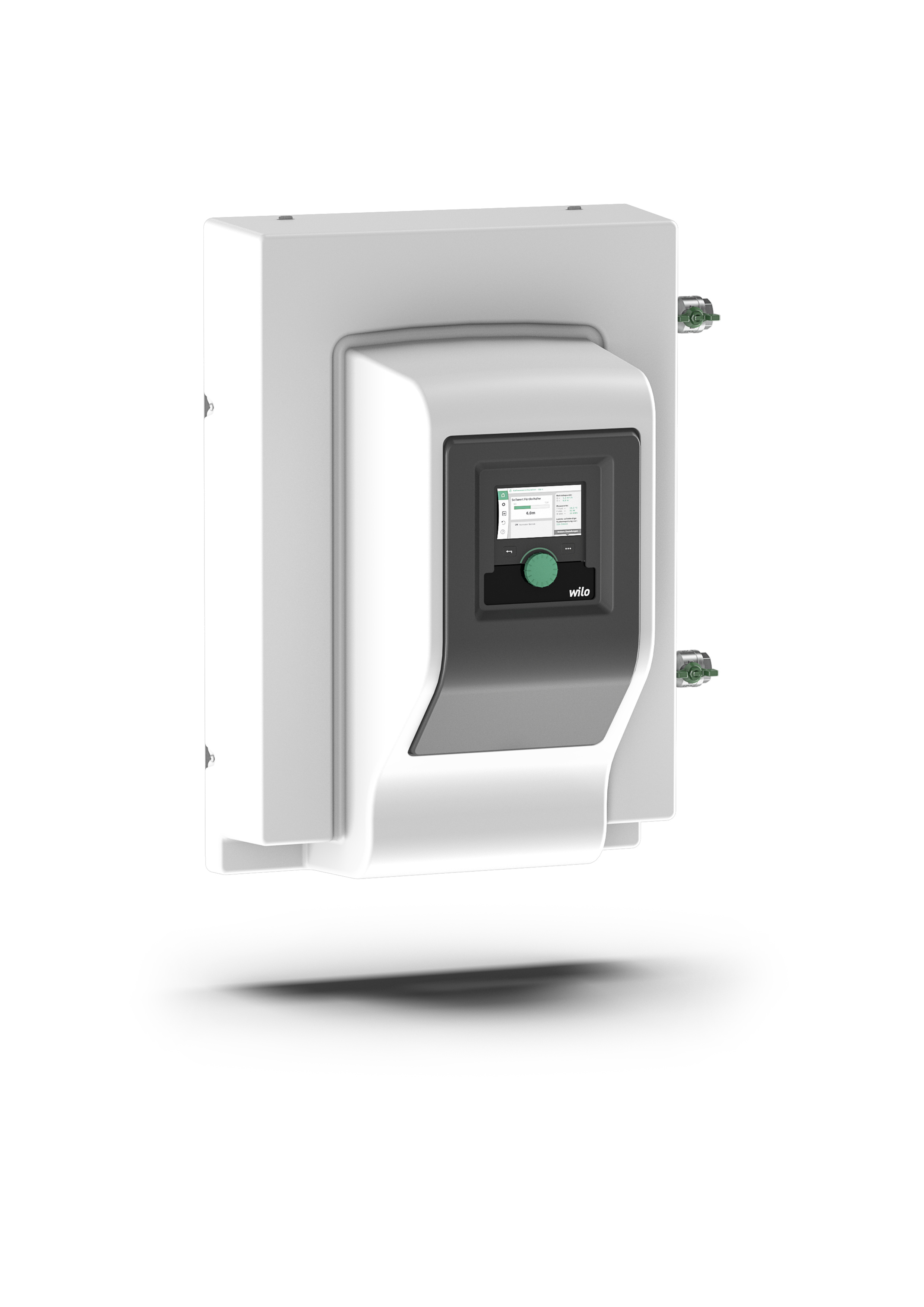

Drinking water circulation with temperature monitoring for maximum hygiene.

Circulation, continuous temperature monitoring and water exchange within 72 hours enable the Wilo-SiFresh cold drinking water system to provide the highest standard of drinking water hygiene in accordance with DIN EN 806-2. The compact system has an integrated Wilo-Stratos MAXO-Z and a convenient operating unit with central control for the temperature and water exchange intervals. With only one central flushing station, the effort required for installation and maintenance is comparatively low. The system should be combined with flow-through cooling to maintain the temperature even more efficiently. Depending on the structural conditions and utilisation behaviour, the flushing volume required to maintain the temperature and exchange water can be reduced by up to 90%.

Your advantages

• Continuous temperature monitoring, circulation and individually programmable time intervals for the water exchange ensure highest standard of drinking water hygiene
• Display of temperature data for the last 24 hours and quantities of water drawn for the last 7 days
• Compact system with central control for the temperature, water exchange intervals and easy maintenance
• Easy commissioning via intuitive operating elements, a large display and Green Button Technology
• Optional: can be combined with flow-through cooling for efficient temperature maintenance
• State-of-the-art interfaces that enable integration into the building automation
• Pre-assembled ball valve for shutting off the water circulation for maintenance tasks

Extremely reliable pressure-boosting system in compact design.

Integrated protection functions enable the Wilo-Isar MODH1-E to provide reliable water supply for various applications at all times. The protection functions include overload protection, dry-running protection and low-water cut-out switchgear with automatic deactivation. The multi-leader management ensures a high degree of operational reliability.

Furthermore, significant energy savings are achieved through pressure-loss-optimised hydraulics as well as optimal load adjustment.

The colour display with plain text enables optimal operating convenience.

Your advantages

• Compact system with two or three stainless steel high-pressure multistage centrifugal pumps from the Medana CH3-LE series with integrated air-cooled frequency converters with a large control range
• Efficiency class IE5 and variable differential pressure Δp-v enable high efficiency
• Colour display with plain text, simple navigation and settings via rotary knob ensure easy installation and operation
• Integrated control via multi-leader management provided by communication between the pumps
• Redundant main components and integrated safety features like low-water cut-out switchgear (WMS) ensure a high degree of operational reliability
• Quick integration into building automation via optional CIF module
• Components that come in contact with the fluid are suitable for drinking water applications
