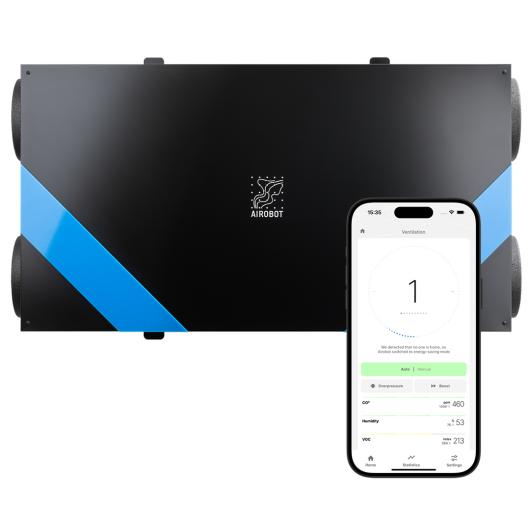

Airobot L ERV is Airobots ceiling-mounted ventilation unit with heat and humidity recovery. With Airflow up to 200m3/h or 56L/s, this ventilation is perfect for residential living rooms with up to 100m2 of floor space.

Heat exchangers

• Counterflow plate heat exchanger with heat- and humidity recovery.
• Heat recovery efficiency L ERV 81,0% (70% airflow, combined with humidity recovery).
• Humidity recovery efficiency L ERV 48,0% (70% airflow).

Features

• Integrated sensors: CO2, VOC, PM and four air temperature and humidity sensors.
• Occupancy sensing and energy-saving mode – Airobot senses room occupancy by. combining data from several sensors. It activates energy-saving mode automatically when necessary.
• Integrated frost protection (preheater), nominal power 1 kW, PTC 0-100% adjustable.
• Humidity detection – whenever the unit senses a sudden increase in humidity, it switches to a higher speed.
• Automatic summer bypass.
• Autonomous control – intelligent motor control ensures pleasant indoor air and maximum energy efficiency.
• Overpressure mode – temporarily switches the unit to pressurize indoor air; can be automated with a pressure sensor to react to a stove hood, for example.
• Boost mode – temporarily switches the unit to maximum speed to quickly ventilate the space.

Control:

• Controlled via an iOS and Android mobile app – provides access to all features and settings. No separate remote is required.
• Wall-mounted remote VB2 (optional).
• Home automation protocol Modbus RTU and Modbus TCP.

Other:

• Ducts 160 mm.
• Condensate removal fitting ⌀15mm, 3-meter hose included.
• Airobot L ERV models do not require condensate removal installation (in normal operating conditions). In high-humidity conditions, condensate removal should nevertheless be installed.
• Panel filters: extract ePM10 55% (M5) / outside air ePM1 55% (F7)
• Package dimensions: 118 x 32 x 66 cm, weight 40kg, without casing mode weight 20kg.
• 2-year warranty.
• CE certified.
• The device has been tested in an independent accredited laboratory and complies with European Union eco-design directives.
