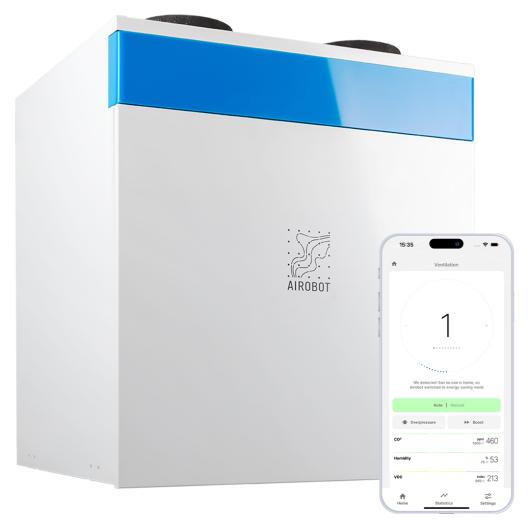

Airobot V3 ERV
Beschreibung
Airobot V3 ERV ventilation system enables Airflow up to 286m3/h or 80L/s
and is suitable for residential living spaces that have up to 140m2 of floor space
Heat exchanger
- Counterflow plate heat exchanger with heat- and humidity recovery
- Heat recovery efficiency V3 ERV 84% (70% airflow, combined with humidity recovery)
- Humidity recovery efficiency V3 ERV 66% (70% airflow)
Fans
- RadiCal EC fans
- Flowgrid technology – increased efficiency and reduced noise levels
- Speed continuously adjustable 0-100% in automatic mode, incrementally adjustable 0-10 in manual mode
- Power 2 x 83W
Features
- Integrated sensors: CO2, VOC, PM and four air temperature and humidity sensors
- Occupancy sensing and energy-saving mode – Airobot senses room occupancy by combining data from several sensors. It activates energy-saving mode automatically when necessary.
- Integrated frost protection (preheater), nominal power 1 kW, PTC 0-100% adjustable
- Humidity detection – whenever the unit senses a sudden increase in humidity, it switches to a higher speed.
- Automatic summer bypass
- Autonomous control – intelligent motor control ensures pleasant indoor air and maximum energy efficiency.
- Overpressure mode – temporarily switches the unit to pressurize indoor air; can be automated with a pressure sensor to react to a stove hood, for example.
- Boost mode – temporarily switches the unit to maximum speed to quickly ventilate the space.
Control
- Controlled via an iOS and Android mobile app – provides access to all features and settings, no separate remote required (ethernet connectivity required)
- Wall-mounted remote VB2 (optional)
- Home automation protocol Modbus RTU and Modbus TCP
Other
- Ducts 125mm
- Condensate removal fitting ⌀32 mm
- Airobot V3 ERV models do not require condensate removal installation (in normal operating conditions). In high-humidity conditions, condensate removal should nevertheless be installed. Ask your reseller for details
- Panel filters: extract ePM10 55% (M5) / outside ePM1 55% (F7)
- Package dimensions: 80 x 60 x 60 cm, weight 45kg
- 2-year warranty
- CE certified
- The device has been tested in an independent accredited laboratory and complies with European Union eco-design directives.
