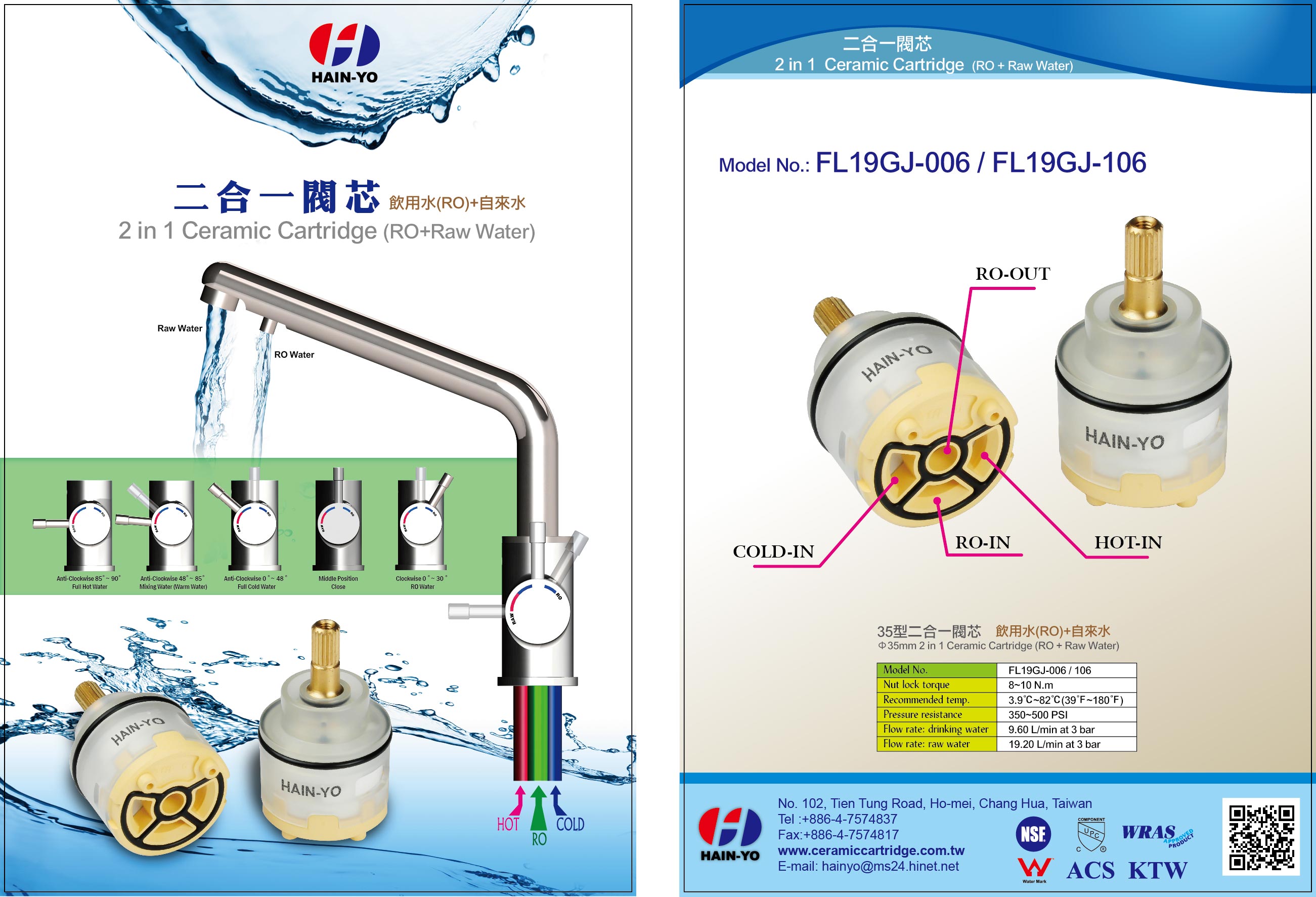

FL19GJ RO + MISCHKARTUSCHE

Ø25mm Ceramic Cartridge

Upper Sealing Type

With Distributor

★Compatible with GL12TD

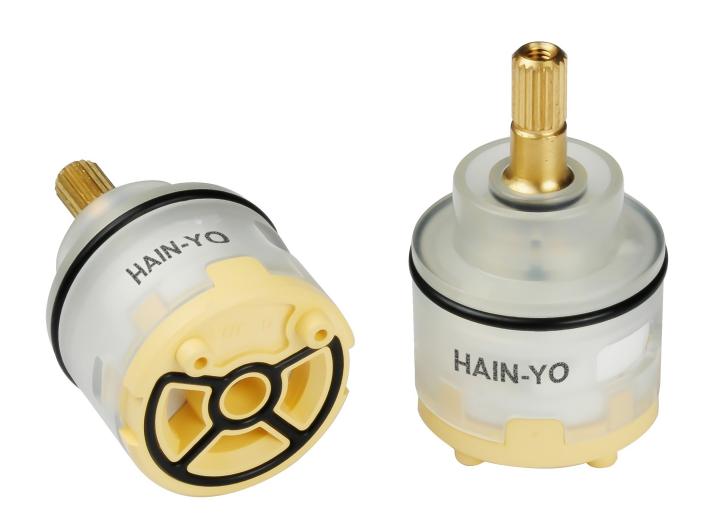

Ø35/40mm Bath & Shower Diverter Cartridge
Side & Bottom outlet
Without Distributor
Option : Square Zinc-Alloy Cap

Key Features:

• Enhanced Water Flow Control: Allows seamless switching between functions for efficient water management.
• Space-Saving Design: Combines two functions in one cartridge (Dual outlets: side and bottom), reducing the need for extra parts and simplifying faucet construction.
• Easy Maintenance: Designed for durability and ease of replacement, minimizing the maintenance costs for users.

These cartridges offer both functionality and durability, making them an ideal choice for modern multi-function faucets.

Ø40mm Diverter Pressure Balance Cartridge (Two bottom Outlets)

Option: Check Valve Set

Key Features:

• No separate diverter mechanism is needed (2 Way)
• 3-way cartridge with a diverter mechanism (3 Way)
• Make it easy on faucet body processing and assembly (Bottom Outlet Type)
• Switch the function with a single lever (Bathtub / Head Shower / Hand Shower)
• Back to Back function- For installation, either in the front side or in the opposite direction of the same wall which is shared the same water supply system, when the hot/cold water supply pipes are in the opposite direction, the valve still can be used. Just make the valve reversed 180º to change the position of hot/cold water, then the hot/cold water outlet from faucet can still be in the correct way safely.

Fewer Parts, More Possibilities: With just a movement of the temperature limited block, you can choose between 1-way or 2-way water flow, no extra stock needed—saving you space and money!

Ø40mm Thermostatic Pressure Balance Cartridge
Model no. JA01AJ-S

• Max. temp. option: 45°C±2°C / 48°C±2°C
• Consistent temperature: within 2°C (3.6℉) when water pressure/temperature variation
• One handle Dual Control: temperature & flow rate
• Thermal control element: made in Japan
• Advanced engineering plastics: EMS certified by KTW, W270, ACS, WRAS, NSF61
• Patented: USA/CA/TW/CN

Advantages:

• Assure a comfortable shower
• Avoid thermal shock and scalding
• Effortless operation
• Interchangeable with AH01AJ (T type)

Ø25mm Ceramic Cartridge

Upper Sealing Type

With Distributor

★Compatible with GL12TD

Ø35/40mm Bath & Shower Diverter Cartridge
Side & Bottom outlet
Without Distributor
Option : Square Zinc-Alloy Cap

Key Features:

• Enhanced Water Flow Control: Allows seamless switching between functions for efficient water management.
• Space-Saving Design: Combines two functions in one cartridge (Dual outlets: side and bottom), reducing the need for extra parts and simplifying faucet construction.
• Easy Maintenance: Designed for durability and ease of replacement, minimizing the maintenance costs for users.

These cartridges offer both functionality and durability, making them an ideal choice for modern multi-function faucets.

Ø40mm Diverter Pressure Balance Cartridge (Two bottom Outlets)

Option: Check Valve Set

Key Features:

• No separate diverter mechanism is needed (2 Way)
• 3-way cartridge with a diverter mechanism (3 Way)
• Make it easy on faucet body processing and assembly (Bottom Outlet Type)
• Switch the function with a single lever (Bathtub / Head Shower / Hand Shower)
• Back to Back function- For installation, either in the front side or in the opposite direction of the same wall which is shared the same water supply system, when the hot/cold water supply pipes are in the opposite direction, the valve still can be used. Just make the valve reversed 180º to change the position of hot/cold water, then the hot/cold water outlet from faucet can still be in the correct way safely.

Fewer Parts, More Possibilities: With just a movement of the temperature limited block, you can choose between 1-way or 2-way water flow, no extra stock needed—saving you space and money!
