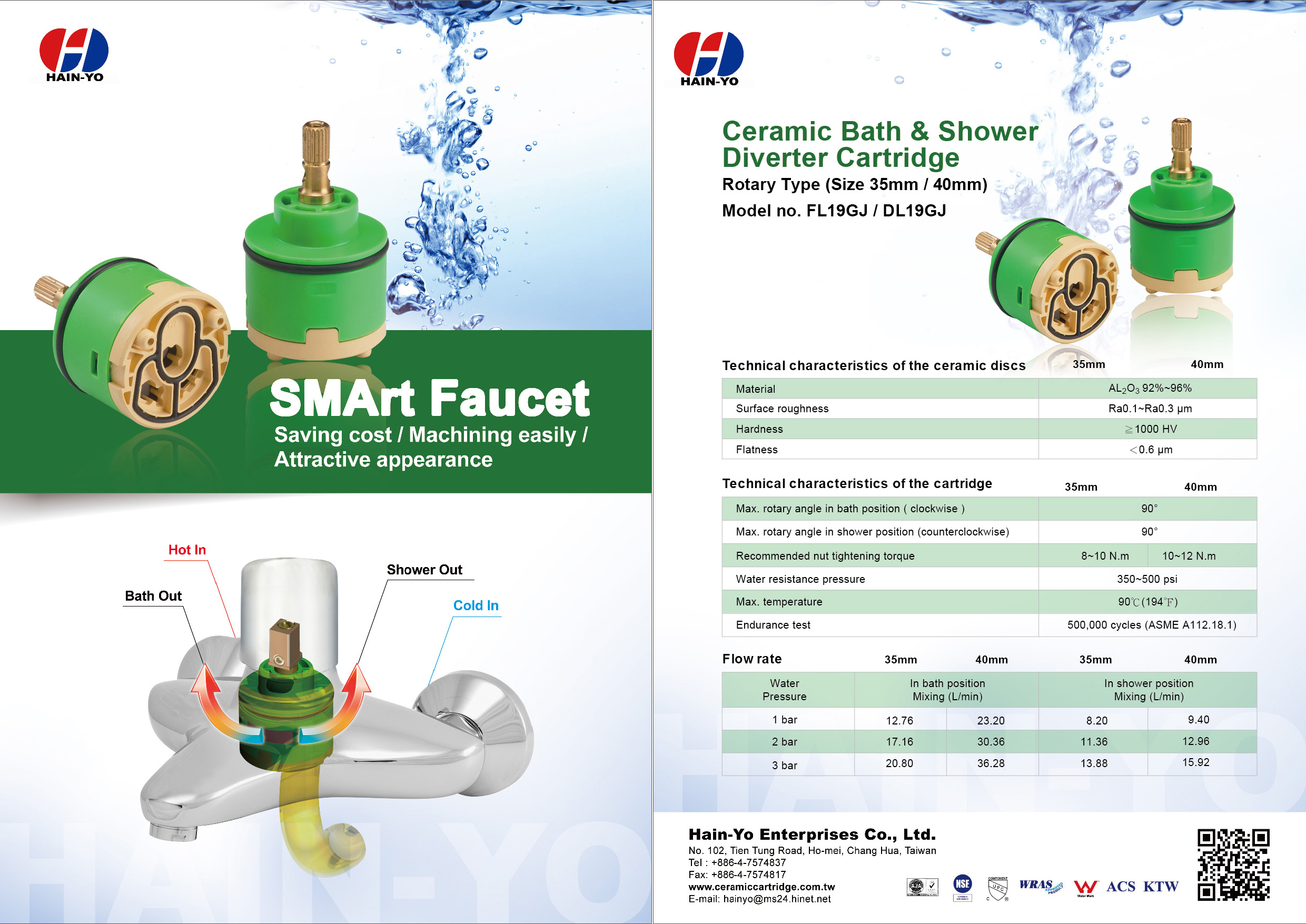

FL19GJ/DL19GJ Umsteller und Mischkartusche für Badewanne und Dusche

Ø35mm 2 in 1 Cartridge (RO + Raw Water)
Without Distributor
Option : 9*9 Square Zinc-Alloy / Brass Cap

Advantages:

• Eliminates the need for an extra cartridge and handle, streamlining faucet design
• Simplifies faucet body casting and machining for improved production efficiency
• Delivers a better user experience with a seamless 2-in-1 cartridge design

Ø25mm Ceramic Cartridge

Upper Sealing Type

With Distributor

★Compatible with GL12TD

Ø40mm Diverter Pressure Balance Cartridge (Two bottom Outlets)

Option: Check Valve Set

Key Features:

• No separate diverter mechanism is needed (2 Way)
• 3-way cartridge with a diverter mechanism (3 Way)
• Make it easy on faucet body processing and assembly (Bottom Outlet Type)
• Switch the function with a single lever (Bathtub / Head Shower / Hand Shower)
• Back to Back function- For installation, either in the front side or in the opposite direction of the same wall which is shared the same water supply system, when the hot/cold water supply pipes are in the opposite direction, the valve still can be used. Just make the valve reversed 180º to change the position of hot/cold water, then the hot/cold water outlet from faucet can still be in the correct way safely.

Fewer Parts, More Possibilities: With just a movement of the temperature limited block, you can choose between 1-way or 2-way water flow, no extra stock needed—saving you space and money!

Ø40mm Thermostatic Pressure Balance Cartridge
Model no. JA01AJ-S

• Max. temp. option: 45°C±2°C / 48°C±2°C
• Consistent temperature: within 2°C (3.6℉) when water pressure/temperature variation
• One handle Dual Control: temperature & flow rate
• Thermal control element: made in Japan
• Advanced engineering plastics: EMS certified by KTW, W270, ACS, WRAS, NSF61
• Patented: USA/CA/TW/CN

Advantages:

• Assure a comfortable shower
• Avoid thermal shock and scalding
• Effortless operation
• Interchangeable with AH01AJ (T type)

Ø35mm 2 in 1 Cartridge (RO + Raw Water)
Without Distributor
Option : 9*9 Square Zinc-Alloy / Brass Cap

Advantages:

• Eliminates the need for an extra cartridge and handle, streamlining faucet design
• Simplifies faucet body casting and machining for improved production efficiency
• Delivers a better user experience with a seamless 2-in-1 cartridge design

Ø25mm Ceramic Cartridge

Upper Sealing Type

With Distributor

★Compatible with GL12TD

Ø40mm Diverter Pressure Balance Cartridge (Two bottom Outlets)

Option: Check Valve Set

Key Features:

• No separate diverter mechanism is needed (2 Way)
• 3-way cartridge with a diverter mechanism (3 Way)
• Make it easy on faucet body processing and assembly (Bottom Outlet Type)
• Switch the function with a single lever (Bathtub / Head Shower / Hand Shower)
• Back to Back function- For installation, either in the front side or in the opposite direction of the same wall which is shared the same water supply system, when the hot/cold water supply pipes are in the opposite direction, the valve still can be used. Just make the valve reversed 180º to change the position of hot/cold water, then the hot/cold water outlet from faucet can still be in the correct way safely.

Fewer Parts, More Possibilities: With just a movement of the temperature limited block, you can choose between 1-way or 2-way water flow, no extra stock needed—saving you space and money!
