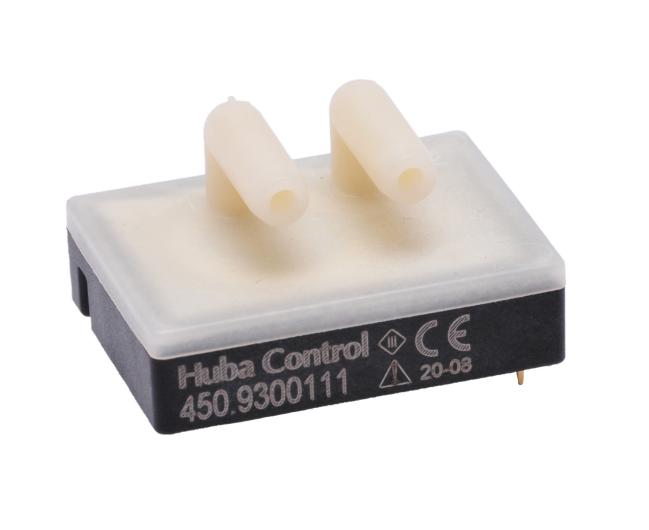

Differential Pressure Transmitter type 450
Beschreibung
The type 450 is the new relative and differential pressure transmitter from Huba Control for low pressure measurements, based on the cantilevered beam technology and built in a compact housing.
The type 450 is characterized by an excellent accuracy and long-term stability in highly demanding environments and is also available with analogue and digital signal outputs (I2C). The pressure range covers from -1.5 … 1.5 mbar and from 0 … 3 – 100 mbar and is temperature compensated from -10°C up to +80°C.
Technical data:
- Medium: Air and neutral gases
- Pressure range: -1.5 ... 1.5 mbar / 0 ... 3 – 100 mbar
- Output: 0.5 ... 4.5 V, digital I2C, ratiom. 10 ... 90%
- Electrical connection: PCB
- Pressure connection: Tube connector
