Huba Control AG

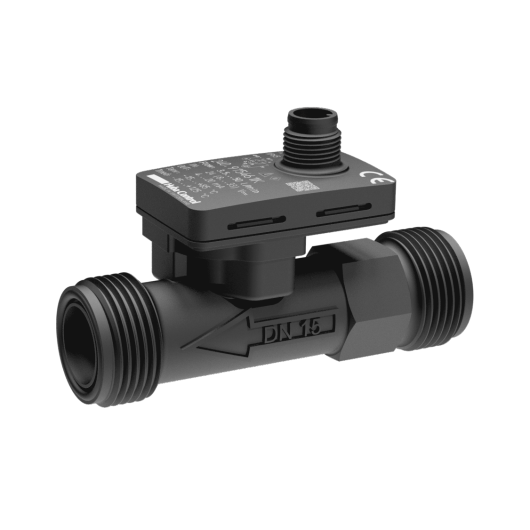

Type 240 – Flow sensor for liquid media

Beschreibung

The new Type 240 flow sensor is designed for precise and stable flow measurement even under difficult conditions, with enhanced resistance to high system pressures and media temperatures.

This vortex flow sensor is ideally suited for diverse applications across numerous indus-tries and markets. The sensor paddle itself is made of the high-performance material PPSU and is PFAS-free.
Type 240 complies with the safety standard UL 61010-1* and is approved for drinking water according to WRAS*, ACS*, and UBA* regulations.

Versatile Applications
The Type 240 is designed for liquid media with different specific viscosities, from refrigerants to drinking water. The proven Vortex principle ensures high measuring accuracy. Moreover, its compact design without moving parts makes the sensor extremely robust, low-maintenance, and durable. It can be mounted directly on the manifold and easily integrated into existing systems.

A particular highlight is its resistance to water hammer: The Type 240 can easily with-stand pressure peaks up to 100 bar (1450 psi).

Advantages Type 240

  • Robustly designed to withstand system pressures of up to 16 bar (232 psi)
  • Media temperature range -15 °C to +125 °C (-5 … +257 ºF)
  • Wide flow range from 0.5 l/min. (0.13 gpm) [DN6] to 150 l/min. (40 gpm) [DN25]
  • Hydrolysis-resistant sensor design
  • Minimal pressure loss due to virtually free pipe cross-section
  • Wear-free and long-term stability due to having no moving parts
  • Various nominal diameters (DN6 to DN25) for use in a wide range of applications

Measuring range

  • Flow range: 0.5 … 150 l/min (0.13 … 40 gpm)
  • Temperature range: -40 … +125 °C (-40 … +257 ºF)
  • Media temperature: -15 … +125 °C (-5 … +257 ºF)
  • Accuracy: < 50 % FS: ±1 % of full scale value, > 50 % FS: ±2 % of measured value
  • Output: Analogue 4 ... 20 mA

* Expected Approval Q4/2024
