Menred GmbH

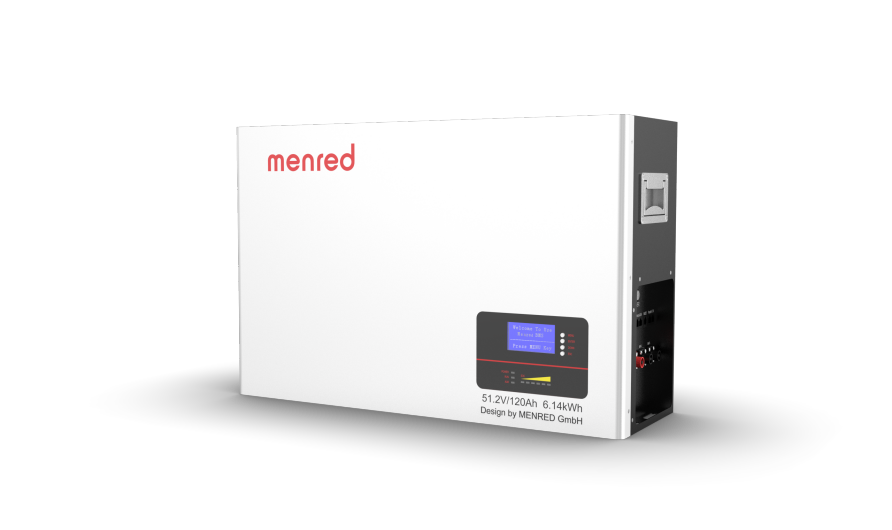

LiFePo4 Battery

Messeneuheit

Beschreibung

Nominal capacity:120Ah

Nominal Voltage:3.2V

AC impendence(1KHz):≤0.3mΩ Testing within 7 days after shipment(30% SOC)

Battery Weight: ≤2.86kg

Standard charge current:1C, in 25±2℃

Peak pulse charge current: 2C, in 25±2℃,50%SOC ,30s

Standard discharge current: 1C in 25±2℃

Maximum continuous discharge current: 2C, 25±2℃

Peak Puls discharge current: 3C, 25±2℃,50%SOC, 30s

Operating Voltage:

2.5~3.65V, T>0℃

2.0~3.65V T≤0℃

Operation temperature:

0~50℃, Charge

~20-55℃ Discharge

~30-45℃ Store

Voltage tolerance test for dielectric film 0~10mA AC1500±5V;pressure800±20kg

Relative humidity:65±20%, Ambient Tempt: 25±2℃; Barometric pressure: 86~106kPa
