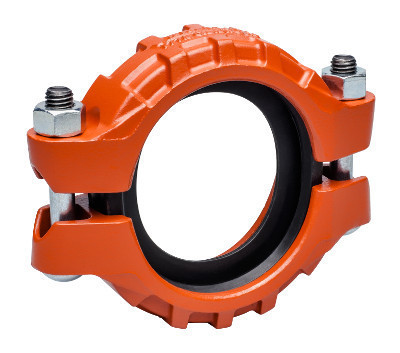

What is Installation-Ready™ Technology?

Victaulic's patented Installation-Ready™ couplings provide fast, easy pipe connections, and reduce the number of loose parts to drop or misplace. The single-unit design allows an installer to assemble the coupling or fitting simply by inserting it onto the grooved end of a pipe and tightening the nuts.

How much faster is Installation-Ready™ technology vs. other joining methods?

• Install up to 10 times faster than welded joints
• Install up to 6 times faster than flanged joints
• Install in less than half the time of standard grooved couplings

What are the benefits of Installation-Ready™ technology?

• Compressed project schedules
• Reduce material handling
• Better managed labor risk
• Enhanced job site safety

Applications

• Features Installation-Ready™ Technology
• Joins roll or cut grooved pipe, grooved fittings, valves, and accessories
• Provides a flexible pipe joint designed to accommodate a limited amount of linear and/or angular movement
• HVAC, Utility Piping, Process Piping, Mining

Pipe Material

• Carbon Steel (Schedule 10 or heavier)
• Stainless Steel
• Galvanized

Gasket Grade

• "EHP" EPDM
• "T" Nitrile

Maximum Temperature Rating

• 121°C / 250°F

Maximum Pressure Rating

• 69 bar / 6895 kPa / 1000 psi

Available Sizes

• DN50 - DN200 / 2 - 8"
