Allengra GmbH

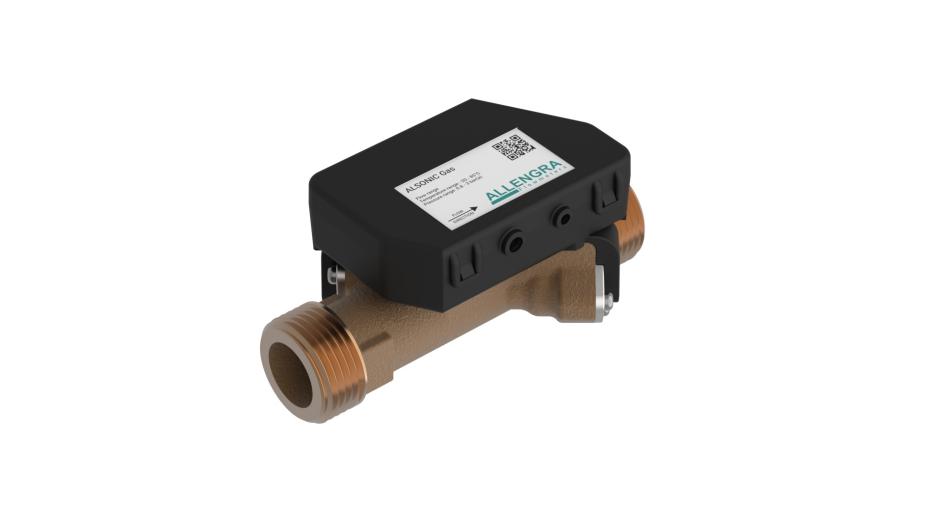

ALSONIC Gas Flow Meter

Beschreibung

The ALSONIC product family has been expanded with flow sensors for gas measurement. These sensors provide precise measurement of natural gas, air, compressed air, nitrogen and many other gases. With integrated temperature and pressure sensors, they also enable accurate determination of mass flows. Equipped with standardized threaded connections as well as analogue outputs and a Modbus interface, the sensors can be easily and flexibly integrated into a wide range of applications.

Specification:

  • Gases: Natural gas, air, compressed air, nitrogen and many more.
  • Measuring range:
    • DN 15: 0.015 - 3 m³/h
    • DN20: 0.02 - 4 m³/h
    • DN25: 0.025 - 5 m³/h
    • DN32: 0.035 - 6.5 m³/h
  • Measuring accuracy: ± 3 % of measured value
  • Operating temperature: -20 - 85 °C
  • Operating pressure: 0.8 - 3 bara
  • Integrated temperature and pressure sensor
  • Brass CW724R sensor body
  • Pulse, 0-5 V, Modbus interfaces
  • Process connection G male thread
