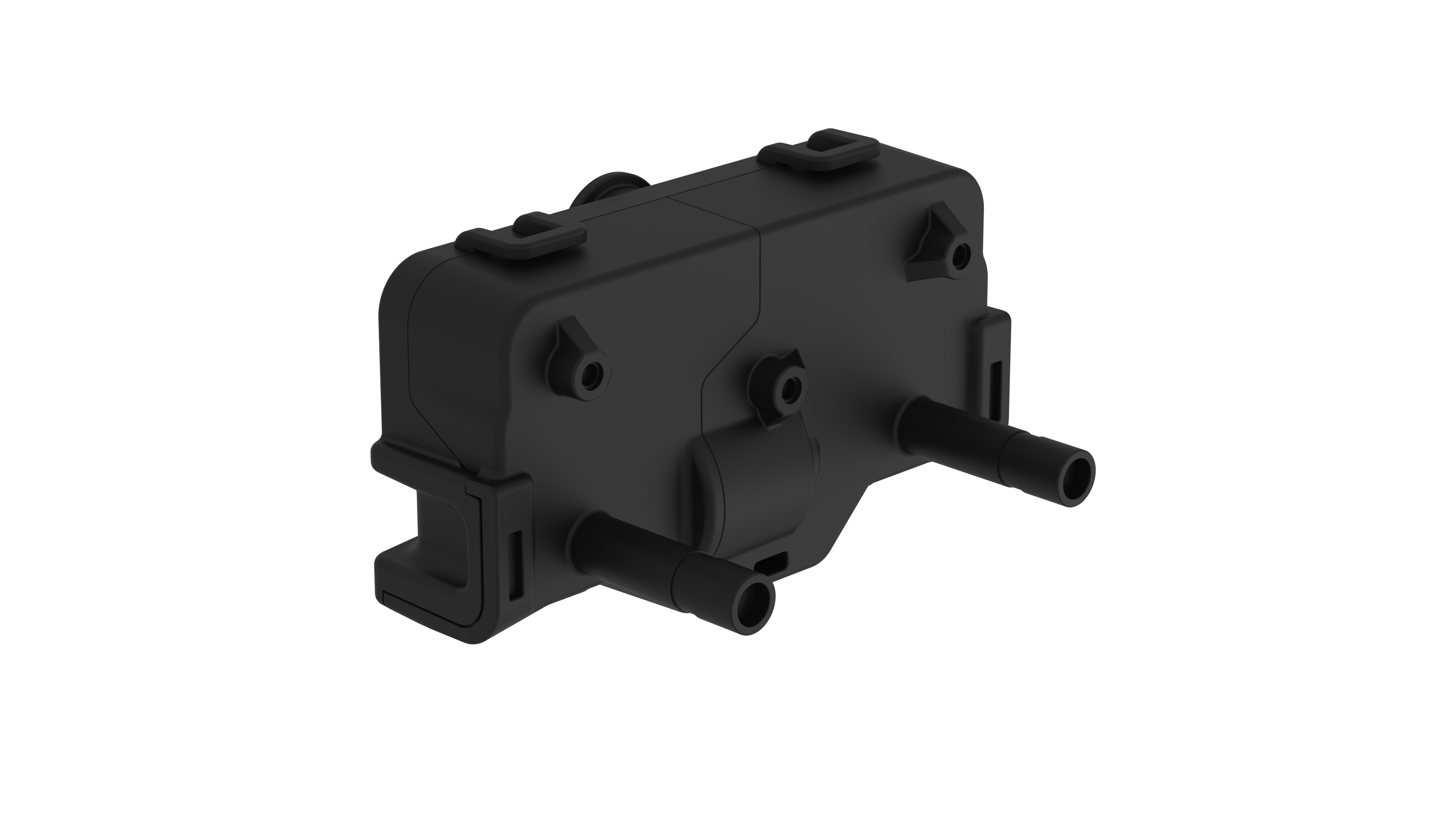

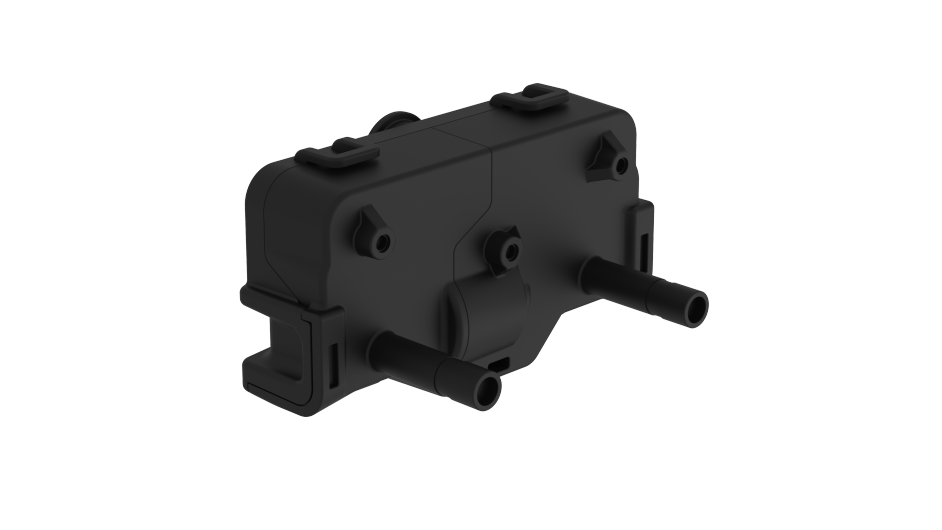

The new Micro Flow Meter offers the perfect solution for precise flow measurement of small volume flows. Thanks to its compact design and standard push-fit connections, it is ideal for applications such as water treatment and water dispensers.

With a robust housing made from high-quality PPS plastic, the sensor provides maximum reliability and durability. It is perfectly suited for measuring water-glycol mixtures and brine. Additional features such as high-speed temperature measurement and the detection of gas or air bubbles make the sensor a versatile and valuable solution for various applications.

The analogue process outputs, as well as Modbus and I²C interfaces, allow for effortless integration into existing systems.

Specification:

• Media Water, Water+Glycol, Brine, DI Water etc.
• Flow Range 1 - 600 l/h
• Accuracy ± 2% of measured value
• Operating Temperature 0 - 105 °C
• Operating Pressure 0 - 16 bar
• Integrated Temperature Sensor
• Gas and Air Bubble Detection
• Glycol Detection
• PPS Sensor Body
• Interfaces Pulse, 0-5 V, Modbus, I²C
• Hydraulic Connections Standard Push-Fit
• Drinking Water and Food Approval
