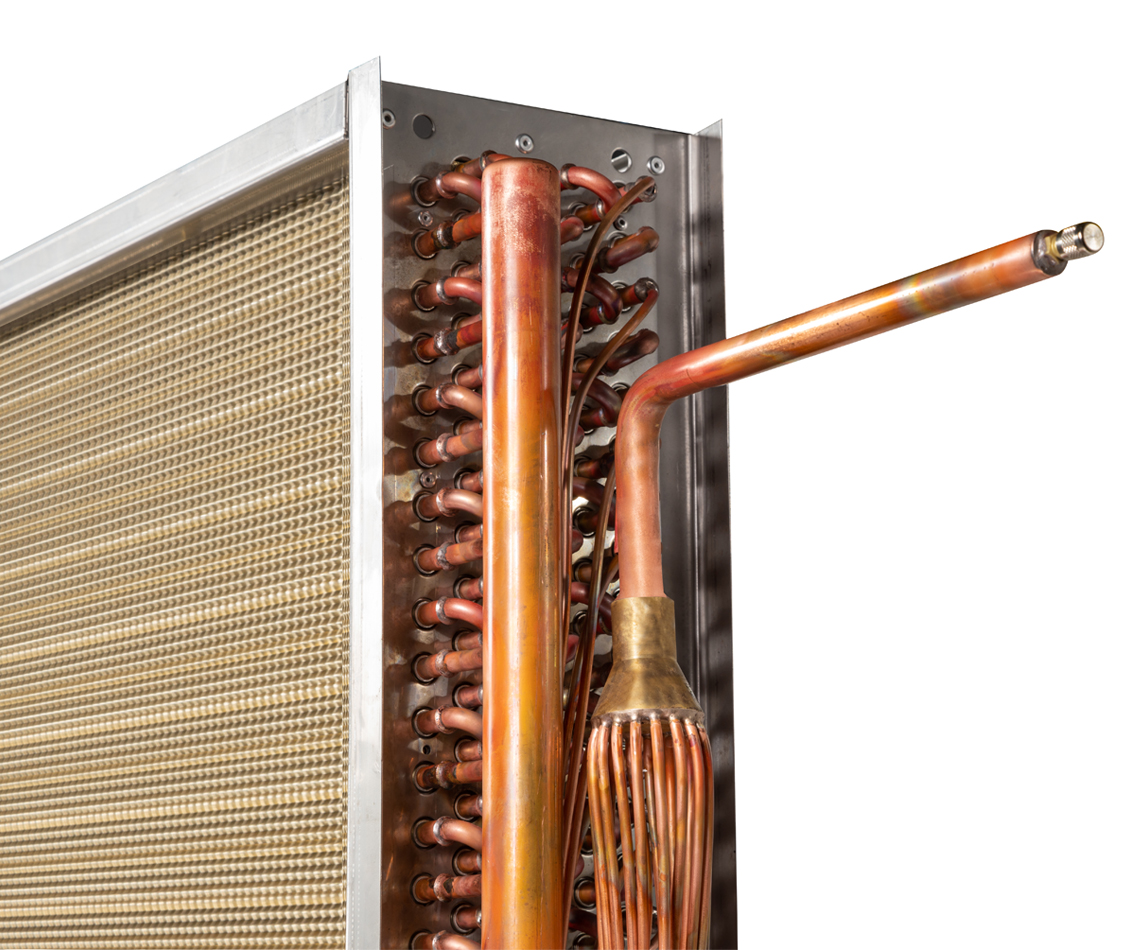

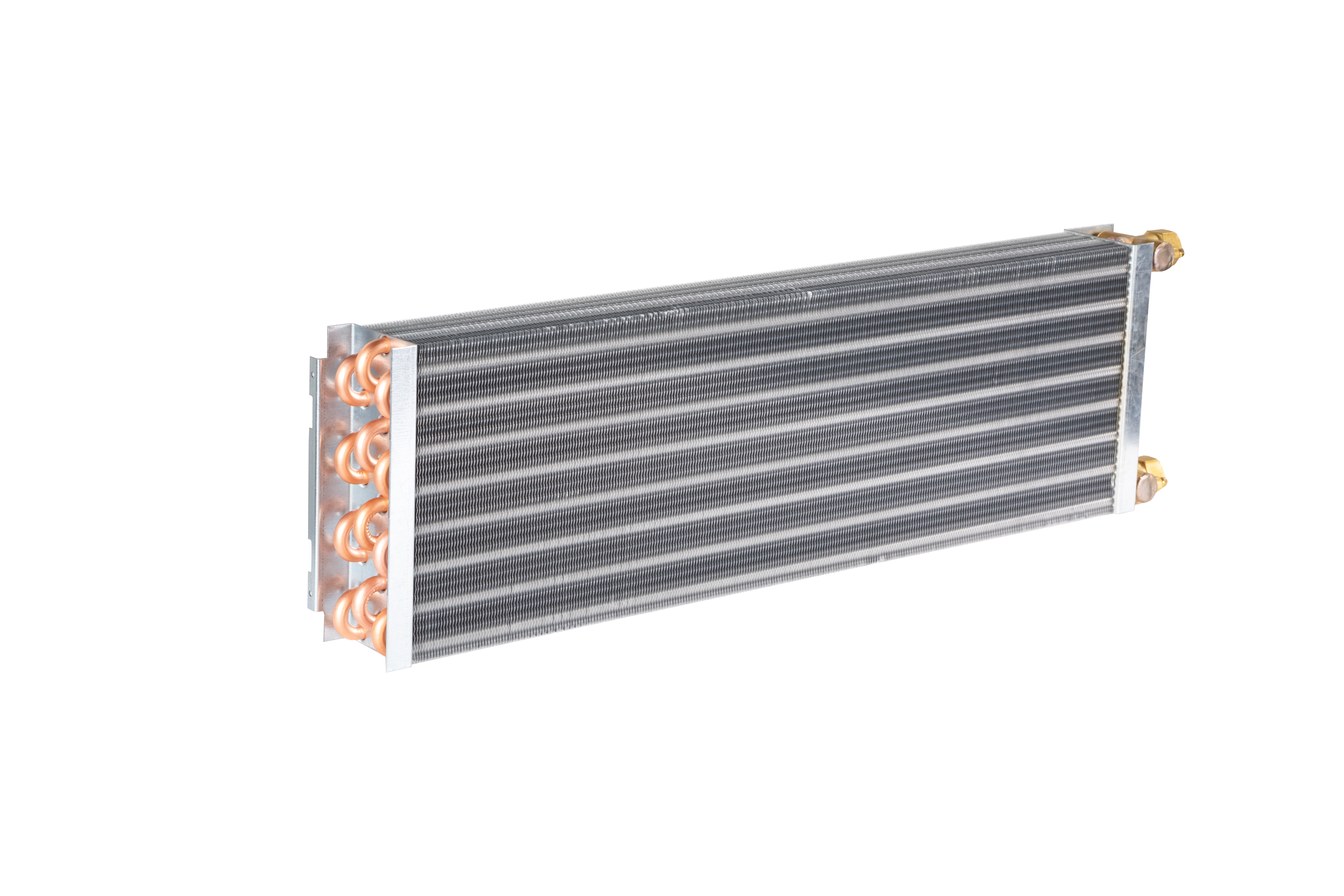

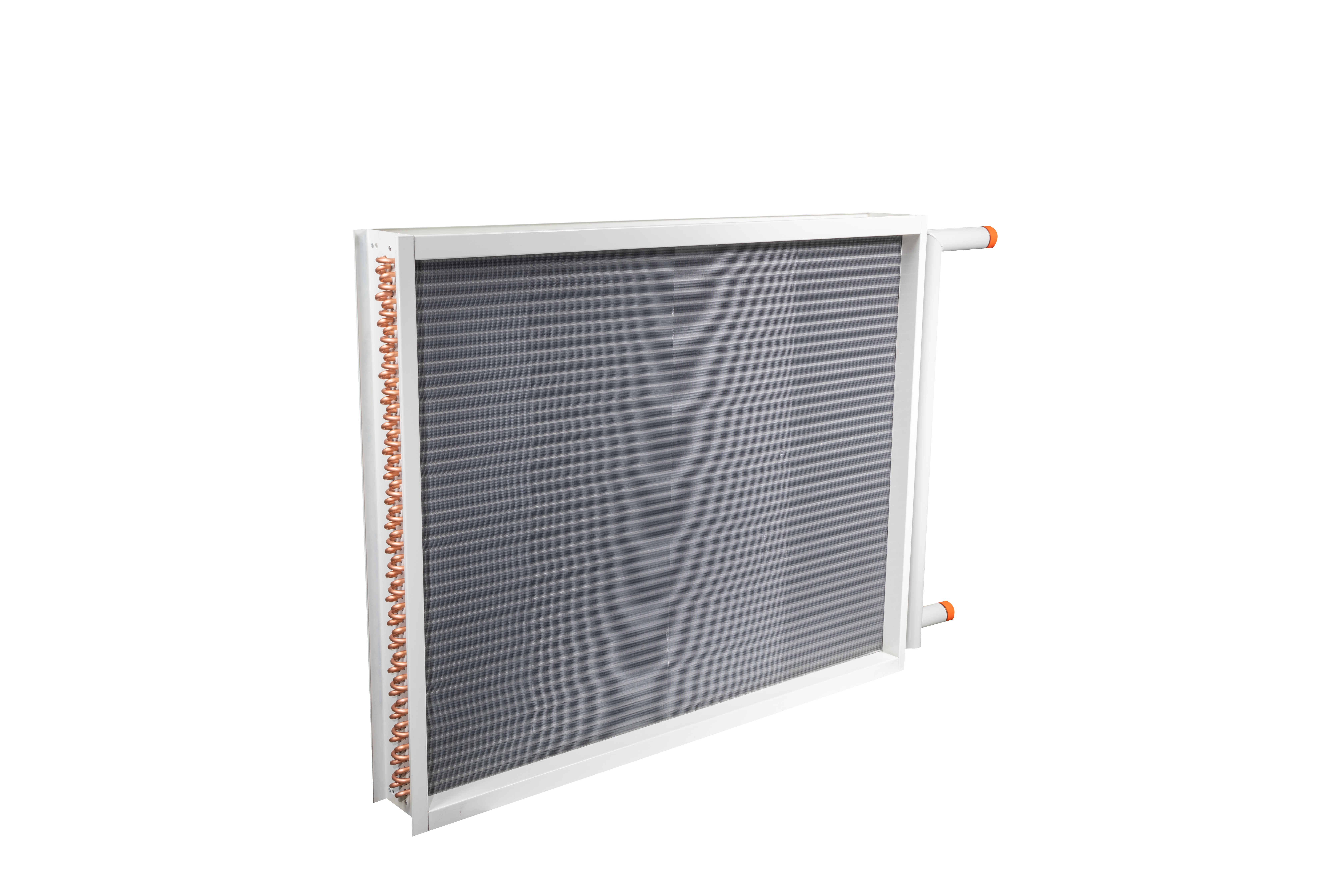

Fully customized and tailor-made production based on size and capacity. GEMAK uses a special Heat Transfer Calculation software to get the optimum results for its customers.

» Copper Tubes , based on selection criterias can be 3/8" -1/2" and 5/8"

» Side and cover plates are made of galvanized steel as GEMAK’s standard production however, stainless steel and aluminum options are available upon customer request.

» Manifolds are made of steel tube; however, copper tubes are available as an alternative.

» Customized circuitry available based on the interior water is discharged

» All water coils are subject to an individual pressure test under 15 Bar.

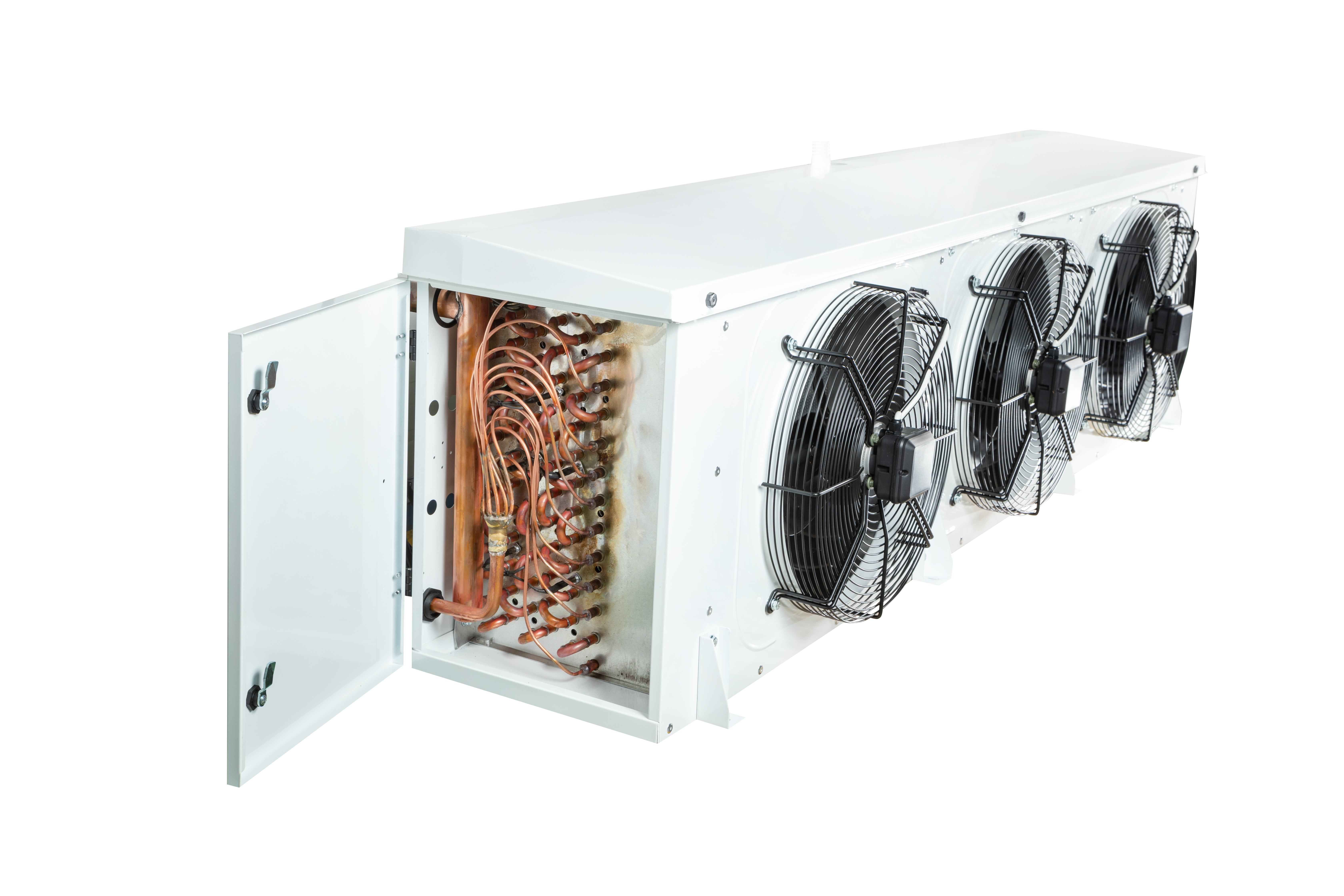

All range of Gemak Unit Coolers are designed and produced to get the maximum efficiency in freon gassed trade and industrial cooler facilities.

Casings are painted with the electrostatic powder dye. The casings can be produced by the stainless steel upon customer request. Unique side panels and drain pan design allows users to open-close easily for installation and maintenance purposes.

» Products are tested with Nitrogen Gas under 25 BAR pressure; will be delivered with low pressure Nitrogen.

» EBM or equivalent axial fans are used upon on request.

» Defrost heaters which are not installed and comes separately with the units, works under the standards of SC1 conditions.

Unit Coolers works Under the SC 2 conditions, heater placed to the body.

Unit Coolers works Under the SC 3- SC 4 conditions, heater placed both to the body and to the pan.

Catalogue Capacities are suitable to the Eurovent Conditions and R404A gas.

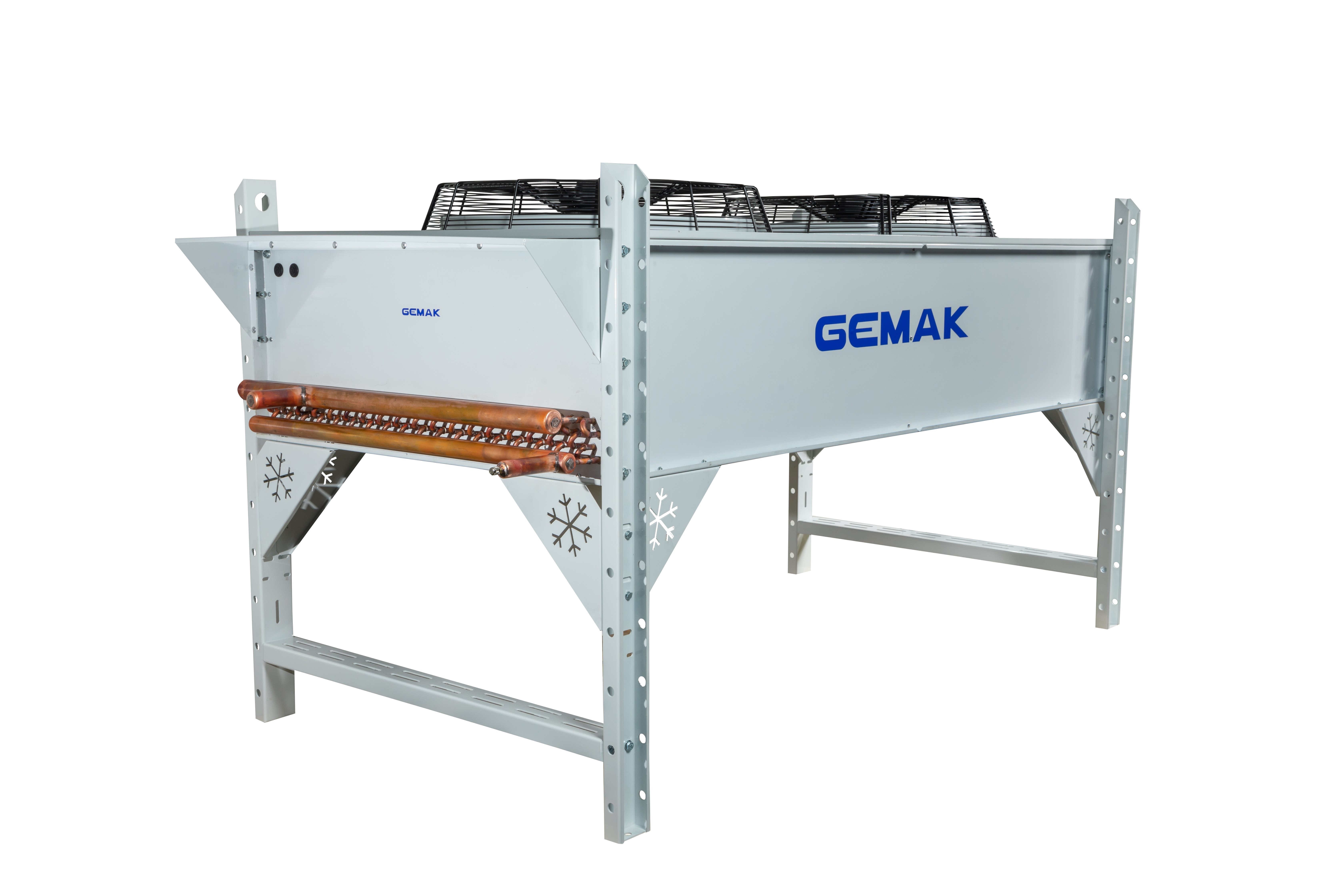

All range of Gemak Condensers, are suitable to work at external environmental conditions, have been designed to be used at air conditioning facilities with Freon Gassed Cooling.

» Horizantal Type (vertical air flow) – Vertical Type (horizantal air flow) can be produced; 3/8’’ Copper Tube (staggered) and to increase the heat transfer coefficient, corrugated fin is used in GMK Y/D Series Condensers.

» Fin Spacing; is in between 2,1 mm-2,5 mm.

» Casing; galvanized steel is used which is painted with electrostatic powder dye. Standard Colour is RAL 7035.

» Products are tested with Nitrogen Gas under 25 BAR pressure; will be delivered with low pressure Nitrogen.

» GMK Y/D Series Condensers are designed according to the fans diameters of Ø500mm, Ø630mm, 800mm. EBM or equivalent axial fans are used upon on request.

» Capacities of the catalogue is acceptable when ambient temperature is +30°C, condensation temperature is (DT=15) 45°C and refrigerant to be used is R404A.

» For the diiferent gasses and conditions; correction factors specified in the tables are used. (check, condenser technical datas
