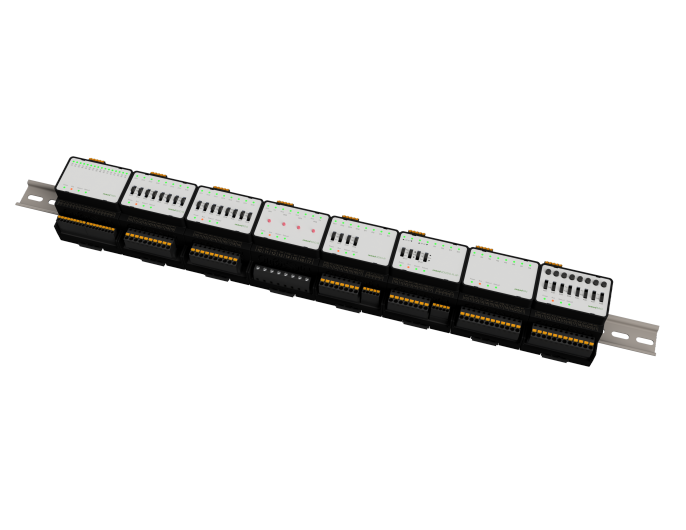

The romod series from romutec offers a comprehensive range of modular components for building automation. These modules are specifically designed to handle versatile control and monitoring tasks in combination with Modbus RTU devices. From digital and analog inputs to relay outputs and specialized 3-point controls, the series covers a wide array of applications.

Features

The romod series is characterized by its modular design and ease of integration. Each module in the series features an independent RS485 interface, eliminating the need for additional gateways. The autobauding function automatically detects the baud rate, simplifying installation and commissioning.

Key features include:

• Diverse I/O support: Digital and analog signals, counter functionality, and relay control.
• Modular expansion: Easily scalable through the combination of various modules.
• Local operation: Each module enables manual control, priority override, and status display.

Technical Data

The romod series includes modules such as:

• 16DI: Digital input module for monitoring up to 16 signals.
• 8DO and 8DO-R: Digital output modules with MOSFET or relay outputs.
• 4DIO-R: Combination of digital inputs and outputs.
• 8AI and 8AO: Modules for processing analog signals such as temperature and voltage sensors.
• 4DI2DO-R-3P: Module with specialized 3-point relay outputs for blind and damper controls.

The series supports all common Modbus commands and is compatible with a variety of automation systems. Its high protection class and robust design ensure a long lifespan, even in demanding environments.

Advantages

• Local priority control/display (per DIN ISO 16484 / VDI 3814)
• Data points remain usable even during DDC failure
• Clear arrangement and display of system status
• Connection between modules and DDC substation according to Modbus specification
• Eliminates the need for parallel wiring or PLC-side data point acquisition
• Easy wiring on the mounting plate
• High data point density in a compact space
• Simple system expansion
• Flexible 24V AC/DC power supply
• Automatic baud rate detection (autobauding)
• Active bus termination via dip switch
• Status LED for bus communication
• Wide sensor selection for analog inputs
• 8DO MOSFET (no relay wear)
• Hand mode can be disabled via Modbus
• Free configuration software
• Safe State Mode (defined state selectable after bus failure)
• Counter functionality for digital inputs
• Macros available in ePlan Data Portal

Applications
The romod series is ideal for:

• Heating, ventilation, and air conditioning (HVAC) systems
• Individual room control and centralized control systems
• Monitoring and controlling lights, dampers, and motorized devices

Conclusion
The romod series from romutec is the perfect solution for modern building automation. With its modular architecture and extensive features, it offers maximum flexibility, reliability, and efficiency. Ideal for planners and operators seeking robust and efficient automation solutions.
