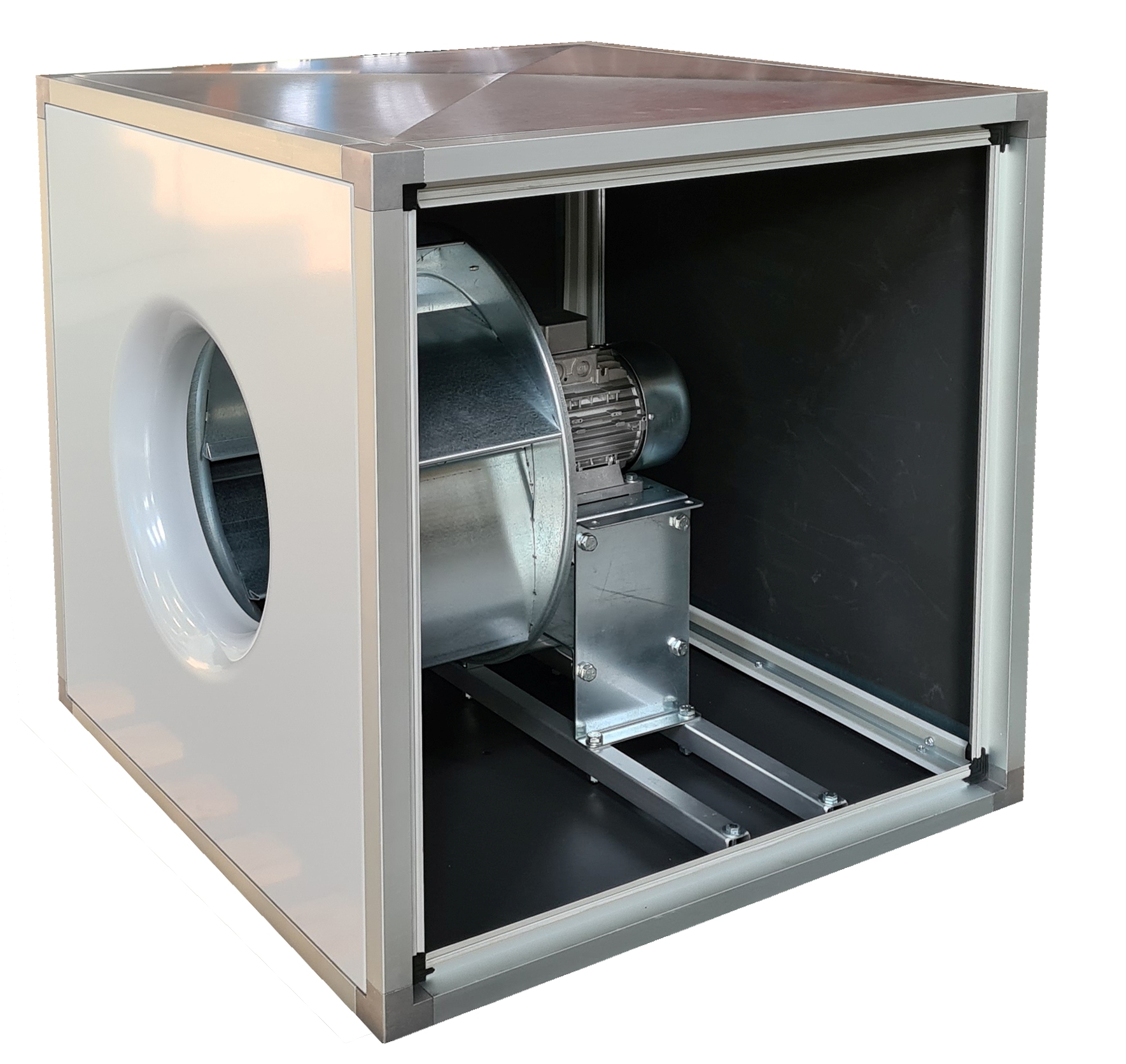

EC-BOX line consists of backward curved centrifugal fans, directly coupled to an electronically commutated permanent magnets motor (EC) housed in a plenum (BOX), lined with sound proofing material.
These fans are particularly suitable to extract or introduce air in residential, commercial and industrial buildings (offices, gyms, shops, restaurants engine rooms, electric panel rooms etc.) requiring silent operation, perfect speed regulation and an extremely high efficiency, according to the ErP Regulation
in law.

The range consists in 8 models with impeller from 350 to 630mm and airflow up to 16.000 m³/h.
Maximum pressures allowed up to 1400 Pa.

EC-BOX fans are characterized by a reduced power consumption due to the EC motor with permanent magnets with an efficiency grade minimum IE4 (or more), and high efficiency backward curved centrifugal impellers. The outlet airflow can be direct inline with the inlet side or turned by 90°.
