Individual, efficient, certified, powerful and sustainable

The optimal solution for every application and requirement!

The WK-com, WK-com H, WK-com THERMO and WK-com PRO unit series in versatile designs ensure that the technically best, most efficient and most economical option is available for every individual area of application. All executions comply with the current standards, regulations and ordinances. The hygiene requirements of VDI 6022 are met as standard in all unit series.

The requirements of DIN 1946-T4 are met according to customer specifications and are confirmed by the type examination and certification of the Hygiene Institute of the Ruhr Area.

The unit designs can be freely configured in terms of dimensions, equipment, execution and function using certified and externally monitored design software (TÜV/RLT-manufacturers' association/EUROVENT). All unit series are available for indoor or outdoor installation.

Construction and variants

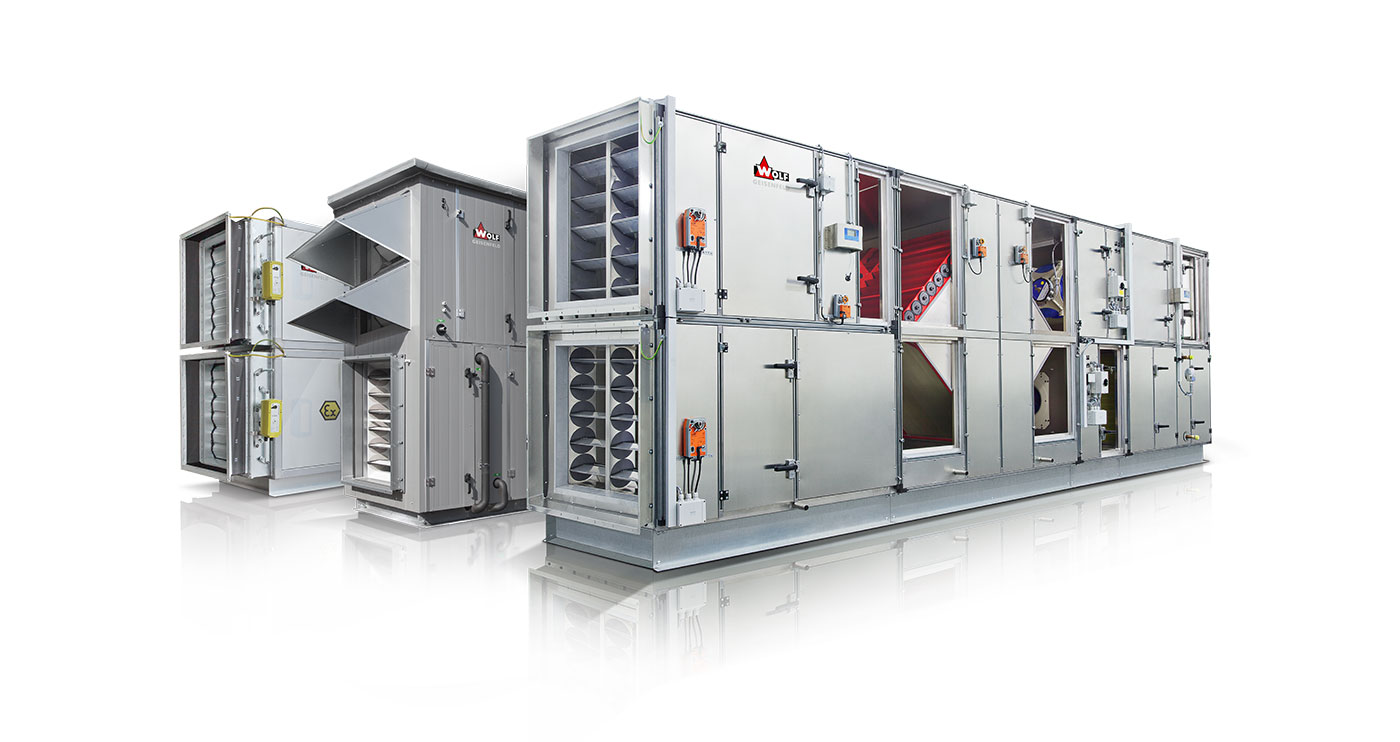

The WK-com basic construction in plugged and screwed design is the basis for all WK-com unit series. The inherently stable and self-supporting frame construction consists of plugged and screwed special profiles and aluminum die-cast corner connectors, which are used in various thicknesses, materials and executions, according to the requirements and area of application. The mechanical stability of class D1, according to measurements by TÜV-Service GmbH in accordance with DIN EN 1886 (M), is ensured for all versions!

The cladding panels inserted in the frame construction in an airtight manner are filled with non-flammable mineral wool insulation of class A and are optimized in terms of energy and sound. For all unit series, the maximum casing tightness of class L1 is achieved, according to measurements by TÜV-Service GmbH in accordance with DIN EN 1886 (M)!

The WK-com THERMO unit series is manufactured with an additional panel of 50 mm wall thickness surrounding the frame construction, in an airtight tongue and groove construction. The measurements of TÜV-Service GmbH according to DIN EN 1886 (M) confirm the excellent class of the thermal casing design of class T1 and TB1.

The design of the casing inner surfaces can be individually adapted to the requirements.

• Galvanized sheet steel 1.0/1.5 mm
• Aluminum AlMg3 1.0/1.5 mm
• Stainless steel 1.4301 1.0/1.5 mm
• Stainless steel 1.4401 1.0/1.5 mm
• Galvanized sheet steel with additional coating

Furthermore, the individually possible design of the casing outer shell allows for a versatile design that is optimally adapted to the requirements.

• Galvanized sheet steel 1.0/1.5 mm
• Aluminum AlMg3 1.0/1.5 mm
• Stainless steel 1.4301 1.0/1.5 mm
• Stainless steel 1.4401 1.0/1.5 mm
• Galvanized sheet steel with additional coating
• Additional THERMO panels 50 mm PU/A1

Individual dimensions in mm increments

The WK-com unit series can be individually calculated and manufactured in all dimensions in height and depth and can therefore be ideally adapted to the conditions on site.

Due to the variety of combinations and design options, all requirements can be met in detail in compliance with all standards, directives and regulations!

Mechanical and thermal values:

• Characteristic value of the possible WK-com casing versions according to DIN EN 1886 measured by TÜV-Süd Service GmbH on model boxes.
• Mechanical strength for all versions:
  D1 (maximum possible strength)
• Air tightness of the casing for all versions:
  L1 (maximum possible tightness)
• Casing classes acc. to heat transfer coefficient:
  T1 - T3 depending on the version
• Casing class acc. to thermal bridge factor :
  TB1 - TB3 depending on version

Full system

Our own specialist departments for instrumentation and control technology (I&C), refrigeration technology and hydraulic systems ensure that all systems are always state-of-the-art through continuous and innovative further development. In-house measurement and test facilities ensure system compatibility, practicality and market-driven implementation of innovative systems and technology.

• Integrated cooling technology with full service and installation
• External refrigeration technology with full service and installation
• Integrated I&C with full service and installation
• External I&C with partial service
• Complete wiring of systems in the factory
• Customized hydraulic systems with commissioning and service

We offer an optimal and coordinated solution for every requirement according to the customer's wishes!

Your Advantages:

• Individual casing design according to customer's wishes and requirements
• Freely configurable casing dimensions in height and depth in mm increments
• Innovative designs, variants and technologies
• Optimum customer focus and individual project implementation
• Highest design quality
• Complete and coordinated system technology
• Qualified and competent support in planning and consulting
• Professional service and support during installation
• Comprehensive customer service
• Competent after-sales service

Optimally matched
Requirements to Ventilation technology is constantly changing. Most different standards and guidelines have to be observed for a safe, sustainable and correct operation of the system even in the future. With WOLF, you are on the safe side. We offer you efficient integrated cooling technology in WK-com AHU-Unit. Profit from a sustainable, energetically optimized overall system and a fast and simple completion on site without any overlapping areas.

Advantages

• Everything from a single source, ready-to-connect systems
• Wiring, piping and commissioning can be done in the WOLF factory
• Lower investment, operating and maintenance costs
• No long piping ways through buildings
• High energy efficiency, no energy losses due to intermediate medium
• Short assembly times
• Networkable to the building management system
• Compact design
• Minimized planning effort
• Fewer trade interfaces
• Space saving, no external refrigeration system required
• High performance figures
• Warranty from one provider
• Refrigerant with a future R513A and R32
• Refrigeration capacities of 5 – 500 kW
• Monitoring of operating points by interface or WOLF C-MAX
• 10 – 100 % capacity control

Future-proof design
The new EC-F-Gas Regulation (No. 517/2014) defines that manufacturers have to use refrigerants with a low GWP value (Global Warming Potential) in their units, contributing a lot to a reduction of CO2 emissions.

We at WOLF are using the climate-friendly R513A, so that you can operate your air handling unit with integrated cooling technology safely, maintenance-friendly and correctly even in the future.

The refrigerant R513A with a GWP of only 613,4 is able to reduce the potential CO2 emission to a third compared to conventional refrigerants such as R407C or R410A, contributing to a sustainable usage of modern refrigeration technology.

The new R513A is a mixture of refrigerants, consisting of 50 % of R134A and 50 % of R1234yf. By mixing the safety refrigerant R134a (A1) and the conditionally combustible refrigerant R1234yf (A2L), the refrigerant R513A (A1) is not combustible.

Competence from a single source
The refrigeration department at WOLF has decades of experience and expertise. Each customer request is processed individually in order to be able to offer the energetically and economically optimal solution.

Due to our flexible unit base, even special requests can be realized without any problems. From planning to final assembly, commissioning and on-site maintenance, you will work with certified refrigeration technology experts.

State-of-the-art technology, with its finger on the pulse. Our innovative strength from the interaction between people, technology and the company also gives you the security of being also ideally equipped in the future.

Ready for actionin flash
Integrating a refrigeration system into WOLF air handling units reduces the on-site installation and planning effort to a minimum.

Even at the planning stage, we take into account all pipe routing and the necessary installation conditions. The cumbersome coordination between many trades involved during the construction phase. In the end, everything fits perfectly and the system can be put into operation quickly, conveniently and uncomplicated.

Variants

• Heat Pump Function
• Dehumidification plant
• Integrated refrigeration

External heat pumps

A perfectly matched system between WOLF C-MAX cooling and a specially developed communication system for air handling units in combination with external heat pumps.

• Stepless capacity control by 0 – 10V signal
• 20 – 100 % for cascades
• 40 – 100 % for Single Split
• Precise temperature regulations
• Optimal defrost mode for cascade applications
• Easy assembly and pipe installation
• Cascading with max. 6 units possible
• Variable air volume flow rates possible
• Refrigeration capacity 3,6 – 150 kW by cascade
• Heating capacity 4,1 – 162 kW by cascade
• High reliability for cascade applications
• Full heating capacity down to -15 °C by patented inverter technology

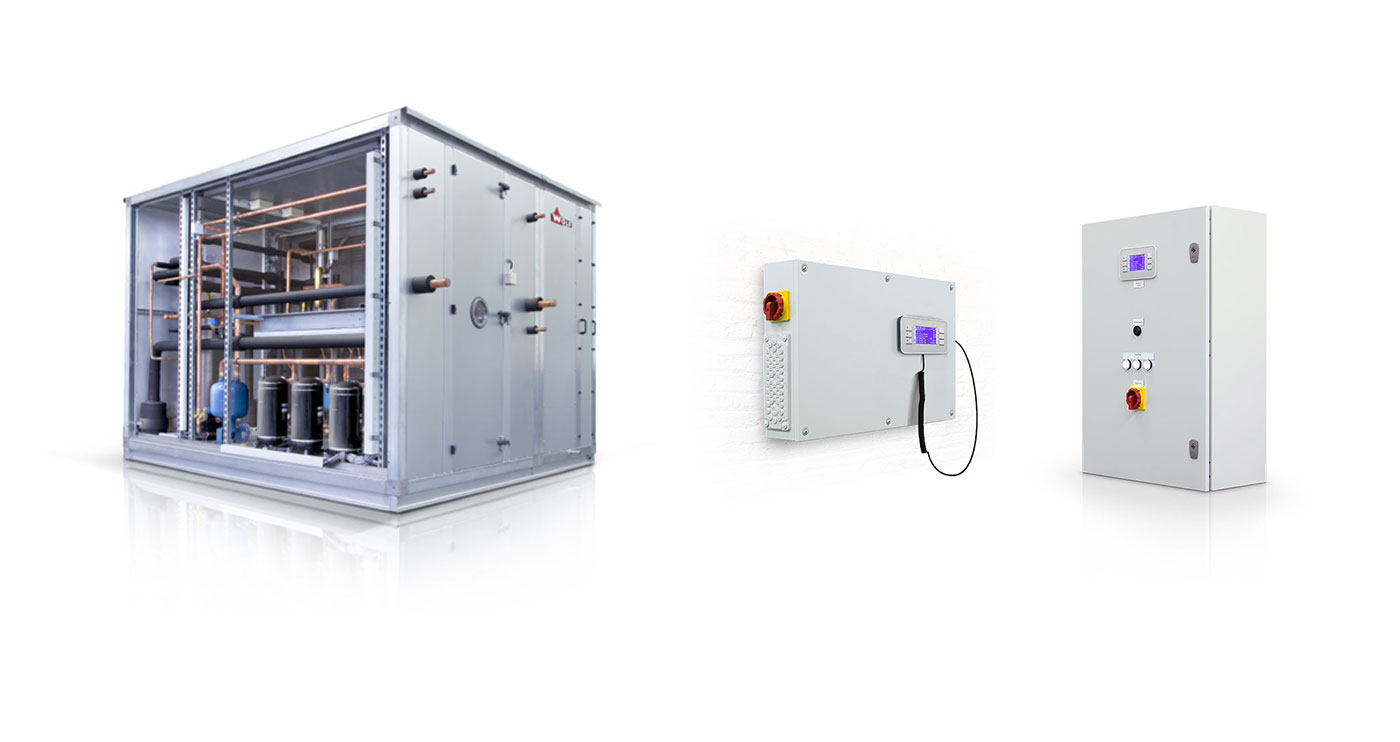

WOLF Measuring and Regulating Technology

Two SOLUTIONS – one system
The extensive possibilities of our measuring and regulating technology offer the right solution for each plant. The pre-configured WOLF C-MAX compact presents a compact and cost-optimized unit. For individual requirements, we provide WOLF C-MAX flex program, fulfilling any requests of a ventilation regulation.

Plant-specific ex Works
From compact ceiling unit to roof central with refrigeration and humidification control. For customer-friendly commissioning, WOLF C-MAX is already configured ex works specifically for each plant. For commissioning only the nominal values, fixed speeds, volume flow, pressure and switching times have to be adjusted individually by customer.

Easy and Comfortable Handling
All important settings can be adjusted comfortably on the clearly legible control unit. Choose kind of operation, temperature or requested operating time. On the optional touch control unit, the plant functions can also be monitored as a graphic scheme.

Energy-efficiently matched
WOLF measuring and regulating technology is the ideal solution to secure a specific customer-tailored plant function in a perfect symbiosis between energy efficiency and performance.

Comprehensive Language Setting
A total of 13 languages enable the use of WOLF regulation almost everywhere: German, English, Danish, Dutch, Finnish, French, Italian, Lithuanian, Polish, Russian, Spanish, Swedish, Turkish.

Longstanding Partners
The market offers innumerable solutions, more or less convincing. For hard- and software, we rely on sophisticated regulation technology by Siemens.

Top-Class CCS

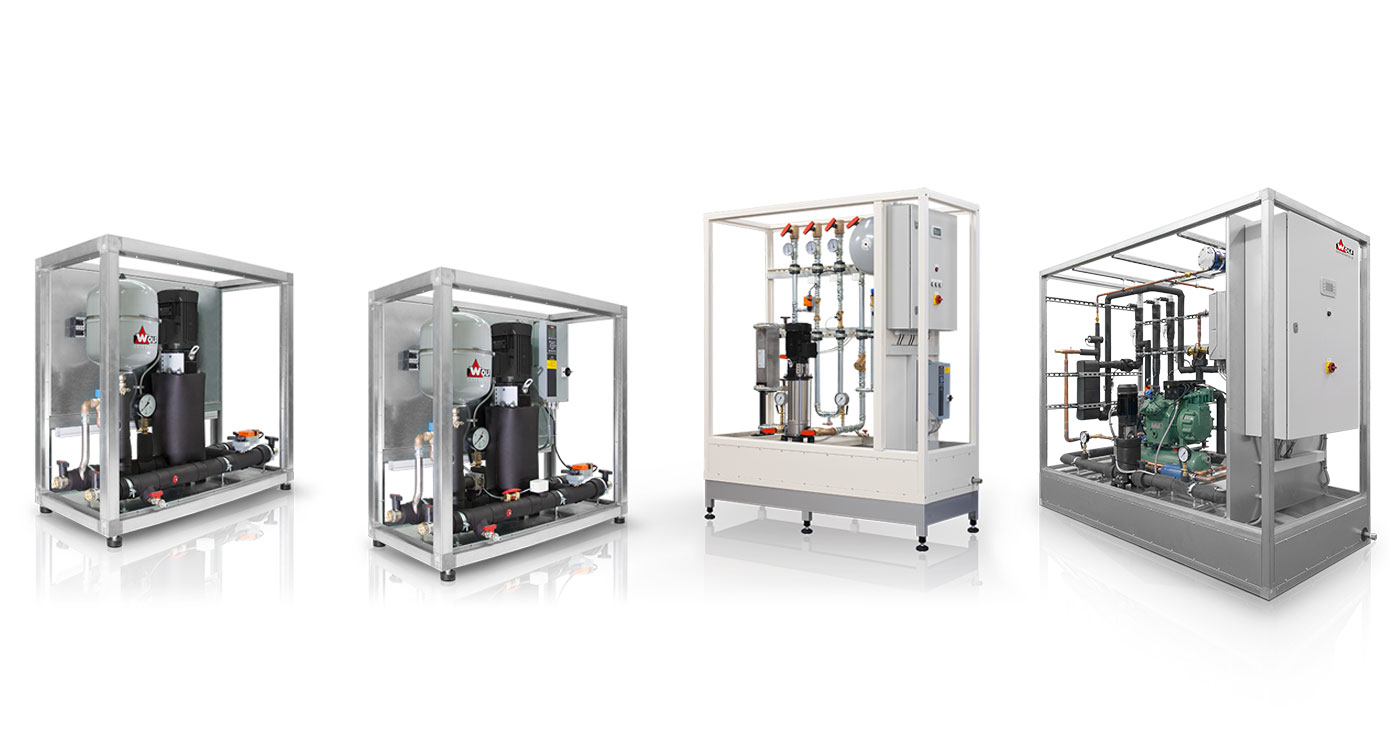

THERM-CONNECT systems by WOLF enable an efficient transfer of heat or cold without mixing the air flows. Es-pecially for projects in hygiene zones or limited space (for example reconstructions), THERM-CONNECT is the ideal choice. Thus, you will meet all relevant legal standards and guidelines (ErP 2018, DIN EN 116, VDI 6022 etc.), providing a sustainable system.

THERM-CONNECT available in 4 variants:

• basic – the basic version
• defrost – with integrated frost protection
• magna – the high-performance CCS

Advantages

• Efficient heat and cold recovery
• Energy-optimized control system according to existing air flow
• Continuous efficiency optimization by inherent control programming
• Expansion tank for constant pressure conditions
• Remote monitoring and GLT-control by BACnet, Modbus etc. (optional)
• Integrated frost protection (optional)
• Rating of heat exchangers and hydraulic unit as requested by customer
• Complete housing cube with collecting tray (optional)
• Project-specific adjustment of housing cube possible
• Additional heat / cold feeding (optional)
• Adiabatic exhaust air humidification for increased cold recovery (optional)
• System insulation with Armaflex (optional)
• Piping in high-grade steel (optional)
• Redundant double pump (optional)
• Weatherproof housing for outdoor installation (optional)
• no Reheating/- frigerate required

Quality Guarantee

THERM-CONNECT combines high-grade components, efficient control system and intelligent protective mechanisms (frost protection, overpressure protection), guaranteeing a performance that meets your needs, highest safety and efficiency as well as compliance with all relevant standards and guidelines.

HY-QUIET COOL LINE

Secondary air unit for hospitals and medical facilities

Hygiene secondary air device for use in hygienically demanding areas such as hospitals, day clinics, outpatient surgery centers, doctor's offices, dialysis centers, production and preparation centers rooms for processing medical devices. WOLF secondary air cooling device HY-QUIET COOL LINE for cooling, heating and filtering secondary air for hygienically demanding rooms and areas. The HY-QUIET COOL LINE complies with the specifications and requirements of DIN 1946-Part 4 and is certified by an independent testing agency. The device design and structure is designed for false ceiling installation. All interior surfaces and built-in parts are smooth and dirt deposits are excluded, are optimally accessible for maintenance and cleaning and are resistant to disinfectants. All gaskets and sealants used are inert and resistant to disinfectants.

Advantages:

• Device version certified according to DIN 1946-Part 4 and VDI 6022
• suitable for use in medical facilities
• extremely quiet
• Air volume flow up to 1460 m3/h
• High cooling performance (approx. 6.5 KW)
• High heating output (approx. 8 KW)
• continuously adjustable power different filter combinations possible
  > ISO ePM1 ≥ 55% + ISO epM1 ≥ 80%
  > ISO ePM1 ≥ 55% + HEPA particulate matter filter H14 - not applicable 99.995% of all germs, viruses and aerosols present
• Easy maintenance and cleaning via folding cover
• All components are reversible and cleanable Version for grid ceiling installation (625 x 625 mm)
• Housing completely insulated in a diffusion-tight manner Heating/cooling register optional for R32, R513A or alternative refrigerants can be selected
• Intake and exhaust options freely selectable
• Version with duct connections can be selected

Ceiling mounted ventilation units for heating and cooling

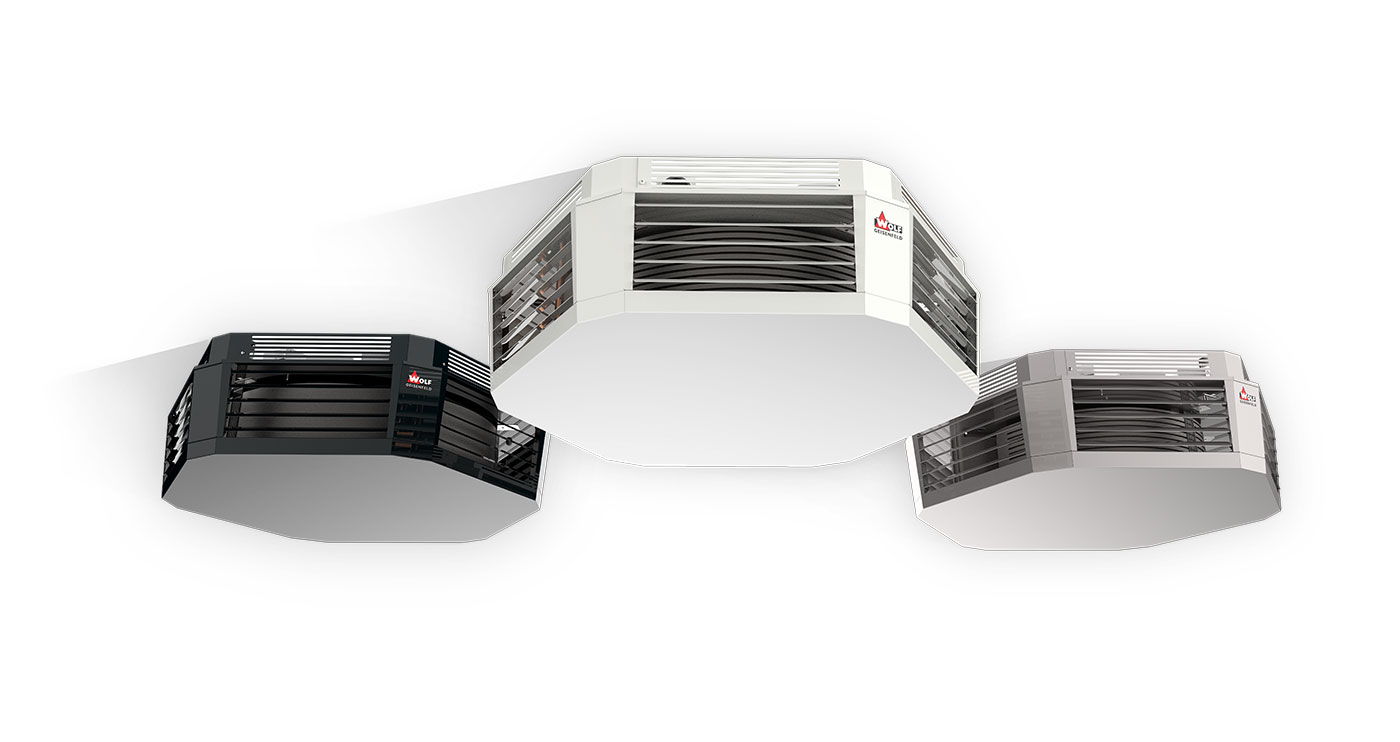

The FB-A from WOLF has long epitomised premium quality in the ceiling mounted air heaters and ventilation units sector. WOLF units not only provide exceptional manufacturing quality and performance, but also feature an elegant and timeless product design.

Benefits

• Highly efficient fans with EC technology
• Particularly quiet thanks to axial or radial fans
• Suitable for high external resistances
• Discharge at the side
• Pre-determined flow rate thanks to housing geometry
• Intake at the top, can be above/below ceiling
• Heating/cooling medium connection at the top
• Individually adjustable air guide fins
• Quiet and powerful condensate pump
• Condensate pan with fall to pump
• Delivered fully wired and with hose piping connected
• Recirculating air, mixed air and outdoor air operation
• EC control unit or WOLF C-MAX control
• Stepless output control
• extensive equipment

Flexible peak performance

Building on this standard, we revised our FB-A and developed the FB-A flex model.

Scale your unit performance flexibly to suit your requirements while maintaining harmonised and elegant optics, drawing on a huge range of versions and outputs.

The FB-A flex offers you flexibility!

The use of current EC technology in conjunction with reliable sickle-bladed axial fans or pioneering high performance radial fans with an extremely stable curve across the entire performance range forms the basis for a performance optimised, highly efficient method of operation without compromise.

The exclusive 12-cornered unit housing made of stable sheet steel with high grade powder coating is visually attractive and blends harmoniously into all room concepts. The housing is inclined 5° towards the living space for energy optimised pre-handling of this air current.

Air is distributed via six discharge fins, which are arranged all around the circumference and can be removed without any tools. These are each equipped with four aerodynamically shaped, individually adjustable and flow optimised air guide fins. This ensures user defined air current distribution and control.

The FB-A flex can be designed and used for heating operation or for combined heating/cooling operation.

Units with a cooling function are equipped with a condensate pan sloping on one side towards the pump reservoir.

All discharge fin combinations can be fully removed quickly and easily without tools for maintenance purposes, and allow free access to the heat exchanger, pump reservoir and float switch.

The WOLF FB-A flex is designed to be used as a ceiling unit for heating and/or cooling operation, for recirculating air, mixed air or outdoor air operation to ensure maximum thermal comfort in challenging applications.
