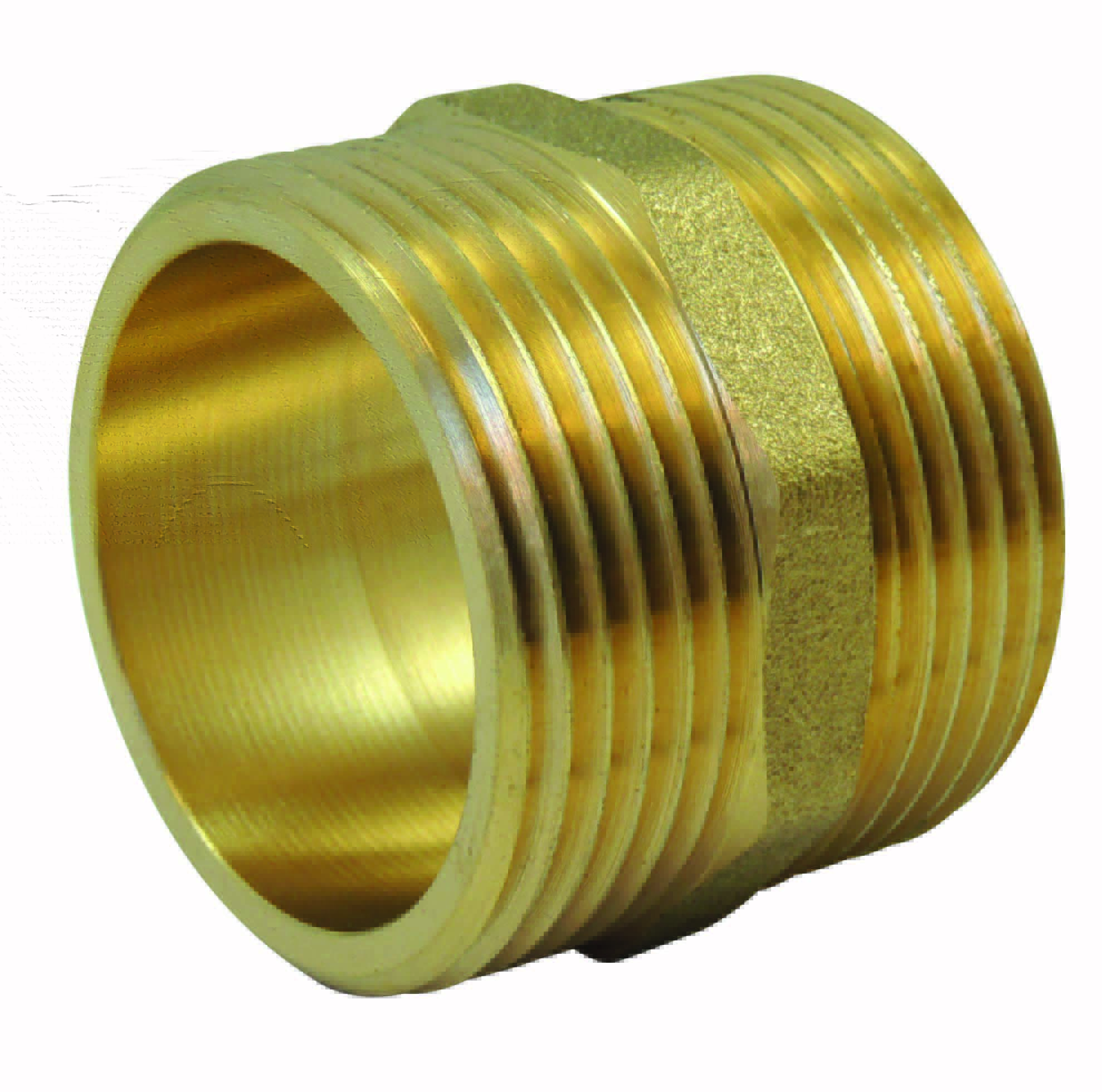

BRASS FITTINGS - BSP THREADED FITTINGS - M/M NIPPLE

CODITAL BRASS THREADED FITTINGS - THE UNIVERSAL FITTING :

ISO 228-I (BSP)

Use : general plumbing

Material : CW617N Brass uitable for drinking water

• Flats shapes designed according to metric spanners (11, 13, 14, 16, 17, 19, etc.).
• BSPP threaded ends according to ISO 228-1 standard
• Female thread depth suitable for all fittings on the market.
• Full bore : negligible pressure drop.
• Flat and large bearing areas on male and female thread ends.
• Helpful mounting flat areas on elbows and tees.

Guaranteed flat gasket sealing. Especially designed for flat gasket sealing*. The gasket is always compressed, including the thinnest ones (thickness from 1 mm). Optimal effective thread lengths. No stop before the gasket compression. Flat and large bearing areas on male and female thread ends.

High quality finishing and machining CNC machining according to strict production process. Reinforced control on each manufacturing step. Meticulous finishing, no burr, no chip.
