Universal spare motor with high efficiency frequency conversion inverter and impeller for replacement on WILO domestic circulators and other brands with CW rotation (CW).

With PWM control socket and equipped with SELF ADAPT, PP, CP, CS functions.

Self-regulating with or without connecting the cable to the PWM regulator.
Self-adjusting, it satisfies all replacement needs with a single product.

Distance between fixing holes 69 mm - complete with gaskets.

Max head 8 mt.

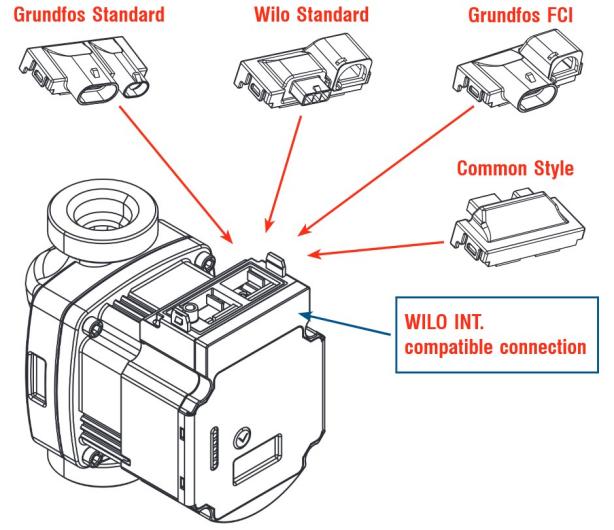

Available with different connector styles to match the original pump, making it the most effortless and versatile for all the substitutions.

Universal spare motor with high efficiency frequency conversion inverter and impeller for replacement on GRUNDFOS domestic circulators and other brands with CCW rotation (CCW).

With PWM control socket and equipped with SELF ADAPT, PP, CP, CS functions.

Self-regulating with or without connecting the cable to the PWM regulator.
Self-adjusting, it satisfies all replacement needs with a single product.

Distance between fixing holes 68 mm - complete with gaskets.

Max head 8 mt.

Available with different connector styles to match the original pump, making it the most effortless and versatile for all the substitutions.

Brazed plate heat exchangers and gasketed plate heat exchangers.

Available both with standard threaded connections or with rapid connection.

Available both on standard dimensions and customized for all boiler manufacturers.

Wide range of sizes from small brazed type190x75mm, up to gasketed type AISI316 750x180mm.

Up to 800kW of heat transfer power (hot sanitary water production)

Reversible DN25 and DN32 pump groups, consisting of 2 ball valves with thermometer and one-way valve, alignment spacer and insulating shell.

In brass and stainless steel AISI 304.

Available with or without ball valve side couplings, for safety probes or thermostats or for the insertion of bypass valve to avoid overpressure of the pump.

Available with thermostatic mixing valve, motorizable and motorized mixing valve, for low teperature heating circuits, anti-condensation for biomass, and also for refrigeration.

Available without pump or with various high efficiency self-regulating pumps with 6, 8, 10 mt. head.

For DN25:
System side couplings 1"F. Collector side couplings 1 1/2"M.

For DN32:
System side couplings 1 1/4"F. Collector side couplings 2"M.

Universal spare motor with high efficiency frequency conversion inverter and impeller for replacement on WILO domestic circulators and other brands with CW rotation (CW).

With PWM control socket and equipped with SELF ADAPT, PP, CP, CS functions.

Self-regulating with or without connecting the cable to the PWM regulator.
Self-adjusting, it satisfies all replacement needs with a single product.

Distance between fixing holes 69 mm - complete with gaskets.

Max head 8 mt.

Available with different connector styles to match the original pump, making it the most effortless and versatile for all the substitutions.

Universal spare motor with high efficiency frequency conversion inverter and impeller for replacement on GRUNDFOS domestic circulators and other brands with CCW rotation (CCW).

With PWM control socket and equipped with SELF ADAPT, PP, CP, CS functions.

Self-regulating with or without connecting the cable to the PWM regulator.
Self-adjusting, it satisfies all replacement needs with a single product.

Distance between fixing holes 68 mm - complete with gaskets.

Max head 8 mt.

Available with different connector styles to match the original pump, making it the most effortless and versatile for all the substitutions.

Brazed plate heat exchangers and gasketed plate heat exchangers.

Available both with standard threaded connections or with rapid connection.

Available both on standard dimensions and customized for all boiler manufacturers.

Wide range of sizes from small brazed type190x75mm, up to gasketed type AISI316 750x180mm.

Up to 800kW of heat transfer power (hot sanitary water production)
