In order to meet the needs of modern hydraulic and industrial systems, Comparato offers a wide range of high quality and performance actuators; it is the "PRO" range.
According to the torque size, it is possible to choose among Diamant PRO (11Nm), Compact PRO (22Nm), Universal Pro (40Nm).
The enclosure is made of a reinforced technopolymer glass with mechanical characteristics similar to aluminium; the electrical protection rating is IP67 ( available also with IP 68 on request, for under water working). It can be supplied with emergency manual override and features a mechanical system which protects the geared motor in case the outlet shaft gets stuck. For cooling systems, an anti-condensation internal resistance is available.

Main use fields:

• External environment
• Aggressive environment
• Plants for the keeping of food or specialised in the wine production
• Farming and agricultural sector
• Solar thermal plants
• General industrial plants
• Pools
• Naval sector

Main features:

• Silicon seals
• All in One system
• Class protection: IP 67
• Against break torque limiter
• Torque: 11 Nm, 35 seconds – 22 Nm, 45 seconds – 40 Nm, 55 seconds for a 90° degree rotation

Comparato offers a complete and competitive range of IP67 electronic mixing thermoregulating Motorised Valves suitable for all kinds of requirement in the mixing field. These actuators with integrated electronics, display and keyboard allow an easy programming and ensure efficient results, for a high-value regulating operation.

In order to meet the specific needs for DHW temperature control, we developed some models (Diamix L, Compamix L) performing not only a mixing task but also carrying out a thermal disinfection against the Legionella bacteria, totally managed by the integrated software.

Another development of the range has been realised for radiant heating/cooling systems (e.g. floor/wall/ceiling systems): PR actuators, the best choice for underfloor heating.

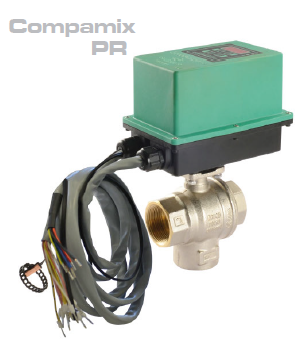

These Motorised Valves can operate with fixed-point temperature set points, with climate probe (together with an external temperature probe); with reference to cooling systems, electronics manage to calculate the minimum outlet temperature (thanks to the connection of a temperature and relative humidity probe inside the airconditioned room) in order to avoid the presence of condensation on the floor. The available versions are Diamix PR and Compamix PR.

New! Mixing PR actuators now available with a new function: management of dehumidification.

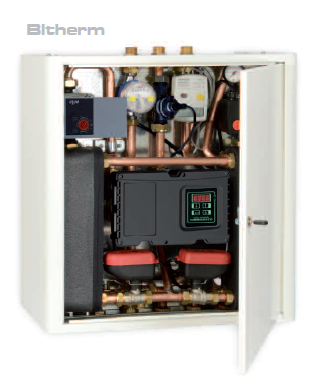

The growing interest in energy saving is leading to a more frequent use of Hydraulic Interface Units with central systems in blocks of flats and buildings. Thanks to a HIU, users are free to manage their heating/cooling systems and pay according to the real energy consumption of their housing units. The management is possible thanks to a zone valve inside the unit, which is controlled by a standard room thermostat, while a MID-approved energy meter calculates the consumptions.

Comparato offers a comprehensive range of HIUs for the production of centralized and in-unit DHW, temperature control for radiant heating systems, distribution manifold integration, cooling systems control and much more. The company is always ready to develop custom-made project to meet the design and engineering needs of each customer, thanks to its thirty-year experience in this field.

Thanks to 50 years of experience in the field, Comparato s.r.l. offers a wide range of Motorised Valve characterized by a very high quality/price/performance ratio.
Examining in detail the product range, it is easy to find the right product for all kind of application, both ON/OFF ( interception or deviation) and MODULATING (mixing or partialization).
The common feature of all Comparato's products is the orientation towards energy-saving; they can be used in central heating systems and, nonetheless, give to each user the freedom to choose the most comfortable temperature for his/her housing unit and pay accordingly.
As a consequence, there is an implicit reduction of consumptions, expenses and general advantages for the environment. Please find below an introduction of our products.

SINTESI MOTORISED VALVES

• Patented fast push connection
• ON/OFF motor; only one actuator for 2 ways, 3 ways, 6 ways, by-pass ball valves
• Modulating motor; thanks to All in One system, one actuator for both modulating and on-off use
• Ball valves: 2 ways, 3 ways, 6 ways, by-pass – 1/2”, 3/4”, 1”
• Torque: 8 Nm, 45 seconds / 35 seconds for a 90° degree rotation

In the ON-OFF version, controlled by a common room thermostat, the valve is kept open until the set temperature is reached, then it closes completely.
The MODULATING version allows the optimization of energy consumption through a partialization of the radiating element feeding.

New! Sintesi actuators are now available with DC power supply.

SINTESI SMART

Sintesi SMART is the new Sintesi Proportional Actuator.
The actuator's position is controlled by an analogical signal, and it is particularly suitable for heating, cooling and DHW plants, when temperature's regulation is required.

• Power supply of 24 V AC/DC or 230V AC
• Different piloting: 0:10 V, 2:10 V, 0:20 mA, 4:20 mA
• Operation times: 30 seconds - 60 seconds - 120 seconds

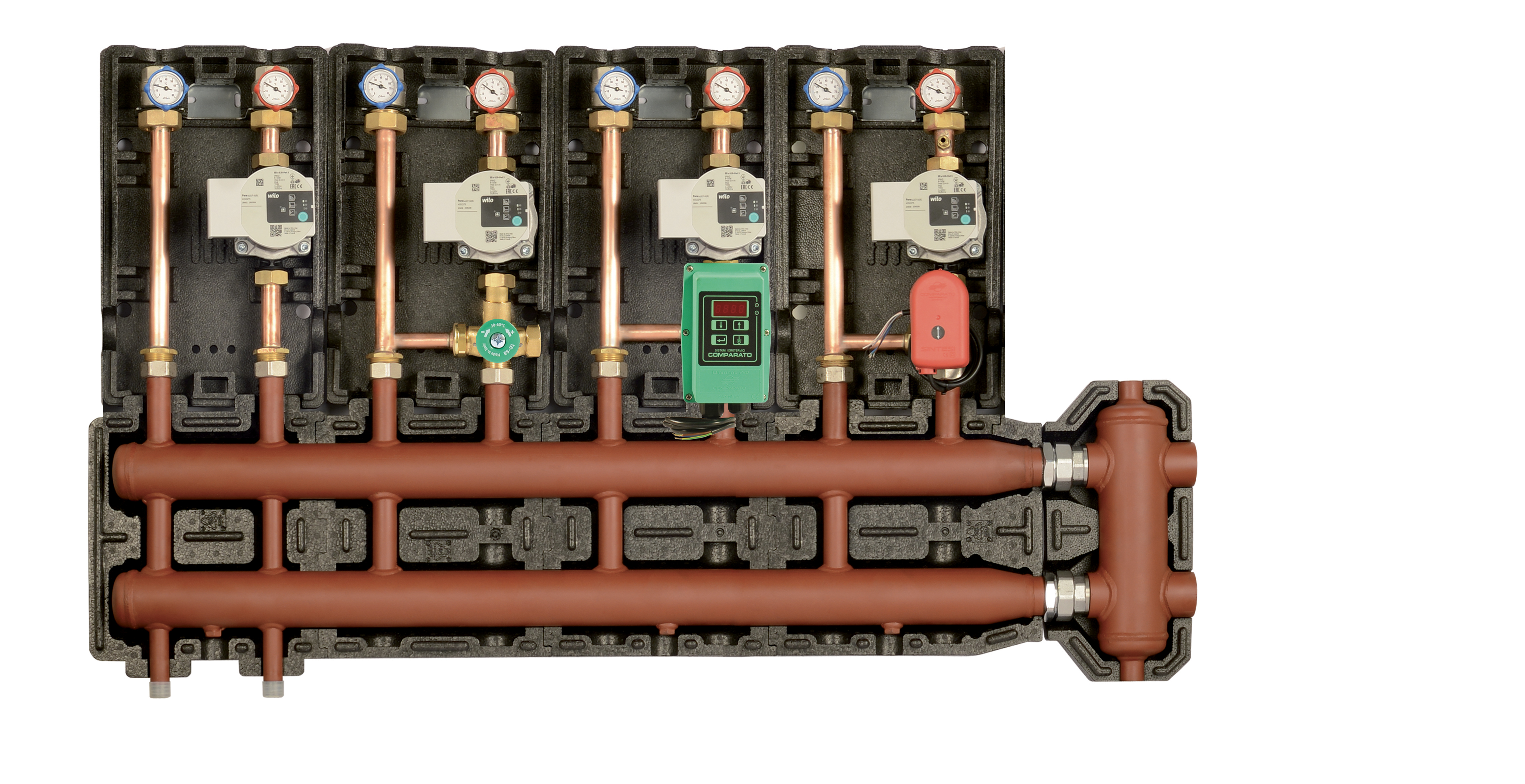

Comparato realises several types of manifolds; please find below our main products for this sector:

• Iron manifold: 125-mm interaxis (140 mm interaxis on request)
• Hydraulic separators
• Air separators
• Deposit separators with integrated magnet
• Inail safety devices holders
• Filters with magnet and drain for cleaning
