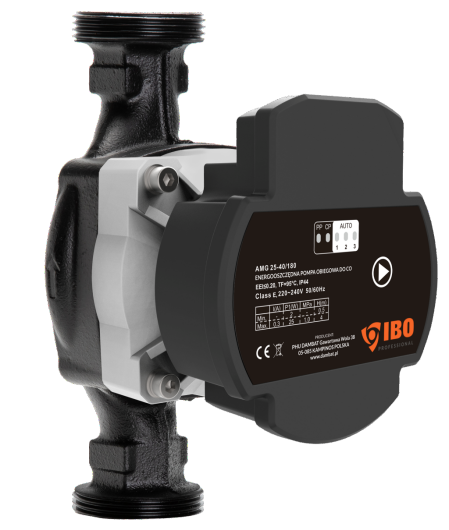

Energy-saving electronic circulation pumps which meet the requirements of high efficiency pumps.

The MAGI series circulation pump is equipped with a permanent magnet motor and a differential pressure controller which automatically and continuously adjusts the pump performance to meet the actual needs of the system. The pump control panel is placed on the top of the motor, which makes it easy to operate by the user. The current consumption of electricity is displayed on its dial. The pump set includes a set of screw connections with an adapter for connecting the cable.

APPLICATION:
The MAGI series circulation pump is best suited for the following systems:
• Equithermic heating systems with variable flow
• Heating systems with variable pipeline temperature
• Heating systems with night mode
• Air conditioning systems
• Industrial circulation systems
• Home central heating systems and home hot water systems

Energy-saving, electronic circulating pumps meeting the requirements
for energy class A pumps.
The energy flow coefficient of BETA 2 series pumps is:
EEI ≤ 0,23

The pumps are designed to force circulation in central heating
systems and solar installations. The pumps are equipped with an
electronic processor that automatically controls the operation of
the pumps, which, combined with a frequency converter, allows for
significant savings in electricity consumption. The processor used
allows you to choose one of 8 operating modes, depending on the
installation needs. Power consumption is from 1/10 to 1/3 compared
to classic pumps. The pump set includes a set of screw connections
and a power cord.
Application:
The BETA 2 series circulating pump is best suited for the following
systems:
• Constant temperature heating system with variable flow
• Heating system with variable pipeline temperature
• Heating system with night mode
• Air conditioning system
• Industrial circulation system
• Home central heating system and home hot water system

The intelligent pump controller, model IVR 10, is an easy-to-use control
and protection device for the direct connection of single-phase
(IVR 10S) or three-phase (IVR 10T) deep-well pumps, surface pumps,
deep-well pumps, etc. with power from 0,37 kW to 7,5 kW maintaining
a constant, set water pressure by changing the rotational speed of
the pump engine. The IVR 10 model has many operating modes by
adapting to different electrical installations.
Characteristics:
• Energy flow: compared with the traditional way, constant pressure
water supply system with frequency converter, saves energy
by 30% to 60%
• Simple operation: all functions can be completed by pressing
a button, no need to hire specialists for programming
• Long-term reliability of associated pumps: average torque and shaft
wear are reduced due to a decrease in average rotational speed,
ensuring longer pump life. The built-in soft-start and stop function
of the device allows you to eliminate water hammer (the water
hammer effect means a sudden increase in pressure accompanying
a quick stop or start of liquid flow)
• Comprehensive protection: the system has the most comprehensive
protection technology for overcurrent, overvoltage, undervoltage,
short circuit, blocked impellers, the ability to protect the pump
against dry running without the need to install probes/sensors in
the well
• Possibility to connect controllers into pump groups of up to
6 pumps. The group is managed from one controller, selected by the
user as the main controller. The others adapt the work to the system
requirements. Programming the set is extremely simple and does
not require the cooperation of a programmer
Application:
The IVR 10 model will work wherever there is a need to maintain
constant water pressure in the installation and to control and protect
a single pump that manages automatic switching on and off by various
electrical installations.

Multistage deep well pumps with a diameter 4,6,8,10,12", entirely made of stainless steel.The pumps are used to supply water to single- and multi-family houses, farms, and to supply irrigation systems (sprinklers, drip lines). The pumps are also used in industry and drainage.

CHARACTERISTICS:
• Pumps made entirely of stainless steel
• Increased wear resistance
• Built-in check valve
• Available with water cooled motors or oil filled motors.
• Starting box (230V version) with built-in overcurrent protection and capacitor
• 36-month warranty

TECHNICAL DATA:
• Maximum liquid temperature: 35ºC
• Power supply: 230V or 400V
• Insulation class: F
• Operating mode: continuous
• Security: IP68
• Length of the power cord: 1.5m
• Working position: vertical/horizontal
• Engine speed: 2850RMP
