DOMEL d.o.o.

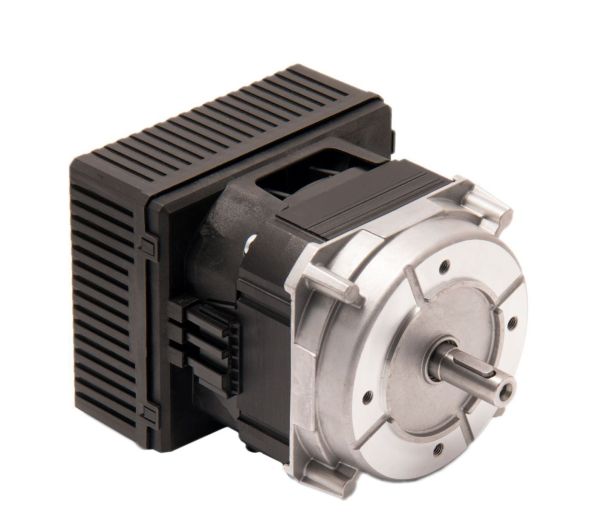

EC/PM motors with integrated controller type NS (0,5 to 2 Nm)
Description
Highlights
- integrated or external controller
- high efficiency throughout the entire operation area
- use of non-rare earth magnets (ferrite magnets)
- highest quality with long lifetime
- maintains-free operation
- compact design
- cost effective solution
- user-friendly
- can be used in wide variety of applications
- lower operation costs due to energy efficient solution
EC motors require a motor controller and cannot be run directly off the mains AC power supply.
Features
Input power (P1)
0,37 kW
0,75 kW
Efficiency all motors fulfil IE4 Super-Premium efficiency class Speed
variable nominal speed, 10-100 %, continuosly adjustable
Mains voltage 1x230 VAC, 50/60 Hz No. of poles and phases 8-pole, three-phase motor Ambient temperature between -10 °C and +50 °C Mounting B14 (IEC71)
* Motors need to be mounted into the airstream, otherwise they should be temperature tested in the application.
