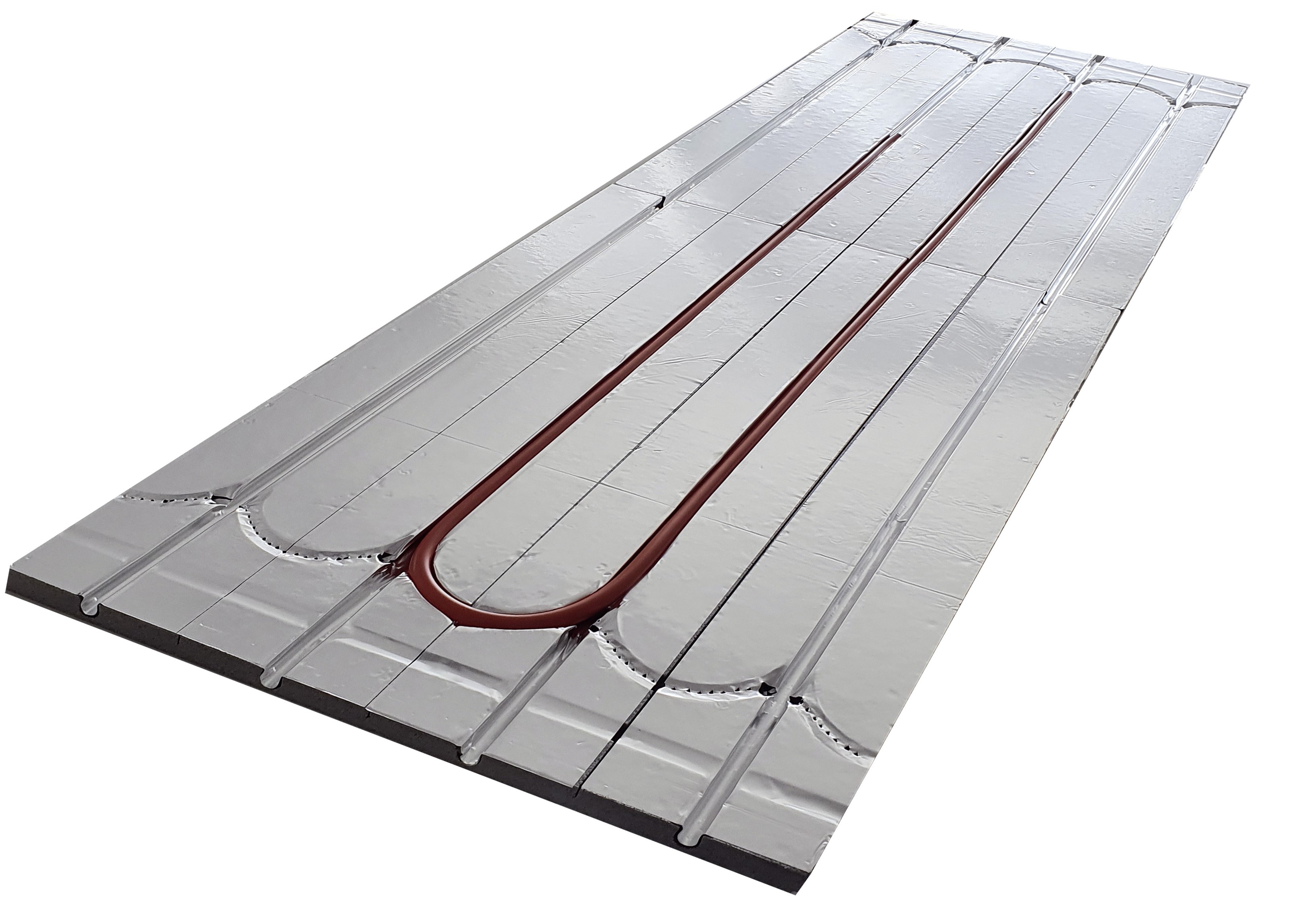

The Sympor Silver Reflex TBES 20-16 EPS 200 drywall construction element with a total height of 20 mm is ideal for retrofitting floor heating systems with minimal floor height. The TBES element consists of straight parts and deflection parts. The heat from the heating tube is distributed through a glued on aluminium coating. Tubes with a 16 mm diameter can be laid without any difficulty.

Sympor Silver Reflex TBES 20-16 plates are foammoulded in EPS 200 quality and are quality controlled according to DIN EN 13163. The high gross density allows high traffic loads of 75 KN/m²

Plate format: 600 x 1600 mm

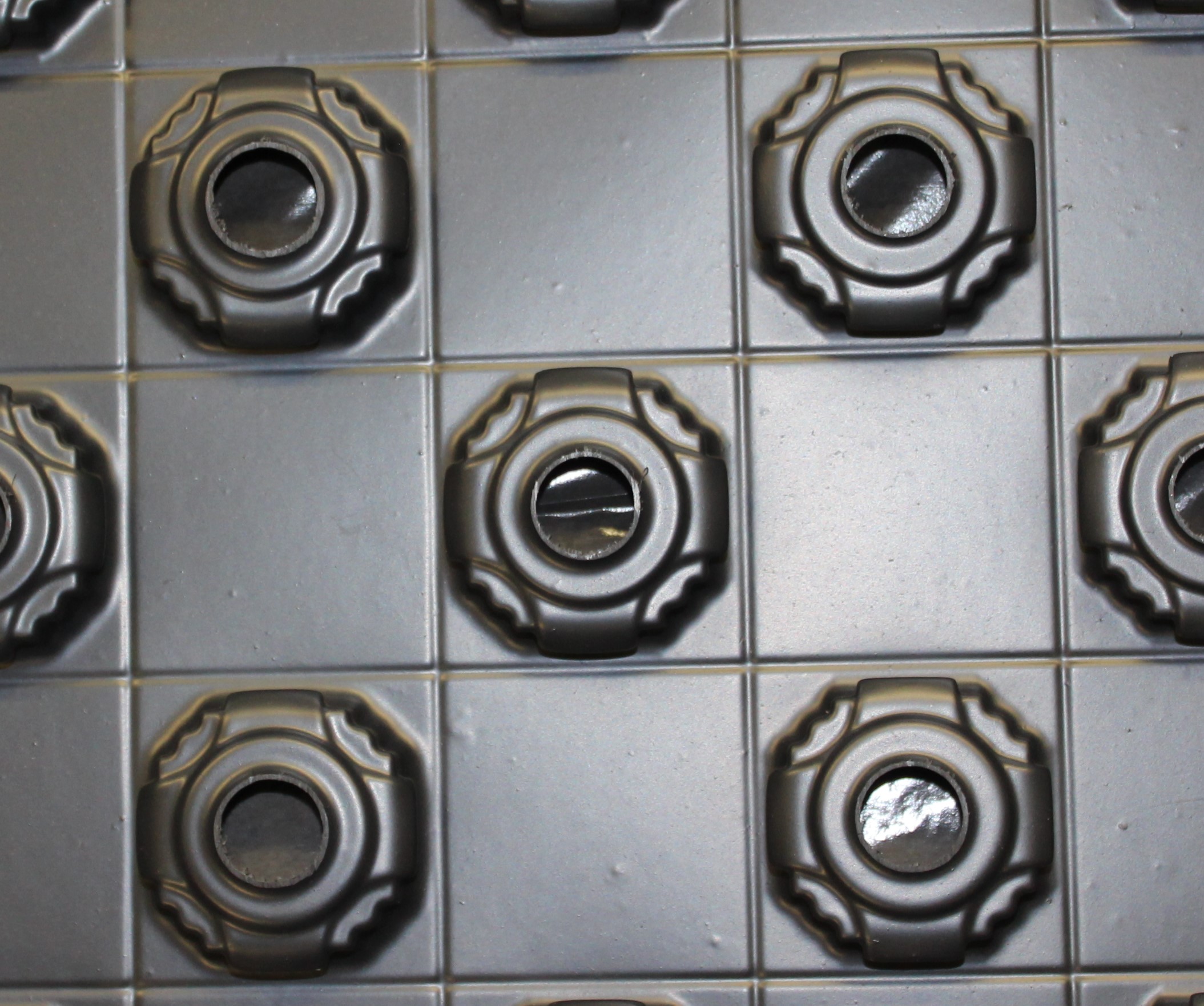

The thin layer element Sympor DSE 10-12 is ideal for renovations, for the installation of underfloor heating with minimum installation height. The element Sympor DSE 10-12 is a perforated nub panel with adhesive back. The adhesive layer helps to fix the element during pipe laying and the perforation allows the nubs to be completely filled with levelling compound.

Panel format: 1400 x 800 mm

Heat and sound insulation of expanded Polystyrene EPS-T 650, laminated with ALU PET film, tear resistant, with printed on pattern 50 x 50 mm installation grid. Self adhesive strip on one side of the film allows quick and precise connecting of the panel rolls.


Roll format : 10000 x 1000 mm
Packaging: PE bag
Pipe installation by Tacker pipe clip,
or self adhesive U profile clamp track


Suitable for a total load of 650 kg/m²

Thermal heat conductivity group λD : 0,04 W/mK

Flexibility resistance: ≥ 50 kPa

Short term heat stability: 95°C

Long term heat stability : 75-80°C

Fire behaviour (EN 13501-1): Euroclass E

Classification EN 13163

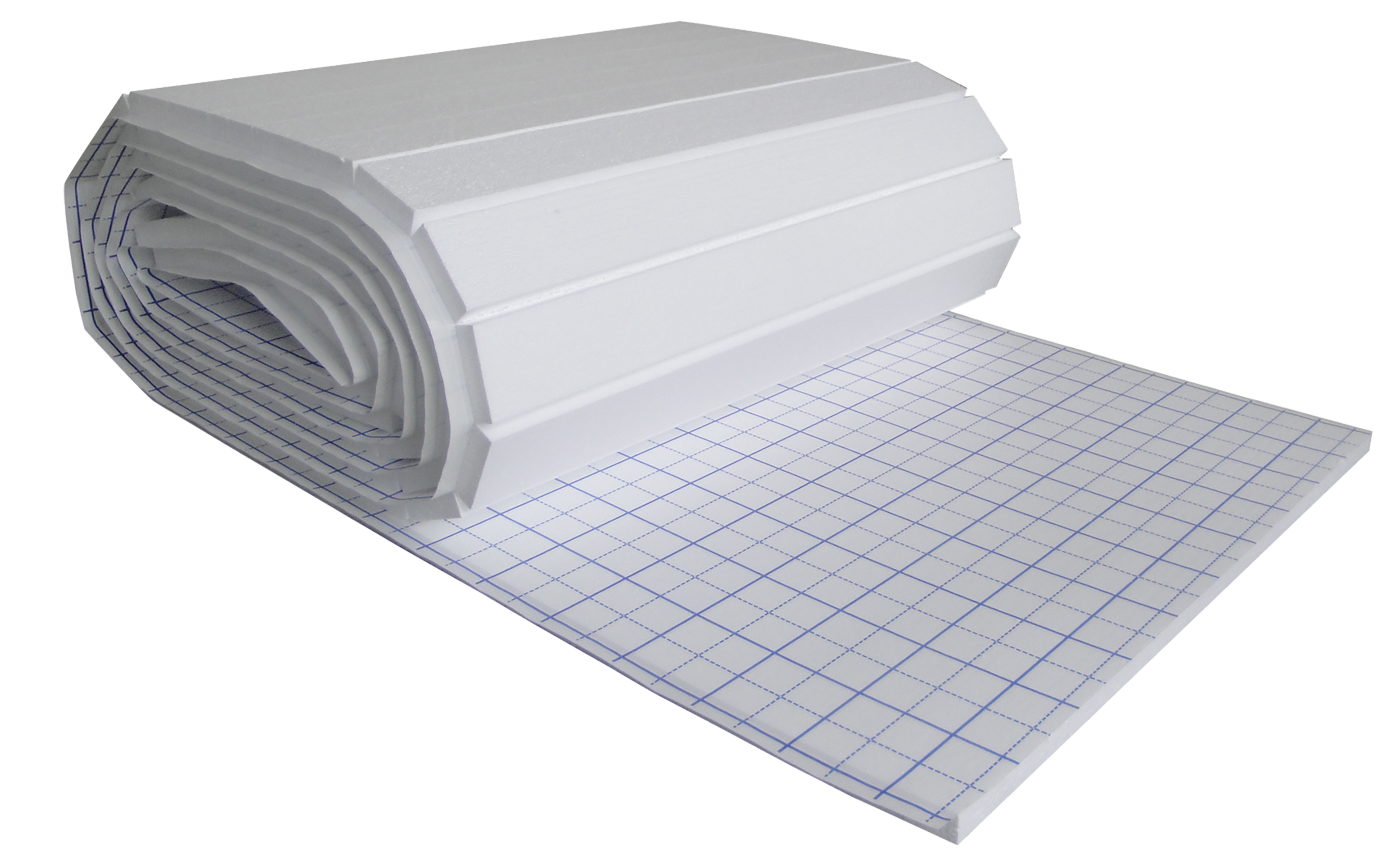

Heat and sound insulation of expanded Polystyrene EPS-T 650, laminated with white tear resistant Velour loop foil with a blue printed on pattern 50 x 50 mm installation grid. Self adhesive strip on one side of the foil allows quick and precise connecting of the panel rolls.


Roll format: 10000 x 1000 mm
Packaging: PE bag


Pipes must be fabricated with wound around hook tape, the hook design must match with the loop foil.


Pipe dimensions 16 – 17 mm
Suitable for a total load of 650 kg/m²

Thermal heat conductivity group λD : 0,04 W/mK

Flexibility resistance ≥ 50 kPa

Short term heat stability: 95°C

Long term heat stability: 75-80°C

Fire behaviour (EN 13501-1) Euroclass: E

Classification EN 13163: EPS -T 650
