FlowCon PRIMO - pressure independent energy valve.

With the PRIMO you will get a ultralow weight PIEV valve including monitoring, measuring, connectivity and control as well as sensor kit and Intelligent Interface with BACnet.

Pressure Independent Control Valve, PICV, with 100% authority.

• FlowCon Green, DN15-50, 0.00482-3.79 l/sec (0.0763-60.0 GPM)
• FlowCon Essentia, DN15-25, 0.00987-0.473 l/sec (0.156-7.48 GPM)
• FlowCon SM, DN15-250, 0.176-76.8 l/sec (2.78-1220 GPM)

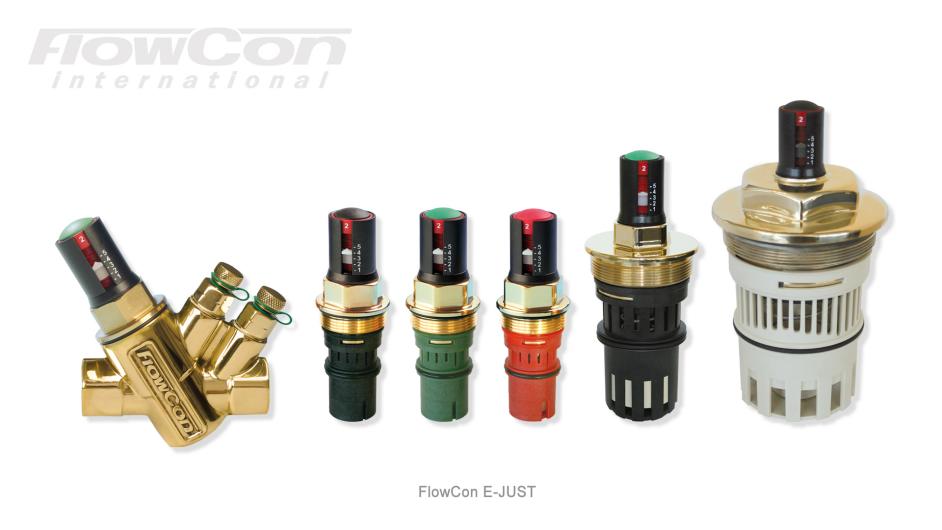

The FlowCon Green insert is designed as a 3-in-1 solution combining a full linear stroke modulating control valve, an (adjustable, multi-setting) automatic balancing valve and a differential pressure control valve.

The FlowCon Essentia is designed as a one-unit 3-in-1 solution combining a full linear stroke modulating control valve, an (adjustable, multi-setting) automatic balancing valve and a differential pressure control valve.

The FlowCon SM is designed as a one-unit 3-in-1 solution combining minimum 2160° multi-rotation modulating control valve, an (adjustable, multi-setting) automatic balancing valve and a differential pressure control valve including a programmable actuator.

FlowCon FIT - energy-saving pressure independent ΔT control.

With the FIT System you will get monitoring, measuring, connectivity and control in one package including PICV valve, sensor kit and Intelligent Interface with Bluetooth and BACnet.

Differential Pressure Control Valves, DPCV - insert based --> nice and easy.

• FlowCon SDP, DN15-25, 10 kPaD (1.45 psid) / 20 kPaD (2.90 psid) or 30 kPaD (4.35 psid)
• FlowCon EDP, DN15-50, 3-100 kPaD (0.44-14.5 psid)
• FlowCon ADP, DN15-25, 3-35 kPaD (0.4-5.1 psid)

The FlowCon SDP insert is designed as a pre-set differential pressure control valve for any basic, tamper-proof and cost effective project.

The FlowCon EDP insert is designed as an adjustable, multi-setting differential pressure control valve for any easy, flexible and value-for-money project.

The FlowCon ADP insert is designed as combi-valve including ON/OFF control, an adjustable, multi-setting automatic balancing and differential pressure control valve.

FlowCon PRIMO - pressure independent energy valve.

With the PRIMO you will get a ultralow weight PIEV valve including monitoring, measuring, connectivity and control as well as sensor kit and Intelligent Interface with BACnet.

Pressure Independent Control Valve, PICV, with 100% authority.

• FlowCon Green, DN15-50, 0.00482-3.79 l/sec (0.0763-60.0 GPM)
• FlowCon Essentia, DN15-25, 0.00987-0.473 l/sec (0.156-7.48 GPM)
• FlowCon SM, DN15-250, 0.176-76.8 l/sec (2.78-1220 GPM)

The FlowCon Green insert is designed as a 3-in-1 solution combining a full linear stroke modulating control valve, an (adjustable, multi-setting) automatic balancing valve and a differential pressure control valve.

The FlowCon Essentia is designed as a one-unit 3-in-1 solution combining a full linear stroke modulating control valve, an (adjustable, multi-setting) automatic balancing valve and a differential pressure control valve.

The FlowCon SM is designed as a one-unit 3-in-1 solution combining minimum 2160° multi-rotation modulating control valve, an (adjustable, multi-setting) automatic balancing valve and a differential pressure control valve including a programmable actuator.

FlowCon FIT - energy-saving pressure independent ΔT control.

With the FIT System you will get monitoring, measuring, connectivity and control in one package including PICV valve, sensor kit and Intelligent Interface with Bluetooth and BACnet.
