TWO CIRCUIT LT-HT RADIATORS

LT-HT Radiators, high efficient products thanks to use of high production technology and high quality materials.
Friterm’s custom-made LT- HT Radiator, which assure best design possibilities of our calculation software and high efficient fin geometry, provide to our customers optimum solutions for reducing engine-turbine systems’cooling water temperature, with high corrosion resistant materials assuring long operation life in corrosive ambient. For more technical details please visit our web page http://www.friterm.com/Articles.aspx
LT- HT Radiators utilizing the below advantages for installers and users:

• Less operation and maintenance cost
• Less space required
• High Energy Efficiency&Less noise level
• Better solution comparing to Cooling Towers
• Close circuit system prevents impurtity in cooling circuit
• Prevent water loss ambient air &Reduced process water cost
• Prevent Legionella bacteria
• Environment Friendly Technology

WET-DRY COOLERS WITH ECOMESH SYSTEM

Wet-Dry Coolers with Ecomesh System - Ecomesh Spray System concept is based on intermittenly and efficiently evaporating water on large mesh area in front of the heat rejection surface of Dry Coolers. Water spray provides an adiabatic cooling effect of the incoming air steam. As a result of indirect water spray system, fins are not defected by water calcareous which is prevented by mesh. Ecomesh Spray system is especially very useful in the countries which have hot and dry climate such as Middle East and Mediterranean countries and provides efficiently energy usage with reduced water consumption. Since it uses water directly without a water reservoir, the health risks associated with a still water reservoir are eliminated.

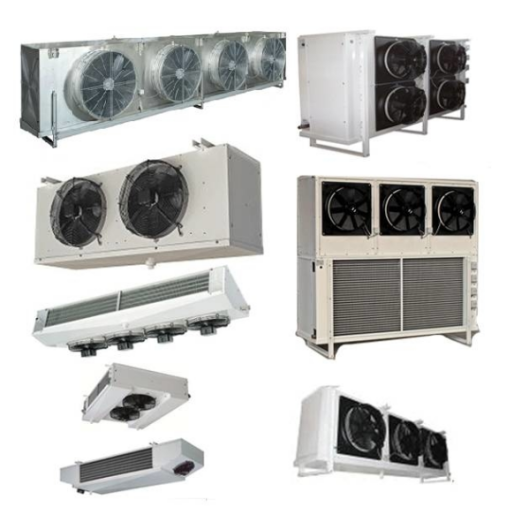

Friterm Unit Coolers for subcritical and transcritical cycles are specially designed for small and medium size cold room and frozen storage room applications. The capacity range is 1,1kW-80,7kW.

Technical Specifications:

• 3 different fin spacing 4-6-8mm
• Maximum working pressure 60 bar
• Inlet and outlet connections are copper or steel
• Robust and all-round powder coated(RAL 9016) galvanized steel casing parts, provide decorative, high corrosion resistance and smooth surface finish. Proper for food storage and processing applications.
• Highly efficient EBM, ZIEHL-ABEGG or equivalent brand fans are used.
• Fan motor type: 230V, 50Hz, 1400rpm

Optional Specifications:

• Double skin drain pan with insulation
• Stainless steel casing

CO2 Gas Coolers

Tecnical Specifications:

• Aluminium Fins
• Copper or special alloy copper tubes
• Maximum working pressure 120 bar
• Inlet and outlet connections are copper or steel
• Casing of gas coolers are made of electrostatically powder coated galvanized steel or aluminium(RAL 7044) that provides excellent corrosion protection
• Highly efficient EBM, ZIEHL-ABEGG or equivalent brand fans are used.
• Motor fan type: 230V, 50Hz, 1400rpm
