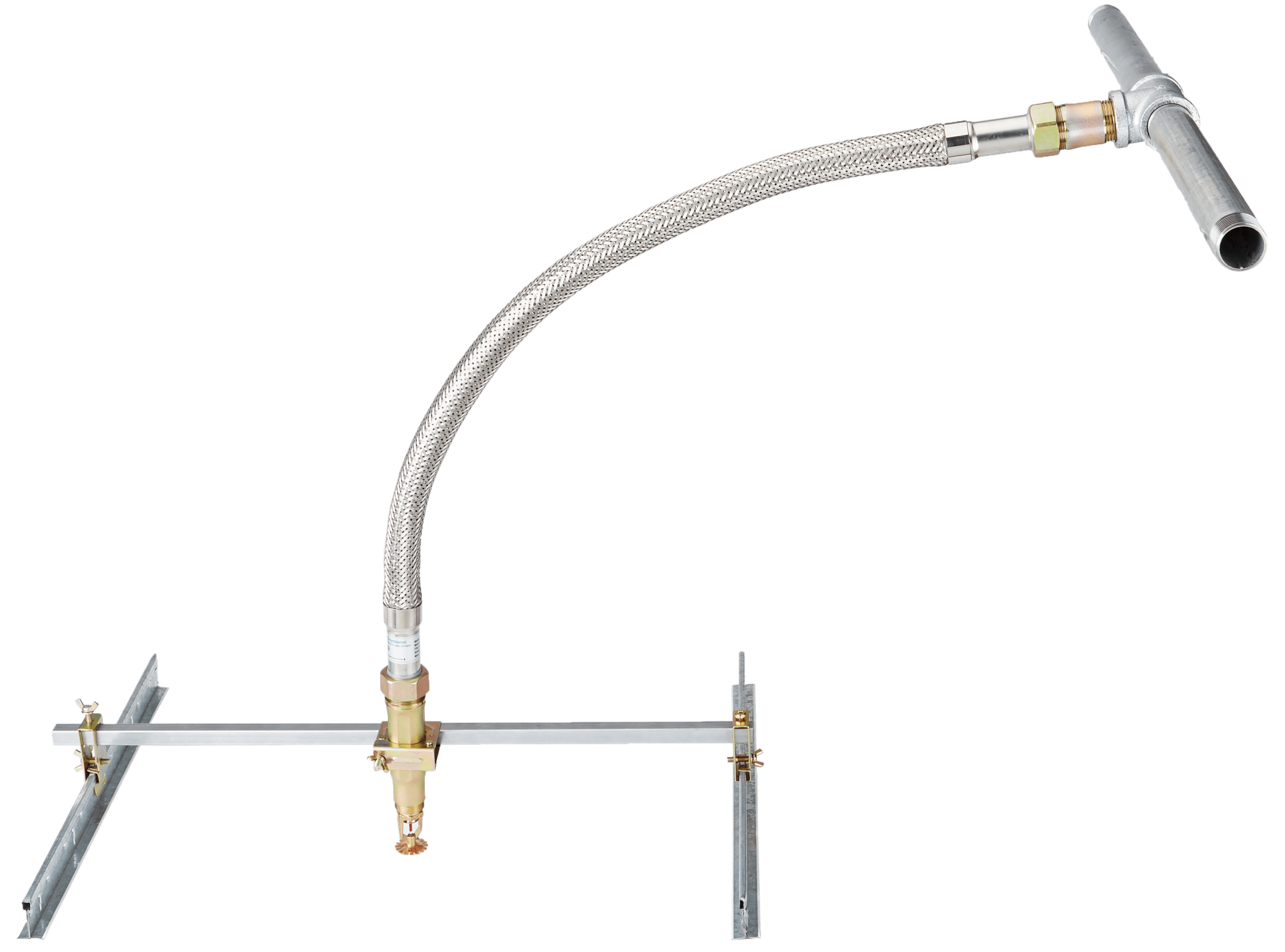

Daejin’s various specially designed and patented brackets will solve many problems when installing the Flexible joint to the suspended ceiling. Rigorous water leakage test is applied to all the joints in the factory lab.

• Braided
• Size from 700/1000/1200/1500/1800mm
• UL listed and FM approved
• Easy and problem- free installation
• Precise position adjustment

• CSA International certified
• Easy to install
• Flexible and easy to bend
• Excellent gas proof and no permeability
• 360 degree rotation nuts prevent hose kinks
• KGS AA535 Technical standards and quality control

Applications: Dryers, Boilers, BBQ Grills, Ranges / Ovens, Furnaces, Fireplaces, Space Heaters, Tankless Water Heaters, Rooftop Units, Manufactured Homes.

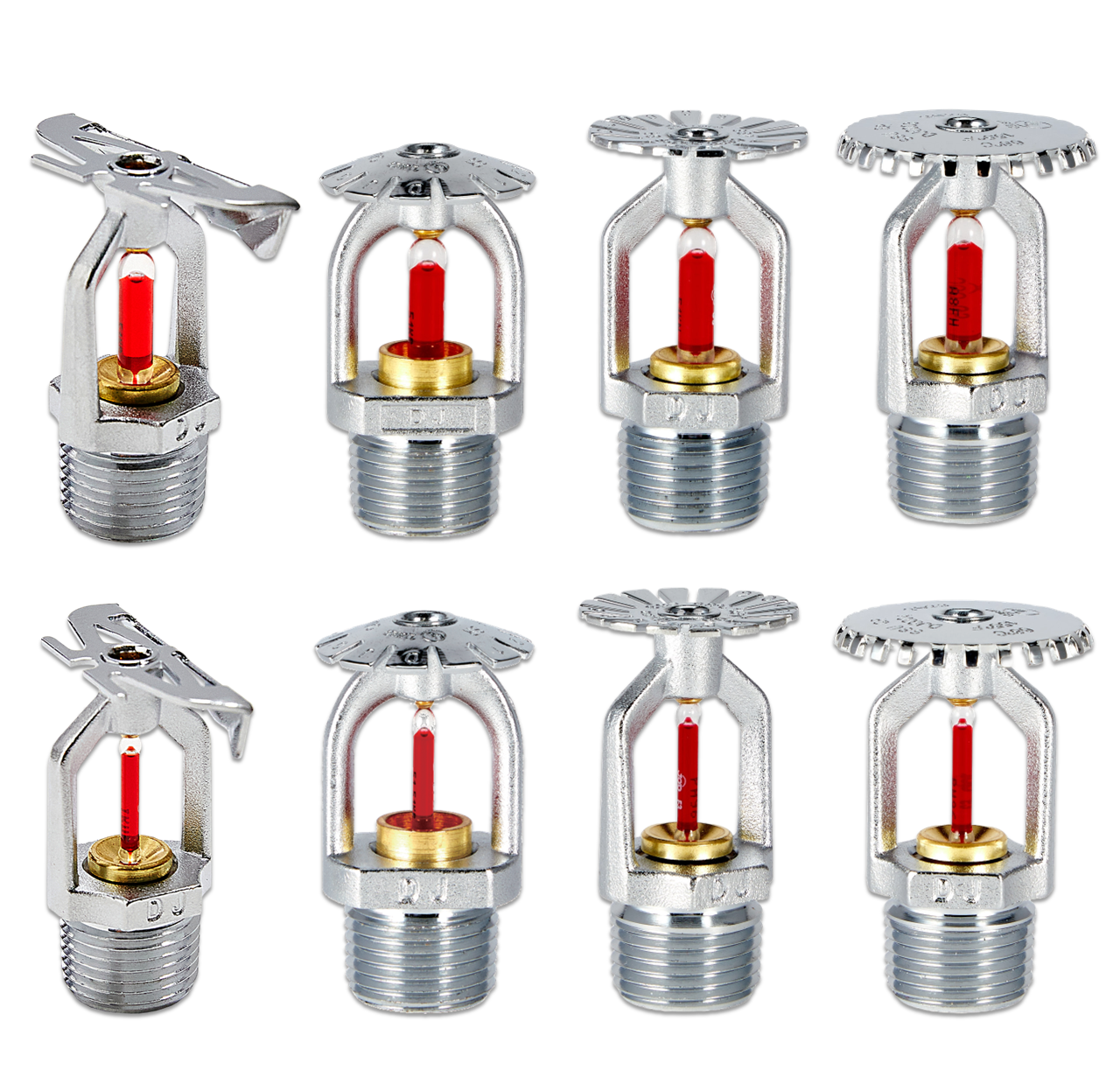

Pendent, Upright, Conventional and Sidewall sprinklers are designed for use in automatic sprinkler systems designed per the installation standard(NFPA13)

• Certification: UL Listed
• Style: Pendent, Upright, Sidewall, Conventional, and Recessed Pendent, Recessed Sidewall, Recessed Conventional
• K Factorgpm/(psi)½ （L³/min(bar)½ ): 5.6 (80)
• Nominal Thread Size: 1/2” NPT and 1/2” BSPT
• Max. Working Pressure: 175 PSI (12bar)
• Factory Testing Pressure: 500 PSI (35bar)
• Min. Operating Pressure: 7 PSI (0.5 bar)
• Finish: Brass or Chrome Plated or White Plated Available

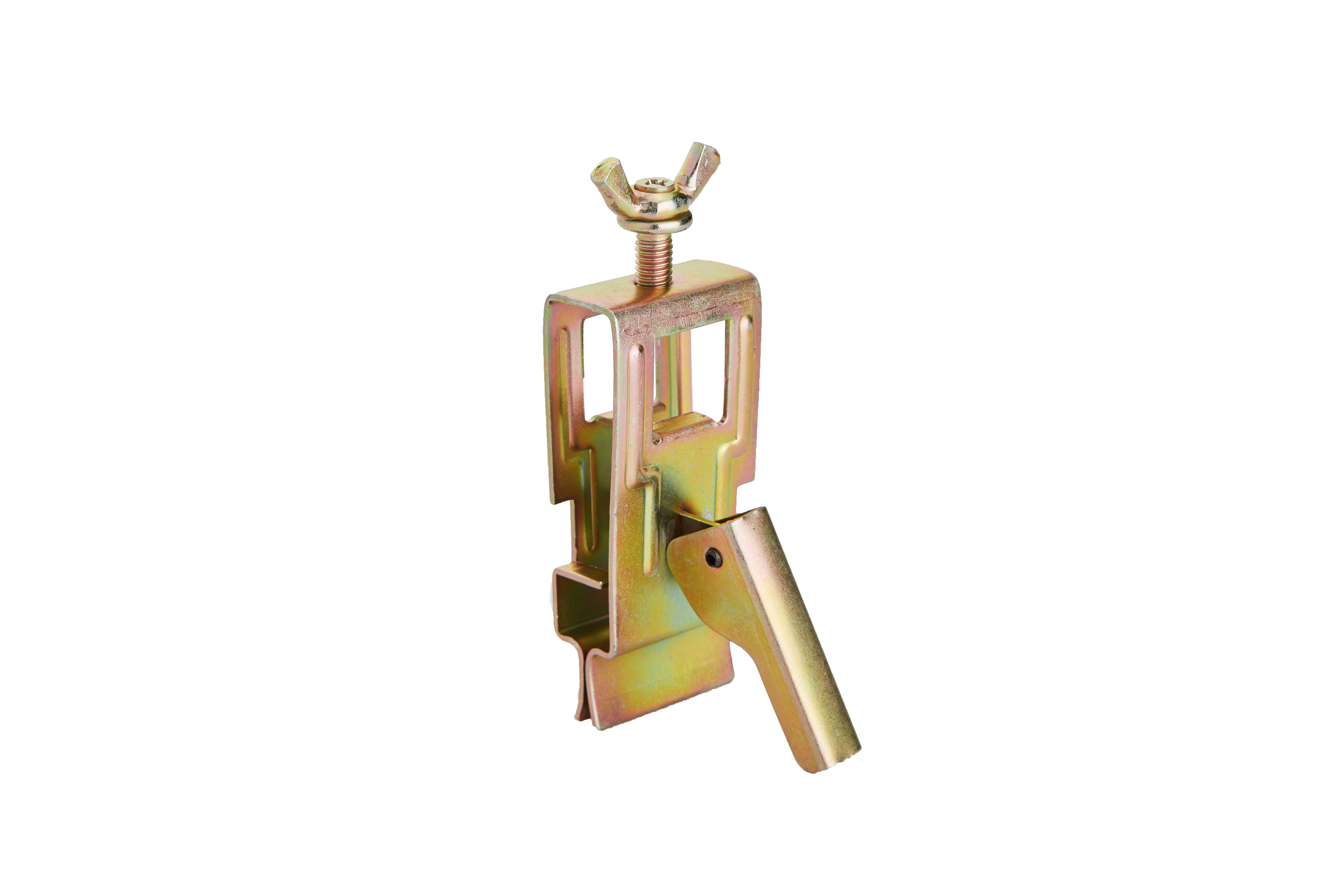

It is mainly used for export, and the domestic conditions are the same as the cap bracket Because no tools are used at all and the time required to tighten is more than twice as fast, construction cost is reduced due to shorter construction period.

• Quick time Fixed Bracket
• Patented Center Bracket
• Carbon Steel, Zinc-plated

It is mainly used for export, and it is used for T bar (I bar). The bolt for securing the bar is fixed with an iron butterfly, so there is no need to use a tool. It can be used in less than 120mm

• Short One Touch End Bracket
• Carbon Steel, Zinc-Plated
• Available Lenths; 68mm 105mm
