The K2 system includes now a latching unit for surface mounting. Optional with safety catch and/or emergency handle!

Surface mounted latching unit for out-swing doors. Options: a) surface mounted, no axle/shaft passes through the door or b) surface mounted, with actuating unit for inside options (e.g. emergency handle),

With/without outside safety catch.

Discover more: https://industrilas.com/en-us/products/handles/industrilas-klima-flex/klima-flex-2-surface-mounted-latching-unit

Practical, powerful lamp, very suitable for retrofitting. The lighting unit can be used with Industrilas square inspection windows in several sizes (PN 506002-XX).

It consists of a stable plastic housing with an adapted TPE seal. The circuit board is equipped with 6 white LEDs, which are operated with 2 AAA batteries via an integrated battery compartment. The high quality batteries are included.

The pressure switch lights up the LEDs for 30 seconds. This prevents the batteries from being drained unintentionally. Alternatively, an external power supply can be soldered onto the board. The power supply should be 5V 500mA. A cable passage is provided on the seal.

The lighting unit can be mounted in four positions on the viewing window. Longer screws are included in the scope of delivery for the different door thicknesses. They can be mounted with a TORX 20 tool.

Discover more: https://industrilas.com/en-us/products/new-products/hvac-light-for-inspection-window

Klima-flex 3 Handle is designed for extreme simplicity in mounting. Klima-flex 3 handles are used both for Klima-flex 3 Latching units (2-330) and Klima-flex 3 Latching Hinges (2-333), please see related products below. The enlarged base of the L-handle creates a rigid mounting on the latch unit and a robust feel when maneuvering the door.

The L-handles are available in three versions: tool operated, key locking and non-locking. Key locking with key only removable in locked position can be used when Machinery directive 2006/42/EC require it.

The round cover on top of the handle can be manufactured with your Logo upon request.

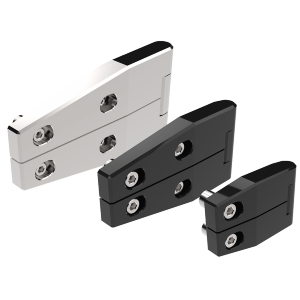

The family of compression latching hinges has expanded again: brand new version 2.0 with mounting plate and safety catch (optional).

180º Hinge-Latch, or latching hinge, that may be used as hinge or latch according to need. Allows you to open door as left- or right hinged door, or to remove door completely. Universal left- and right assembly. Provides 6 mm compression and has a built-in safety catch for safe opening of pressurized doors.

Thanks to smooth geometry it provides excellent ergonomic when maneuvering. Two-stage opening provi­des always a safety catch function to prevent a positive pressurized door to hit the operator when opening the unit. Clicks into distinct open and closed position for tactile feedback.

Pratical adjustability together with guidance between door and frame parts, makes it easier than ever to get the perfect sealed door. Available in non-locking, keyed and tool operated version. Also customizable with your logotype.

Latch hinge is available with mounting bracket for door part to achieve best possible stability. Without mounting bracket the door part is directly mounted on the door with three screws. The frame part and mounting bracket may be mounted with screws or blind rivets. Holes in door part is designed for screw mounting. Vertical adjustability together with guidance between door and frame parts, makes it easier than ever to get the perfect sealed door. Available in non-locking, keyed and tool operated version. Also customizable with your logotype.

Latch hinge is available with mounting bracket for door part to achieve best possible stability. Without mounting bracket the door part is directly mounted on the door with three screws. The frame part and mounting bracket may be mounted with screws or blind rivets. Holes in door part is designed for screw mounting.

Discover more: https://industrilas.com/en-us/products/hinges/latching-hinges/klima-flex-latch-hinge-gen2

This polyamide spacer nut is designed to be used with polyamide spacer (2-411-02) mounted at Industrilas 35 mm compression latches (see related products). The use of this spacer nut and spacer increase the thermal insulation at HVAC doors. Designed for doors with panel thickness 45-47 mm, depending on thickness of metal sheets.

Recommended tightening torque: 5,0 Nm.

https://industrilas.com/en-us/products/accessories/hvac-accessories/spacer-nut-pa6
