>B< Press Inox press fittings are available in stainless steel 1.4301 (AISI 304) and 1.4404 (AISI 316L).

>B< Press Inox 304 stainless steel press fittings with B-profile are the ideal solution for heating installations, oil-free compressed air and much more and have been specially developed for use in heating systems. They are not approved for drinking water.
Available in the dimensions 15-54 mm.

>B< Press Inox 316L press fittings made of high-quality stainless steel (AISI 316L) are the ideal solution for drinking water installations. Thanks to the positive properties of stainless steel and its excellent corrosion resistance, the series fulfils maximum hygiene requirements.
Available in the dimensions 15-54 mm and 76-108 mm.

Further information at www.conexbanninger.com

K65 brazed fittings are the answer to the rapidly increasing use of the environmentally friendly refrigerant CO2 (R 744). The use of CO2 can lead to very high operating pressures, which place special demands on the pipe system and material strength. The copper material K65 has a high mechanical strength and is therefore a safe and economical solution for high-pressure applications up to 130 bar operating pressure.

Available in the dimensions 3/8″ - 2 1/8″.

Further information at conexbanninger.com

<A> Press Inox press fittings with M-profile are available in stainless steel 1.4301 (AISI 304) and 1.4404 (AISI 316L).

<A> Press Inox 304 press fittings with M-profile are made of corrosion-resistant stainless steel 1.4301 and are available from 15 - 108 mm. The AISI 304 stainless steel system has been specially developed for heating installations and is not DVGW certified.

<A> Press Inox 316L press fittings with M-profile are made of high-quality corrosion-resistant stainless steel 1.4404 (AISI 316L) and are available from 15 - 54 mm. The system has been specially developed for drinking water installations and installations with high hygiene requirements.

Further information at www.conexbanninger.com

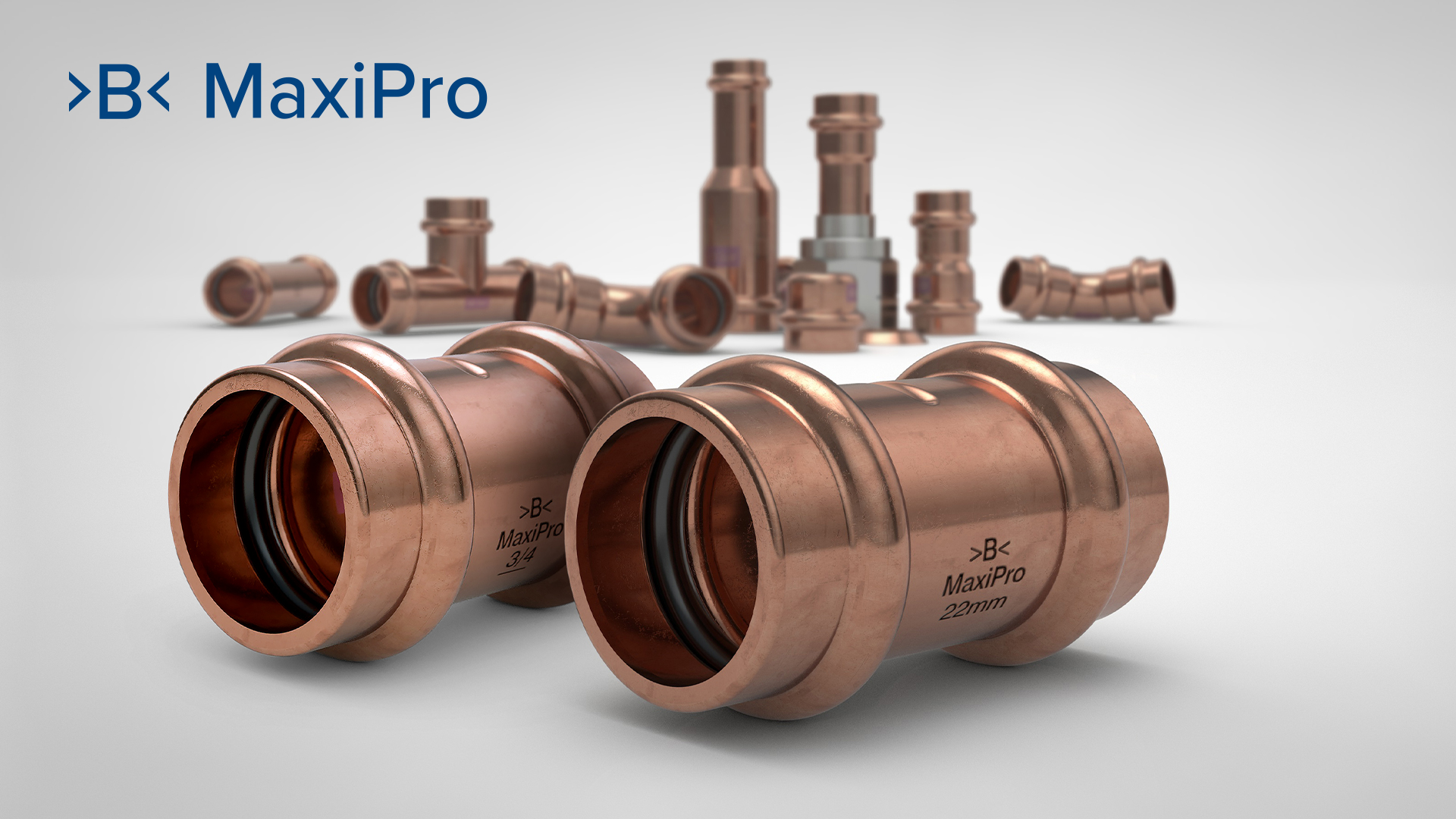

>B< MaxiPro is an innovative press fitting, which is quick and simple to use, providing a secure and permanent joint. Compared with traditional techniques it significantly improves productivity through greatly reduced installation time and enhanced working flexibility. >B< MaxiPro is revolutionising pipe jointing in air-conditioning and refrigeration applications.

Available in 6-28 mm and 1/4" - 1 5/8".

Further information at www.conexbanninger.com

>B< Press Inox press fittings are available in stainless steel 1.4301 (AISI 304) and 1.4404 (AISI 316L).

>B< Press Inox 304 stainless steel press fittings with B-profile are the ideal solution for heating installations, oil-free compressed air and much more and have been specially developed for use in heating systems. They are not approved for drinking water.
Available in the dimensions 15-54 mm.

>B< Press Inox 316L press fittings made of high-quality stainless steel (AISI 316L) are the ideal solution for drinking water installations. Thanks to the positive properties of stainless steel and its excellent corrosion resistance, the series fulfils maximum hygiene requirements.
Available in the dimensions 15-54 mm and 76-108 mm.

Further information at www.conexbanninger.com

K65 brazed fittings are the answer to the rapidly increasing use of the environmentally friendly refrigerant CO2 (R 744). The use of CO2 can lead to very high operating pressures, which place special demands on the pipe system and material strength. The copper material K65 has a high mechanical strength and is therefore a safe and economical solution for high-pressure applications up to 130 bar operating pressure.

Available in the dimensions 3/8″ - 2 1/8″.

Further information at conexbanninger.com

<A> Press Inox press fittings with M-profile are available in stainless steel 1.4301 (AISI 304) and 1.4404 (AISI 316L).

<A> Press Inox 304 press fittings with M-profile are made of corrosion-resistant stainless steel 1.4301 and are available from 15 - 108 mm. The AISI 304 stainless steel system has been specially developed for heating installations and is not DVGW certified.

<A> Press Inox 316L press fittings with M-profile are made of high-quality corrosion-resistant stainless steel 1.4404 (AISI 316L) and are available from 15 - 54 mm. The system has been specially developed for drinking water installations and installations with high hygiene requirements.

Further information at www.conexbanninger.com
