Compact blind sensor flow meter, which integrates in the same body sensor and converter.

Full stainless steel construction, available in three different sizes to cover pipes from DN80 to DN2000, digital and analogue outputs.

Minimum conductivity value 20µS/cm.

Power supply 18-30VDC. Max pressure line 16 bar.

The CS3900 is a compact eletromagnetic flowmeter suitable for flow control where flow might need to be controlled according to the temperature such as cooling systems on tooling machines, washing systems etc

Compact flow meter which integrates in a the same body the sensor and the converter
Sensor body in galvanized zinc steel PTFE coated with SS electrodes.
Available sizes DN10 – DN 15 and DN20
Threaded process connections
Configuration via PC
Pulse and Analogue outputs
Capability to measure the process temperature

ISOFLUX, model IFX-E3 is an ultrasonic energy and flow meter that can be used for the measurement of energy consumption for fluids, even other than water, in closed or open energy systems.

Measuring range from 0,6m3/h to 60m3/h, size from ¾” to DN100

Certified MI004 according to European standard EN1434 and can be used for the calculation of thermal or cooling energy

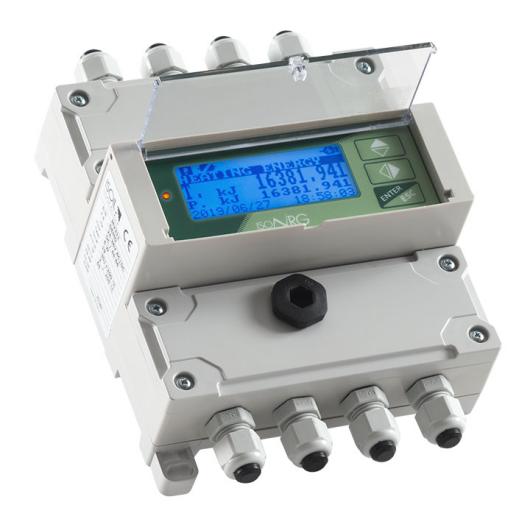

Designed for domestic and service sector applications and links the flexibility of the “ONE” function (Optimized & Nimble Elaboration) with the opportunity to have different protocols simultaneously.

Its precision features make it the perfect instrument for shopping malls, offices and light industries applications, in addition to the classic residential applications.

Equipped with an internal memory that allows the recording with hourly, daily and monthly frequency, the heat meter can have up to three protocols simultaneously (two radio and one wired) and can be completed with two input/output pulse contacts.

The first electronic control valve with integrated electromagnetic thermal energy meter, unique in the world! Working as ePICV or eDPCV, it allows regulation on flowrate, thermal power, Delta Teperature, Return Temperature, Supply Temperature, Delta Pressure and other quantities from an external source, such as e.g. Ambient or Process temperature, air flow, .. through an analog input.

Compact blind sensor flow meter, which integrates in the same body sensor and converter.

Full stainless steel construction, available in three different sizes to cover pipes from DN80 to DN2000, digital and analogue outputs.

Minimum conductivity value 20µS/cm.

Power supply 18-30VDC. Max pressure line 16 bar.

The CS3900 is a compact eletromagnetic flowmeter suitable for flow control where flow might need to be controlled according to the temperature such as cooling systems on tooling machines, washing systems etc

Compact flow meter which integrates in a the same body the sensor and the converter
Sensor body in galvanized zinc steel PTFE coated with SS electrodes.
Available sizes DN10 – DN 15 and DN20
Threaded process connections
Configuration via PC
Pulse and Analogue outputs
Capability to measure the process temperature

ISOFLUX, model IFX-E3 is an ultrasonic energy and flow meter that can be used for the measurement of energy consumption for fluids, even other than water, in closed or open energy systems.

Measuring range from 0,6m3/h to 60m3/h, size from ¾” to DN100

Certified MI004 according to European standard EN1434 and can be used for the calculation of thermal or cooling energy

Designed for domestic and service sector applications and links the flexibility of the “ONE” function (Optimized & Nimble Elaboration) with the opportunity to have different protocols simultaneously.

Its precision features make it the perfect instrument for shopping malls, offices and light industries applications, in addition to the classic residential applications.

Equipped with an internal memory that allows the recording with hourly, daily and monthly frequency, the heat meter can have up to three protocols simultaneously (two radio and one wired) and can be completed with two input/output pulse contacts.
