About us
Engineering, development and manufacturing of tanks and pressure vessels, since 1964
LAPESA GRUPO EMPRESARIAL, a family business founded in 1964 as a manufacturer of pressure vessels, has focused its main activity since its foundation on the manufacture and marketing of tanks and semi-trailer tankers for the storage and transportation of LPG, for the storage and transportation of LNG and other cryogenic storage gases, tanks for the storage of liquid fuels, and storage tanks for domestic hot water (DHW), as standard products. In its special manufacturing section, it builds pressure vessels for chemicals, refrigerant gases, hydrogen, ammonia or any type of fluid or gas for specific projects. Its three main factories and offices are located in the city of Zaragoza, occupying a total area of 95,000 m2, with 61,500 m2 covered. It operates mainly in the gas, oil, chemical, industrial and construction sectors, counting among its clients and distribution channels the main national and international companies and purchasing groups in these sectors.

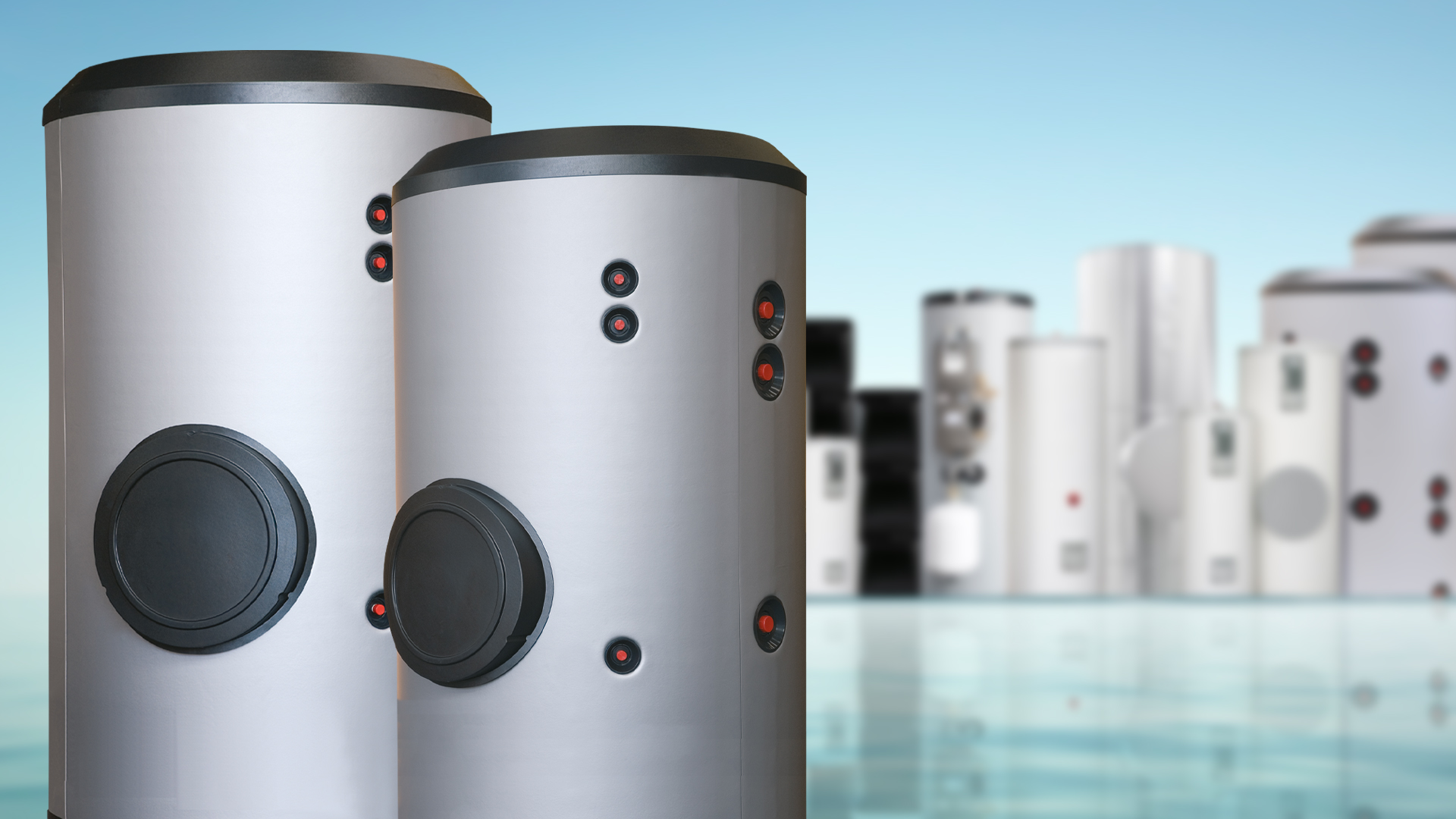

DHW tanks in STAINLESS STEEL
The STAINLESS STEEL with chromium-nickel-molybdenum AISI 316 L, highly resistant to pitting caused by halogen elements such as the chlorine present in drinking water, is the material used to manufacture all of the models in our “GEISER INOX” and “MASTER INOX“ series.
Hygienic material and "Food Grade" by definition, enables high working temperatures without the need for cathodic protection.
Easy to clean, it allows the use of very energetic washing and disinfection means without altering it (e.g. treatments anti-Legionella).
DHW tanks made of stainless steel do not accumulate residues from the sacrificial anodes consumption, as they do not require cathodic protection under normal working conditions. The quality level of a stainless steel tank depends mainly on the way and quality of execution of the manufacturing processes, the design of the storage cylinder and the quality of the stainless steel used. The success of the lapesa products is closely related to the combination of these three aspects.
PRODUCT WITH EXCEPTIONAL QUALITY: The best kept secret. The manufacturing process of our stainless steel cylinders is the key to their success as a product of proven quality, obtaining a product with high performance and a long service life.

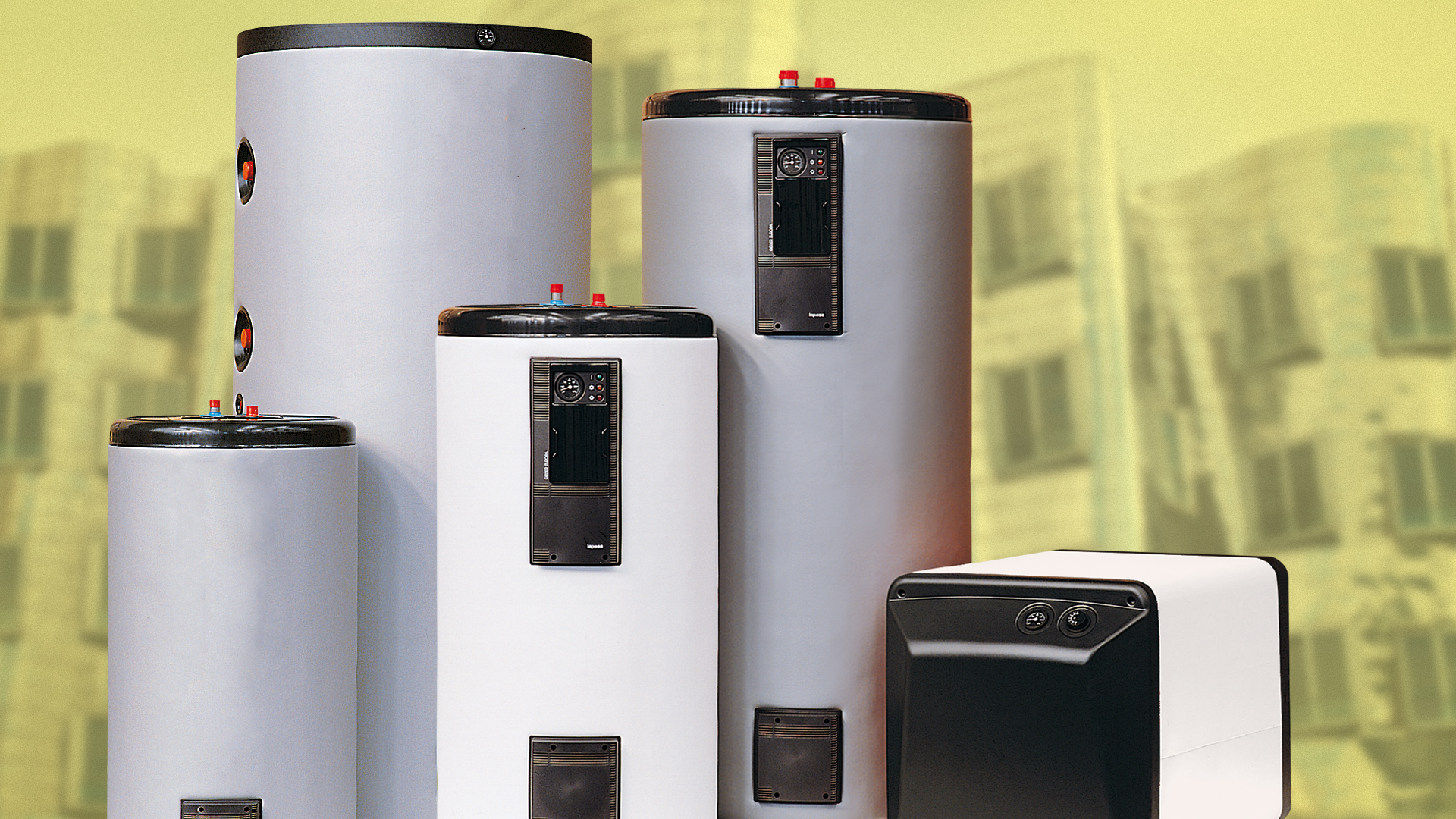

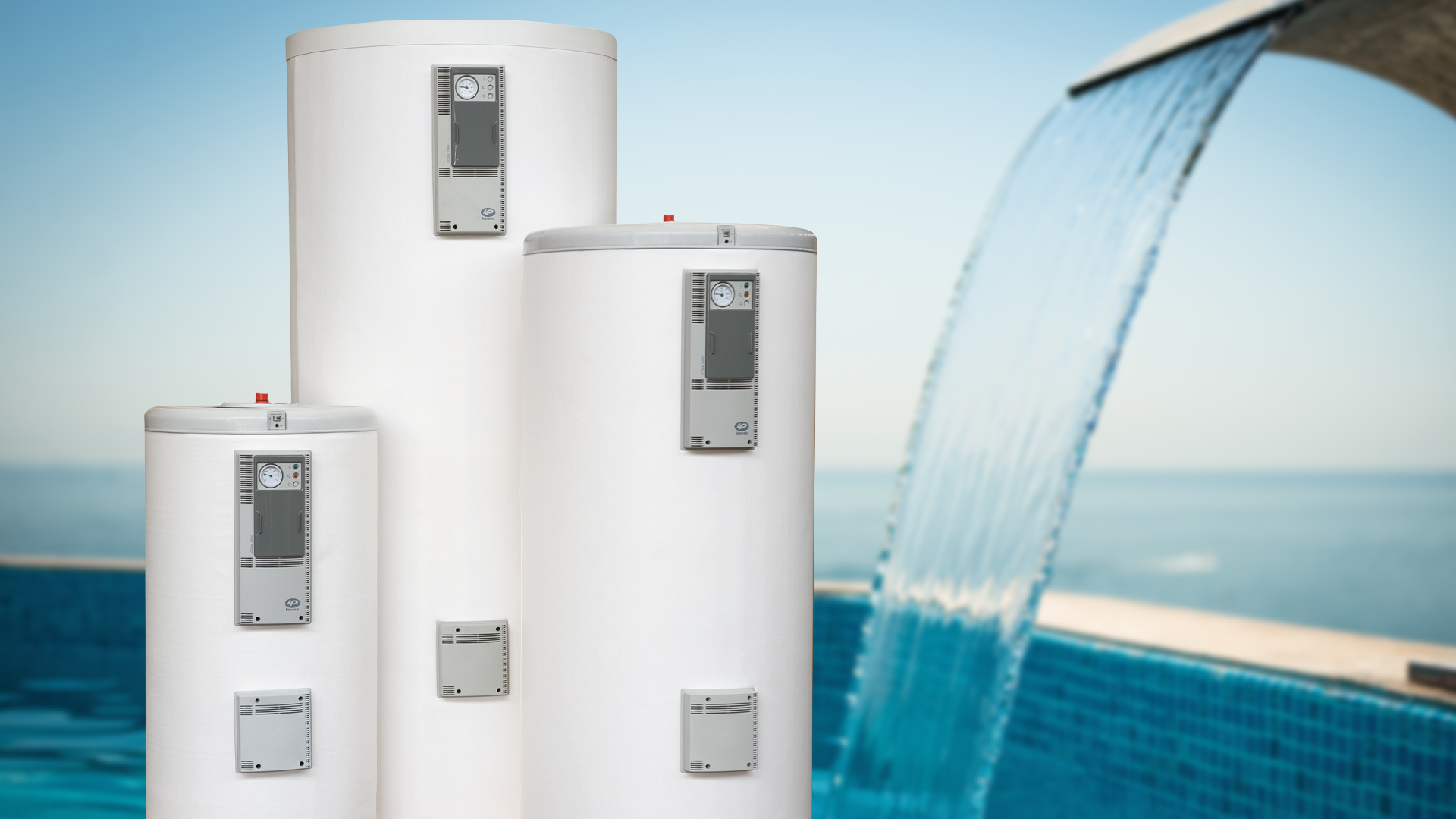

DHW tanks in ENAMELLED STEEL
VITREOUS enamelling process (steel surface protection treatment): VITREOUS enamelling for domestic hot water storage tanks is by far the most suitable lining of all those that exist on the
market for this type of product made of carbon steel that requires special protection of the metal surfaces in contact with water.
Vitreous enamelling is a food-quality, impermeable lining with a porcelain look that protects the metal surface of the storage tank in contact with water.
All internal linings in DHW cylinders must, by law, be "Food Grade" (EC Regulation 1935/2004). Our vitreous enamelling, in addition to food grade certification at the specified test temperature according to current regulations (22ºC), has food grade certification at 120ºC, which guarantees its maximum quality at extreme working temperatures.
Applying a sophisticated "surface treatment" to the steel surface together with an automated process for the application of the enamel, results in much more than just a good mechanical adherence of the lining. During the curing process a molecular interaction occurs between the steel surface and the applied enamel coat.
This maximum bonding of the enamel coat to the steel surface and the high degree of impermeability of the vitreous enamelling, guarantees the durability of the product and prevents the kind of deterioration that can occur with other types of coatings, such as the detachment or blistering of the protective coat.
It perfectly withstands the maximum DHW storage temperatures handled in this type of facilities (95 ºC), without deterioration or detachment, due to its capacity for molecular interaction with the steel surface. This treatment is carried out with the application of an enamel (inorganic chemical product) through a "dry" or "wet" process (depending on the type of tank and its internal geometry) and subsequent oven-curing at 850 ºC.

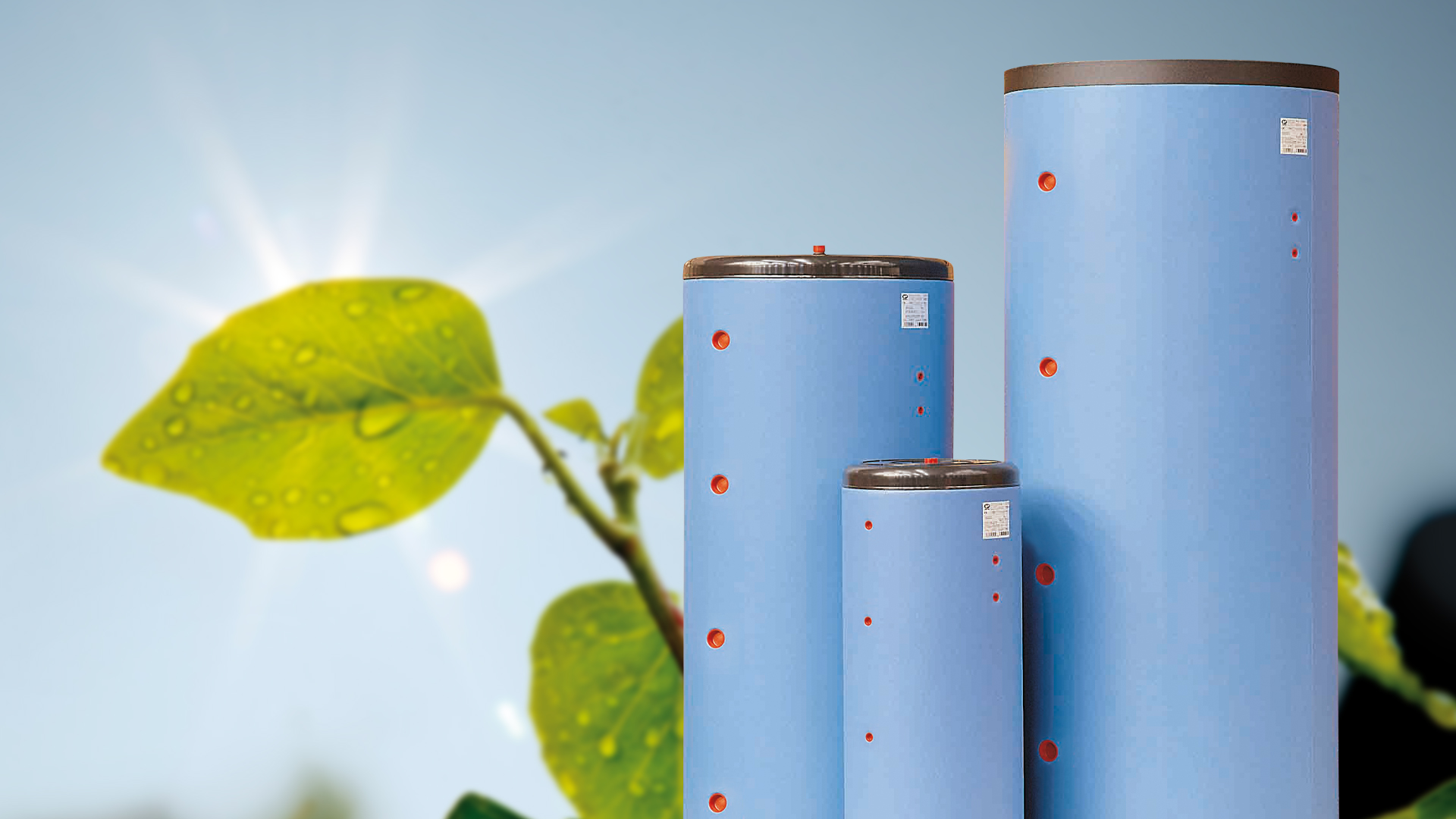

INERTIA storage tank
Inertia storage tanks for closed heating or cooling circuits, which act as an energy management system of the installation. Models with or without internal exchanger, and models with their own thermal stratification system, complete our range GEISER/MASTER INERTIA, from 30 to 6000 liters of storage capacity.
For installations where proper energy management is required, especially for systems that use renewable energy sources, such as BIOMASS, HEAT PUMP or SOLAR ENERGY. Designed for an extraordinary energy storage capacity, which translates directly into real savings. The extra-thick, rigid, mould-injected PU thermal insulation maintains the DHW storage temperature over long periods of time without requiring any additional energy input. This means less start-ups and adjustments of external energy sources, with less energy consumption and economic saving.
The GEISER INERTIA 800 and 1000 litre models are designed with a detachable insulation system on the two opposite sides of the tank to allow them to pass through 800 mm wide accesses.
Our “MASTER INERTIA” storage tanks are designed for easy handling and transport to the place of installation. They have an integrated system for handling and transporting by forklift truck, which facilitates handling operations enormously, as there is no need to palletize the product which, given its weight and size, would make handling difficult.
Models with an integrated THERMAL STRATIFICATION system, which allow an adequate energy management and its optimization for each specific use, at the lowest economic cost!
Our product groups
More about us
Vertrieb Deutschland: Losch Handelsvertretung Tel. +49 2586 88089-0, Fax +49 2586 88089-60 E-Mail: info@mlosch.de
Downloads
Documents
Keywords
- Warmwasserspeicher / DHW-Tanks
- Solarspeicher / Solar Tanks
- Pufferspeicher / Storage Tanks
- Wämepumpenspeicher / Tanks for Heat Pump
- Heizwasserpufferspeicher / Inertia Tanks
Our Products
LARGE CAPACITY VITRIFIED TANKS 'MASTER VITRO'
LARGE CAPACITY VITRIFIED TANKS 'MASTER VITRO'
MAXIMUM BONDING-MOLECULAR INTERACTION: Applying a sophisticated "surface treatment" to the metal surface together with an automated process for the application of the enamel, results in much more than just a good mechanical adherence of the lining. During the curing process a molecular interaction occurs between the steel surface and the enamel coat applied. This maximum bonding of the enamel coat to the steel surface and the high degree of impermeability
of the vitreous enamelling, guarantee the durability of the product and prevents the kind of deterioration that can occur with other types of coatings, such as the detachment or blistering of the protective coat.
LONG-LASTING PRODUCT: VITREOUS ENAMELLED STEEL storage tank according to DIN 4753/3: Food grade impermeable lining with a porcelain look that protects the metal surface of the storage tank in contact with water.
FOOD GRADE: Vitreous enamelling is a food-quality, impermeable lining with a porcelain look that protects the metal surface of the storage tank in contact with water. All internal linings in DHW tanks must, by law, be "food grade" (EC Regulation 1935/2004). Our vitreous enamelling, in addition to food grade certification at the test temperature specified in current regulations (22ºC), has food grade certification at 120ºC, which guarantees its maximum quality at extreme working temperatures.
MAXIMUM WORKING TEMPERATURE: It withstands the maximum DHW storage temperatures that these types of installation (95º) handle, without any deterioration or detachment thanks to its capacity of molecular interaction with the steel surface. This treatment is carried out by applying an enamel (inorganic chemical product) by either a "dry" or "wet" method (depending on the type of tank and its internal geometry), and then carrying out curing in an oven at 850ºC.
MAXIMUM STORAGE CAPACITY: Extra thick, rigid, PU mould-injected insulation that minimizes heat losses of stored DHW.
ELECTRIC HEATING: Ready for installation with Incoloy, low charge density electric immersion elements or with sheathed ceramic heating elements.
EASY TO HANDLE AND TRANSPORT: Our 'Master' storage tanks are designed for easy handling
and transport to the place of installation. They have an integrated system for handling and transporting by forklift truck, which facilitates handling operations enormously, as there is no need to palletize the product which, given its weight and size, would make handling difficult. The tanks are also equipped with lifting eyebolts on the top part so that if they have to be placed in a high area they can be lifted with an overhead hoist.
'MASTER VITRO' LARGE CAPACITY STORAGE TANKS With capacities from 1500 to 6000 litres these tanks are designed to provide an extraordinary storage capacity that translates directly into real savings.
Storage tanks ready for installation with plate heat exchanger and/or electric heating elements as the heating source.
FEATURES COMMON TO ALL 'MASTER VITRO' STORAGE MODELS:
• Vitreous enamelled steel DHW storage tanks according to DIN 4753/3
• Capacities: 1500, 2000, 2500, 3000, 3500, 4000, 5000 and 6000 litres
• Maximum working pressure of DHW storage tank: 8 bar (10 bar optional)
• Maximum working temperature of DHW storage tank: 95 ºC
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• Tanks for VERTICAL installation on floor. (HORIZONTAL position - optional)
'MASTER VITRO' LARGE CAPACITY TANKS WITH COIL
ANTI-LEGIONELLA DESIGN: The design of the complete range of 'MASTER VITRO' tanks adheres to all of the "Treatment and Prevention of Legionellosis" criteria specified in current UNE standards and EC Directives.The anti-legionella design applies to the storage tank unit and its internal DHW production system.
LARGE DHW PRODUCTION CAPACITY: A set of separate collectors and coils, made of STAINLESS STEEL, are fitted inside the storage tank, allowing the heat exchange surface to be dimensioned in accordance with the power required (up to 10 m2 in the 6000 litre model), adapted to traditional energy sources or to the use of renewable energies. This exclusive lapesa DHW production system for large capacity tanks, saves on installation space and allows total or partial maintenance of the unit, guaranteeing the continuous service of the installation.
FEATURES COMMON TO ALL 'MASTER VITRO' MODELS WITH COILS:
• Vitreous enamelled steel DHW storage tanks according to DIN 4753/3
• Capacities: 1500, 2000, 2500, 3000, 3500, 4000, 5000 and 6000 litres
• Maximum working pressure of DHW storage tank: 8 bar (10 bar optional)
• Maximum working temperature of DHW storage tank: 90 ºC
• Maximum pressure of set of coils: 25 bar
• Maximum temperature of set of coils: 110 ºC (up to 200 ºC with special high temperature seals)
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• Tanks for VERTICAL installation on floor (option of HORIZONTAL position)
STAINLESS STEEL TANKS 'GEISER INOX'
STAINLESS STEEL TANKS 'GEISER INOX'
LONG-LASTING PRODUCT: Nickel-chromium-molybdenum STAINLESS STEEL DHW storage tank, highly resistant to pitting caused by halogen elements such as chlorine in drinking water.
This is the material used to manufacture all of the models in our “GEISER INOX” series.
MAXIMUM STORAGE CAPACITY: Extra thick, rigid, PU mouldinjected insulation that minimizes heat losses of stored DHW.
'GEISER INOX' DOUBLE WALL TANKS
SELF-CLEANING EFFECT: Corrugated design of the DHW storage tank, in constant vertical movement depending on the fluctuations in the internal pressure, which helps to detach any
limescale from the walls.
ANTI LEGIONELLA DESIGN: Totally uniform DHW storage temperature, with no cold zones inside the storage tank. The surround heating of DHW produces a uniform water storage temperature
throughout the whole of the tank, which in turn allows it to be used to its full capacity.
MAINTENANCE-FREE: DHW tank without any internal heat exchange elements. It does not require cathodic protection in normal drinking water conditions. The models with electric heating
have the heating element in the primary circuit so there is no risk of corrosion or lime scale.
LARGE DHW PRODUCTION CAPACITY: The heat exchange area
is that of the total surface area of the DHW storage tank.
FEATURES COMMON TO ALL "DOUBLE-WALL GEISER INOX" MODELS:
• DHW storage tanks in AISI 316 L stainless steel
• DHW capacities: 60, 100, 150, 200, 300 and 500 litres
• Maximum working pressure of DHW storage tank: 8 bar (10 bar optional)
• Maximum working temperature of DHW storage tank: 90 ºC
• Maximum working pressure of surrounding tank (primary circuit): 3 bar
• Maximum working temperature of surrounding tank (primary circuit): 110 ºC
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• VERTICAL or HORIZONTAL installation. Up to 150 litres, ready for WALL MOUNTING
(except TS models)
'GEISER INOX' STORAGE TANKS
EASY TO MAINTAIN: With access to tank interior through side and top holes, for inspection and cleaning. Models RB, with a ND400 manhole on the side of the tank.
EASY TO INSTALL: Their dimensions facilitate access to enclosed spaces (even the models with capacities greater than 800 litres), with a detachable system for the insulation on the two
opposite sides of the tank, allowing access through 800 mm wide entrances.
ELECTRIC HEATING: Ready for installation with Incoloy, low charge density electric immersion elements or with ceramic heating elements.
FEATURES COMMON TO ALL "GEISER INOX STORAGE" MODELS:
• DHW storage tanks in AISI 316 L stainless steel
• Capacities: 200, 300, 500, 800 and 1000 litres
• Maximum working pressure of DHW storage tank: 8 bar (10 bar optional)
• Maximum working temperature of DHW storage tank: 90 ºC
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• Tanks for VERTICAL installation on floor.
'GEISER INOX' SINGLE WALL TANKS WITH COIL
ANTI-LEGIONELLA DESIGN: The shape of the heat exchange coil is ideal for heating the lowest zone of the storage tank, preventing cold zones and thus the proliferation of bacteria such as Legionella.
EASY TO MAINTAIN: With access to tank interior through side and top holes, for inspection and cleaning. In models with capacities of more than 800 litres there is a ND400 manhole on the side of the tank.
EASY TO INSTALL: Their dimensions facilitate access to enclosed spaces (even models with capacities greater than 800 litres), with a detachable system for insulation on the two opposite sides of the tank, allowing access through 800 mm wide entrances.
ELECTRIC HEATING: Ready for installation with Incoloy, low charge density electric immersion elements or with ceramic heating elements.
FEATURES COMMON TO ALL "GEISER INOX COIL" MODELS:
• DHW storage tanks in AISI 316 L stainless steel
• Capacities: 200, 300, 500, 800 and 1000 litres
• Maximum working pressure of DHW storage tank: 8 bar (10 bar optional)
• Maximum working pressure of coil/s: 25 bar
• Maximum working temperature of DHW storage tank: 90 ºC
• Maximum working temperature of coil/s: 200 ºC
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• Tanks for VERTICAL installation on floor (except TSM models, only HORIZONTAL).
VITRIFIED TANKS 'CORAL VITRO'
MAXIMUM BONDING-MOLECULAR INTERACTION: Applying a sophisticated "surface treatment" to the metal surface together with an automated process for the application of the enamel, results in much more than just a good mechanical adherence of the lining. During the curing process a molecular interaction occurs between the steel surface and the enamel coat applied. This maximum bonding of the enamel coat to the steel surface and the high degree of impermeability
of the vitreous enamelling, guarantee the durability of the product and prevents the kind of deterioration that can occur with other types of coatings, such as the detachment or blistering of the protective coat.
LONG-LASTING PRODUCT: VITREOUS ENAMELLED STEEL storage tank according to DIN 4753/3: Food grade impermeable lining with a porcelain look that protects the metal surface of the storage tank in contact with water.
FOOD GRADE: Vitreous enamelling is a food-quality, impermeable lining with a porcelain look that protects the metal surface of the storage tank in contact with water. All internal linings in DHW tanks must, by law, be "food grade" (EC Regulation 1935/2004). Our vitreous enamelling, in addition to food grade certification at the test temperature specified in current regulations (22ºC), has food grade certification at 120ºC, which guarantees its maximum quality at extreme working temperatures.
MAXIMUM WORKING TEMPERATURE: It withstands the maximum DHW storage temperatures that these types of installation (95º) handle, without any deterioration or detachment thanks to its capacity of molecular interaction with the steel surface. This treatment is carried out by applying an enamel (inorganic chemical product) by either a "dry" or "wet" method (depending on the type of tank and its internal geometry), and then carrying out curing in an oven at 850ºC.
EASY TO MAINTAIN: With access to tank interior through side and top holes, for inspection and cleaning. Models RB have a ND400 manhole on the side of the tank.
EASY TO INSTALL: Their dimensions facilitate access to enclosed spaces, even the models with capacities of 800 and 1000 litres, with a removable system for the insulation on the two opposite sides of the tank, allowing them access through 800 mm wide entrances.
CATHODIC PROTECTION: All of the CORAL VITRO models include cathodic protection which consists of magnesium anodes and an anode charge meter for control and maintenance purposes.
As an option these tanks can be fitted with "lapesa correx-up" permanent cathodic protection.
ELECTRIC HEATING: Ready to be fitted with Incoloy, low charge density electric immersion elements or with ceramic heating elements.
MAXIMUM STORAGE CAPACITY: Extra thick, rigid, PU mould-injected insulation that minimizes heat losses of stored DHW.
FEATURES COMMON TO ALL 'CORAL VITRO' STORAGE TANKS: • VITREOUS ENAMELLED STEEL DHW storage tanks according to DIN 4753 T3
• Capacities: 200, 300, 500, 800,1000 and 1500 litres
• Maximum working pressure of DHW storage tank: 8 bar (10 bar optional)
• Maximum working temperature of DHW storage tank: 90 ºC
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• External lining: RAL 9016 white padded PVC external lining with zip fastener,
RAL 7035 grey cover
• Cathodic protection: Magnesium anodes with anode charge meter on cover
• Tanks for VERTICAL installation on floor.
FEATURES COMMON TO ALL 'CORAL VITRO' COIL MODELS:
• VITREOUS ENAMELLED STEEL DHW storage tank according to DIN 4753 T3
• Capacities: 200, 300, 500, 800, 1000 and 1500 litres
• Maximum working pressure of DHW storage tank: 8 bar (10 bar optional)
• Maximum working pressure of coil/s: 25 bar
• Maximum working temperature of DHW storage tank: 90 ºC
• Maximum working temperature of coil/s: 200 ºC
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• External lining: RAL 9016 white padded PVC external lining with zip fastener,
RAL 7035 grey cover
• Cathodic protection: Magnesium anodes with anode charge meter on cover
• Tanks for VERTICAL installation on floor.
ANTI-LEGIONELLA DESIGN: High-efficiency coils designed to heat from the lowest zone in the storage tank preventing cold storage zones inside the tank and thus the possibility of the proliferation of bacteria such as Legionella.
LARGE CAPACITY STAINLESS STEEL TANKS 'MASTER INOX'
LARGE CAPACITY STAINLESS STEEL TANKS 'MASTER INOX'
LONG-LASTING PRODUCT: Nickel-chromiummolybdenum STAINLESS STEEL DHW storage
tank, highly resistant to pitting caused by halogen elements such as chlorine in drinking water. This is
the material used to manufacture all of the models in our 'MASTER INOX' series.
MAXIMUM STORAGE CAPACITY: Extra thick, rigid PU insulation that minimizes heat losses of stored DHW.
ELECTRIC HEATING: Ready to be fitted with Incoloy, low charge density electric immersion elements or with sheathed ceramic heating elements.
EASY TO MAINTAIN: With access to tank interior through ND400 side manhole, for inspection and
cleaning.
EASY TO HANDLE AND TRANSPORT: Our 'MASTER' storage tanks are designed for easy handling and transport to the place of installation. They have an integrated system for handling and
transporting by forklift truck, which facilitates handling operations enormously as there is no need to palletize the product which, given its weight and size, would make handling difficult. The tanks are also equipped with lifting eyebolts on the top part so that if they have to be placed in a high area they can be lifted with an overhead hoist.
'MASTER INOX' LARGE CAPACITY STORAGE TANKS With capacities from 1500 to 6000 litres these tanks are designed to provide an extraordinary storage capacity that translates directly into real savings.
Storage tanks ready for installation with plate heat exchanger and/or electric heating elements as the heating source.
FEATURES COMMON TO ALL "MASTER INOX" STORAGE MODELS:
• DHW storage tanks in AISI 316 L stainless steel
• Capacities: 1500, 2000, 2500, 3000, 3500, 4000, 5000 and 6000 litres
• Maximum working pressure of DHW storage tank: 8 bar (optional: 10 and 12 bar)
• Maximum working temperature of DHW storage tank: 90 ºC
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• Tanks for VERTICAL installation on floor. (OPTIONAL, HORIZONTAL position)
'MASTER INOX' LARGE CAPACITY TANKS WITH COIL
ANTI-LEGIONELLA DESIGN: The design of the complete range of 'MASTER INOX' tanks adheres
to all of the "Treatment and Prevention of Legionellosis" criteria specified in current UNE standards
and EC Directives and, in particular, in the R.D.865/2003 and the RITE (Regulations on Thermal
Installations in Buildings). The anti-legionella design applies to the storage: tank unit and its internal DHW production system.
LARGE DHW PRODUCTION CAPACITY: A set of separate collectors and coils, made of STAINLESS STEEL, are mounted inside the storage tank, allowing the heat exchange surface to be dimensioned in accordance with the power required (up to 10 m2 in the 5000 litre model), adapted to traditional energy sources or to the use of renewable energies. This exclusive lapesa DHW production system for large capacity tanks saves on installation space and allows total or partial maintenance of the unit, guaranteeing the continuous service of the installation.
FEATURES COMMON TO ALL 'MASTER INOX' COIL MODELS:
• DHW storage tanks in AISI 316 L stainless steel
• Capacities: 1500, 2000, 2500, 3000, 3500, 4000, 5000 and 6000 litres
• Maximum working pressure of DHW storage tank: 8 bar (optional: 10 and 12 bar)
• Maximum working temperature of DHW storage tank: 90 ºC
• Maximum pressure of set of coils: 25 bar
• Maximum temperature of set of coils: 110 ºC (up to 200 ºC with special high temperature seals)
• Thermal insulation: Rigid, mould-injected PU (CFC/HCFC-free, 0.025 W/mºK)
• Tanks for VERTICAL installation on floor. (OPTIONAL, HORIZONTAL position)
INERTIA TANKS FOR CLOSED CIRCUITS
The GEISER INERTIA and MASTER INERTIA series of buffer tanks are designed for use exclusively in closed heating or cooling circuits. These storage tanks in carbon steel include all of the hydraulic connections required for energy storage or heat inertia installations and, especially
for the application of RENEWABLE ENERGIES where energy storage is a key factor in the efficient operation of the system.
APPLICATIONS
GEISER INERTIA 30 to 1,500 litres (individual or battery installation):
• Installations with solar energy
• Installations with biomass boilers
• Installations with heat pumps
• Combined energy storage installations
• Cooling installations
MASTER INERTIA 1,500 to 6,000 litres (individual or battery installation):
• Energy storage and distribution facilities
• Centralized thermal solar energy systems
• Centralized systems with heat pump
• Centralized systems with biomass boiler
• Centralized instant DHW production systems
• Centralized combined energy storage systems
• Cooling installations
