SpeedControl 1145 is an inverter for control of 3-phased motors up to 3KW (Compressor use max 3x16A) by 1-phase. It is maintenance free and all parts are integrated within the inverter so no extra capacitors nor induction coils are necessary.

SpeedControl E 1145 also comes with integrated APFC (Active Power Factor Correction), ensuring that current consumed on the grid is sinus curved so that Norms and EN-demands are met.

The SpeedControl E 1145 can be supplied with or without a sturbon metal housing and with verrtical or horizontal cooling fins or on cold plate.

SpeedControl 1145 is designed especially for the growing market of energy saving ventilators, heat pumps and air handling units. SpeedControl 1145 is also a sensorless inverter meaning that no sensors are to be mounted in the motor.

Supply Voltage 200 - 253VAC
Frequency 50 - 60Hz
Max. load (Ampere) 16A
Ambient temperature -25 - 60°C
Communication Interface MODBUS

SpeedControl 1145 uses the newest technology within sensorless controlling of motors. However, the inverter must be adjusted to fit the specific motor profile in order to obtain the optimum performance and energy savings.

Current List of Compressor Motor Profiles Already Programmed in the SpeedControl 1145

• Copeland
  • YHV046
• GMCC
  • DA131S1B-31FZ
  • DSM180D19UDZ
  • DTN210D32UFZ
  • EDTN210D32EEZ
• Hitachy Highly
  • ASD102RKQA6JT6B
  • PSD162RKQAJ6T6
  • WHP03600PRKQA7JT6
  • WHP03700PRKQA6JT6
  • WHP04000ARKQA6JT6
  • WHP04200ARKQA6JT6
  • WHP04200VRKQA7JT6
  • BSA804SD-A3BUA
  • ATH356SDP-C9FQ
  • ASD084CKMA7JK
  • ASD102SF-A7JT
  • ASG133CDNB7AT
  • ASC104SD-A8JT
  • ASG151CDNB7BT
  • WHP05600VUKQA7JT6B
  • WHP08750VCDNC9AU
  • WHP05500PUKPA6NT6
  • WHP05500PUKPA8LT6
  • WHP07600PSDPC9KQ
  • WHP10200PSDPC9EQ
  • WHP11500VSDPC9EQ
  • WHP13300PSDPC9EQ
  • WHP15600ASDPC9EQ
  • WHP03420BSKNB7AT
  • WHP07850VUKQA8JT6T
  • WHP32900VSKTQ9JK
  • WHP15600VSKPC9EQ
  • BSA586SDMY3FJ
• Mitsubishi
  • CBB130FAC
  • RMT5113MDE2
  • RMT5111RCE3X
• Panasonic
  • 5RS102XRSQ094B1
  • 5KD184XAA21
  • 5RD132XDA21
  • 5RS092XCD21
  • 5KD240XAD21
  • 5VD330ZAA21
  • 5VD420ZAA21
  • 9RD138ZFB21
  • 9RD198ZAA21
  • 9RD220ZAA21
  • 1SD110ZAA41-A1
  • 1TD058XAA41
• Toshiba
  • DA330A2F-20MD
  • DA422A3F-27M

New compressor motors are continuously added. And if you do not see your chosen compressor motor on the list, never hesitate to contact us to have your chosen compressor motor file added to the programming software.

PressureBox is much more than just a versatile pressure sensor equipped with 1 or 2 pressure sensors and available in various pressure areas.

If you want to measure flow instead of pressure, you simply enter the K-factor into the PressureBox.

And by setting an internal setpoint he PressureBox can be used as a simple VAV/CAV controller.

You may use the PressureBox to just read out the measured pressure. It can be read through the 0-10V output signal or via ModBus protocol.

However, if you use the ModBus protocol, the PressureBox can be used as compilation point for 2 temperature sensors (NTC or PT1000) and digital inputs such as filter guard etc. All readable through Modbus.

Furthermore, PressureBox is available both with and without display.

We have displays and operating panels for both built-in and wall mounting. All for ModBus communication.

The traditional way of having displays is horizontal. For these configurations we offer both 4” and 7” high resolution graphical displays with either resistive or capacitive touch.
Resistive touch is highly recommended for environments where operation is carried out with tools or gloves on. Furthermore, the foil over the display ensures a seal of IP54 or more can be obtained.

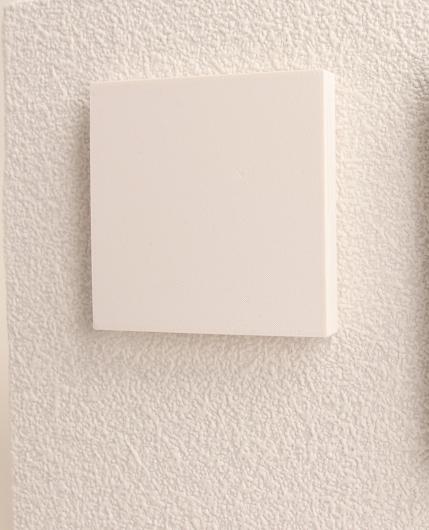

A more modern way to look at a display is having a vertical display with the feel and orientation of your mobile phone. The vertical display makes it possible to have the same design as if it was an app on a mobile. And with our 4.3” vertical display you will experience a fast graphical display with an incredible performance. The graphical interfaced used gives an endless number of possibilities to the design the graphic exactly to your wishes.
Furthermore this display is very flat, only 10mm deep and can be mounted in a standard European wall box or built-in your product.

If these displays are a little too big for your configuration, we also have a small 2.8” flat graphical display. This display comes with a glass panel and in principle it has the same possibilities as the larger 4.3” vertical display. However, the smaller size must be considered when designing the user interface.

Sometimes a graphical display / operating panel is a too advanced or expensive user interface for a product. For those products / configurations we have developed an operating panel in the same slim design as the 4.3” and 2.8” display, only 10mm thick. The oprating panel can be mounted in a standard European wall box, built-in the product or mounted on the wall with a wall bracket. The user interface can consist of up to 6 touch “buttons” and LCD indicators.

For technical details on our displays and operating panel please refer to our webpage.

The TopBox is a ModBus Controller especially designed for fans in groups and grids.

It is very suitable for retrofit of ventilation, where efficiency is improved by installing modern ventilators.

TopBox is equipped with 2 separate ModBus outlets. One can be used for controlling e.g. a group of air supply fans and the other one for controlling a group of air extraction fans.

Technically TopBox receives a signal from an existing controller, either ModBus signal or 0-10V signals, which converts to ModBus controlling of ventilators / fans in groups. Also, a feature of regulation by signal from a pressure transducer is available. This control by pressure can be combined with calendar and outdoor temperature compensation.

Monitoring the operation can be done in LS Config app, by connecting a display to the TopBox or by choosing TopBox with built-in display. Also, it can be done in the BMS / CTS if such is part of the installation.

TopBox can be connected to the internet using LAN connection and thereby get access to LS SmartConnect Center.

Setup is easily done using the Bluetooth connection to access our LS Config app which is included in the product.

With LS Config App you get a service tool for technicians and a user app for the end-user at the same time.

The LS Config App consist of a base platform which is easily adapted to the requirements of most product configurations including colors, style, menu options and values. It is a data base driven app, meaning that updates including logo, colors and functionalities are updated right in the app without the user having to reinstall the app.

Let us worry about Apple and Google requirements and updates and share the cost for keeping the app in compliance and get new functionalities automatic.

How Does It Work?
To use the app to control o setup a product, the product needs to be connected to the app. The connection is very simple, just scan the QR-code on the product. The app then collect all functions for that particular product and present it as designed in the app. The product can be controlled and current status be read in the user-friendly app, as long as you are within Bluetooth range.

What Are the Options Within the App?
Which options the end-user have to control the product is completely up to you as manufacturer of the product. And the possibilities are many. E.g. adjusting set points, set calendar for different operation on different days and times, enable holiday function, update firmware etc. etc.

However, you may choose that some options should only be allowed to be performed by a service technician, Those options can be hidden behind a pasword protection, or maybe need login - it is all up to you.
