For efficient and effective cooling, heating and ventilation.

CHARACTERISTICS

• specially developed for high cooling and heating outputs
• very high level of comfort
• does not contain fan
• silent operation
• ideal for installation in a ceiling
• optimisation of air flow by adjustable slats
• minimum maintenance requirements
• low operating cost
• minimum maintenance requirements
• allows for non-standard design according to the customer’s request

Chilled beams are modern devices based on a water to air system, which makes it possible to efficiently change the temperature of the air and to distribute it silently with minimal energy requirements. A chilled beam does not contain a fan. It functions by way of entraining the primary air through nozzles, driven by the induced injection effect drawing the secondary air to the room. The secondary air is cooled or heated depending on which function is used. Optimal mixing of the primary and the secondary air occurs in the Chilled beam.

Special ceiling convector with a fan for heating and cooling

CHARACTERISTICS

• high forced convection output
• rapid room heating
• low electricity consumption
• safe 12V DC voltage
• designed also for cooling

The most powerful MINIB convector with double-circuit separate system for heating and cooling, with fresh air supply option.

CHARACTERISTICS

• stainless steel body
• high heating and cooling performance of forced convection
• heats even when the fan is off
• rapid heating/cooling of the room
• safe voltage 24 V EC
• electronically commutated (EC) fan motor
• wide options of setting the microprocessor control unit
• suitable for a heat pump
• double-circuit connection - the heating and cooling circuit can be used separately
• AIR version - connection to HVAC

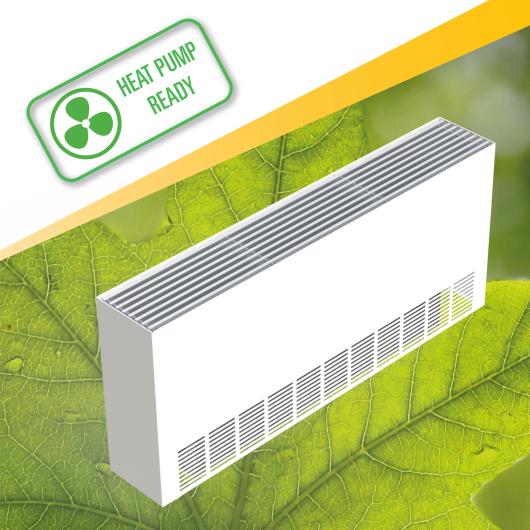

HC series convectors are designed for the highest heating and cooling outputs. Thanks to efficient heat transfer even at low heating medium temperatures, they are a great choice for use with a heat pump.

Quiet operation

HC serie convectors have a low noise level. At low and medium speeds they do not exceed normal background noise. The smooth operation of the fan is ensured by a microprocessor control unit.

Compatibility with control systems

The control unit also offers a wide range of settings that allow optimal convector control using different types of thermostats, systems for building management (BMS) or Smart Home systems. By default, you can set the type of regulation, the control values of the regulation voltage, the range and speed of the fan, the type of electrothermic heads and the limit temperature of the heating medium.

Ecological and economic solution

Due to the low volume of water in the exchanger and the high heat transfer efficiency is the HC line suitable for environmentally friendly and energy efficient heating. Low water volume minimizes losses in distribution and reduces the reaction times of the system.

A wide range of accessories

For your comfort, the HC series convectors can be ordered with the complete accessories needed for easy installation and a reliable function. You can find an overview of accessories on the MINIB website - www.minib.cz

HT line brings a revolutionary combination of maximum performance and minimal dimensions. Thanks to its design grille, the trench heater is almost invisible while providing an exceptionally high heating output.

What makes the HT line so unique? It's the combination of compact size, with a height of just 9 cm and widths of 18 cm or 22 cm, and extremely high performance - up to 1737 W/m (with a temperature gradient of 75/65°C). It's the ideal choice when you need maximum thermal comfort without sacrificing space in your interior. Even with these excellent parameters, the HT trench heater doesn't exceed the typical background noise level. During regular operation, the acoustic pressure of a 3-meter long trench heater is only 27dB, and for a one-meter unit, it's an incredible 22.6dB!

Why did we decide to create this line? We listened to the needs of our customers, who demanded heating trench heaters with maximum performance, minimal dimensions, and the best additional parameters such as noise and EC motor power consumption!

Can they be used with renewable energy sources? Thanks to their efficient heat transfer at low temperatures, HT trench heaters are an excellent choice when used with heat pumps, geothermal, or solar energy sources.

What are the other advantages of HT trench heaters?

• Stainless steel construction
• Electronically commutated (EC) fan optimized for high performance and low vibrations
• Safe 24 V DC voltage
• Built-in microprocessor control unit allowing for a wide range of settings - controllable via Building Management Systems (BMS) or Smart Home systems
• Environmentally friendly and cost-effective solution due to low water volume in the heat exchanger and high heat transfer efficiency
