Domestic hot water up to 90°C

The QAHV heat pump is Mitsubishi Electric’s specially developed solution for domestic hot water supply in residential buildings, as well as commercial and industrial applications with high degrees of domestic hot water demands. It uses the natural refrigerant R744 (CO2) with a GWP of 1. The system achieves excellent annual efficiency and can operate at outdoor temperatures as low as -25°C. In domestic hot water production, the QAHV heat pump delivers water temperatures as high as 90°C.

Highlights

• Rated heating capacity of 40 kW
• Cascade capacity up to 640 kW
• R744 refrigerant
• Water temperatures up to 90°C
• Full heating capacity at outdoor temperatures as low as -3°C
• Can operate at outdoor temperatures as low as -25°C

Up to 1,200 kW in cascade

Also now available for the first time with R290 refrigerant (propane) is the latest version of the MEHP-iS-G09 series. This reversible heat pump is perfect for greater heating capacity needs. Over the course of development, the capacity range was expanded to cover three different modules with nine rated heating capacities ranging from 50 to 150 kW. This allows for a cascade of up to eight units to achieve total capacities of up to 1,200 kW. At its lower outdoor temperature operating limit of -20°C, it still delivers flow temperatures of up to 60°C.

Highlights

• Rated heating capacities from 50 to 150 kW
• Cascade capacity up to 1,200 kW
• R290 refrigerant
• Flow temperature up to 75°C at outdoor temperatures of 10°C
• Can operate in heating mode at outdoor temperatures as low as -20°C

Professional facility management

MELCloud Commercial is the new, cloud-based solution from Mitsubishi Electric for heat pumps, air conditioning and ventilation systems in commercial applications. The MELCloud Commercial Dashboard gives you all the operating data from every single system across Europe. This lets you react quickly and, most importantly, centrally optimise energy consumption.

MELCloud Commercial was designed to be the ideal solution for property management firms, hotels, retailers, office buildings or other large facilities. Multiple sites can be managed easily and intuitively via the app or desktop software. The software also includes a series of tools for boosting efficiency and operational reliability. With its modular design and own network, it is easy to set up and offers all kinds of benefits.

Highlights

• Full overview of energy consumption
• Remote servicing saves time and personnel
• Smart, all-round package
• Easy to connect as many systems as you want, even as a retrofit
• Easy to use

High performance in modernisation projects

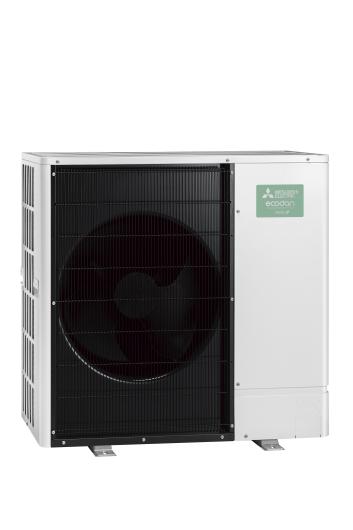

Natural refrigerant meets high flow temperatures. The Ecodan air-to-water heat pumps in the PUZ-WZ series use the future-proof refrigerant R290 (propane) in the latest monoblock version. With flow temperatures of up to 75°C at outdoor temperatures as low as -15°C, they deliver reliable heating even on the coldest of winter days. The range of available heating capacities has now been expanded with new models offering 10 and 12 kW. And the series is set to grow further in the future. This will allow them to be installed flexibly in modernisation projects for single, double or multiple-occupancy properties.

Highlights

• Rated heating capacities: 5, 6, 8, 10 and 12 kW
• R290 refrigerant
• Flow temperature up to 75°C at outdoor temperatures of -15°C
• Flow temperature up to 65°C at outdoor temperatures of -25°C
• Can be used at outdoor temperatures as low as -25°C
• Reversible operation possible
