Our OEM Motoric Valve Drive 6 is precision you can rely on, because the intelligent control via NFC technology with the corresponding free app opens up many new possibilities for you. Simply place the end device on the OEM Motoric Drive 6 and off you go with easy operation and optimal customisation to your needs – whether before delivery or on the construction site.

Our motoric valve actuator is also the perfect solution for small valves that require a long stroke, high force and a thermally independent mechanism. Proven features such as the valve adapter system, the plug-in cable and the IP54 protection class for 360° assembly have been adopted from the previous model and further optimised.

With the new OEM Motoric Valve Drive 6, Möhlenhoff offers maximum control precision and versatility. Thanks to the selectable force and adjustable running time, the actuator can be flexibly adapted to individual requirements. Manual adjustment also makes it easy to intervene directly on site. In addition to high functional reliability and a long service life, our new motoric actuator also offers outstandingly smooth running.

Advantages and features

• Easy operation using the free NFC app "Motor Drive" for iOS and Android devices
• Fast initialisation thanks to new sensors
• The "3-point" valve stroke recognition prevents idle times and enables a faster response to control requirements
• Compatible with all common valves on the market thanks to the new locking dimension
• Low power consumption from only 1.0 W to 2.0 VA depending on the variant

The OEM Alpha thermostat direct 55 Matrix is Möhlenhoff´s new all-rounder in a fresh design. The wired room thermostat can be used for both hydronic underfloor heating and electrical panel heating systems up to 16 A and complements the product range of the Alpha direct: System.

The OEM Alpha thermostat direct 55 Matrix is installed in standard flush-mounted boxes and fits into all common switch ranges with a 55 mm frame. Thanks to WiFi connectivity, the room thermostat can be integrated into the user's WLAN and operated via the OEM Alpha Smart App in just a few steps.

• For hydronic underfloor heating and electrical panel heating systems up to 16 A
• High-quality matrix display and touch function
• Ideal for use in new buildings
• Up to 10 NO/NC actuators can be connected
• Heating and cooling function

Complementing the wired OEM Alpha direct: System Möhlenhoff offers with the Alpha Smart System a secure and stable radio solution. Consisting of base stations, room-control devices, an IoT gateway and a dedicated app, the OEM Alpha Smart System can be used as a standalone solution without an internet connection or expanded to a cloud solution.

Advantages of the OEM Alpha Smartware base station standard

• Standard base station for heating
• Automatic load balancing specially designed for heat pumps
• Installation and commissioning possible without an internet connection
• Full range of functions can also be used offline without the cloud

Advantages of the OEM Alpha Smart App

• Customer-specific adaptations of the app possible
• Location management, including handover of location to other users
• Technician mode available
• Automatic firmware updates

Advantages of the OEM Alpha Smartware base station premium

The premium base station combines all the functions of the standard base station with an additional heating and cooling function for added comfort.

Premium features:

• Premium base station for heating and cooling
• Outputs: Pump, boiler and dehumidifier control as well as CO pilot
• Input for dew point monitor and CO at the base station
• Room-by-room heating or cooling blockage
• External sensor inputs in the room-control device with additional functions:
  • Minimum and maximum floor temperature monitoring
  • Room sensor
  • Dew point monitor

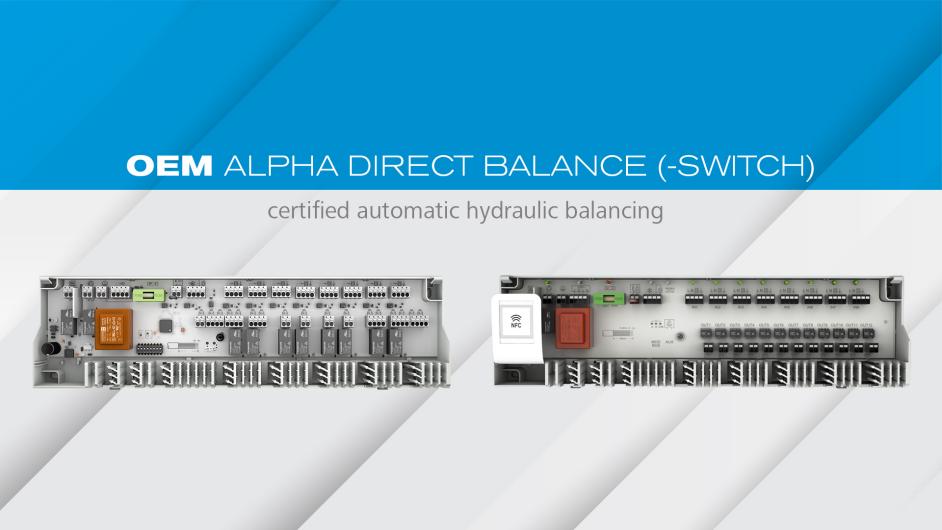

The Modbus variant of the OEM Alpha direct Balance Switch base station enables seamless integration into a higher-level building management system. Thanks to the Modbus interface, all settings can be conveniently managed and monitored centrally - for maximum efficiency and transparency. Furthermore, the proven characteristics of the OEM Alpha direct Balance Switch base station are retained in the Modbus variant. These include, for example, features such as the free naming and precise assignment of heating zones and TÜV-certified hydraulic balancing from the heating manifold.

With the OEM Alpha direct Balance switch Modbus base station, Möhlenhoff offers a smart, future-oriented solution that is specifically designed to meet the latest legal requirements for non-residential buildings according to the GEG. This system combines the latest technology with the highest level of user-friendliness and ensures that you not only fulfil legal requirements, but also benefit in the long term from optimally coordinated heating control.

• German Building Energy Act (GEG) 2024 §71a compliant
• Monitoring and surveillance of the status display of all inputs and outputs
• Controlling the cooling functions (CO/block cooling)
• Variable assignment of heating zones and actuators
• TÜV-certified automatic hydraulic balancing from the heating manifold
