ODE Yalitim San. ve Tic. A.S.

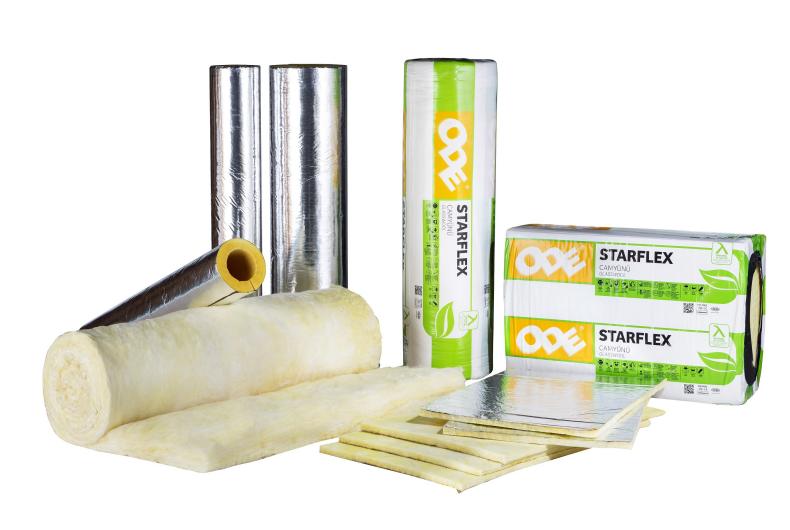

ODE STARFLEX

ODE STARFLEX

ODE Yalitim San. ve Tic. A.S.

Description

High performance, long-lasting, environmentally friendly glasswool product manufactured in blanket, prefabricated pipe and board form and used for heat and sound insulation and for fire safety.

It is used for thermal insulation, sound insulation, acoustic design, and for the purposes of fire safety.
Its classification as a "Class A1 Non-Combustible" (TS EN 13501-1) material is a very significant advantage for fire safety.
It does not degrade, decompose, become mouldy in time.
Thanks to its natural content, it does not degrade and is user friendly.
It is EUCEB certified as not harmful to human health;
With its EPD Document, it furnishes additional scores for buildings wishing to obtain LEED, BREEAM, DGNB, etc. certification.

The ODE STARFLEX Blanket Group is manufactured in the thermal conductivity range of λ = 0.032-0.044 W/(m.K).

AREAS OF USE

All types of wooden free standing roofs and metal roofs,
Attic floors,
Sandwich roof systems,
Solar energy systems,
Animal shelters,
Prefabricated structures,
HVAC systems.

The ODE STARFLEX Board Group is manufactured in the thermal conductivity range of λ = 0.031-0.037 W/(m.K).

AREAS OF USE

As thermal and sound insulation between two wall elements,
In double walled sandwich wall panels,
For acoustic applications,
For thermal and sound insulation of all types of screens and partitions, and of elevators, stair enclosures, and skylights,
For internal insulation of wooden buildings,
For attics, below roof rafters, and under sloping concrete sections,
For thermal insulation of external walls,
Between floors, under floating screed, on slab girders, and under travelling elements for thermal and sound insulation,
In flat and sloping terraced roofs, under floating screeds and plating, and in HVAC systems for impact sound insulation and sound insulation.

ODE Starflex Pipe Group manufactured of glasswool with high unit weight, without jacketing or with aluminum foil jacketing for the purpose of thermal-sound insulation and fire safety of pipes used for heating and cooling.

AREAS OF USE

Industrial pipes
Central heating installations
Solar energy installations
All types of mechanical and industrial installations for thermal as well as vibration and noise installation of pressurized water pipes




High performance, long-lasting, environmentally friendly glasswool product manufactured in blanket, prefabricated pipe and board form and used for heat and sound insulation and for fire safety.

It is used for thermal insulation, sound insulation, acoustic design, and for the purposes of fire safety.
Its classification as a "Class A1 Non-Combustible" (TS EN 13501-1) material is a very significant advantage for fire safety.
It does not degrade, decompose, become mouldy in time.
Thanks to its natural content, it does not degrade and is user friendly.
It is EUCEB certified as not harmful to human health;
Ø With its EPD Document, it furnishes additional scores for buildings wishing to obtain LEED, BREEAM, DGNB, etc. certification.

The ODE STARFLEX Blanket Group is manufactured in the thermal conductivity range of λ = 0.032-0.044 W/(m.K).

AREAS OF USE

All types of wooden free standing roofs and metal roofs,
Attic floors
Sandwich roof systems
Solar energy systems
Animal shelters
Prefabricated structures
HVAC systems

The ODE STARFLEX Board Group is manufactured in the thermal conductivity range of λ = 0.031-0.037 W/(m.K).

AREAS OF USE

As thermal and sound insulation between two wall elements,
In double walled sandwich wall panels,
For acoustic applications,
For thermal and sound insulation of all types of screens and partitions, and of elevators, stair enclosures, and skylights,
For internal insulation of wooden buildings,
For attics, below roof rafters, and under sloping concrete sections,
For thermal insulation of external walls,
Between floors, under floating screed, on slab girders, and under travelling elements for thermal and sound insulation,
In flat and sloping terraced roofs, under floating screeds and plating, and in HVAC systems for impact sound insulation and sound insulation.

ODE Starflex Pipe Group manufactured of glasswool with high unit weight, without jacketing or with aluminum foil jacketing for the purpose of thermal-sound insulation and fire safety of pipes used for heating and cooling.

AREAS OF USE

Industrial pipes
Central heating installations
Solar energy installations
All types of mechanical and industrial installations for thermal as well as vibration and noise installation of pressurized water pipes

More products by ODE Yalitim San. ve Tic. A.S.

ODE STARFLEX

High performance, long-lasting, environmentally friendly glasswool product manufactured in blanket, prefabricated pipe and board form and used for heat and sound insulation and for fire safety.

It is used for thermal insulation, sound insulation, acoustic design, and for the purposes of fire safety.
Its classification as a "Class A1 Non-Combustible" (TS EN 13501-1) material is a very significant advantage for fire safety.
It does not degrade, decompose, become mouldy in time.
Thanks to its natural content, it does not degrade and is user friendly.
It is EUCEB certified as not harmful to human health;
Ø With its EPD Document, it furnishes additional scores for buildings wishing to obtain LEED, BREEAM, DGNB, etc. certification.

The ODE STARFLEX Blanket Group is manufactured in the thermal conductivity range of λ = 0.032-0.044 W/(m.K).

AREAS OF USE

All types of wooden free standing roofs and metal roofs,
Attic floors
Sandwich roof systems
Solar energy systems
Animal shelters
Prefabricated structures
HVAC systems

The ODE STARFLEX Board Group is manufactured in the thermal conductivity range of λ = 0.031-0.037 W/(m.K).

AREAS OF USE

As thermal and sound insulation between two wall elements,
In double walled sandwich wall panels,
For acoustic applications,
For thermal and sound insulation of all types of screens and partitions, and of elevators, stair enclosures, and skylights,
For internal insulation of wooden buildings,
For attics, below roof rafters, and under sloping concrete sections,
For thermal insulation of external walls,
Between floors, under floating screed, on slab girders, and under travelling elements for thermal and sound insulation,
In flat and sloping terraced roofs, under floating screeds and plating, and in HVAC systems for impact sound insulation and sound insulation.

ODE Starflex Pipe Group manufactured of glasswool with high unit weight, without jacketing or with aluminum foil jacketing for the purpose of thermal-sound insulation and fire safety of pipes used for heating and cooling.

AREAS OF USE

Industrial pipes
Central heating installations
Solar energy installations
All types of mechanical and industrial installations for thermal as well as vibration and noise installation of pressurized water pipes




TECHNICAL SPECIFICATIONS

NAME OF PRODUCT

ODE STARFLEX


Property

Unit

ODE STARFLEX BLANKET GROUP


Type

_

STARFLEX 044

STARFLEX 042

STARFLEX 040

STARFLEX 037

STARFLEX 035

STARFLEX 032


Thickness

mm

100

40-105

25-140

25-180

25-180

25-180


Fire Response

Euro Class

A1


Thermal Conductivity (λ) (10°C)

W/(m.K)

0.044

0.042

0.040

0.037

0.035

0.032


Thermal Resistance (R)

(m2K)/W

2.25

0.95-2.5

0.60-3.5

0.65-4.85

0.70-5.10

0.75-5.60


Water Vapor Permeability (μ)

_

1.1


Maximum Service Temperature

°C

250


NAME OF PRODUCT

ODE STARFLEX


Property

Unit

ODE STARFLEX BOARD GROUP


Type


_

STARFLEX 037

STARFLEX 035

STARFLEX 032

STARFLEX 031


Thickness

mm

25-180

25-180

25-180

20-100


Fire Response

Euro Class

A1


Thermal Conductivity (λ) (10°C)

W/ (m.K)

0.037

0.035

0.032

0.031


Thermal Resistance (R)

(m.2K)/W

0.65-4.85

0.7-5.10

0.75-5.60

0.65-3.20


Water Vapor Permeability (μ)

_

1.1


Maximum Service Temperature

°C

250

NAME OF PRODUCT

ODE STARFLEX

STARFLEX Prefabricated Pipe


Thickness (mm)

Diameter (mm)

Density (kg/m³)

Thermal Conductivity (λ) (W/mK)

Thermal Resistance R (m²K/W)

Jacketing

Fire Class TS EN 13501-1

25-100

21-324

60-100

0.035

0.70-2.85

Non-Jacketed

A1

AFH

AFK

C˪-s1, do

ODE ROCKFLEX

ODE Rockflex is a rock wool insulation material containing 97% natural fibers, obtained from basalt mineral molten into fibrous form at high temperatures. ODE ROCKFLEX is the ideal insulation material for buildings for its capacity of sound as well as thermal insulation, and for its non-flammable properties; and for installations and industrial applications for its high temperature resistance, fire resistant varieties, and its wide product range including various densities.

AREAS OF USE


BLANKET:

Used for thermal and sound insulation and fireproofing of tanks, boilers, exchangers, and ovens at industrial applications such as
thermal power plants
cement, sugar and iron-steel factories,
and shipyards.


BOARD:

PARTITION BOARD

Non-flammable, long-lasting panels made of rock wool, containing water repellent admixtures, used for thermal and sound insulation of building interiors.

Used as internal insulation between and below rafters, on suspended ceilings, attic floors, wooden floors, elevator shafts,
partition walls and inside insulation of exterior walls.

AIR CONDITIONER BOARD

Rockwool panel covered on one side with aluminum foil.

Used in air conditioning and ventilation ducts.

INDUSTRIAL BOARD

Boards used for thermal, sound, and fire insulation in temperatures up to 760°C in industrial areas.

Used in steel constructions,
process equipment,
industrial facilities, and
ready panel applications.

FLOATING FLOOR BOARD

Non-flammable, uncoated and long-lasting rockwool panels used in thermal, sound and fire insulation of

buildings.

Used between floors,
for flooring of open passages,
and building floors.

TERRACE ROOF BOARD

Non-flammable, long-lasting, stable panels made of rock wool containing water repellent admixtures, used for thermal and sound insulation of conventional roofs.

Used for water insulation of metal and wooden roofs, and under waterproofing membranes.

CLADDING BOARD

High density, non-flammable rockwool panels containing water repellent admixture and used in the cladding of exterior building façades.

Used under plastering on exterior façades for thermal, sound, and fire insulation, and
For thermal, sound, and fire insulation of curtain walls.


PREFABRICATED PIPE

Used for thermal and fire insulation for high temperature industrial and installation pipes, and for sound and vibration insulation for process equipment.




ODE R-FLEX

It is a thermal insulation material manufactured from elastomeric rubber foam material in the form of board and pipe.

It is the insulation material of choice for air conditioning and cooling systems for its thermal insulation performance and high water vapor resistance. It is manufactured in various thicknesses and widths.

ODE R-FLEX is manufactured in two groups, PRM (Premium) and STD (Standart), and with various types of jacketing.

PROPERTIES:

  • Elastomeric rubber foam used for insulating chilled water and cooling system installations.
  • It offers ideal solutions for heating, cooling installations and for ventilation systems.
  • It offers maximum savings with its low thermal conductivity.
  • It does not transmit water vapor thanks to its high µ (water vapor diffusion resistance factor) value.

It is not affected by mold and microorganisms




ODE R-FLEX PRM BOARD


Name of Product

Thermal Conductivity λ

W/m.K

μ

Water Vapor Diffusion Resistance Factor

Fire Response Class

(TS EN 13501-1)

R-FLEX PRM Board

0,032 (-200 C)

7000

B-s3-d0

0,034 (00 C)

0,036 (+200 C)


ODE R-FLEX STD BOARD


Name of Product

Thermal Conductivity λ

W/m.K

μ

Water Vapor Diffusion Resistance Factor

Fire Response Class

(TS EN 13501-1)

R-FLEX STD Board

0,032 (-200 C)

5000

B-s3-d0

0,034 (00 C)

0,036 (+200 C)

ODE R-FLEX PRM PIPE

Name of Product

λ

µ

Fire Response Classification

(Thermal Conductivity)

(Water Vapor Diffusion Resistance Factor)

(EN 13501-1)

W/ (m.K)


R-FLEX PRM Pipe

0.030 (0 °C)

7000

BL-s2,d0

0.032 (50 °C)

0.034 (75 °C)


ODE R-FLEX STD PIPE

Name of Product

λ

µ

Fire Response Classification

(Thermal Conductivity)

(Water Vapor Diffusion Resistance Factor)

(EN 13501-1)

W/ (m.K)


R-FLEX STD Pipe

0.030 (0 °C)

5000

BL-s2,d0

0.032 (50 °C)

0.034 (75 °C)
