Electrostatic filter for wood burning stoves up to 50 kW – OekoTube

The electrostatic filter OekoTube-Outside substantially reduces the particulate matter (PM) from small wood-fired stoves including open fireplaces, free standing wood stoves, pellet stoves and coal stoves.

Electrostatic filter for wood burning stoves OekoTube

The electrostatic precipitator (ESP) OekoTube-Outside is designed and suitable for all wood fires with a capacity below 50 kW and is mounted on top of the chimney or it can be inserted next to the wood stove with the ESP OekoTube-Inside.

The filter can easily be fitted to new or retrofitted to existing wood-heating systems with most chiney types.

Facts

• Suitable for small wood fire facilities like open fireplaces, free standing wood stoves, coal stoves, central heating systems fuelled with wood logs, shavings or wood chips below the capacity of 50 kW
• Proven and officially tested efficiency of 95%
• Can easily be fitted on any kind of chimeys
• Automatically functions and regulates
• Easy cleaning by chimney sweeper
• Robust, sturdy and long-lasting

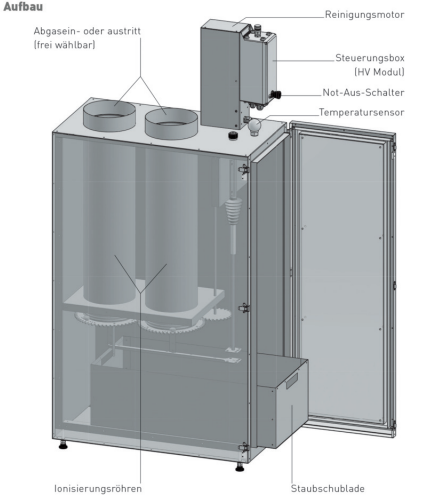

The particulate separator OekoRona M is an electrostatic precipitator which considerably reduces the emission of micro-dust caused by wood and coal boilers with outputs between 200 kW and 3 MW.

OekoRona M – Particulate separator for wood heating systems up to 3 MW

The modular design allows installations on both new and existing systems and makes OekoRona M a very flexible, highly efficient industrial dust collecting system. The mechanical cleaning mechanism enables a fully automatic operation of the particulate filter and reduces maintenance to a minimum.

Facts

• For all pellet and wood chip boilers
• Fully automatic mechanical and very quiet cleaning system
• High efficiency of PM removal
• Very low operating costs
• Retro-fit possible
• Reliable in negative or excessive pressure
• Fully integrated bypass system
• Very low energy consumption
• Various installation heights available
• Flexible ash removal
• Max. raw flue gas temperature of 250°C

High-voltage components for the integration of the particle separator into the wood burning heaters.

Thanks to our many years of experience, we can support you in integrating filter solutions into existing living room fireplace and biomass boilers. We offer a wide portfolio of high voltage components for customized solutions:

- High voltage modules up to 60kV in different power levels

- Analog interface and bus communication e.g. ModBus, CANBus

- Insulators for applications up to 600°C

- high voltage electrodes

- high voltage cables

- high voltage connectors

- grounding lances

Electrostatic particle filter for wood and coal heating systems up to 100 kW: OekoTube Inside

The electrostatic particle filter OekoTube-Inside is approved for wood heaters up to 100 kW and is mounted in the boiler room.

OekoTube Inside – electrostatic particle filter for wood and coal heating systems.

This filter is also available with a semi-automatic cleaning system. By adding simple additional measures such as longer separation distance, longer electrodes or by widening the diameter, the separation efficiency and cleaning intervals can be optimized. We recommend such as amendments for outputs over 50 kW.
