PP trapped waste for ø90 holed tray

• c.p. ABS grid ø118
• s/steel AISI316 flange ø108
• lateral outlet 1″½
• room under shower tray 70

ABS channel for built-in shower with thin bed waterproofing system

• AISI 316 stainless steel tileable cover adjustable in height
• thin bed system perimetric waterproofing
• removable trap for cleaning
• adjustable supports to ease the installation
• dry-spot, drainage point for the water filtered through the flooring
• ABS lateral outlet DN50
• tiling thickness 15÷25 mm
• room under floor H. 75 mm
• ideal also for flush-to-wall installation

Adjustable length ABS channel for built-in shower with thin bed waterproofing system

• adjustable from 430 minimum to 1200 mm maximum length
• AISI 316 stainless steel and chrome plated brass grid adjustable in height
• thin bed system perimetric waterproofing
• removable trap for cleaning
• adjustable supports to ease the installation
• supplied complete with the cutting template for the channel and grid
• special joints allow to assemble more channels to extend the drain length or increase the drainage capacity
• dry-spot, drainage point for the water filtered through the flooring
• ABS lateral outlet DN50
• tiling thickness 7÷22 mm
• room under floor H. 80 mm

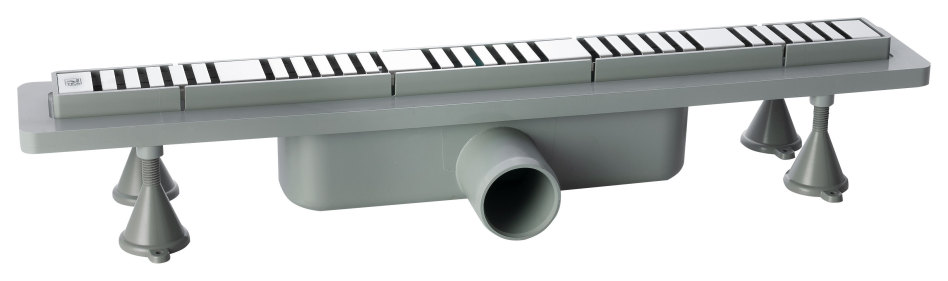

ABS channel for built-in shower with thin bed waterproofing system

• AISI 316 stainless steel grid 400 - 1.000 mm
• grid model Line
• thin bed system perimetric waterproofing
• removable trap for cleaning
• adjustable supports to ease the installation
• ABS lateral outlet DN40
• two additional outlets
• ABS jointed tailpiece DN50
• tiling thickness 15÷30 mm
• room under floor H. 65 mm
