The periTUNNEL is a robust Ethernet bridging solution designed to seamlessly connect two network segments over long distances using existing cabling.

Equipped with RJ45 connectors on both ends and compatible with Single‐Pair Ethernet (SPE), it can deliver speeds of up to 100 Mbps and a maximum distances of up to 1000 meters.

By utilizing existing infrastructure, the periTUNNEL minimizes installation costs and complexities, making it an ideal choice for retrofits, expansions, and extending connectivity in challenging environments without sacrificing performance.

Targeted Applications

• Ethernet via existing cabling
• Media converting of Ethernet
• Long distance Connectivity
• IP cameras
• Building automation

Key Features

Ethernet compatible:

• 100BASE‐TX (IEEE 802.3u) Fast Ethernet or
• 100BASE‐T1 (IEEE 802.3bw)

Long Distance:

• 300m over 2‐wire CAT 5e
• 500m over 4‐wire CAT 5e
• 800m over 2‐wire CAT 5e with 10Mbit/s
• 500m over Coaxial 75‐5
• 1000m over Coaxial 75‐5 with 10Mbit/s

Perinet's Starter Kit Plus offers a complete, secure, and distributed IoT (Internet of Things) solution using networked sensors and Single Pair Ethernet.

This kit features a straightforward demonstration setup that uses a smart sensor adapter to measure distance and accordingly control an actuator, like a contactor.

It includes the periMICA, a modular computing device, which not only powers the application but also offers secure, password-free authentication (PKI2Go) and a user-friendly browserbased interface.

Additionally, a wide range of supporting documentation for this example application is available online.

This periNODE smart adapter has 2 in-/output channels.

It connects directly to sensors or actuators with 24V GPIO via a 4*0.25mm2 cable.

Consequently, analogue, passive sensors or actuators become smart, active network participants. They communicate via ethernet with any IT-system or data hub.

periNODE enables the configuration of data transfer intervals to meet user-specific needs.

This reduces network traffic and the collection of excess data.

Today, chips smaller than a fingernail have more computing power than our desktop computers 25 years ago. Even network connections and the necessary device electronics have shrunk in size thanks to Single Pair Ethernet (SPE). SPE can therefore also be used to connect small sensors via Ethernet.

IP-capable sensors in particular are becoming increasingly important. Virtualization, whether in the cloud or at the edge, also only works thanks to network communication. Without a common medium, system boundaries would have to be constantly overcome. Thanks to the network, a sensor or actuator becomes a fully-fledged member of IoT applications.

With the periCORE SPE Communication Module, Perinet has developed the world's first SPE-based electronics for direct integration into simple sensors and actuators. Thanks to its small form factor, it can be installed in sensor housings to connect them directly to the IT world and thus seamlessly provide data to the outside world. Instead of analog raw values, physical values are then transmitted in the respective units of measurement and thus generally understandable information.

The module gives these devices both hardware and software network capability so that they can be easily integrated. This turns formerly passive sensors and actuators into intelligent devices that can pre-process data and work on an event basis. At the same time, the entire network technology, including state-of-the-art security and firmware management, is already implemented and ready for use.

The intended use of the periCORE module is in an OEM customer's end product. As a white label product, the periCORE firmware architecture supports extensions by the OEM customer.

The periCORE communication module offers a variety of external interfaces to meet the requirements of an IIoT Industry 4.0 environment. It is also part of Perinet's other Smart Components, which include a media converter, a 3-port switch and the periNODE adapter.

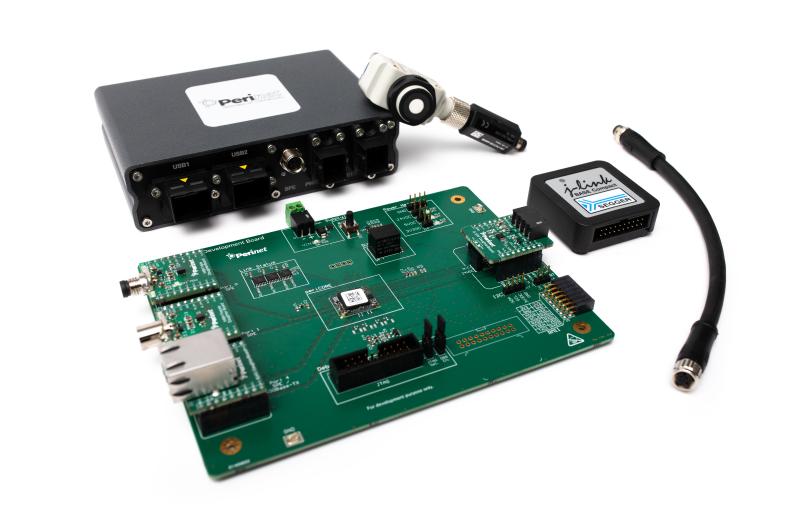

In addition, it is possible to rebrand and customize customer devices with minimal development effort. With the additional periCORE Development Kit, Perinet provides the infrastructure for software development. This allows the customer to create specific firmware for the periCORE.

The periTUNNEL is a robust Ethernet bridging solution designed to seamlessly connect two network segments over long distances using existing cabling.

Equipped with RJ45 connectors on both ends and compatible with Single‐Pair Ethernet (SPE), it can deliver speeds of up to 100 Mbps and a maximum distances of up to 1000 meters.

By utilizing existing infrastructure, the periTUNNEL minimizes installation costs and complexities, making it an ideal choice for retrofits, expansions, and extending connectivity in challenging environments without sacrificing performance.

Targeted Applications

• Ethernet via existing cabling
• Media converting of Ethernet
• Long distance Connectivity
• IP cameras
• Building automation

Key Features

Ethernet compatible:

• 100BASE‐TX (IEEE 802.3u) Fast Ethernet or
• 100BASE‐T1 (IEEE 802.3bw)

Long Distance:

• 300m over 2‐wire CAT 5e
• 500m over 4‐wire CAT 5e
• 800m over 2‐wire CAT 5e with 10Mbit/s
• 500m over Coaxial 75‐5
• 1000m over Coaxial 75‐5 with 10Mbit/s

Perinet's Starter Kit Plus offers a complete, secure, and distributed IoT (Internet of Things) solution using networked sensors and Single Pair Ethernet.

This kit features a straightforward demonstration setup that uses a smart sensor adapter to measure distance and accordingly control an actuator, like a contactor.

It includes the periMICA, a modular computing device, which not only powers the application but also offers secure, password-free authentication (PKI2Go) and a user-friendly browserbased interface.

Additionally, a wide range of supporting documentation for this example application is available online.

This periNODE smart adapter has 2 in-/output channels.

It connects directly to sensors or actuators with 24V GPIO via a 4*0.25mm2 cable.

Consequently, analogue, passive sensors or actuators become smart, active network participants. They communicate via ethernet with any IT-system or data hub.

periNODE enables the configuration of data transfer intervals to meet user-specific needs.

This reduces network traffic and the collection of excess data.
