miniMULTI

An installation controller designed for hybrid systems in installations with heat pumps, gas boilers, or electric boilers, as well as simple mixing systems. Ideal for use in hydraulic cabinets and hydroboxes, where it fills the gap for electronic control of the mixing system. It provides weather-based control of the installation.

Functions of the miniMULTI installation controller:

• possibility of connecting the internet system remote operation and management of work by ecoNET Cloud
• built-in Installation Assistant
• operation of up to 3 heating circuits
• DHW operation
• circulation pump operation
• weather-compensated control
• simple remote software update
• bluetooth communication, simple operation
• simple pairing of thermostats
• anti-freeze system
• 3 operation modes (auto/ eco/ comfort)
• anti-legionella thermal disinfection
• time schedules
• preventive cooling of heat source
• operation of two regulated circuits (underfloor heating system and radiators)

Use of miniMULTI controller:

• hydraulic cabinet
• pump groups
• heat pumps
• heating boilers: gas, electric, pellets (with option of override by external signal)

Create one system with xCLOUD internet module:

Connect controllers from different manufacturers, of heating system equipment, into one system with xCLOUD internet module. Build an universal system in which you can:

• remotely analyse historical data
• reduce the cost of service trips by remotely resolving requests
• eliminate equipment installation errors using the Installation Assistant and installation log

ecoVENT NANO

ecoVENT NANO controller is designed for built-in installation. It allows to control small, medium and large ventilation units. Built-in support for a stepper motor and cooperation with sensors (humidity, temperature, air quality) allows to design the most cost-effective solution.

Why you should choose the ecoVENT NANO?

• reduce the production cost of the heat recovery unit
• introduce remote service management and device updates with built-in Wi-Fi and bluetooth
• offer your installers easy device connection with the Installation Assistant and the ecoNEXT application
• connect heat recovery and heat pump within one system
• implement zone control; save Energy and enjoy fresh air according to real demand

Functions of the ecoVENT NANO:

• the controller board with or without expansion module
• built-in support for stepper motor
• configuration of inputs and outputs
• 5-stage defrosting algorithm for the heat exchanger
• DCV Demand Controlled Ventilation - cooperation with temperature, humidity, and air quality sensors
• CAV/VAV function for air flow control
• Modbus communication
• day/night zone control

Accessories:

SCO2 EX1 - CO2 relative humidity and temperature sensor

ecoPRESS - EX1 - 01/ EX1 – 02 differential pressure sensor

SRHT IN1 relative humidity and temperature sensor

SCO2 IN1 - sensor CO2, relative humidity and temperature

ecoPRESS IN differential pressure sensor

Controllers ready to work with your ventilation:

Key elements of the DCV system are controllers. Constant monitoring of temperature, humidity, and pollution levels allows adjusting the ventilation system’s operation to specific conditions in each room.

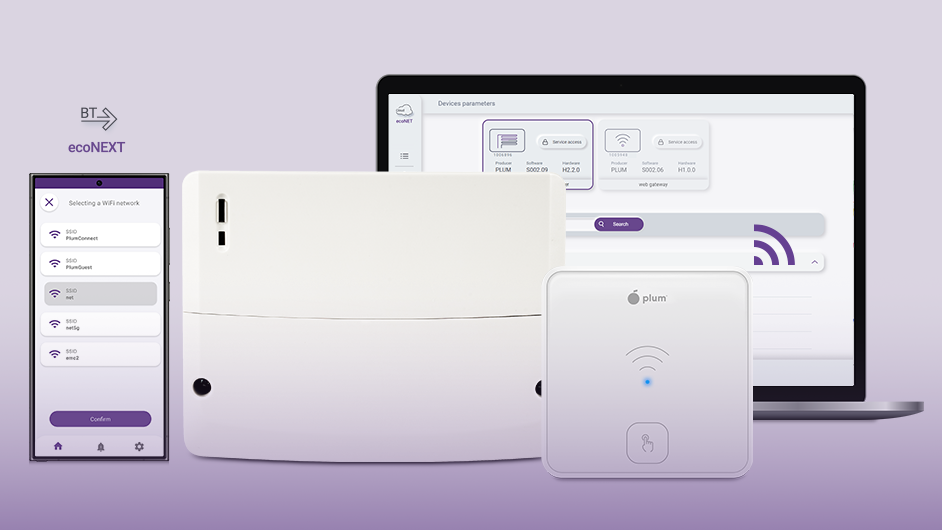

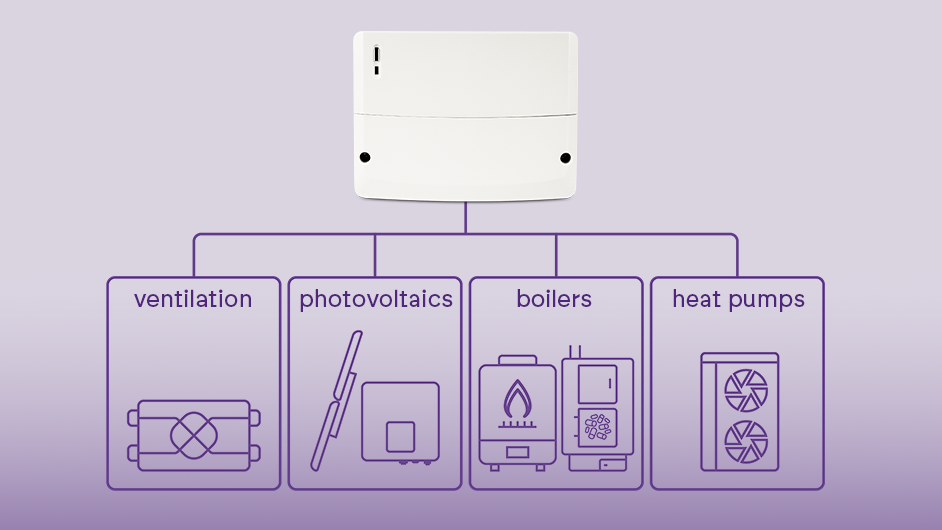

evoSYNC

Why you should choose the evoSYNC module?
• optimize costs and electricity consumption by incorporating dynamic tariffs, supporting PV installations, and energy storage – HEMS Dynamics.
• optimize thermal energy consumption – purchase energy when it’s inexpensive and utilize reserves when prices are high.
• continuously monitor and manage devices through a WiFi module.
• oversee device operation and respond to failures in real time – remote online service.
• switch between heat sources (e.g., gas boiler and heat pump) based on energy prices and efficiency (COP) – bivalent point regulator.
• precisely control room temperatures with wireless room thermostats.
• integrate all devices within the system using the Modbus protocol.
• ensure the safety of the heating system – SARG system

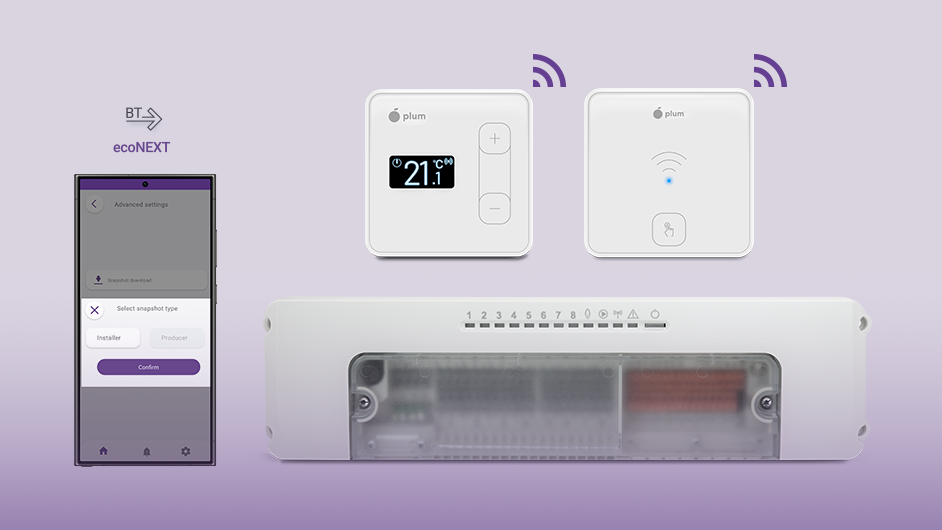

xFLOOR

The xFLOOR controller is designed to control underfloor heating. The floor heating controller operates thermoelectric actuators for eight independent heating zones. Wireless thermostats, wired thermostats and temperature sensors provide information about the current temperature in each room to ensure a constant level of thermal comfort.

The ability to control the temperature, independently for each heating zone, makes it possible to maintain thermal comfort according to users' preferences and reduces heating bills.

Why you should choose xFLOOR controller?

• control the circulation pump, heat source and valves
• expand with additional heating zones by connecting xFLOOR modules together for a maximum of 32 heating zones (4 xFLOOR modules connected)
• remotely analyse historical operating data of equipment and optimise its parameters
• reduce the cost of service trips by resolving requests remotely via a web-based system
• reduce device installation time and eliminate errors using the built-in Installation Assistant and installation log
• connect both radio and wired thermostats

Functions of the xFLOOR controller:

• control of circulation pump, heat source, and valves
• connection of additional controllers (up to 4)
• quick installation and easy maintenance
• thermostats with cooling algorithms
• easy connection of actuators
• support for up to 8 heating zones
• capability to handle 5 actuators per output
• visual signaling
• built-in bluetooth
• direct configuration from the controller
• backup fuse

Installation Assistant:

The Wizard allows to configure controller’s parameters at its first launch and when connecting the floor system installation.

Parameters to be set during configuration are displayed in a form of questions in ecoNEXT mobile application in Bluetooth communication or on the xTherm Touch panel screen.

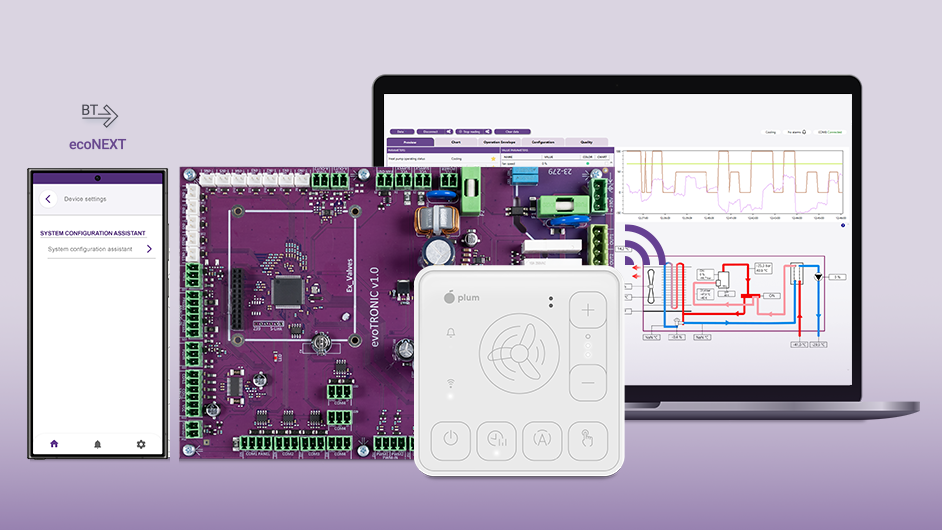

evoTRONIC

The evoTRONIC controller allows for full parameterization of heat pump components to optimize its operation. The professionally prepared development board for the evoTRONIC controller enables the connection of all available market components to achieve the highest quality end product, which is the heat pump. The dedicated evoDEV application allows for convenient adjustment of over 300 parameters of heat pump components in a user-friendly interface. The evoTRONIC controller can collaborate with other HVAC devices, creating a unified heating system.

Why you should choose the evoTRONIC?

• optimize the heat pump's performance by independently adjusting its operating parameters
• utilize the application and clear interface to customize over 300 parameters of heat pump components
• offer Installers simple device connection with Installation Assistant and the ecoNEXT application
• implement remote service management and device updates with the ecoNET Cloud system

Functions of the evoTRONIC:

• universal development board
• over 300 parameters for custom configuration
• dedicated developer application – evoDEV
• remote monitoring and management through ecoNET Cloud
• reduced service costs through the ecoNET Cloud platform
• algorithms to safeguard heat pump operation
• remote access via web service
• dedicated installer application to simplify heat pump installation

evoDEV application

evoDEV, an application for heat pump installation research, parameter dependencies, and component quality.

The dedicated evoDEV application plays a crucial role in the design of heat pumps with the evoTRONIC controller, as well as during the quality control process on the production line.
