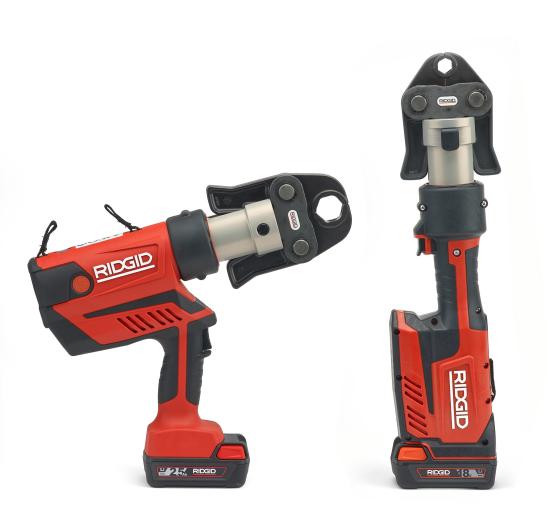

The RIDGID RP 251 is the latest innovative tool in the RIDGID Compact Press Tool family. Its ergonomic design with forward-positioned trigger and SlimGrip™ handle allows for one-handed use to help you easily work overhead and in tight spaces. Get enhanced access and performance with features like a 360˚ head swivel, bright LEDs, and a brushless motor capable of over 60,000 press cycles.

The RP 251 is compatible with all RIDGID 24kN Compact Series jaws, rings, and actuators and can press up to 35 mm on Copper & Stainless Steel and up to 32 mm on Multilayer/PEX tubing.

Features

• Total Access - Endless 360° head swivel for reaching tight spaces from practically every angle
• Performance - Brushless motor capable of over 60,000 press cycles requiring no scheduled maintenance
• Effortless Operation - Light-weight, ergonomic in-line design with a forward-positioned trigger and SlimGrip handle allows for easy one-handed operation. The reduced weight of the RP 251 helps reducing fatigue and improves efficiency.
• Enhanced Visibilty - Improved LED light ring provides bright visibility in dark conditions
• Bluetooth® Connectivity - Access tool information like amount of press cycles, tool locking, service interval, battery status, and more with the free RIDGID Link app
• Persistent - Completes up to 140 presses per charge with the 12V Li-Ion Battery

Specifications

Design Inline Design

Weight (Tool only)1.62 kg

Minimum Force Output 24 kN

Capacity Copper & (Stainless) Steel 12 - 35 mm

Capacity Multilayer & PEX 14 - 32 mm

Crimp Cycle Time~ 3 - 4 seconds

Power Source 12V Advanced Lithium 2.5 Battery

Connectivity Bluetooth (up to 10 m)

Bolt Sensor Yes, RIDGID Bolt Sensor PLUS

LED-LightYes, LED-Ring

Head RotationInfinite (> 360°)

Pressure Sensor Yes

Service Interval No Scheduled Maintenance

The RIDGID K9-12 is the most compact version of the FlexShaft Drain Cleaning Machines. The fully enclosed housing contains 30' (9.1 m) of FlexShaft cable, encapsulated in nylon sheath for less mess and easy cleanup. The lightweight, portable design is perfect for 1 1/4" - 2" (32 to 50 mm) pipes.

FlexShaft cable is spun by attaching your cordless drill to the input shaft on the housing. As the cable spins, the chain knocker attached will expand to provide wall-to-wall pipe cleaning.

Fast setup and cleanup, quick cleaning, and cordless convenience allow you to restore your pipes to full flow capacity as efficiently as possible. The RIDGID K9-12 is an ideal entry-level machine for clearing Light Residential Blockages.

Features

• Wall-To-Wall Clean - Chain knocker fully expands inside the pipe reaching wall-to-wall, clears the blockage and restores the pipe to full flow capacity.
• Less Mess & Quick Clean Up - FlexShaft cable is fully enclosed in a flexible yet durable nylon-sheath and fully enclosed in housing for less mess and quick clean up.
• Intuitive Use & Ergonomic Design - Powered by any standard 1800-2500 RPM cordless drill
• Cable Protection System - Built-in clutch design extends cable life to maximize uptime
• Lightweight System - Less than 10lb (4.5 kg) unit is a clear first choice to tackle slow or blocked drains.
• Versatile Storage and Use - Robust design enables machine to be stored vertically and also allows drill to be positioned in multiple orientations during use.
• Adaptable Accessories - Compatible with plain chains, carbide chains, penetrating heads, brushes and more
• Application - Ideal for Light Residential Blockages.

Specifications

Cable Length 9.1 m

Cable Diameter 6 mm

Area of Application Sinks, Tubs, ShowersType of BlockageSoft Blockages, Build Ups, and Grease

These tubing cutters have been designed for optimized performance on Stainless Steel tube. A contoured frame allows for easy alignment while adjusting the cutter to make a cut. Now includes X-CEL® Knob for quicker cutting

Features

• A contoured frame allows for easy alignment while adjusting the cutter to make a cut.
• Ergonomic knob allows for easy adjustments.
• Now includes X-CEL® Knob for quicker cutting.
• 12 individual ball bearings. The bearings create a smoother cut, and allow for increased speed around the tube.
• Specially designed Stainless Steel cutter wheel contains ball bearings in the hub, to decrease drag around the tube for a smoother cut.

Technical data

Capacity 6-65 mm

Application Stainless steel & C-steel

The RIDGID SeeSnake® microDRAIN APX™ with TruSense is the ideal pipe inspection camera for small pipes and conduits with tight turns. The advanced, high-flexbility push cable and a small-diameter camera design allows inspection through small-diameter pipes, p-traps, and small-radius bends that other inspection systems often cannot inspect. It offers enhanced camera functionality including TruSense technology and auto-image flip for bright, clear in-pipe images and on-screen camera angle and image orientation feedback. The microDRAIN APX includes a kickstand for use with the CSx Via™ and offers enhanced stability.

Features

• Flexibility - High-flex push cable navigates tight turns and small diameter pipes - pass multiple 90° bends in most 1.5" (40 mm) drain lines.
• Enhanced Camera Functionality - APX camera reels offer TruSense technology with an HDR image sensor for superior in-pipe viewing and on-camera TiltSense inclinometer.
• Auto-Image Flip - Rotates camera image wihout any moving parts when connected to CSx Wi-Fi Connected monitor.
• Portability - Lightweight and compact design is one-half the size of popular inspection systems, easily stowed in a truck and carried onto the jobsite.
• Stability - Built-in kickstand for improved ergonomics can be used uprigt, at a 45 degree angle for improved leverage on four feet to provide clearance for use with CSx Via.
• Durability - Hardened stainless steel camera head and spring assembly is durable and reliable for a long service life.
• Visibility - Camera heads feature long-lasting high-efficiency LEDs that deliver better in-pipe visibility and higher color accuracy.
• Traceability - Integrated 512 Hz sonde allows for easy line tracing and locating.
• Versatility - Works with all SeeSnake monitors, including CSx Via Wi-Fi Hub, or the CA-350 inspection camera (CA-350 adapter sold serparately).

Specifications

Camera Diameter 22 mm

Camera TypeAuto-Image Flip

Resolution 640 x 480 pixels

Line Capacity 1 1/4" to 3" (32 mm to 75 mm)

Push Cable Length 65 ft (20 m)

Push Cable Diameter 0.33" (8.3 mm)

Cable FlexibilityHigh Flex

Push Cable Minimum Bend Radius 0.75" (19.1 mm)

Sonde 512Hz, Integrated

Weight 11.6 lbs (5.25 kg)

Length 13.3 in (337 mm)

Width 8.8 in (224 mm)

Height 16.2 in (411 mm)

Drum Diameter 12 in (305 mm)

The RIDGID RP 251 is the latest innovative tool in the RIDGID Compact Press Tool family. Its ergonomic design with forward-positioned trigger and SlimGrip™ handle allows for one-handed use to help you easily work overhead and in tight spaces. Get enhanced access and performance with features like a 360˚ head swivel, bright LEDs, and a brushless motor capable of over 60,000 press cycles.

The RP 251 is compatible with all RIDGID 24kN Compact Series jaws, rings, and actuators and can press up to 35 mm on Copper & Stainless Steel and up to 32 mm on Multilayer/PEX tubing.

Features

• Total Access - Endless 360° head swivel for reaching tight spaces from practically every angle
• Performance - Brushless motor capable of over 60,000 press cycles requiring no scheduled maintenance
• Effortless Operation - Light-weight, ergonomic in-line design with a forward-positioned trigger and SlimGrip handle allows for easy one-handed operation. The reduced weight of the RP 251 helps reducing fatigue and improves efficiency.
• Enhanced Visibilty - Improved LED light ring provides bright visibility in dark conditions
• Bluetooth® Connectivity - Access tool information like amount of press cycles, tool locking, service interval, battery status, and more with the free RIDGID Link app
• Persistent - Completes up to 140 presses per charge with the 12V Li-Ion Battery

Specifications

Design Inline Design

Weight (Tool only)1.62 kg

Minimum Force Output 24 kN

Capacity Copper & (Stainless) Steel 12 - 35 mm

Capacity Multilayer & PEX 14 - 32 mm

Crimp Cycle Time~ 3 - 4 seconds

Power Source 12V Advanced Lithium 2.5 Battery

Connectivity Bluetooth (up to 10 m)

Bolt Sensor Yes, RIDGID Bolt Sensor PLUS

LED-LightYes, LED-Ring

Head RotationInfinite (> 360°)

Pressure Sensor Yes

Service Interval No Scheduled Maintenance

The RIDGID K9-12 is the most compact version of the FlexShaft Drain Cleaning Machines. The fully enclosed housing contains 30' (9.1 m) of FlexShaft cable, encapsulated in nylon sheath for less mess and easy cleanup. The lightweight, portable design is perfect for 1 1/4" - 2" (32 to 50 mm) pipes.

FlexShaft cable is spun by attaching your cordless drill to the input shaft on the housing. As the cable spins, the chain knocker attached will expand to provide wall-to-wall pipe cleaning.

Fast setup and cleanup, quick cleaning, and cordless convenience allow you to restore your pipes to full flow capacity as efficiently as possible. The RIDGID K9-12 is an ideal entry-level machine for clearing Light Residential Blockages.

Features

• Wall-To-Wall Clean - Chain knocker fully expands inside the pipe reaching wall-to-wall, clears the blockage and restores the pipe to full flow capacity.
• Less Mess & Quick Clean Up - FlexShaft cable is fully enclosed in a flexible yet durable nylon-sheath and fully enclosed in housing for less mess and quick clean up.
• Intuitive Use & Ergonomic Design - Powered by any standard 1800-2500 RPM cordless drill
• Cable Protection System - Built-in clutch design extends cable life to maximize uptime
• Lightweight System - Less than 10lb (4.5 kg) unit is a clear first choice to tackle slow or blocked drains.
• Versatile Storage and Use - Robust design enables machine to be stored vertically and also allows drill to be positioned in multiple orientations during use.
• Adaptable Accessories - Compatible with plain chains, carbide chains, penetrating heads, brushes and more
• Application - Ideal for Light Residential Blockages.

Specifications

Cable Length 9.1 m

Cable Diameter 6 mm

Area of Application Sinks, Tubs, ShowersType of BlockageSoft Blockages, Build Ups, and Grease

These tubing cutters have been designed for optimized performance on Stainless Steel tube. A contoured frame allows for easy alignment while adjusting the cutter to make a cut. Now includes X-CEL® Knob for quicker cutting

Features

• A contoured frame allows for easy alignment while adjusting the cutter to make a cut.
• Ergonomic knob allows for easy adjustments.
• Now includes X-CEL® Knob for quicker cutting.
• 12 individual ball bearings. The bearings create a smoother cut, and allow for increased speed around the tube.
• Specially designed Stainless Steel cutter wheel contains ball bearings in the hub, to decrease drag around the tube for a smoother cut.

Technical data

Capacity 6-65 mm

Application Stainless steel & C-steel
