Description

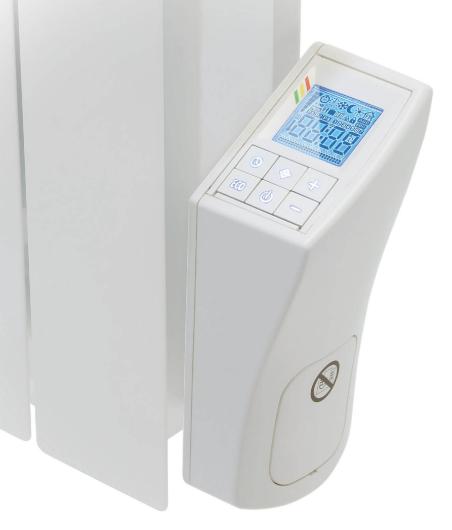

Innovative and modern digital clock thermostat for electric radiators based on fluid or dry heat transfer that can be configured with a daily or weekly program. The temperature is controlled by means of a room temperature sensor and it is based on a TRIAC with PID algorithm for a more precise temperature control. The device can be coupled to several replaceable heating element types up to 2000W. The supported heating element types are easily obtainable from the main European manufacturers. INFINITY is equipped with one of the widest white backlit displays in its category, which provides an optimal visualization of the device status, the active functions and the selected operating mode. In particular, it provides information about the output power and the actual energy consumption. In addition to the optional IR receiver for operating the device with the “Helios” and “Galaxy” remote controls, INFINITY can also be optionally equipped with a Wi-FiTM module for connecting to iOSTM and AndroidTM devices and allowing the control of the device through the dedicated App, for an improved user experience. The “Open Window Detection” function reduces energy waste and thus allows cost savings. The “Vacation” function allows deactivating the thermostat for a user configurable time interval. The “ASC” function anticipates the starting time compared to ambient temperature dynamic. The “Childsafety” function lowers the temperature of the radiating surface. The “Key Lock” mode can be used to prevent inadvertent modification to the settings. The clock thermostat allows selecting one of three predefined customizable programs. INFINITY can be connected to a Fil-Pilote control unit with 6 commands (only for Class II models).
The device has a backup battery (supercap), which obviates to a loss of power supply and supplies sufficient energy to the internal clock for up to two hours. The motion sensor function reduces the temperature when the room is empty by switching to ECO mode to save energy. The holiday function allows the thermostat to be deactivated for a period chosen by the user.
This thermostat can be connected to a 6-order Fil-pilote control unit (only for the Class II version).
Versions:
• INFINITY ECO - relay switching with PID algorithm.
• INFINITY PLUS - Triac switching with PID algorithm,
LCD backlight, IR receiver.
• INFINITY Wi-Fi – Wi-Fi module, Triac switching with
PID algorithm, LCD backlight, IR receiver, backlighted
button.
Technical specifications
Operational modes, functions
and display indications
Comfort, Night, Fil-Pilote, Timer2h or Boost2h, Stand-by, Clock-thermostat, Antifreeze,
Open window detection, ECO, Presence Sensor, Children protection, ASC, Holiday, Key
lock, AndroidTM iOSTM Wi-FiTM compatible, Power indicator, Energy consumption
indicator
Conformity marking CE
Supply voltage 230 VAC - 50 Hz
Range of controllable powers Up to 2000 W
Ambient working temperature 7°C ÷ 32°C
Appliance classes Class II
IP protection IP24
Size 190mm x 83mm x 64mm
Available colours White, Noir Sablè
