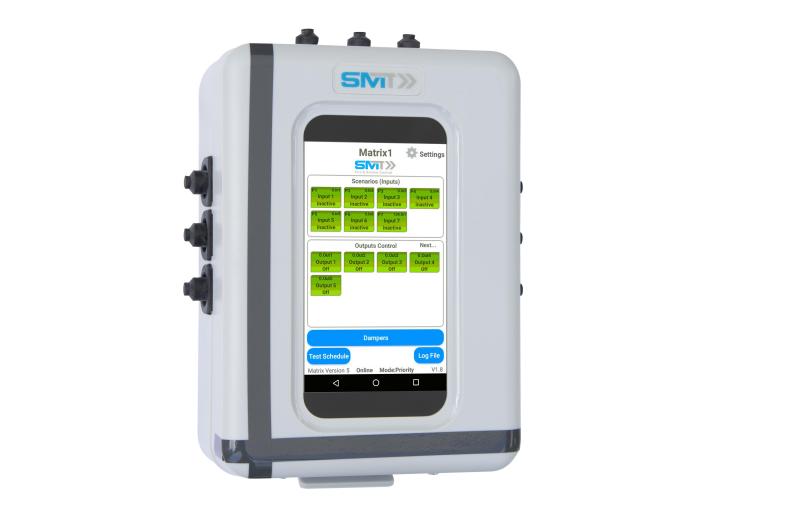

Smart Matrix Controller M240-MX for fire safety and smoke extraction application with matrix set up

Smart Matrix Controller M240-MX for fire safety and smoke extraction application with matrix set up

SMT Systems & Modules Technology AG

Supplier profile All products

Contact supplier Contact persons

Description

Plug and play solution.
The smart Matrix Controller M240-MX for fire safety and smoke extraction application with matrix set up with high resolution touch screen controls and monitors up to 240 motorized fire or smoke extraction dampers, 60 scenarios and up to 35 ventilators.
Project set up is done online independent from the controller.
The applications are pre-programmed - no programming knowhow needed.
Configuration of the matrix is simple and intuitive. It is done online (Internet).
Uploading and adaptation of the matrix can be done anytime.
Remote access via WiFi and W-LAN. Cloud access as option.

More from us

Our website Our product

More products by SMT Systems & Modules Technology AG

Universal Field Controller for one motorized fire or smoke extraction damper

Perfectly suitable for the direct integration via BACnet or Modbus into a superior system and/or in combination with the M240 controller.
Controls and monitors one fire or smoke extraction damper as well as a smoke detector and a thermoelectric tripping device.
Available for all common 24 V and 230 V actuators (UFC24, UFC24-230).
Additional features integrated as standard: Automatic baud rate detection (with BACnet), bus monitoring functionality BACnet AND Modbus, run time monitoring of the actuator as well as full auto test function.

Universal Field Controller for TWO motorized fire or smoke extraction dampers

Perfectly suitable for the direct integration via BACnet or Modbus into a superior system and/or in combination with the M240 controller.
Individual control for up to two motorized fire or smoke extraction dampers.
Available for all common 24 V and 230 V actuators (UFC24-2, UFC230-2 only fire dampers).
Additional features integrated as standard: Automatic baud rate detection (with BACnet), bus monitoring functionality BACnet AND Modbus, run time monitoring of the actuator as well as full auto test function.

Smart Controller M240 with pre-programmed fire protection and smoke extraction application

Plug and play solution.
The M240 controller with high resolution touch screen controls and monitors up to 240 motorized fire or smoke extraction dampers.
Integrated standard protocols BACnet AND Modbus.
Automatic detection of the connected UFC devices.
Very simple and fast commissioning.
Stand-alone solution (incl. direct control of the fans / alarm inputs) or easy integration into a superior system via BACnet or Modbus.
Automatic baud rate detection (with BACnet).
Two fire protection and/or smoke extraction zones.
Remote access via WiFi and W-LAN. Cloud access as option.

Universal Field Controller for one motorized fire or smoke extraction damper

Perfectly suitable for the direct integration via BACnet or Modbus into a superior system and/or in combination with the M240 controller.
Controls and monitors one fire or smoke extraction damper as well as a smoke detector and a thermoelectric tripping device.
Available for all common 24 V and 230 V actuators (UFC24, UFC24-230).
Additional features integrated as standard: Automatic baud rate detection (with BACnet), bus monitoring functionality BACnet AND Modbus, run time monitoring of the actuator as well as full auto test function.

Universal Field Controller for TWO motorized fire or smoke extraction dampers

Perfectly suitable for the direct integration via BACnet or Modbus into a superior system and/or in combination with the M240 controller.
Individual control for up to two motorized fire or smoke extraction dampers.
Available for all common 24 V and 230 V actuators (UFC24-2, UFC230-2 only fire dampers).
Additional features integrated as standard: Automatic baud rate detection (with BACnet), bus monitoring functionality BACnet AND Modbus, run time monitoring of the actuator as well as full auto test function.

Smart Controller M240 with pre-programmed fire protection and smoke extraction application

Plug and play solution.
The M240 controller with high resolution touch screen controls and monitors up to 240 motorized fire or smoke extraction dampers.
Integrated standard protocols BACnet AND Modbus.
Automatic detection of the connected UFC devices.
Very simple and fast commissioning.
Stand-alone solution (incl. direct control of the fans / alarm inputs) or easy integration into a superior system via BACnet or Modbus.
Automatic baud rate detection (with BACnet).
Two fire protection and/or smoke extraction zones.
Remote access via WiFi and W-LAN. Cloud access as option.

Universal Field Controller for one motorized fire or smoke extraction damper

Perfectly suitable for the direct integration via BACnet or Modbus into a superior system and/or in combination with the M240 controller.
Controls and monitors one fire or smoke extraction damper as well as a smoke detector and a thermoelectric tripping device.
Available for all common 24 V and 230 V actuators (UFC24, UFC24-230).
Additional features integrated as standard: Automatic baud rate detection (with BACnet), bus monitoring functionality BACnet AND Modbus, run time monitoring of the actuator as well as full auto test function.

Universal Field Controller for TWO motorized fire or smoke extraction dampers

Perfectly suitable for the direct integration via BACnet or Modbus into a superior system and/or in combination with the M240 controller.
Individual control for up to two motorized fire or smoke extraction dampers.
Available for all common 24 V and 230 V actuators (UFC24-2, UFC230-2 only fire dampers).
Additional features integrated as standard: Automatic baud rate detection (with BACnet), bus monitoring functionality BACnet AND Modbus, run time monitoring of the actuator as well as full auto test function.
