Description
Designed for heat pumps DHW tanks with high efficiency coil with large heating surface.

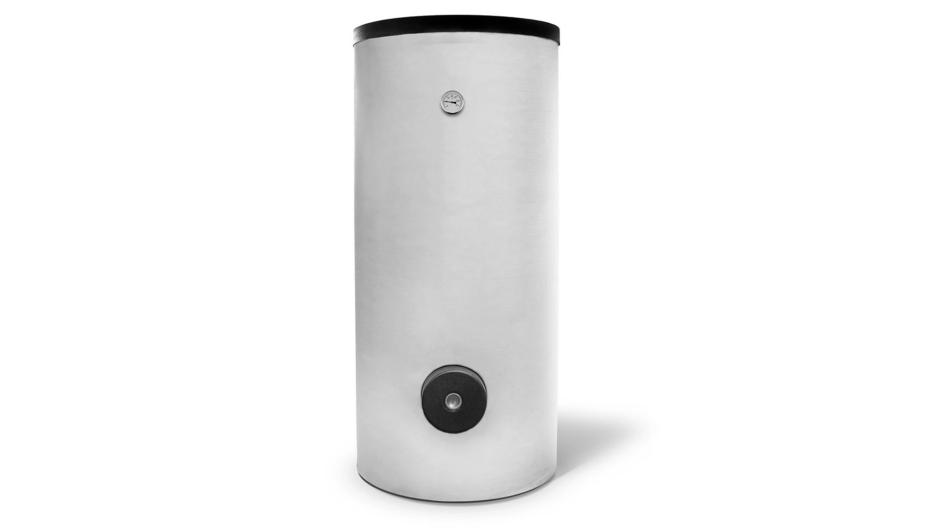

Standing hot water storage tanks for domestic hot waterpreparation. The tank has a coil with a large surface area, which is designed for heat pump. The contact surface of the hot water with the tank is protected against corrosion by a layer of high quality enamel and magnesium anode*. Complies with DIN 4753. This ensures that the hot water only comes into contact with a hygienically clean surface.
Thermal insulation in the tanks is a layer of permanently bonded CFC-free polyurethane hard foam and a replaceable layer of PVC foil.
Technical description:
- Material: S235JR,
- Welding: automatic welding,
- Protection: high-quality enamel coating and protective anode,
- Maximum operating pressure of the tank: 10 bar,
- Maximum test pressure: 15 bar,
- Maximum operating temperature: 95ºC,
- Insulation: 50mm thick polyurethane foam,
- Outer jacket: color gray,
- Heat exchangers: steel pipe S235JR,
- Inspection opening: ø125mm/ø180mm.
It is one of the many tanks we offer.
