Size - 1"

Material - Brass hpb57-3

Nominal pressure - ≤ 10bar

Applicable medium - Cold and hot water

Working temperature = t≤ 100℃

Temp. control range = 30-70℃

Temp. control accuracy = ±1℃

Pump connection - G 11/2“

Connection thread - G1 (ISO228)

Introduce

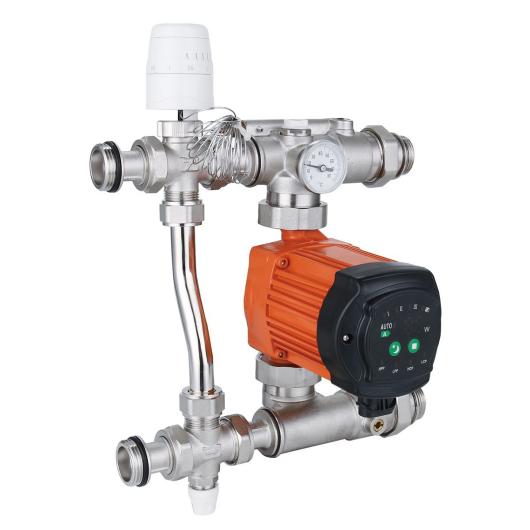

The mixing control center outlines that the temperature control valve head sets the mixing temperature, and operates according to the temperature mark corresponding to the pointer; the temperature sensing bag measures the mixing water temperature, and controls the mixing proportion and mixing temperature through the power parts in the temperature control valve head; the front end is connected with a water separator, which can separately control the high temperature radiator and the towel rack for water supply and return; the end is not connected with a water collector. Control the floor heating water to be no more than 60 “C, the bypass is used to ensure the minimum flow and stable primary side pressure difference at the primary side, avoid high temperature fault and water flow fault of the unit, affect the heating effect, save energy by 20%, install small volume, and the best centralized control heating system.

Explain

Features： 1. Sensor type mixed water cooling system. Through the temperature control sensor, the proportion of hot water and water is controlled by the temperature control package. The main body is forged, high-density, stable and reliable. And can increase the flow rate through the circulation pump, speed up the cooling effect. It can be used with all kinds of floor heating diversity water collector;
2. The main body is forged as a whole, without leakage. The internationally leading shielded pump is adopted, which has low power consumption (minimum 46 watts, maximum 100 watts), low noise ≤ 45dB, long service life, and can work continuously for 5000h (with water), stable and reliable
3. Proportional integral control water temperature, temperature difference ± 1C
4. Inching function: the shield pump is inched for 30 seconds every week to prevent the pump from locking due to long-term stagnation;
5. It has the functions of filtration, drainage and exhaust, which is convenient for cleaning, overhaul and maintenance;
6. It has its own low-temperature protection function. When the water temperature is lower than 35 ° C, the system water pump will stop, so as to effectively protect the water pump from being dry burned and damaging the water pump
7. It adopts the intelligent panel control, which can execute the system work by weekly programming. After weekly programming, the intelligent panel can automatically control the automatic operation of the whole heating system every week and every hour every day.
